Publication date: 2023-04-26

Automatic Insertion Force Testing for Pluggers Machine 3D model

$69

License: Royalty Free License

author:

Lovano

Buy at www.cgtrader.com - $69 Add to Wishlist
  • Description
  • Formats
Description

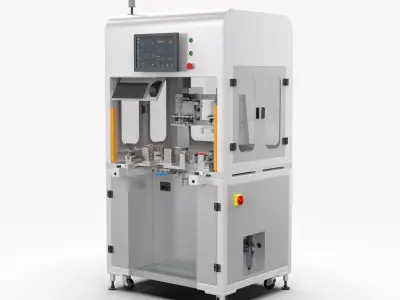

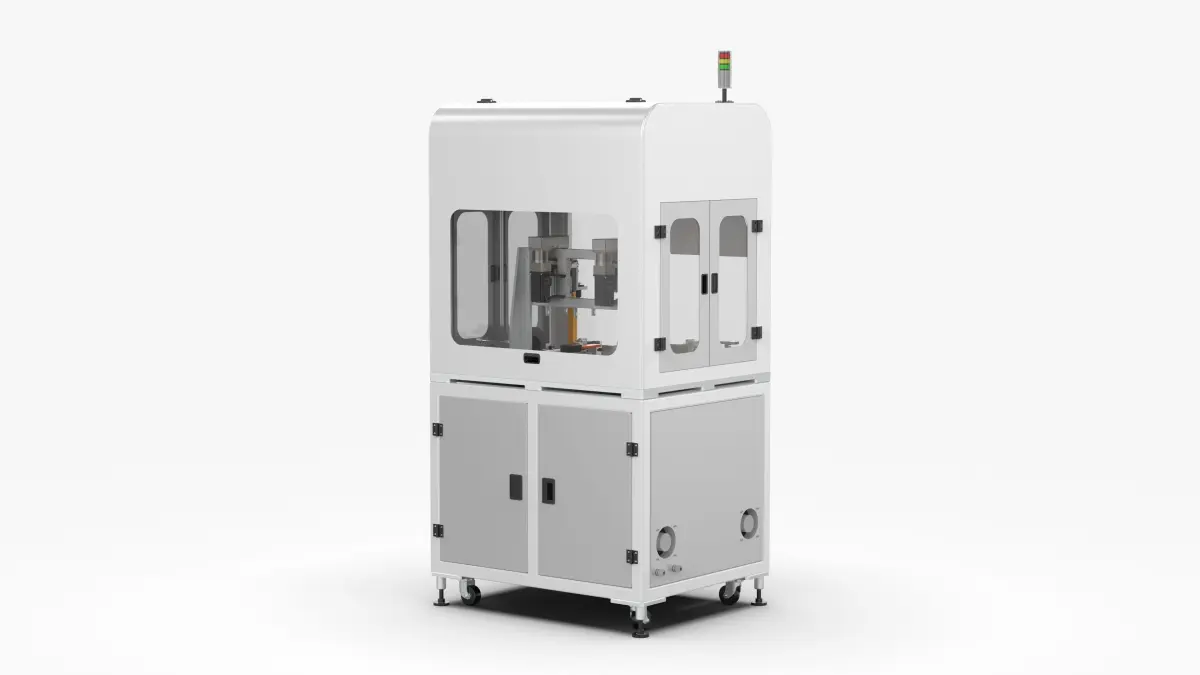

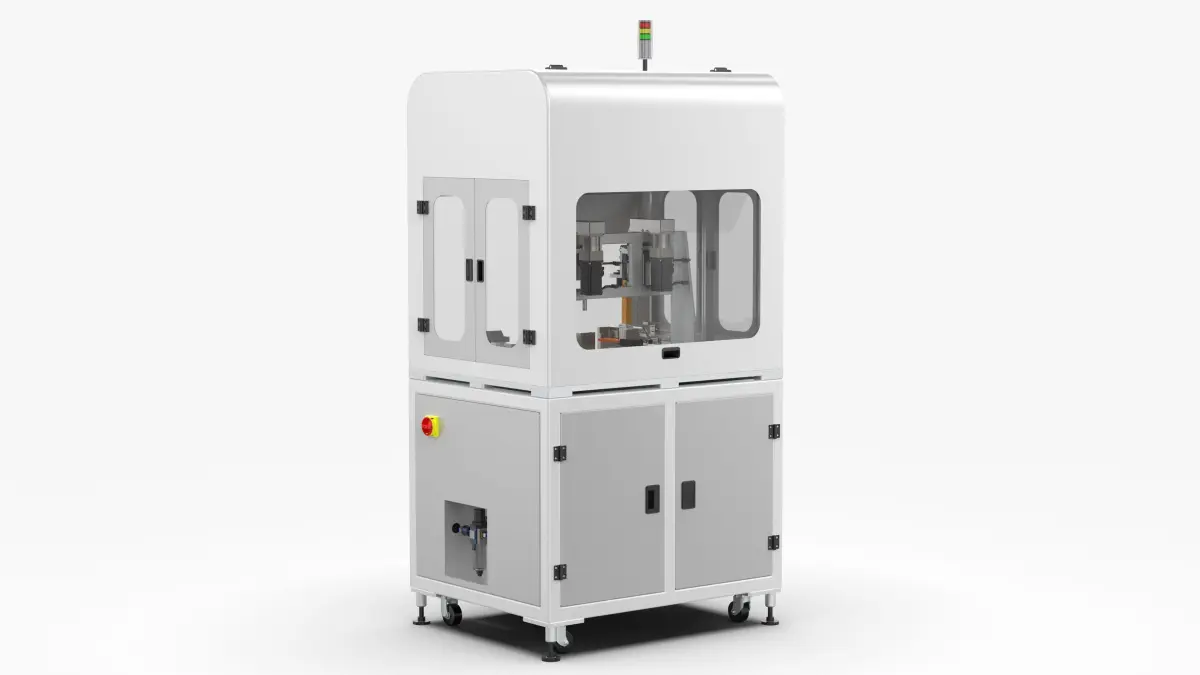

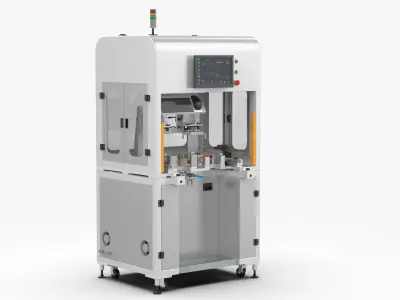

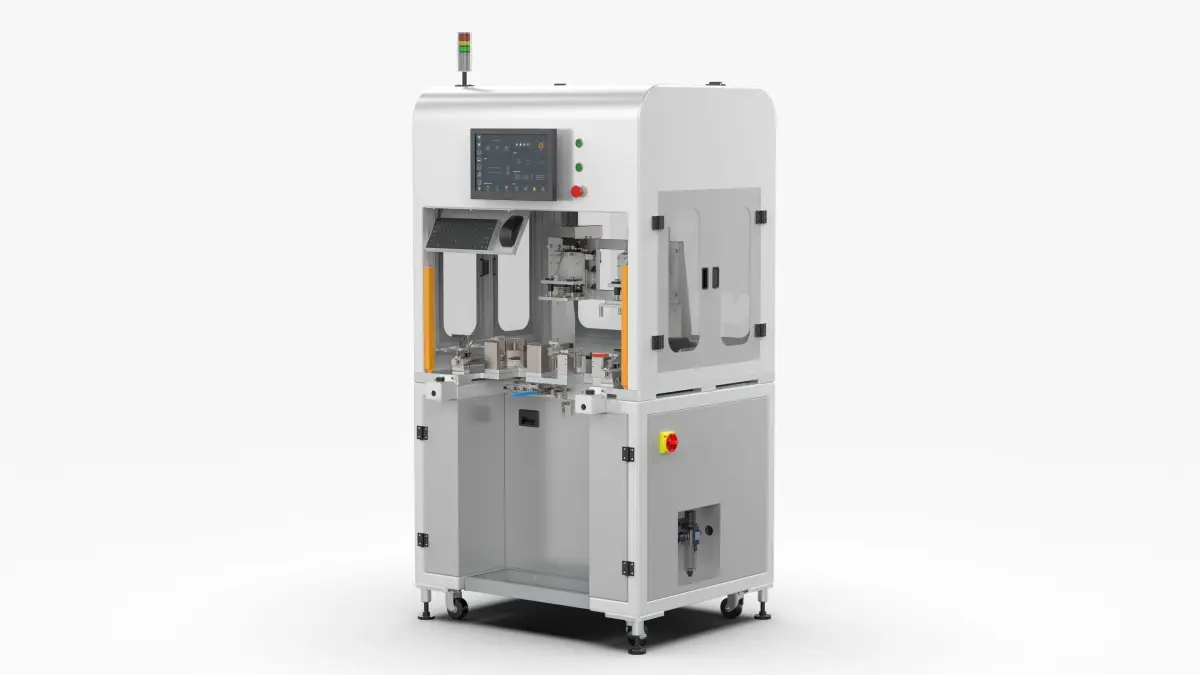

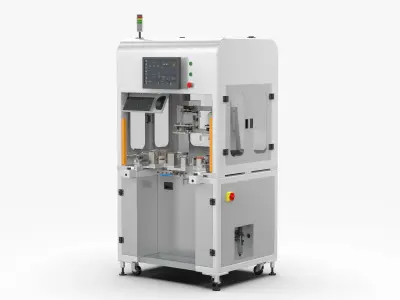

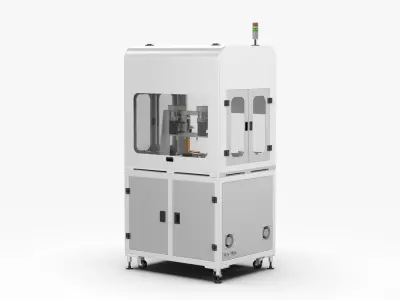

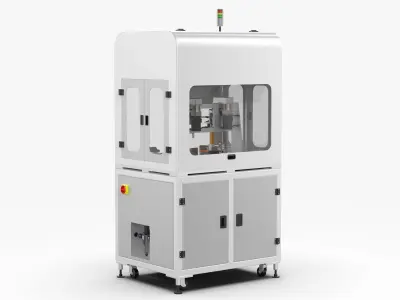

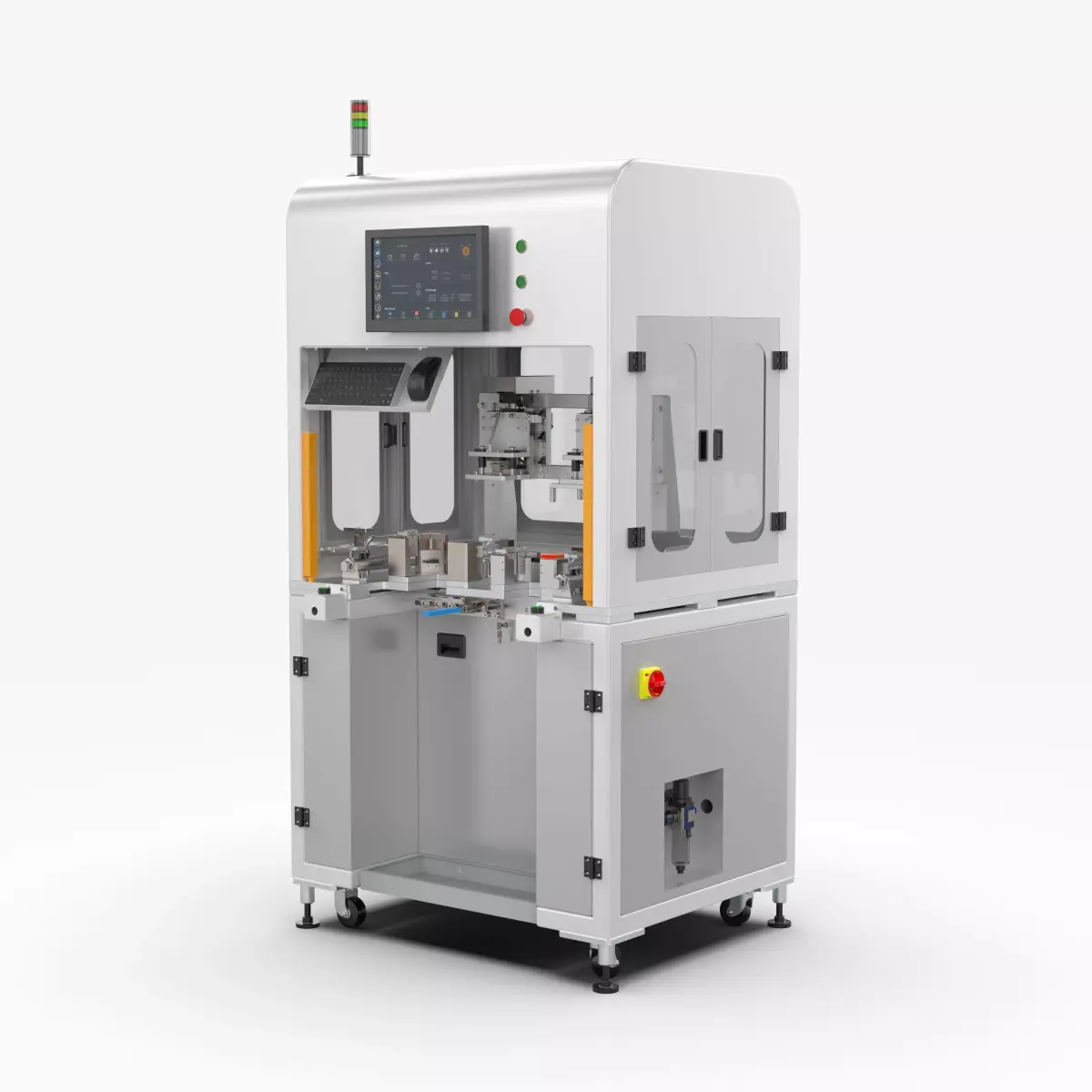

Automatic Insertion Force Testing for Pluggers Machine

Introduction

Insertion and extraction force testing machine New energy power battery plugging and unplugging torque detection, tension sensor data statistics and record output, double-station male and female one at the same time for plugging and understanding detection.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 2,068,732
  • Vertice: 6,206,196

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 2,068,732
  • Vertices: 6,206,196
  • Plugins used

Tags

Automatic Force Testing Machine Industrial Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • SolidWorks ()134 MBVersion: undefinedRenderer: Mental Ray 3.0
Exchange
  • KeyShot ()215 MB
  • Stereolithography ()98.6 MB
  • OBJ ()168 MB
  • IGES ()165 MB
  • STEP ()49.8 MB
