Automatic Magnet Heat Holding Assembly Machine 3D model
Home Catalog Aircraft part Automatic Magnet Heat Holding Assembly Machine 3D model
Automatic Magnet Heat Holding Assembly Machine 3D model
Automatic Magnet Heat Holding Assembly Machine 3D model
Automatic Magnet Heat Holding Assembly Machine 3D model
Automatic Magnet Heat Holding Assembly Machine 3D model
Automatic Magnet Heat Holding Assembly Machine 3D model

Publication date: 2023-03-27

Automatic Magnet Heat Holding Assembly Machine 3D model

$59

License: Royalty Free License

author:

Lovano

Buy at www.cgtrader.com - $59 Add to Wishlist
  • Description
  • Formats
Description

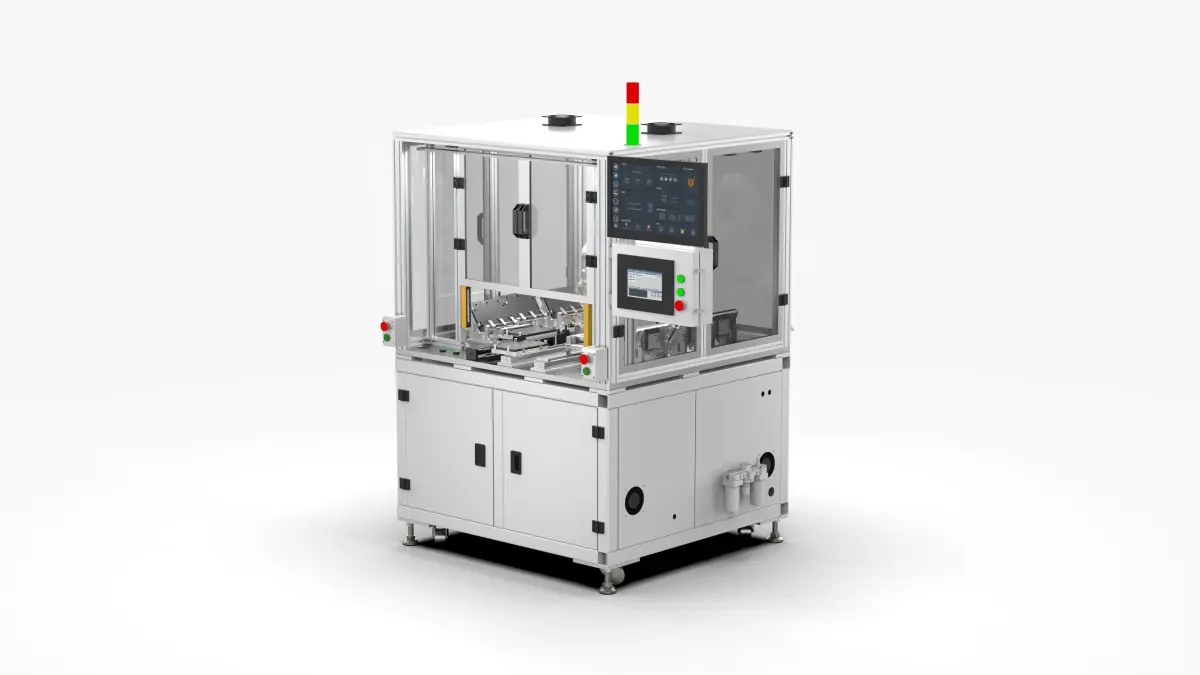

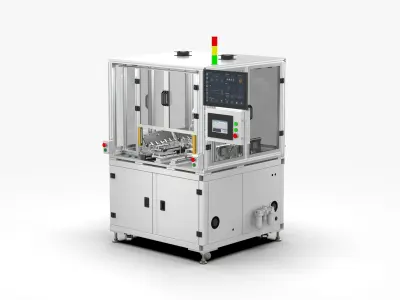

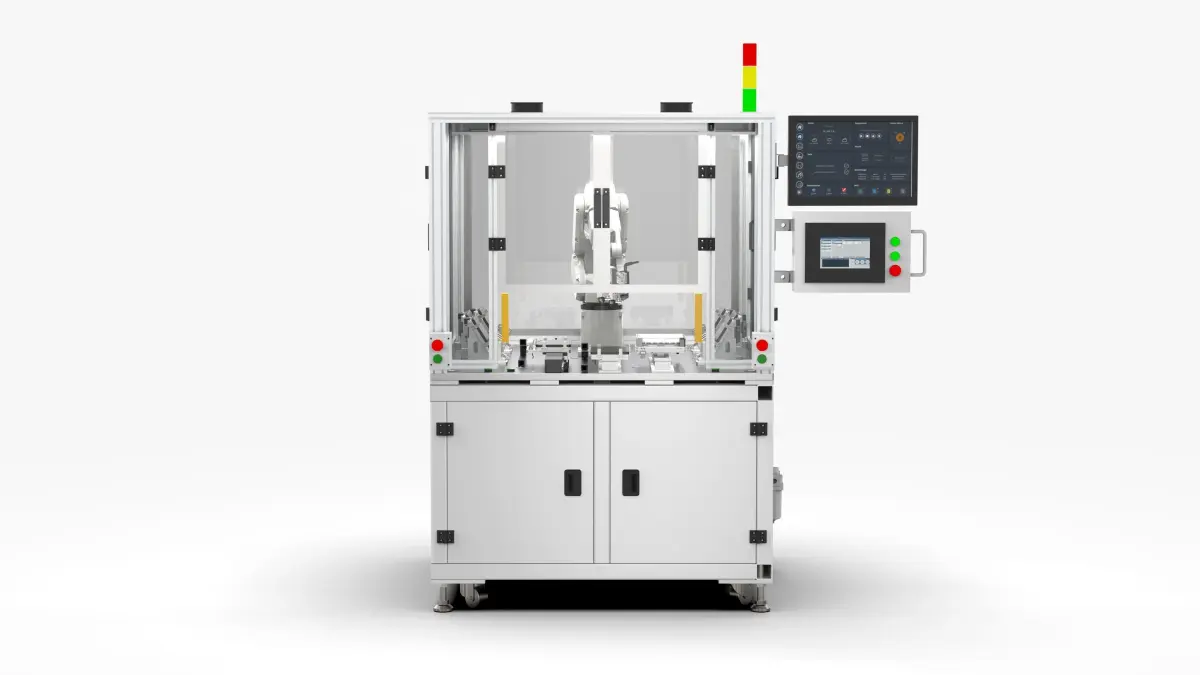

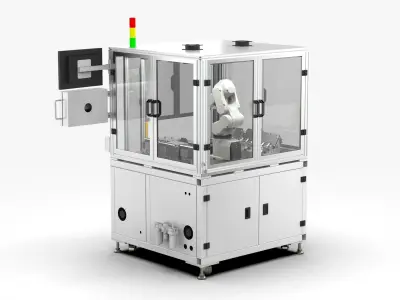

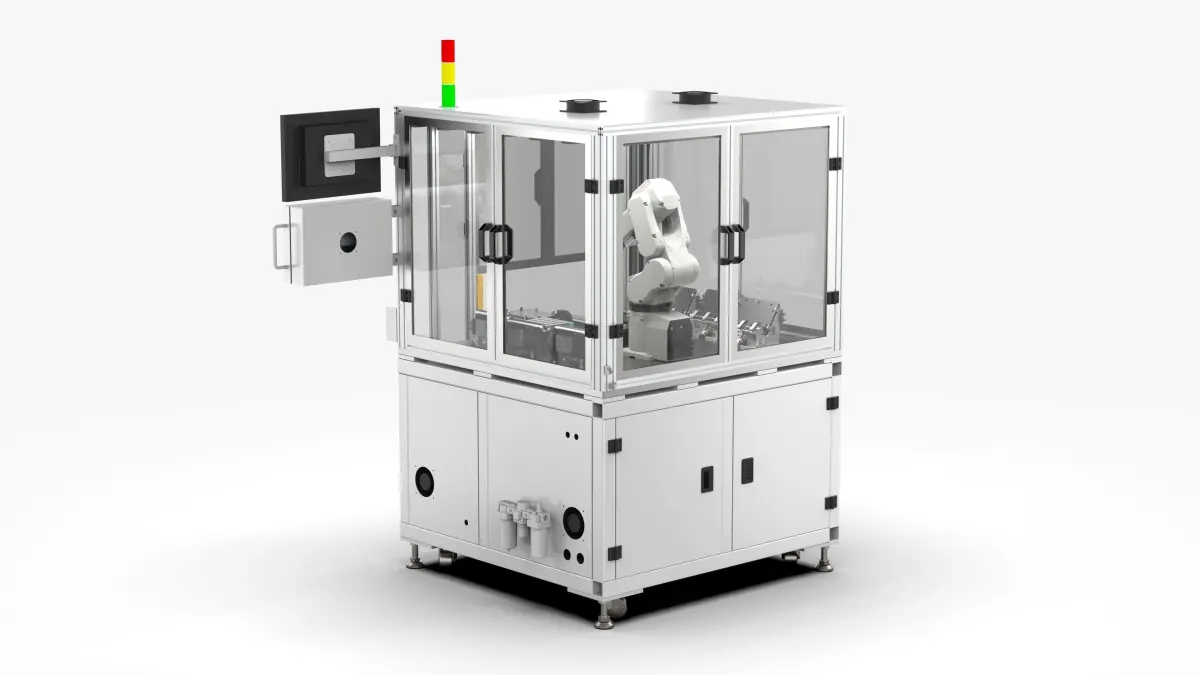

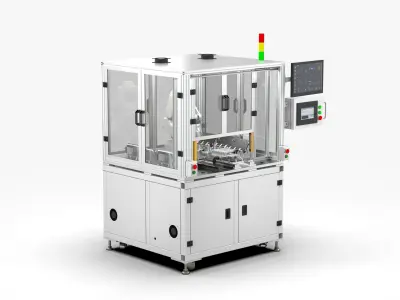

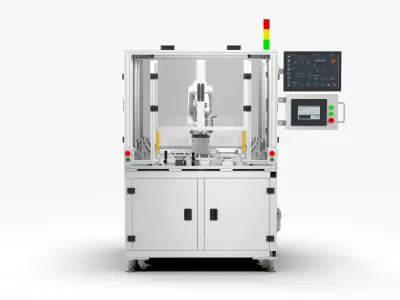

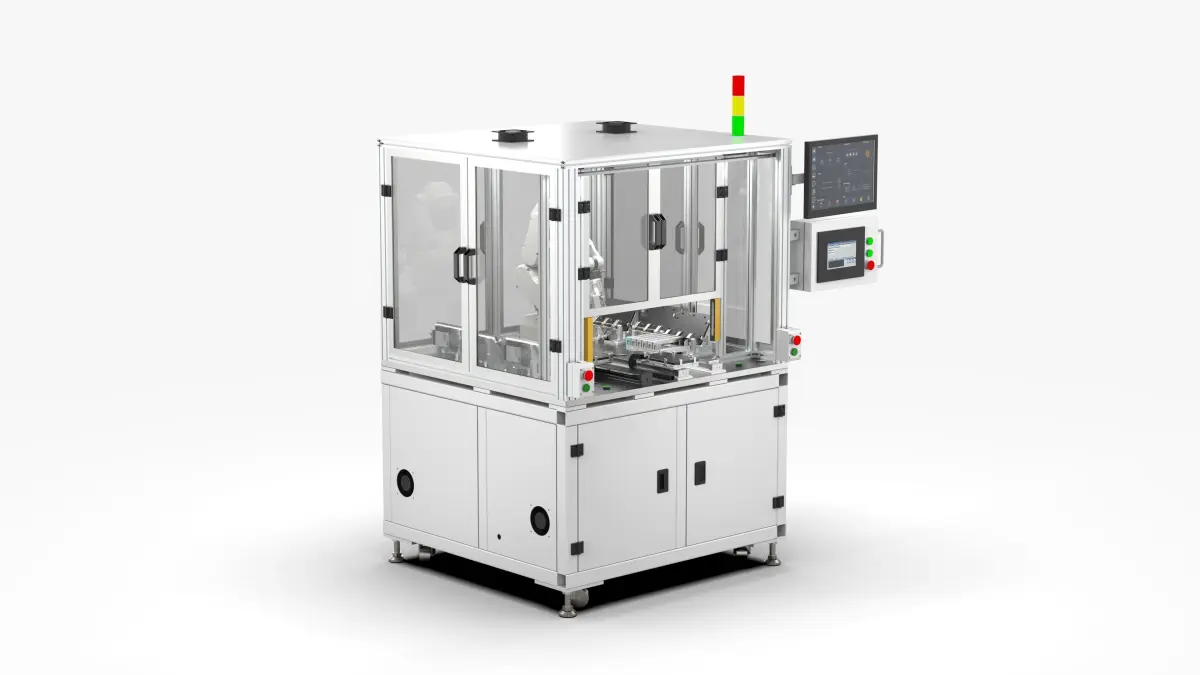

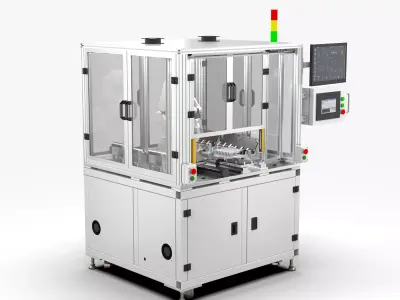

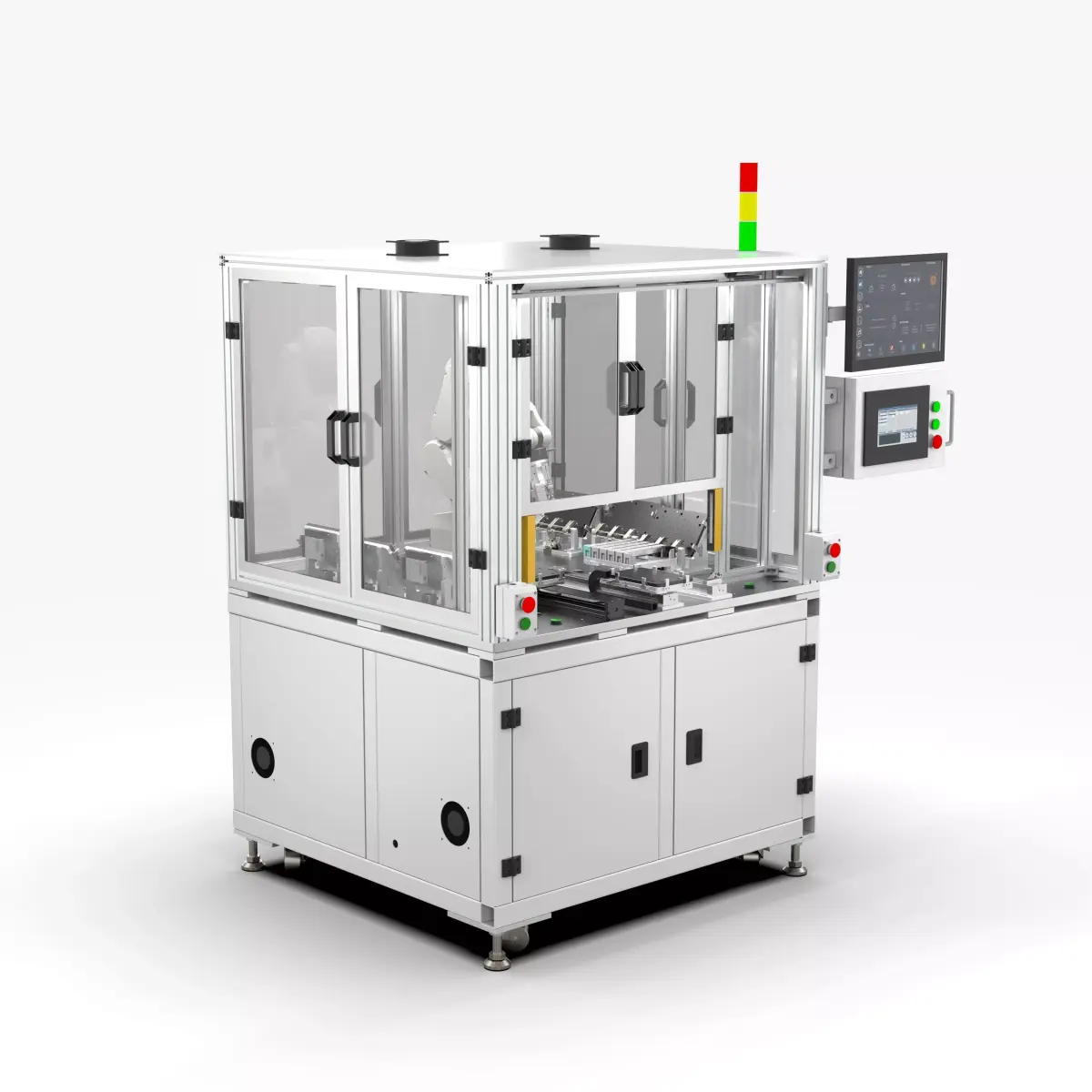

Automatic Magnet Heat Holding Assembly Machine

Introduction

Automated magnet assembly heat holding equipment process:

  1. The magnet jig is manually put into the equipment.
  2. The flat shell is manually loaded to the shell loading station.
  3. The manipulator absorbs the shell and the magnet jig to prevent the visual positioning of the holding station Assemble the magnet.
  4. Heating the pressure-holding magnet.
  5. After completion, the manipulator grabs and unloads the material to the shell.

File Formats

  • Inventor 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 2,572,490
  • Vertice: 7,717,470

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 2,572,490
  • Vertices: 7,717,470
  • Plugins used

Tags

Automatic Magnet Heat Holding Assembly Machine Solidwork Design Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • Autodesk Inventor 2018 ()67.5 MBVersion: 2018Renderer: Octane 3.0
Exchange
  • SolidWorks ()67.5 MB
  • IGES ()138 MB
  • Stereolithography ()123 MB
  • STEP ()39.9 MB
  • OBJ ()186 MB
