Automatic Mobile Phone Battery Adhesive Bending Production Line 3D model

Publication date: 2024-01-28

Automatic Mobile Phone Battery Adhesive Bending Production Line 3D model

$219

License: Royalty Free License

author:

Lovano

Description

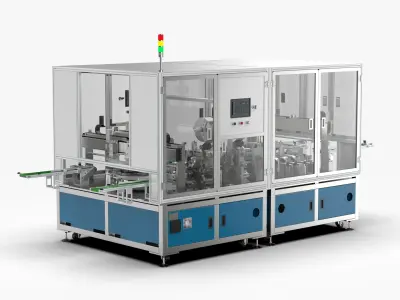

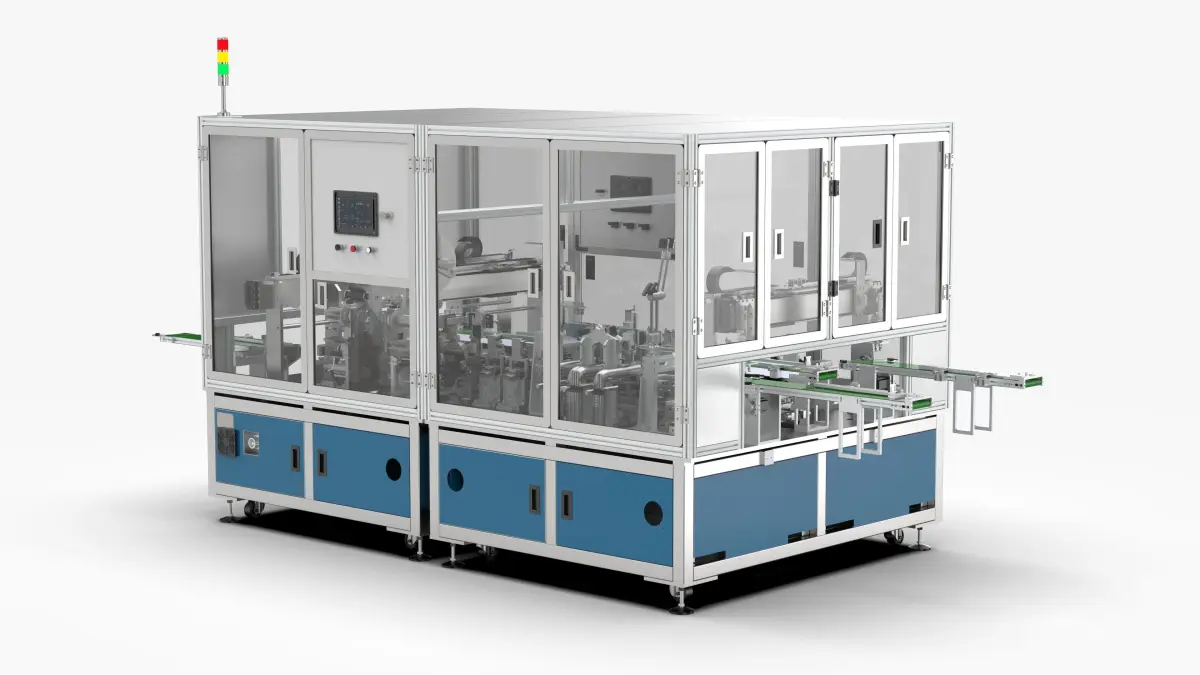

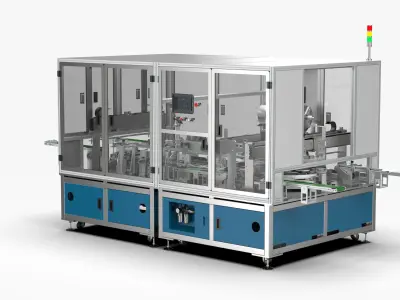

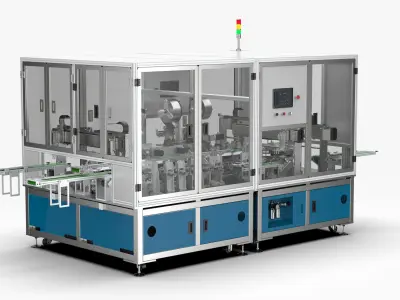

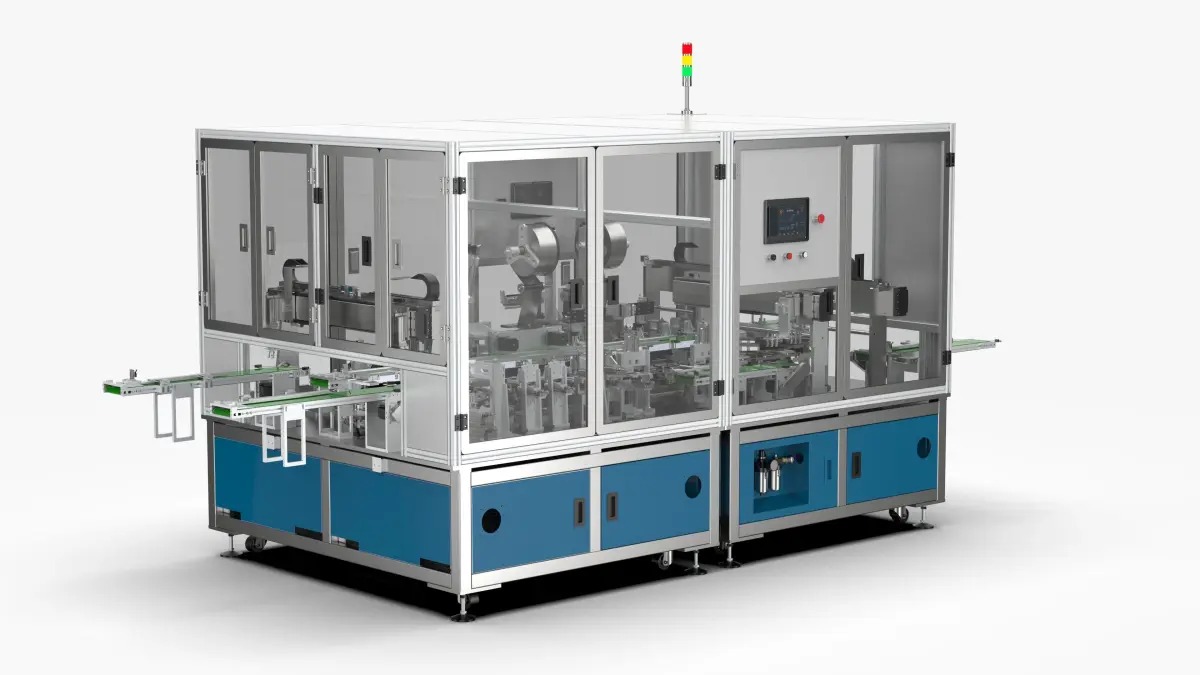

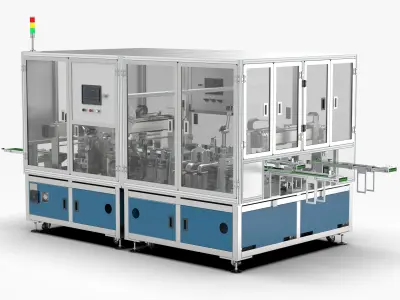

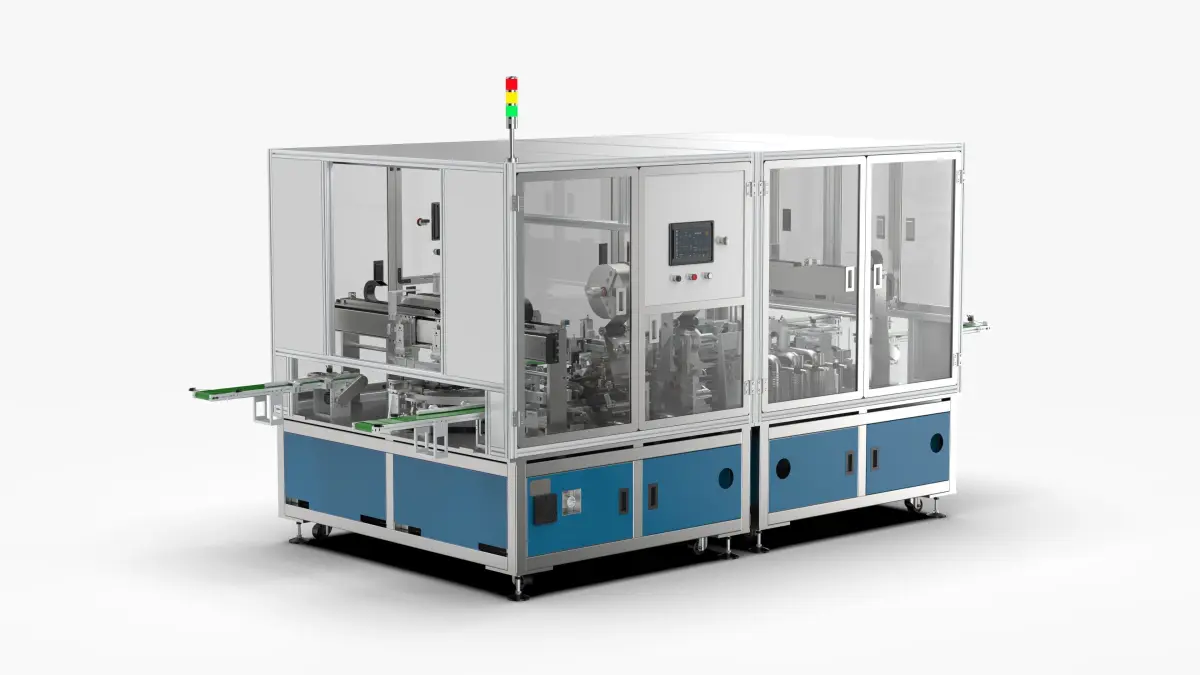

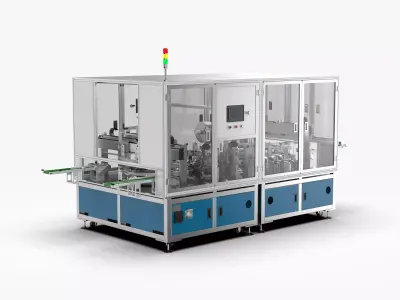

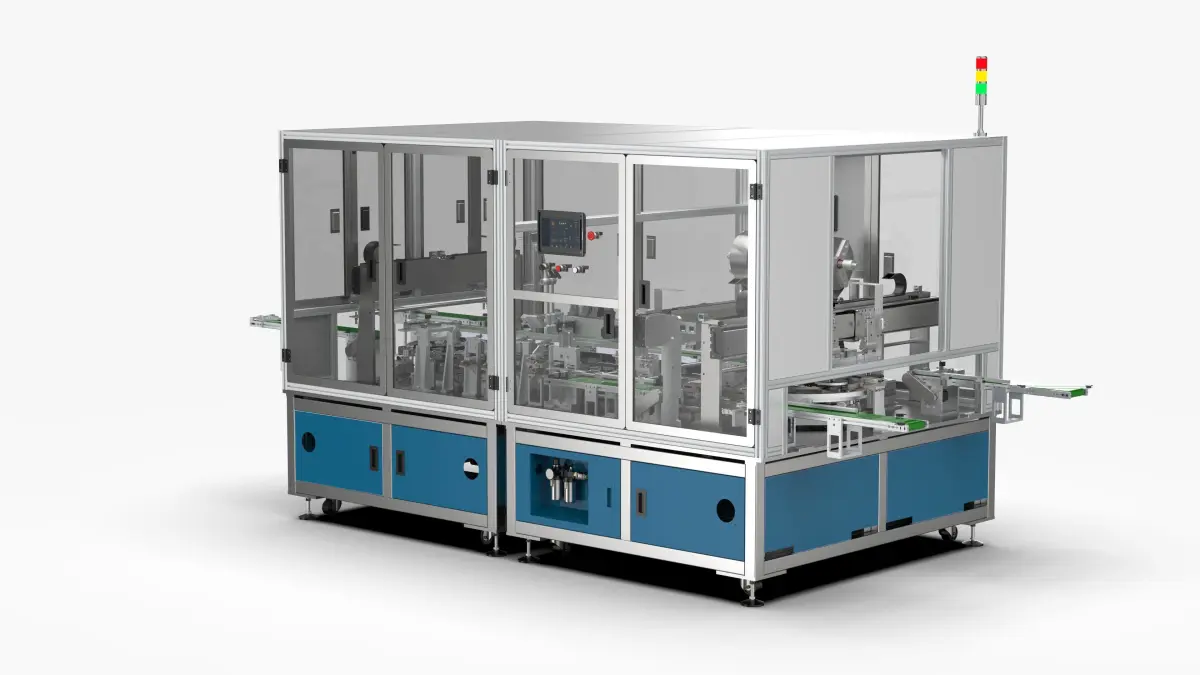

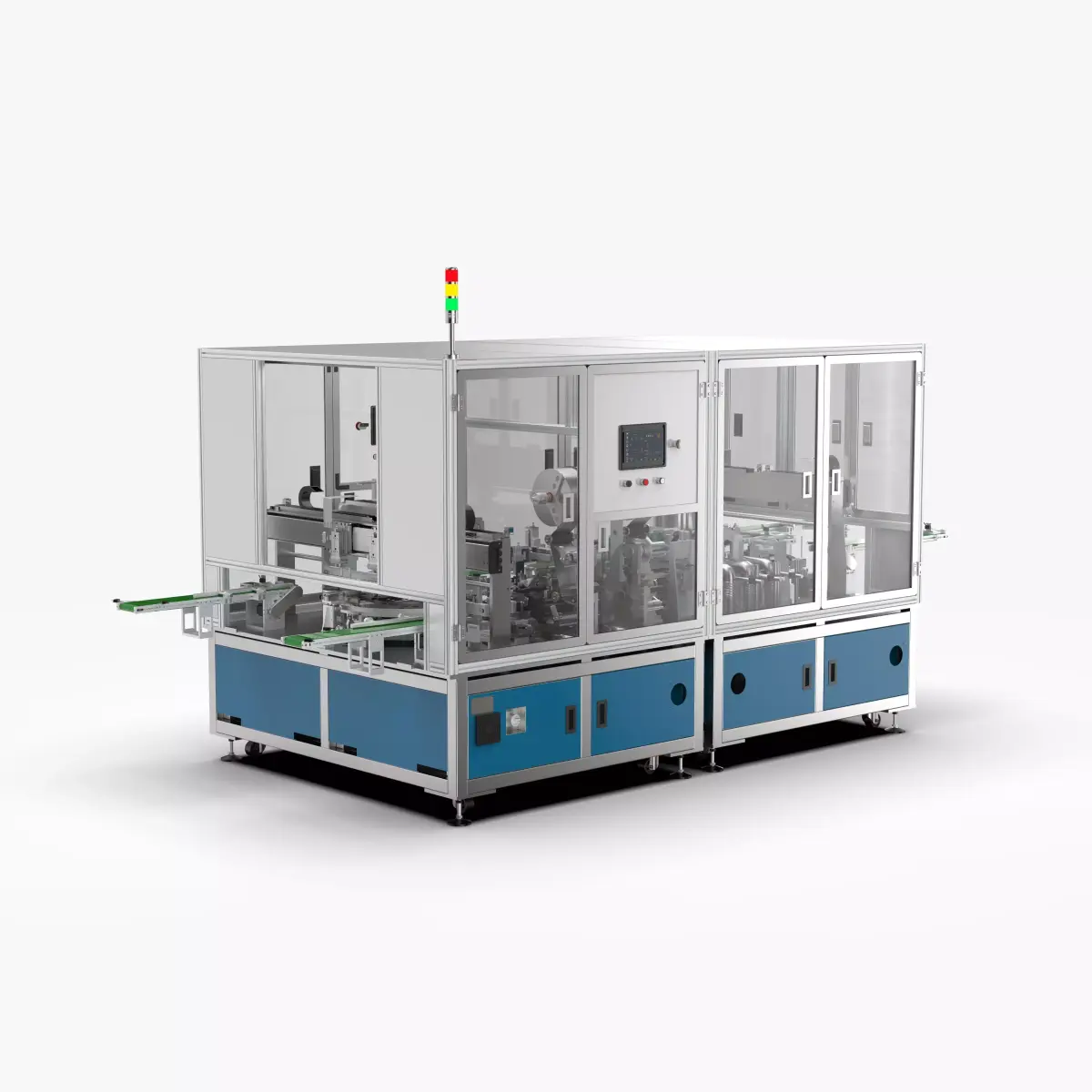

Automatic Mobile Phone Battery Adhesive Bending Production Line

Introduction

The automatic adhesive bending equipment used for pasting PCM adhesive tape & bending process on the mobile phone battery production line, innovative circular track transmission channel, large-capacity double-station design, compatible with different process batteries, designed capacity 2000PCS/h, equipment size 1800X3000X1900mm, the details of each module are clear, including gluing module, shaping module, gluing and compacting module, tearing release paper module, and bending module for reference in the scheme.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 10,943,715
Vertice: 32,831,145

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 10,943,715
Vertices: 32,831,145
Plugins used

Tags

Automatic Mobile Phone Battery Adhesive Bending Production Line Industrial Machine Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Robot Industrial machine
