Description

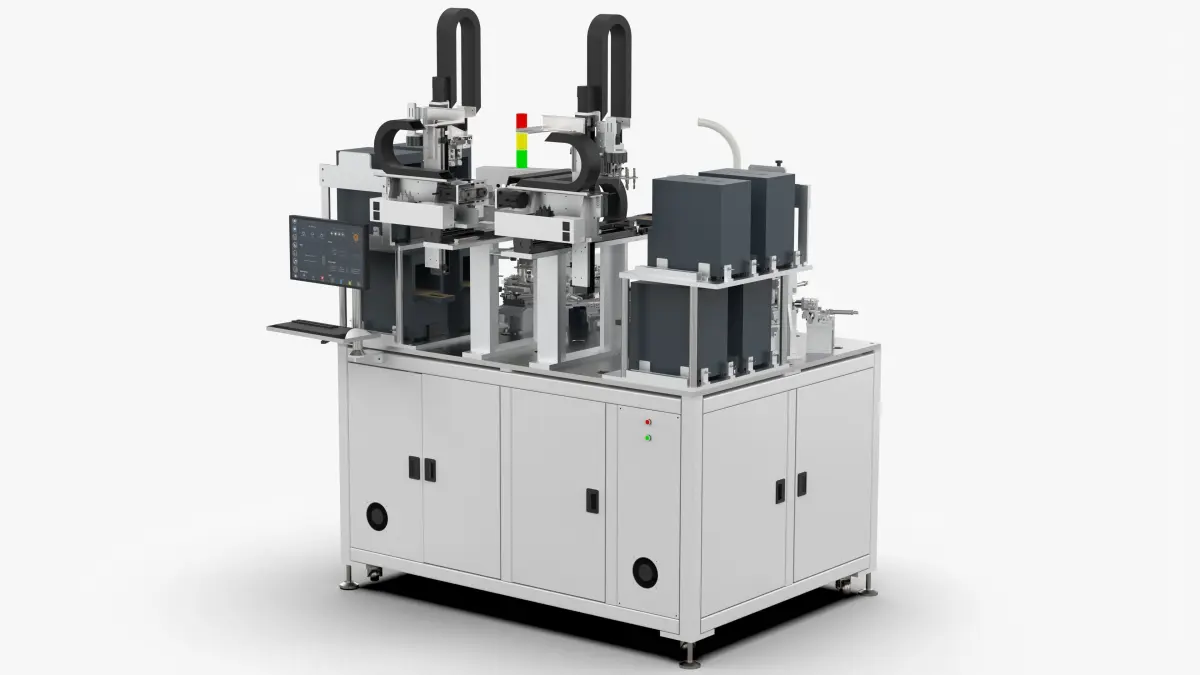

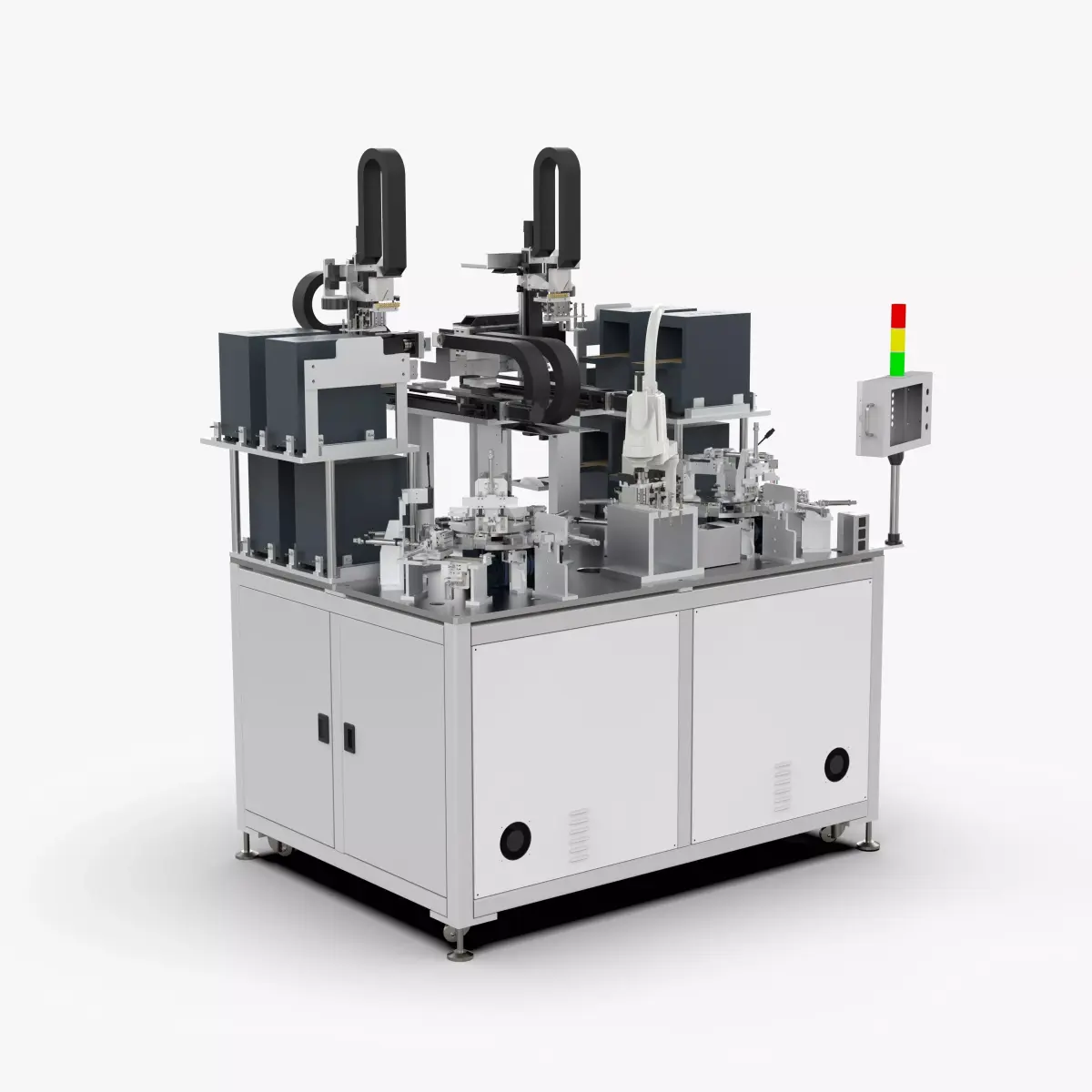

Automatic Mobile Phone Motherboard Plug and Unplug Testing Machine

Introduction

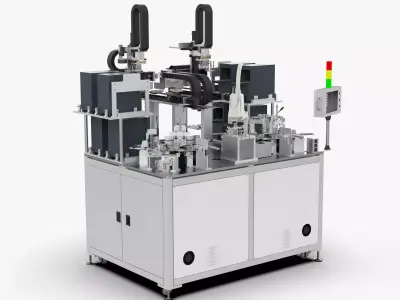

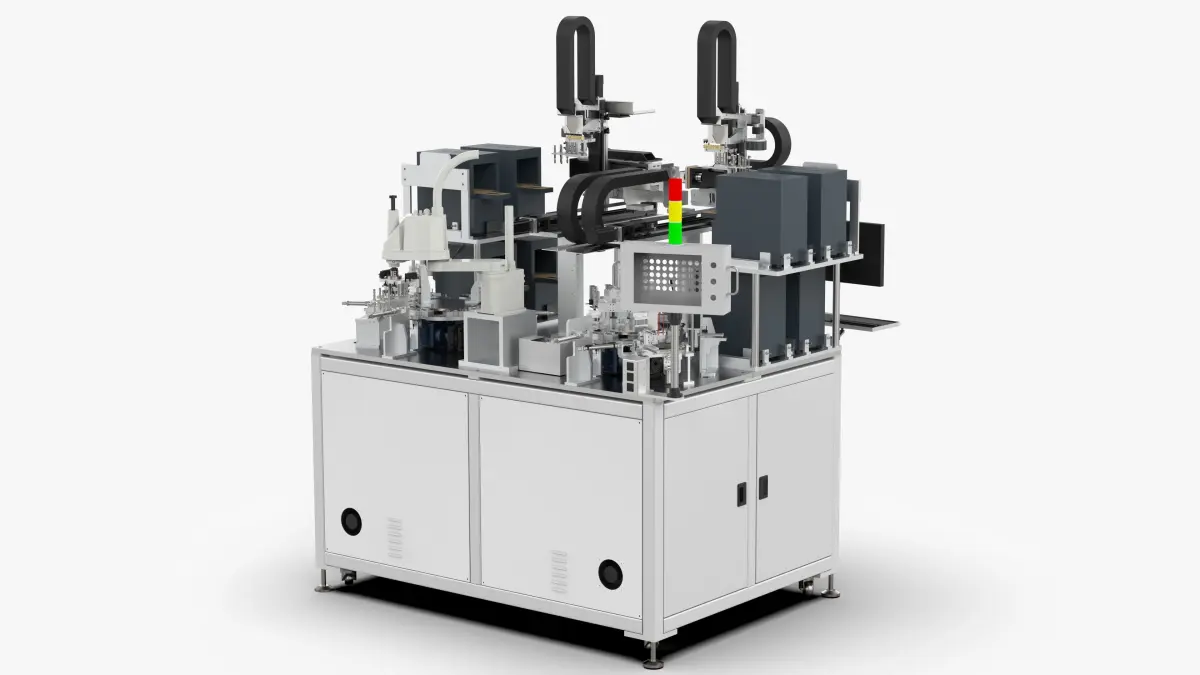

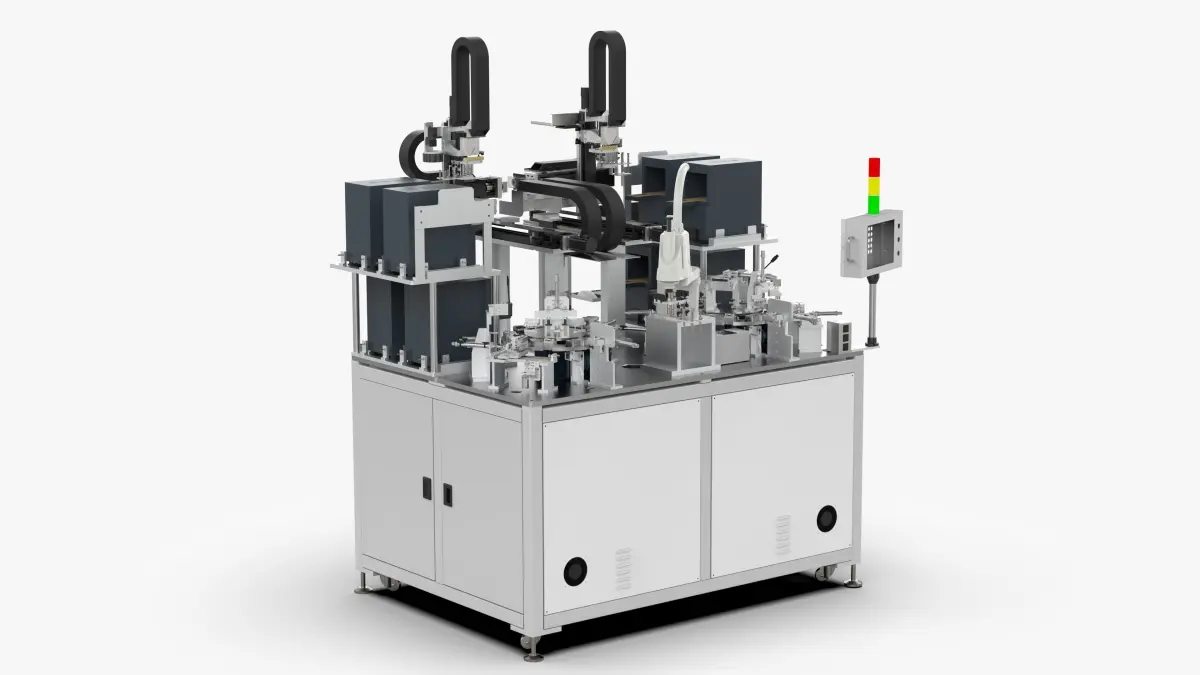

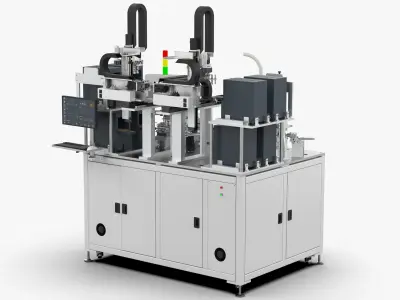

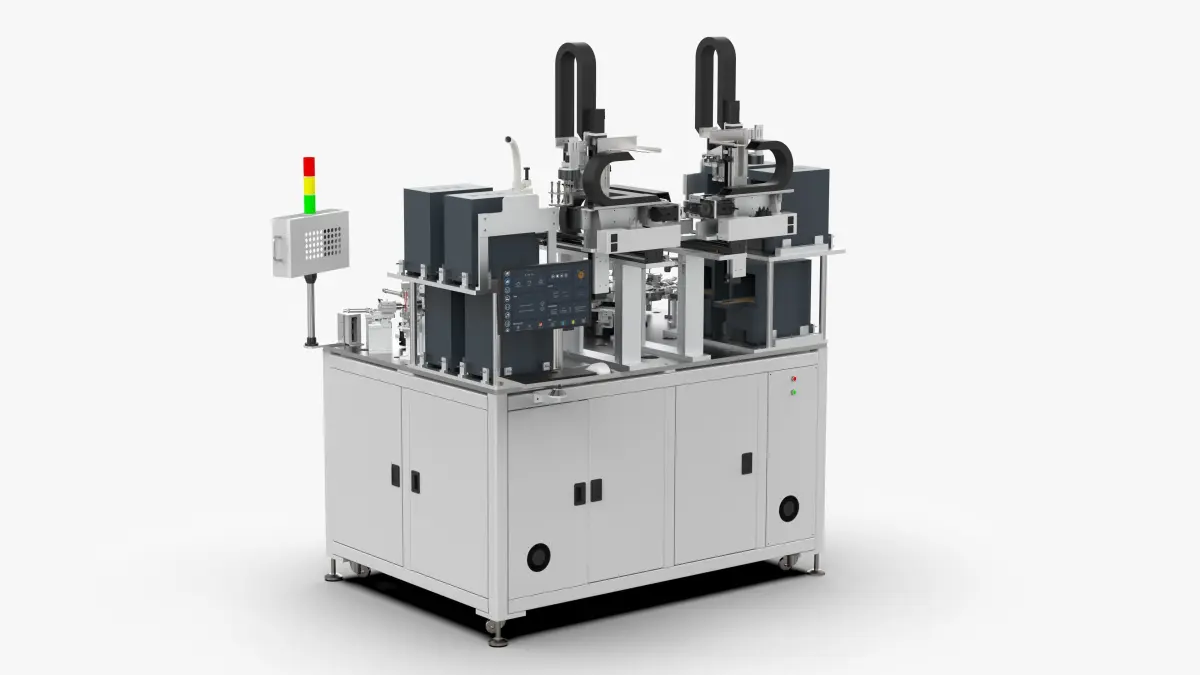

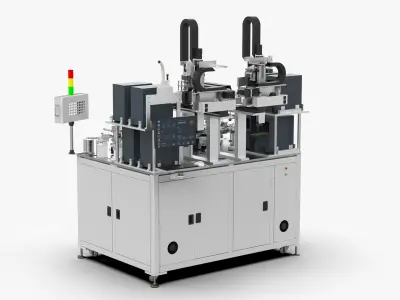

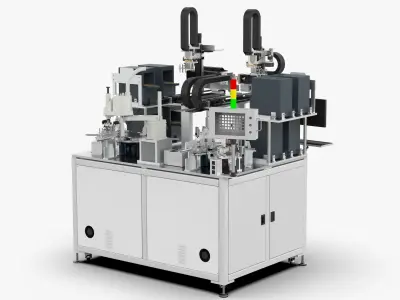

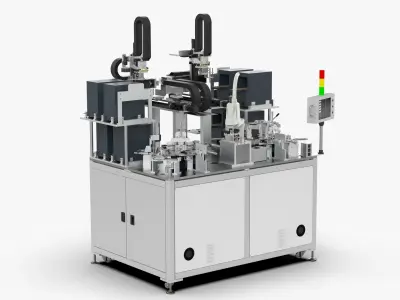

Mobile phone motherboard testing equipment, adopts the method of vacuum adsorption by manipulator, two groups of 6-station turntable test modules on the left and right, plug-in test, straightness test, pressure test, two groups of XYZ plus vacuum adsorption modules grab to In the testing machine, testing such as withstand voltage and power on .

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 4,074,290
  • Vertice: 12,222,870

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 4,074,290
  • Vertices: 12,222,870
  • Plugins used

Tags

Automatic Mobile Phone Motherboard Plug Testing Machine Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Industrial Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • SolidWorks 2018 ()118 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
  • Stereolithography ()194 MB
  • IGES ()233 MB
  • OBJ ()308 MB
  • STEP ()60.1 MB
