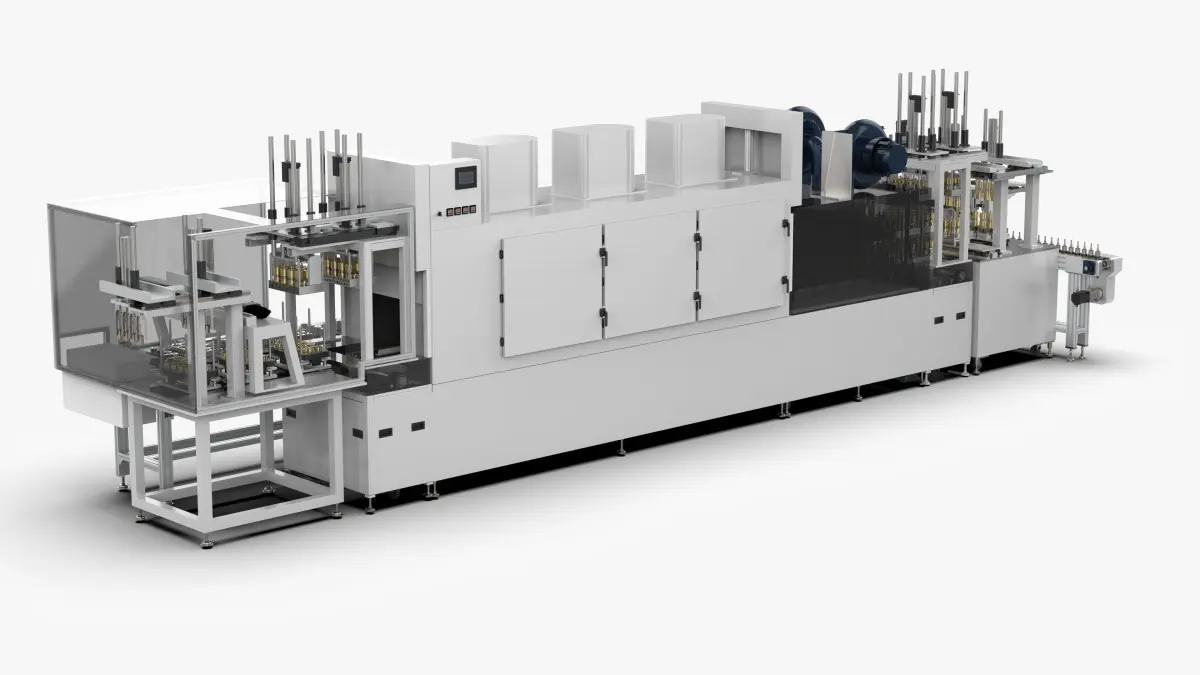

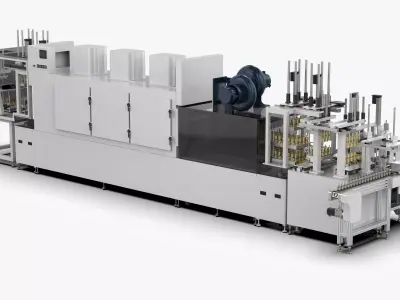

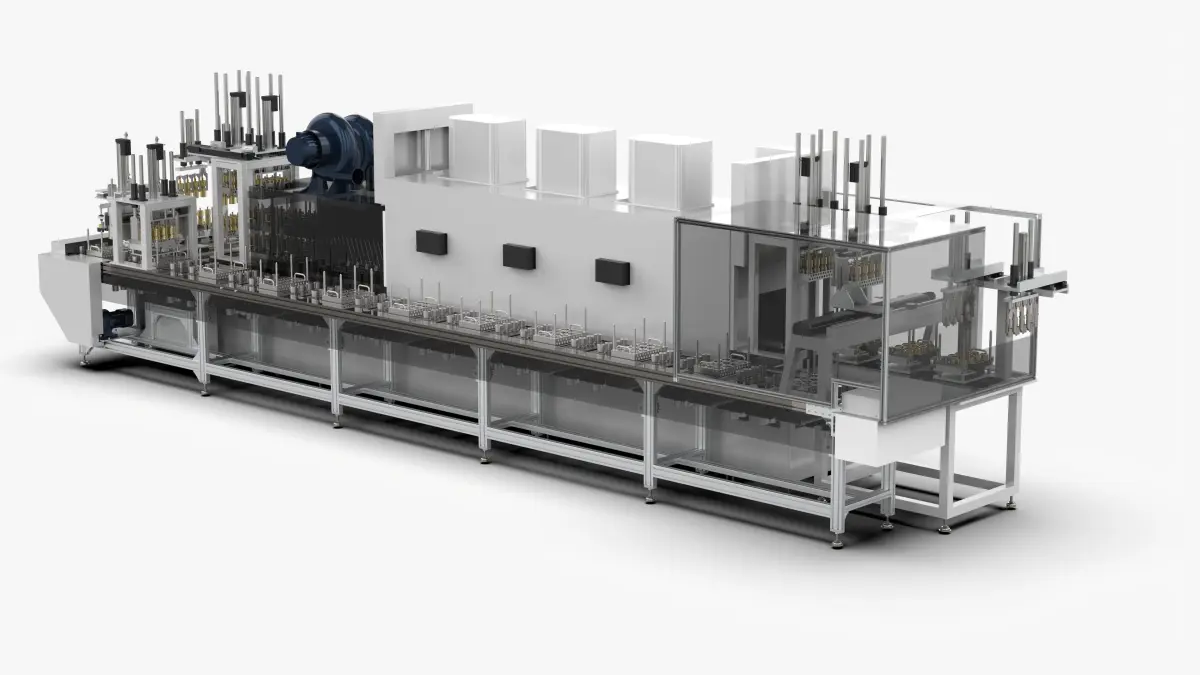

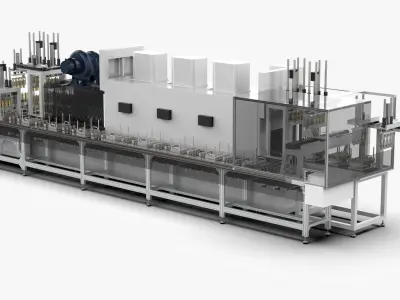

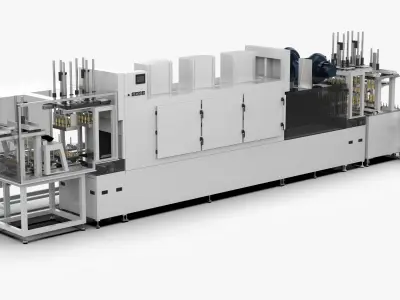

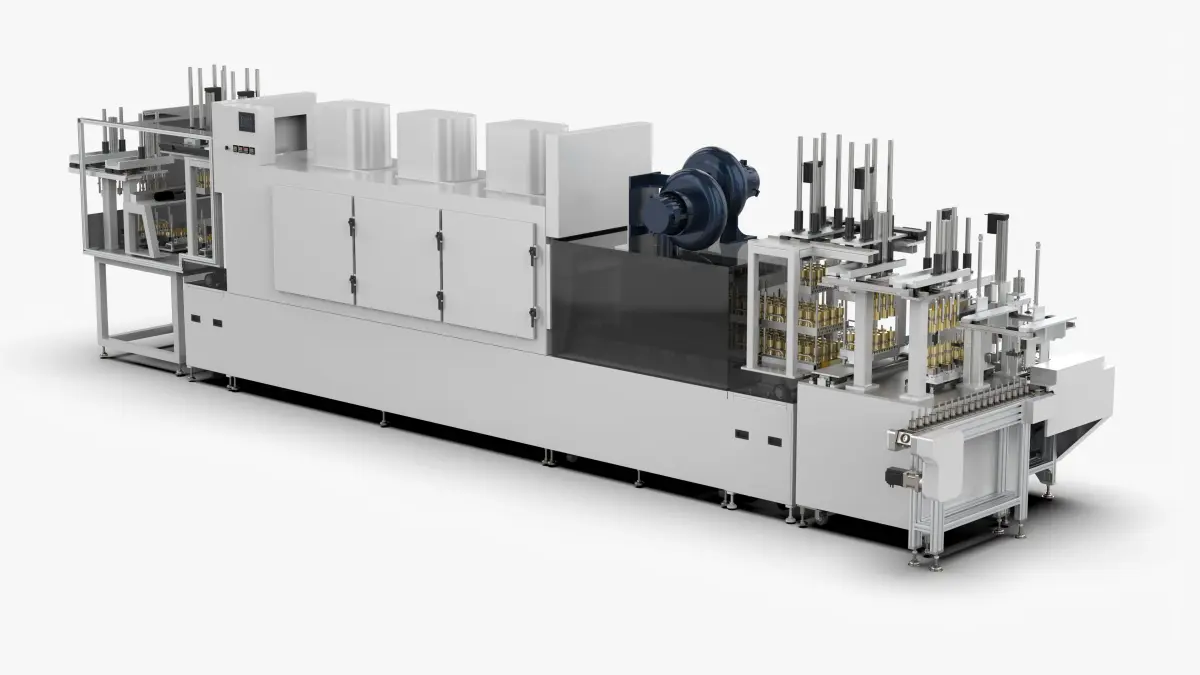

Automatic Motor Rotor Cover Heating Furnace Assembly Line

Introduction

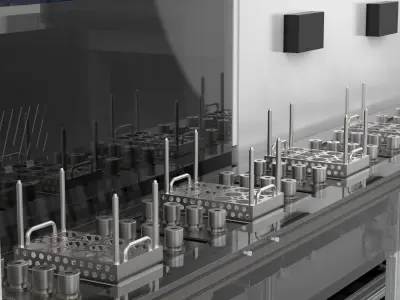

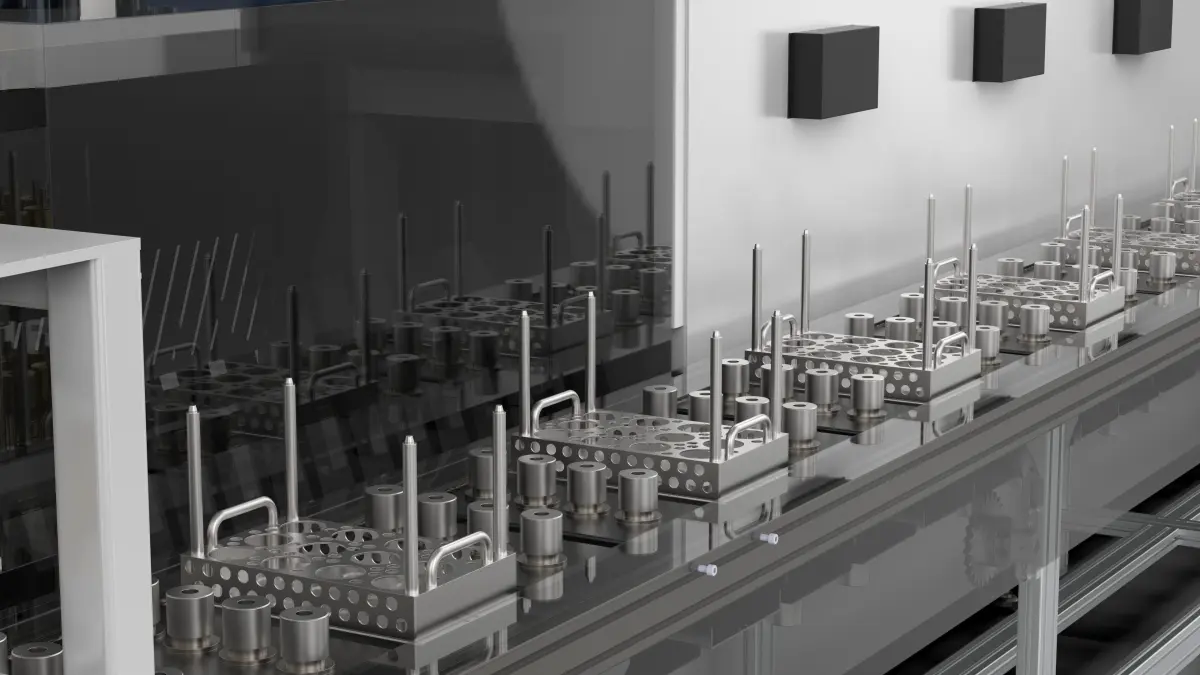

The rotor of the rotor cover heating furnace is manually loaded to the board, the side clamp is positioned on the board, the module is grabbed and transferred into the carrier, and the fixture is pressed down to ensure the same height as the rotor, and the module is then grabbed to be heated. After the furnace is completed, the module grabs the rotor and unloads the material, the fixture is reflowed.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 7,617,292
  • Vertice: 22,851,876

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 7,617,292
  • Vertices: 22,851,876
  • Plugins used

Tags

Automatic Motor Rotor Cover Heating Furnace Assembly Line Solidwork Design Modeling Automation Machinery Part Machine Mechanism Production Robot Manufacture Industrial Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • SolidWorks 2018 ()148 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
  • STEP ()60.8 MB
  • IGES ()237 MB
  • OBJ ()598 MB
  • Stereolithography ()363 MB
