Description

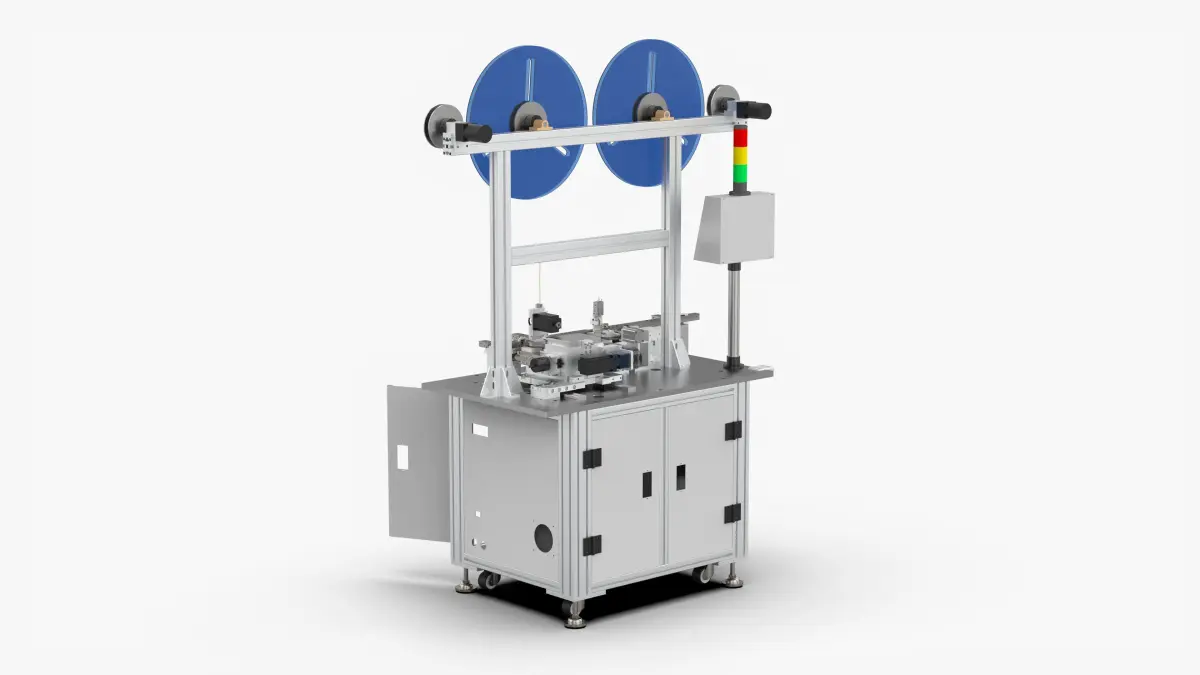

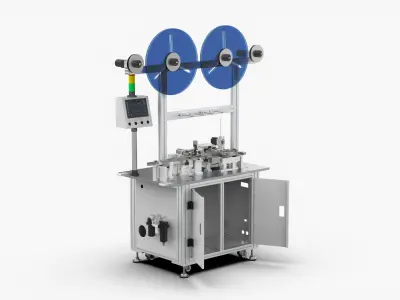

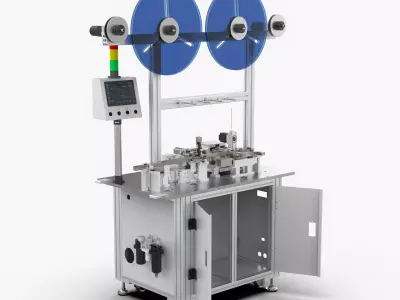

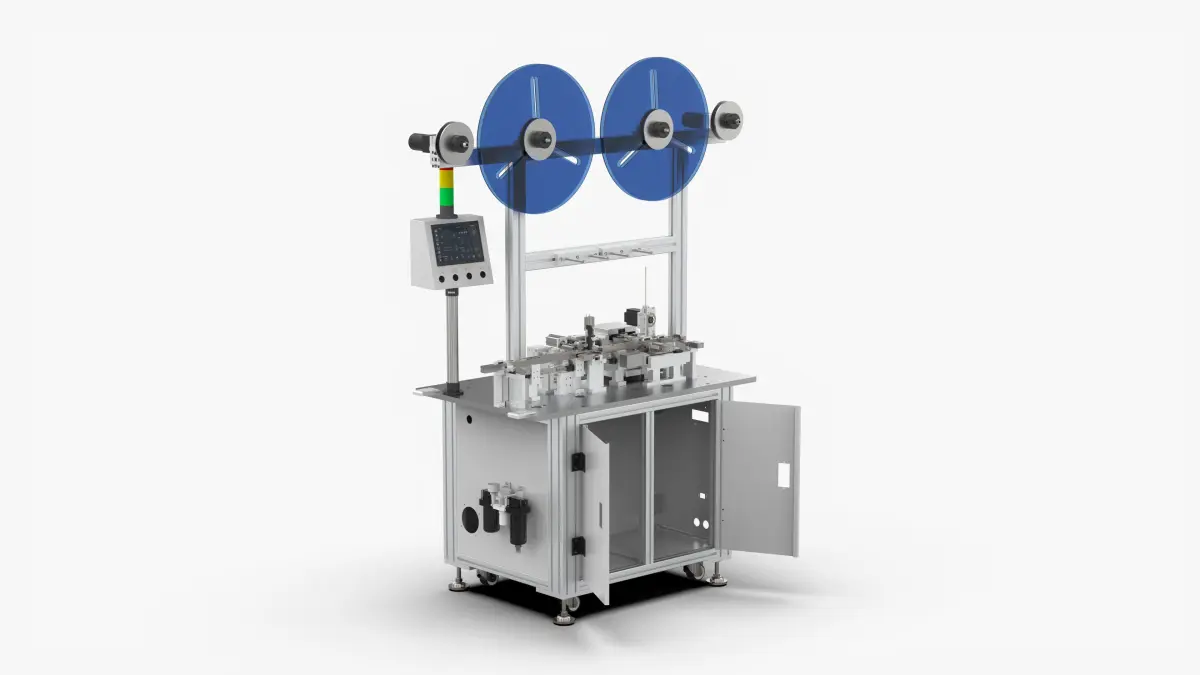

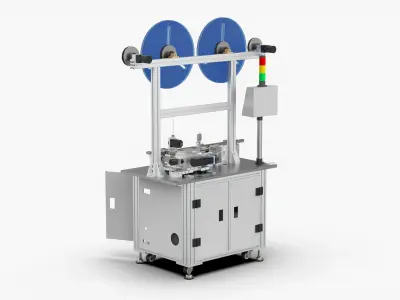

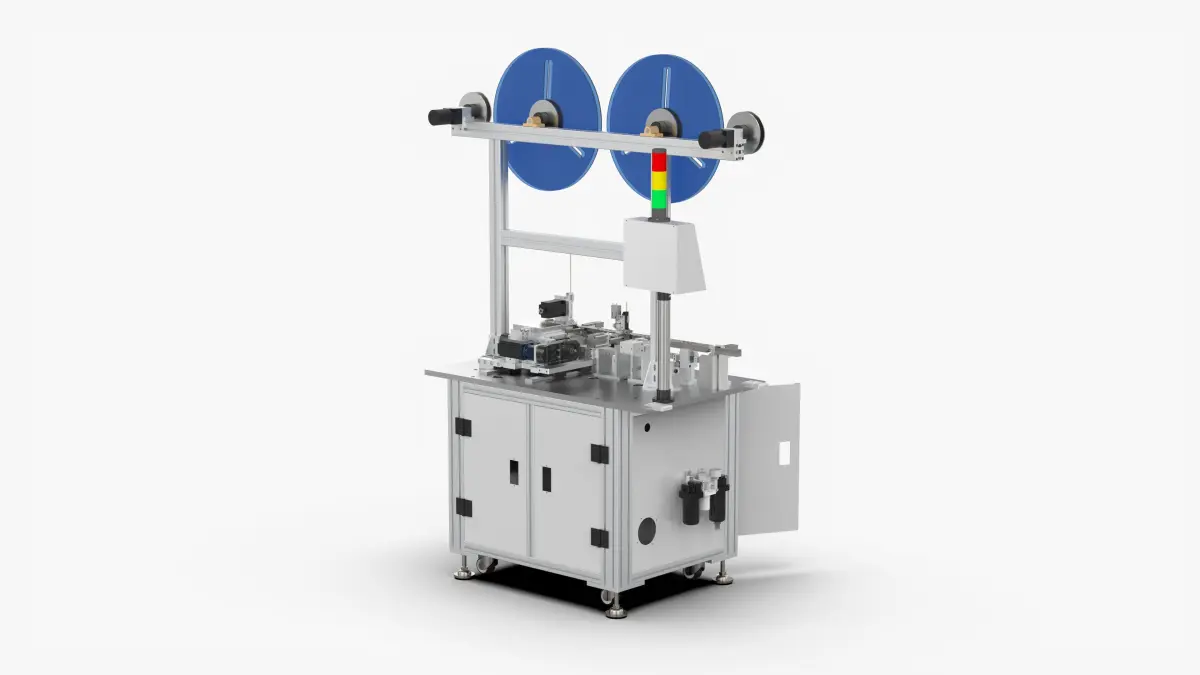

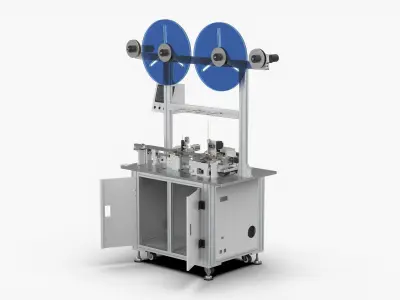

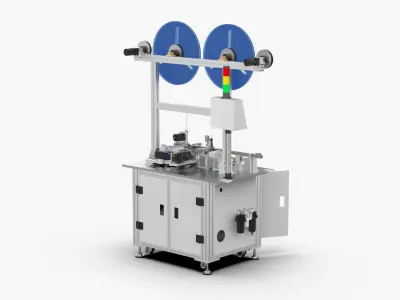

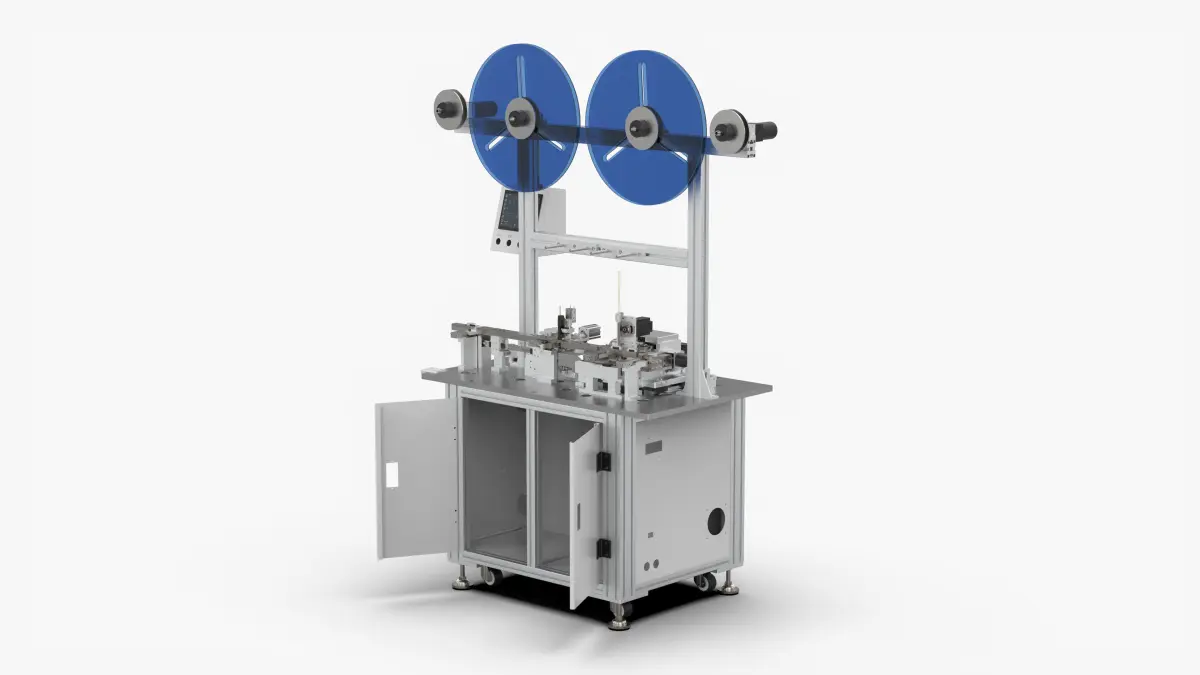

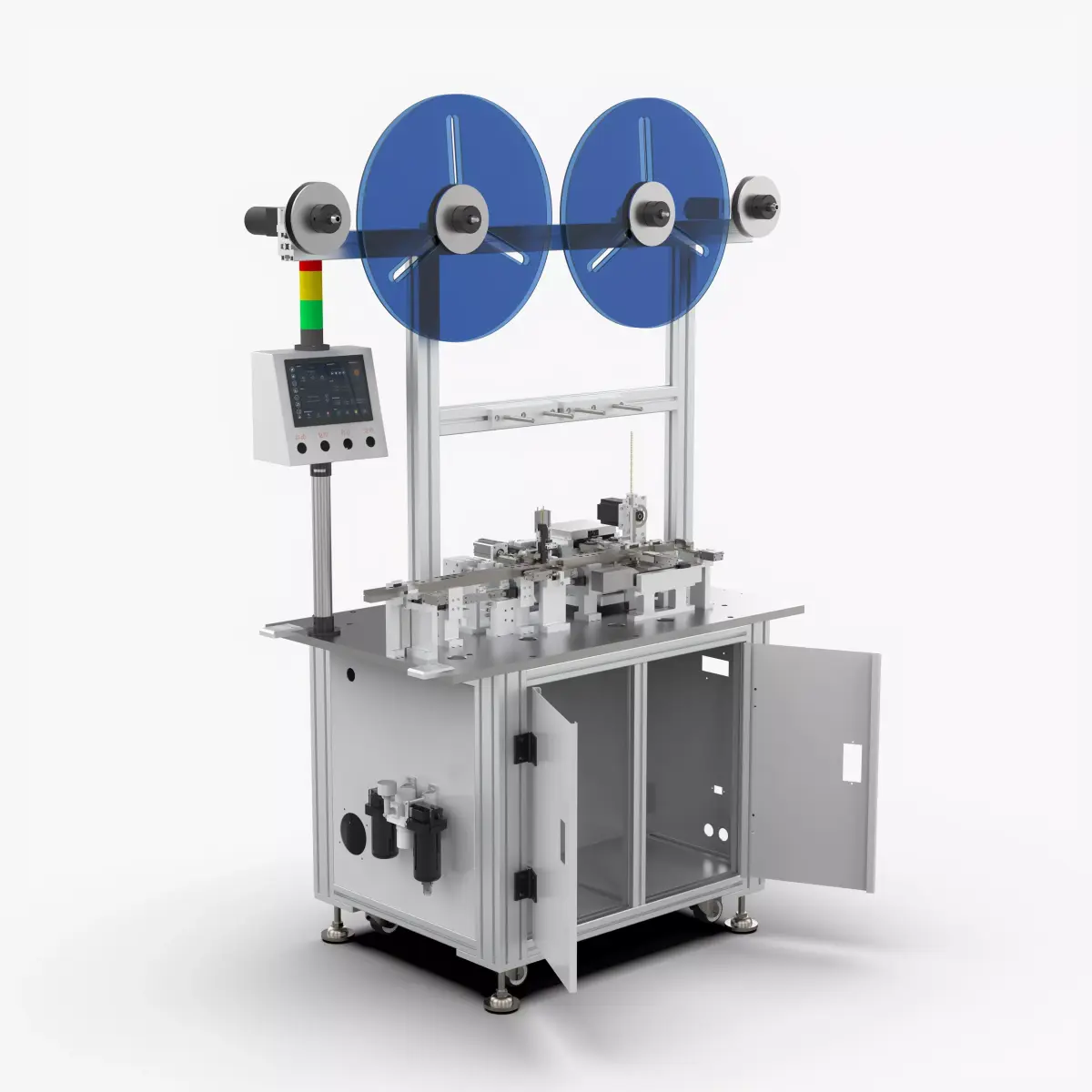

Automatic Needle Insertion Machine

Introduction

The equipment is used for the press-fitting machine of the inlet port of the valve body. The double lifter and the lower assembly line can be used for the circular feeding of the jig. The products in the jig are manually taken and placed, and the press-fitting action is completed automatically. The press-fitting height and pressure are possible, and the pressing is completed. After automatic grabbing and cleaning, the equipment has been running stably.

File Formats

  • Inventor2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 1,440,730
  • Vertice: 4,322,190

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 1,440,730
  • Vertices: 4,322,190
  • Plugins used

Tags

Automatic Needle Machine Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
  • Stereolithography ()68.7 MB
  • Autodesk Inventor 2018 ()63.8 MBVersion: 2018Renderer: Octane 3.0
  • IGES ()113 MB
  • STEP ()32.3 MB
  • OBJ ()103 MB
