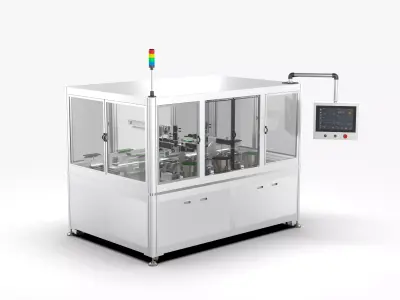

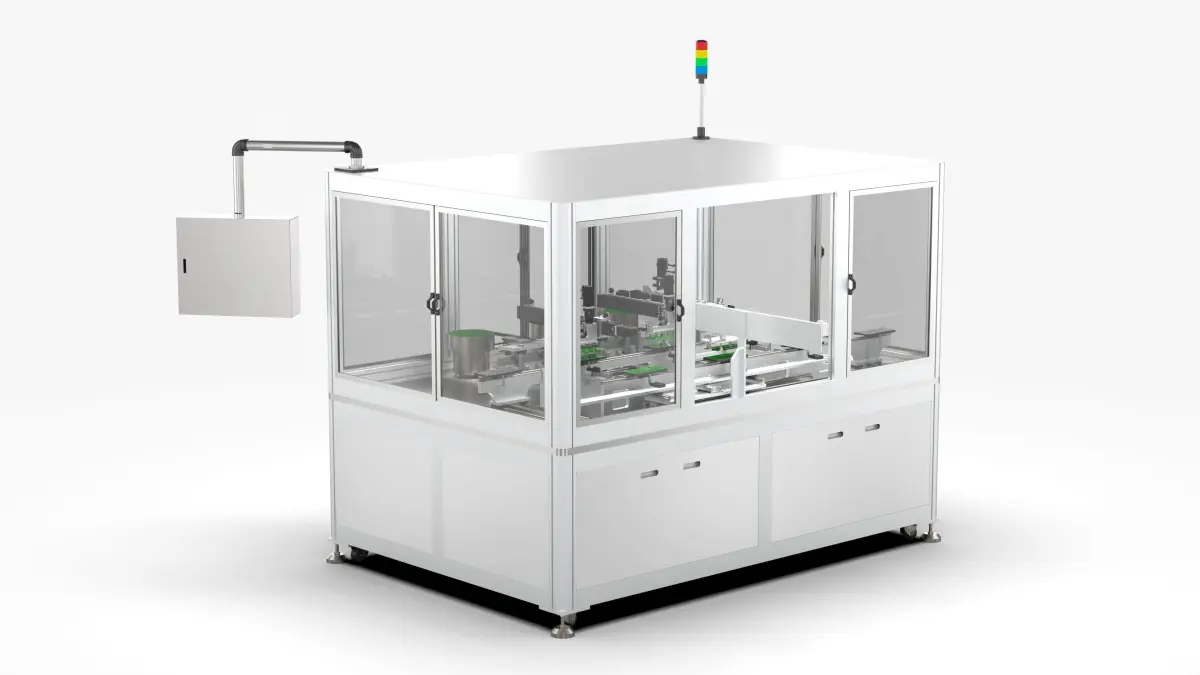

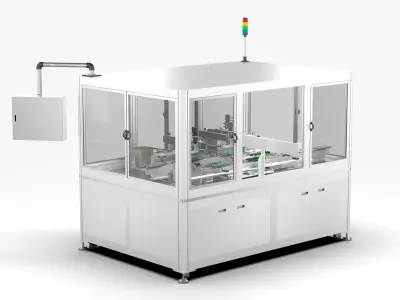

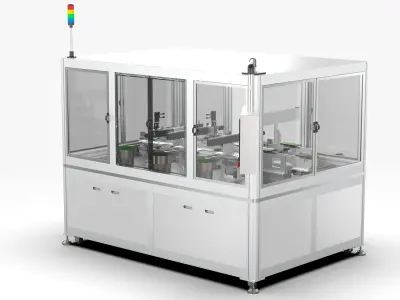

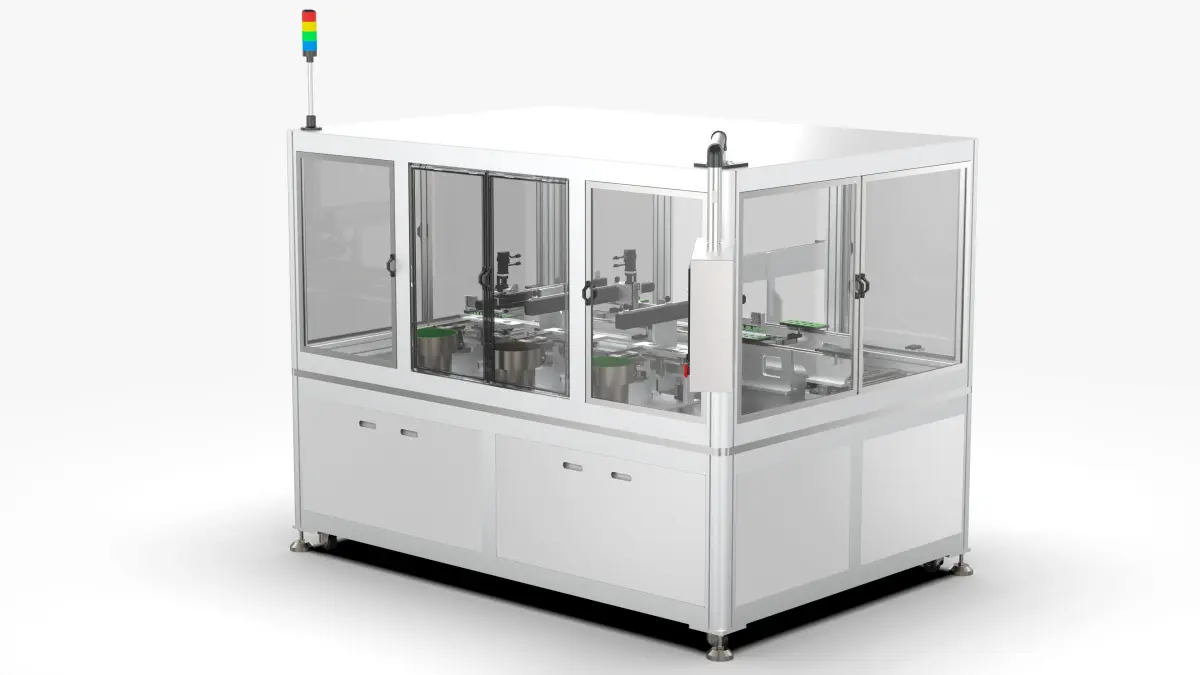

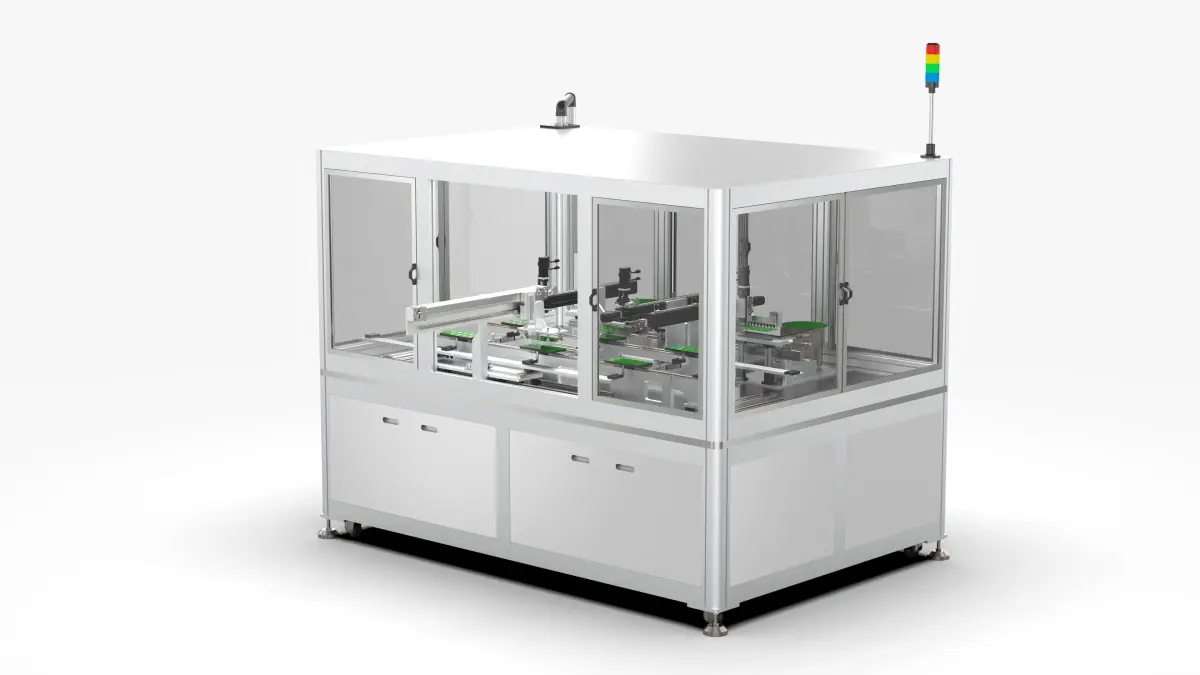

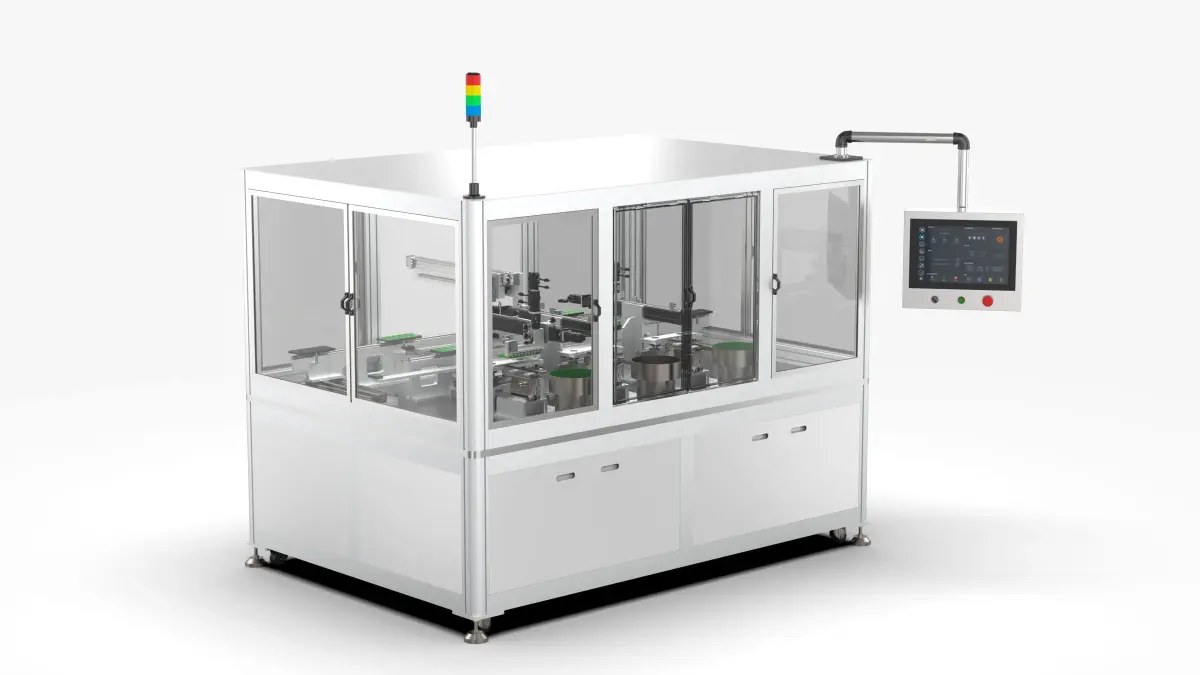

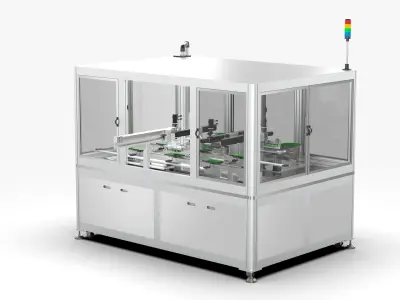

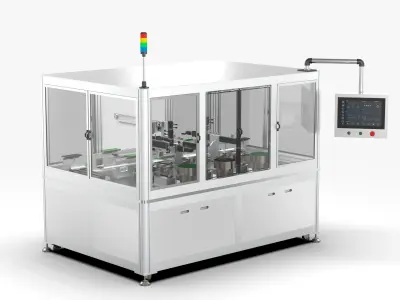

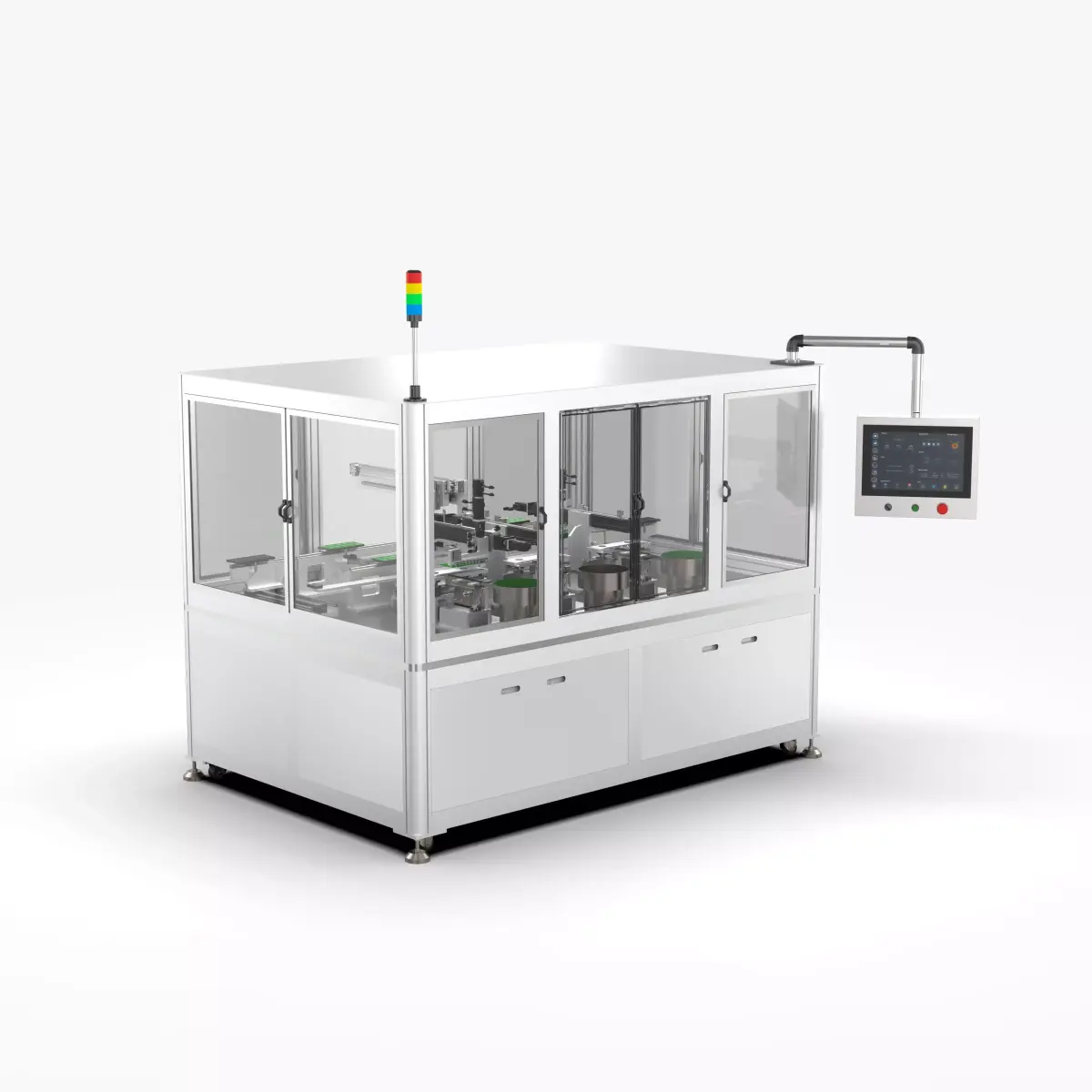

Automatic PCB Assembly Machine

Introduction

PCB assembly and assembly equipment is fed by vibrating plate, through secondary mechanical positioning fixture, servo screw rod module loading and unloading method, fixture transportation adopts linear guide rail method with side positioning accurate, to ensure the accuracy of assembly, the whole machine adopts PLC control, it will be a very good learning material. All parts of the whole set of equipment including XT general format are complete.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 1,473,459
  • Vertice: 4,420,377

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 1,473,459
  • Vertices: 4,420,377
  • Plugins used

Tags

Automatic Pcb Assembly Machine Solidwork Design Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial Industrial machine
