Automatic Quantitative Packaging Scale Machine 3D model
Automatic Quantitative Packaging Scale Machine 3D model
Automatic Quantitative Packaging Scale Machine 3D model
Automatic Quantitative Packaging Scale Machine 3D model
Automatic Quantitative Packaging Scale Machine 3D model

Publication date: 2023-02-13

Automatic Quantitative Packaging Scale Machine 3D model

$89

License: Royalty Free

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $89 Add to Wishlist
  • Description
  • Formats

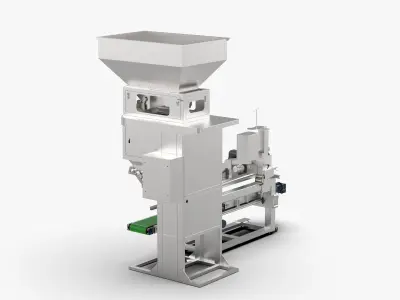

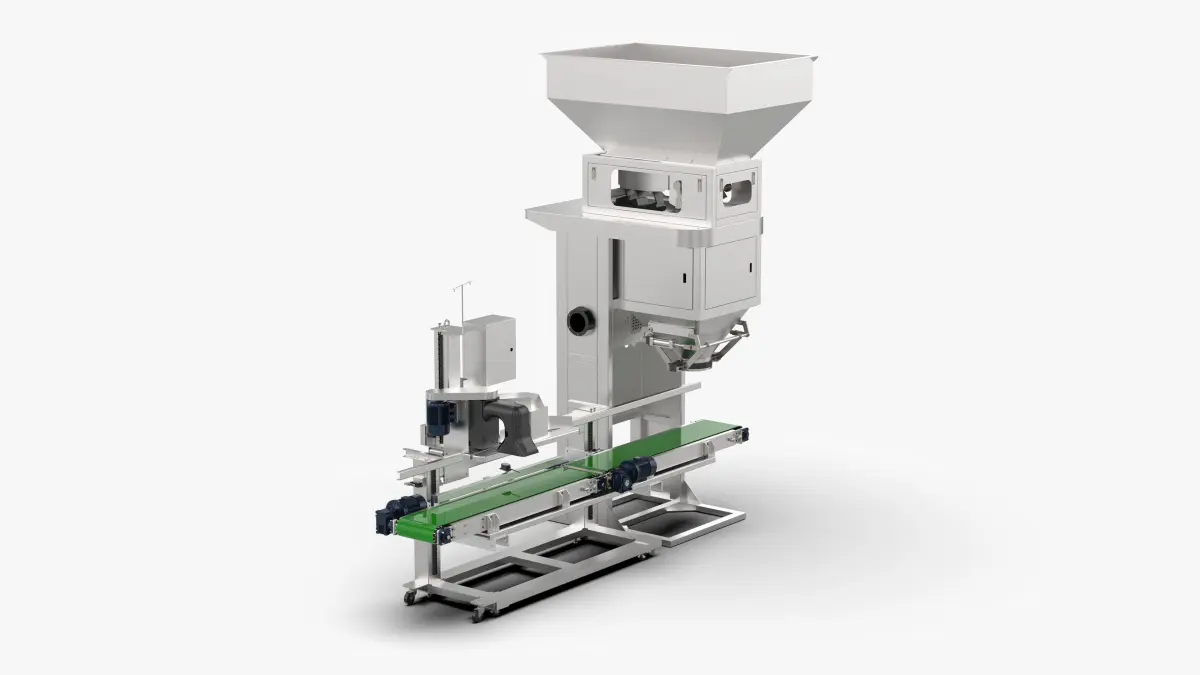

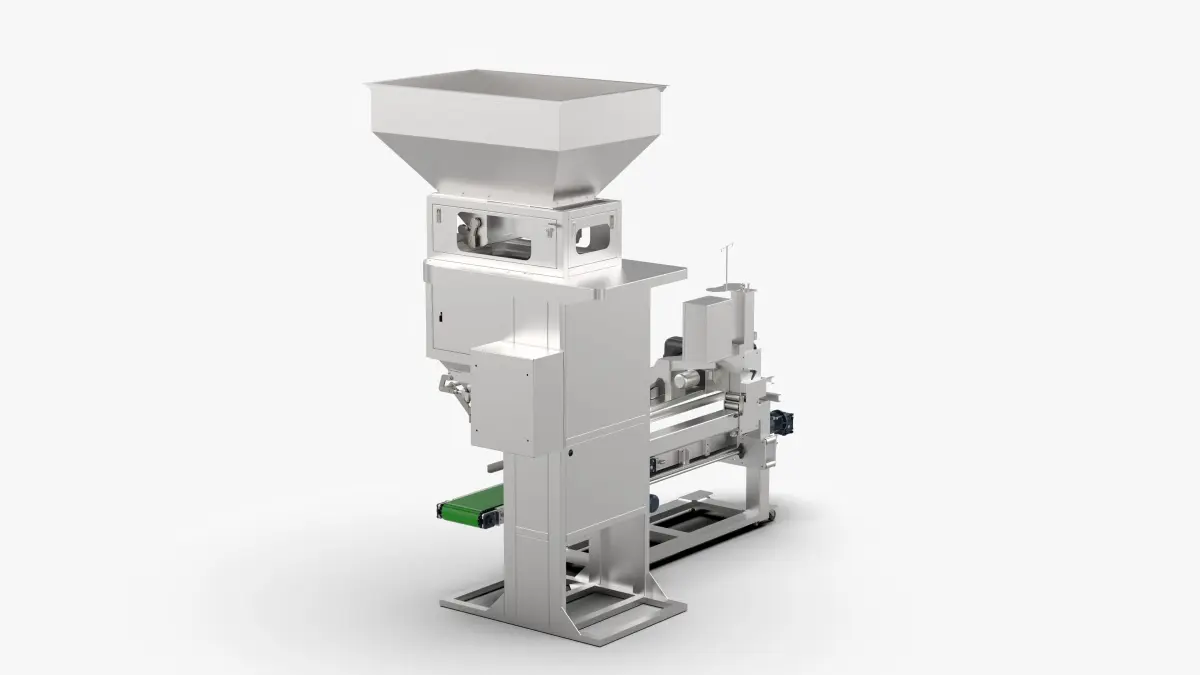

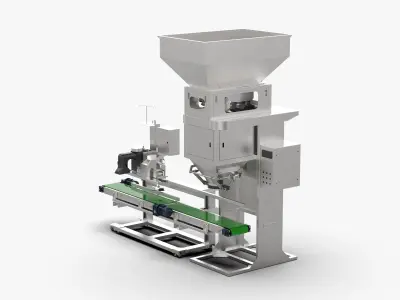

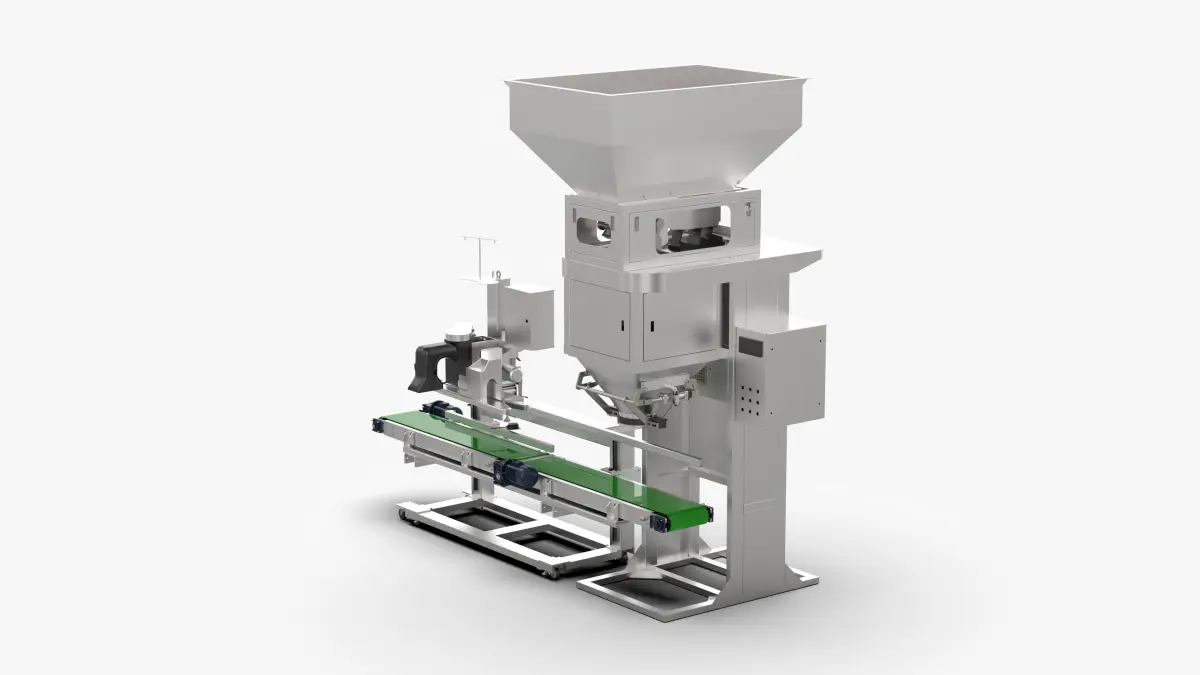

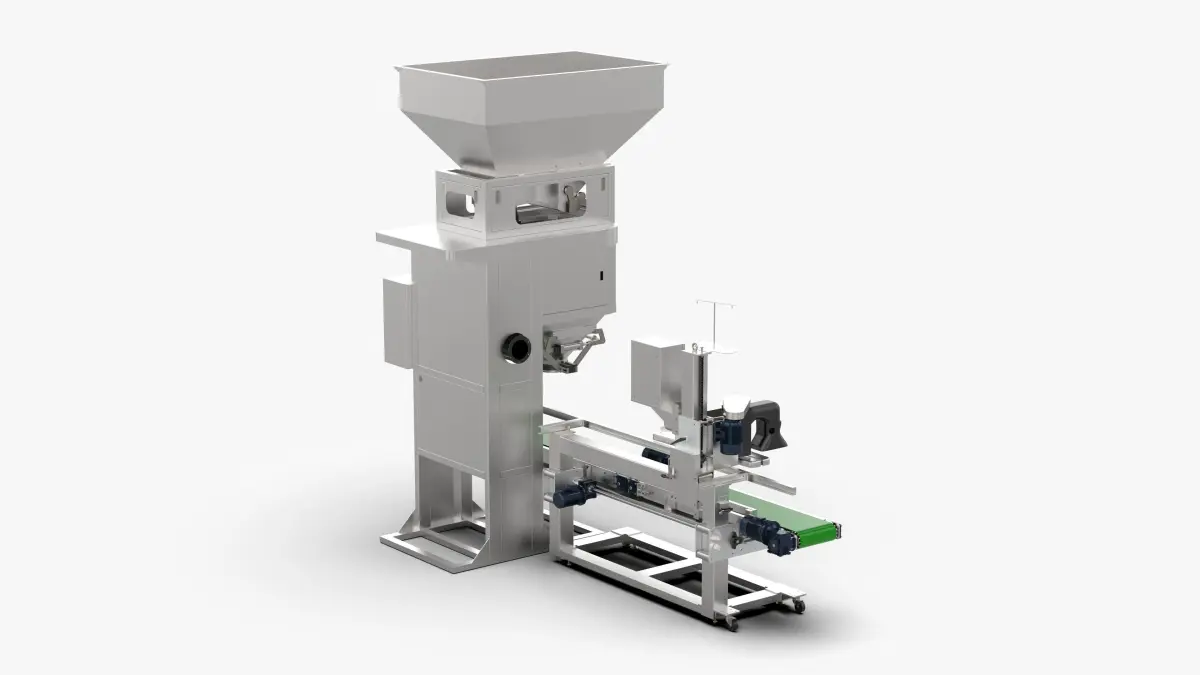

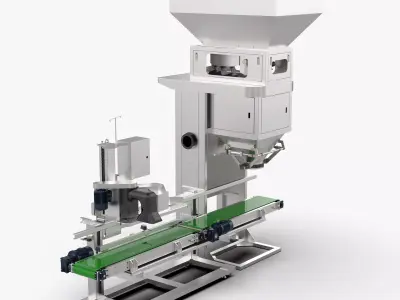

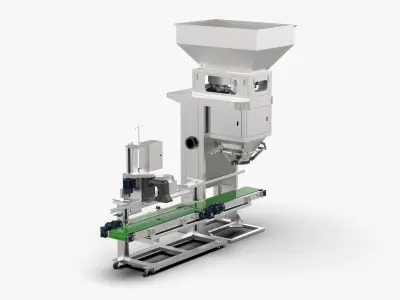

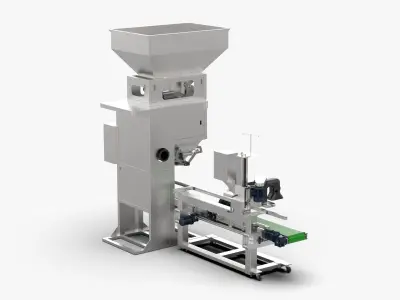

Automatic Quantitative Packaging Scale Machine

Introduction

Automatic packaging scale (self-flowing plus vibrating bucket scale) When the quantitative packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding. The feeding device is a two-stage feeding method of fast and slow; when the weight of the material reaches When the fast feeding setting value is reached, stop fast feeding and keep slow feeding; when the weight of the material reaches the final setting value, close the feeding door to complete the dynamic weighing process; at this time, the system detects whether the bag clamping device is in the predetermined state , when the packaging bag is clamped, the system sends a control signal to open the discharge door of the weighing hopper, and the material enters the packaging bag. After the material is placed, the discharge door of the weighing hopper is automatically closed; after the material is emptied, the bag clamping device is released , the packaging bag falls automatically; after the packaging bag falls, it is sewn and transported to the next station. It runs automatically in a cycle like this.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 1,942,072
  • Vertice: 5,826,216
SLDPRT (SolidWorks, filesize: 98 MB), OBJ (OBJ, filesize: 156 MB), STL (Stereolithography, filesize: 92.6 MB), STP (STEP, filesize: 45.2 MB), IGE (IGES, filesize: 161 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 1942072
  • Vertices: 5826216
  • Plugins used
  • Geometry: Polygon mesh

Tags

Automatic Quantitative Packaging Scale Machine Solidworks Assembly Packing Design Model Equipment Industrial Production Weight Feeder Feeding Bag Transport Automation Clamping Industrial machine
