Automatic Robot Bobbin Loading Workstation 3D model

$59

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

Automatic Robot Bobbin Loading Workstation

Introduction

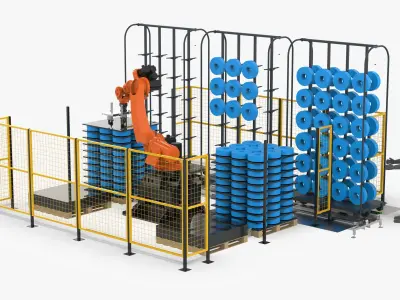

A robotic automatic bobbin loading workstation for the textile industry. The robot automatically unstacks the yarn bobbin and each layer of partitions, and the robot places the yarn bobbin on the transfer conveyor rack. The tooling rack is manually pushed into the loading table. The feeding table is equipped with a rotating mechanism, which can cooperate with the robot to complete the two-sided feeding.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 3,653,086
Vertice: 10,959,258

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 3653086
Vertices: 10,959,258
Plugins used

Tags

Automatic Robot Bobbin Loading Workstation Solidwork Design Assembly Modeling Automation Machinery Part Machine Mechanism Line Production Manufacture Drawing Industrial Industrial machine
