Automatic Sliding Gate 3D model

License: Royalty Free

author:

droumbas

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «droumbas». CGhub does not claim copyright ownership over the content used.

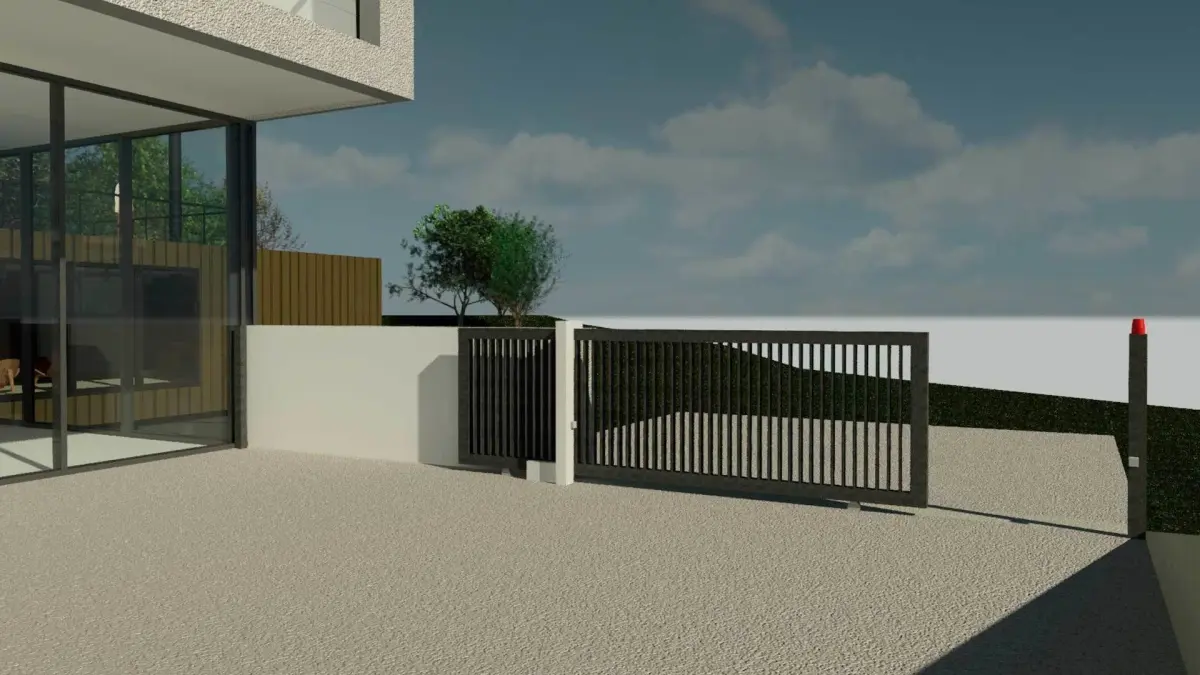

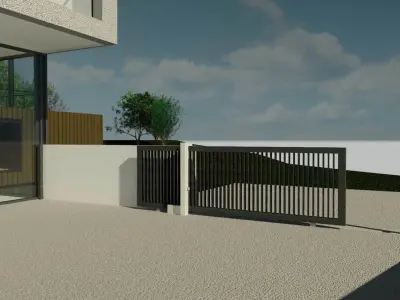

This is a Revit floor based family for an automatic sliding gate. Fully Parametric model.

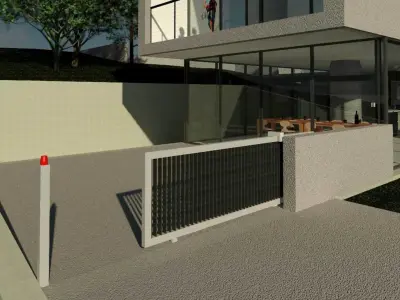

Model can be placed on any project onto an existing floor element, can be flipped both horizontally and vertically and adjust various model parameters to match the design needs for every project.

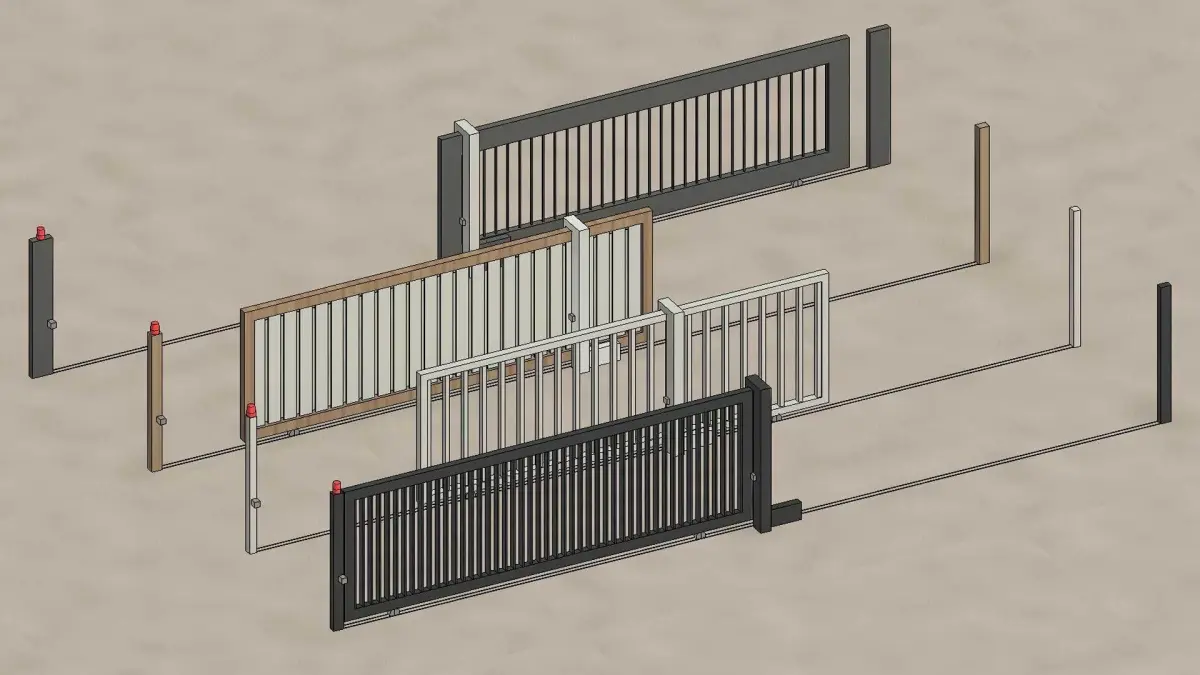

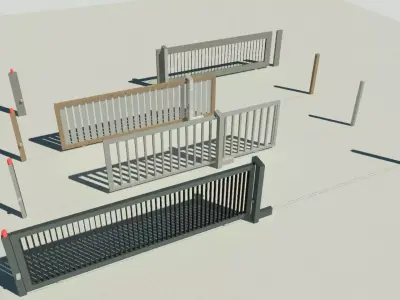

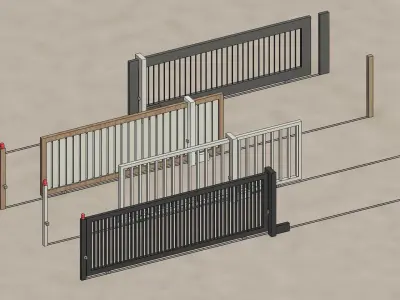

Gate profiles, dimensions and materials can be adjusted to match designs from steel, aluminium or even wooden automatic sliding gates. User can adjust the entrance opening length, gate height and bars gap and dimensions.

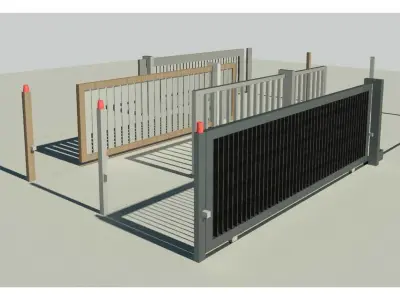

The model includes a gate main frame, vertical bars, floor rail cut into existing floor, start and end stopper posts, light beacon, support guide post and floor mechanism.

ATTRIBUTES:

Revit Version 2022
Family Type: Floor Based
File Extension: .rfa

PARAMETERS:

Entrance Opening Length
Gate Height
Gate Frame Width
Gate Frame Depth
Gate Bars width & depth
Gate Bars gap spacing
Sensor height
Materials ( gate frame, bars, guide post, mechanism, stopper posts, light beacon )
