Automatic Square Battery Size Measuring Machine 3D model

$39

License: Royalty Free

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Automatic Square Battery Size Measuring Machine

Introduction

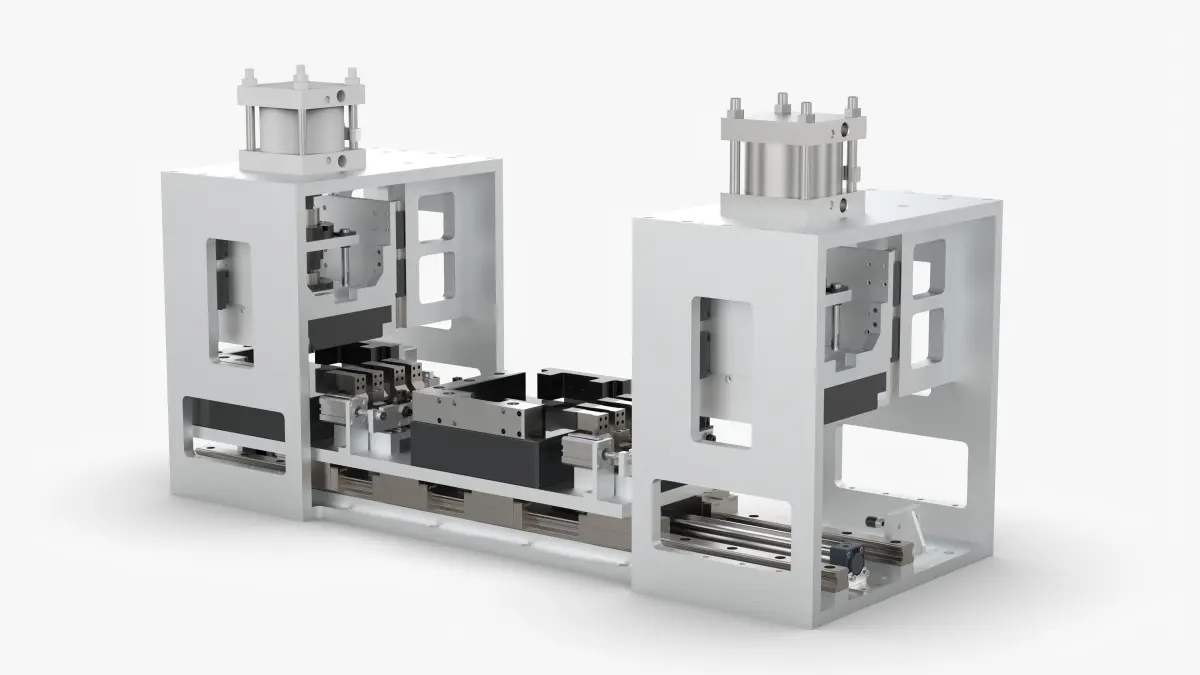

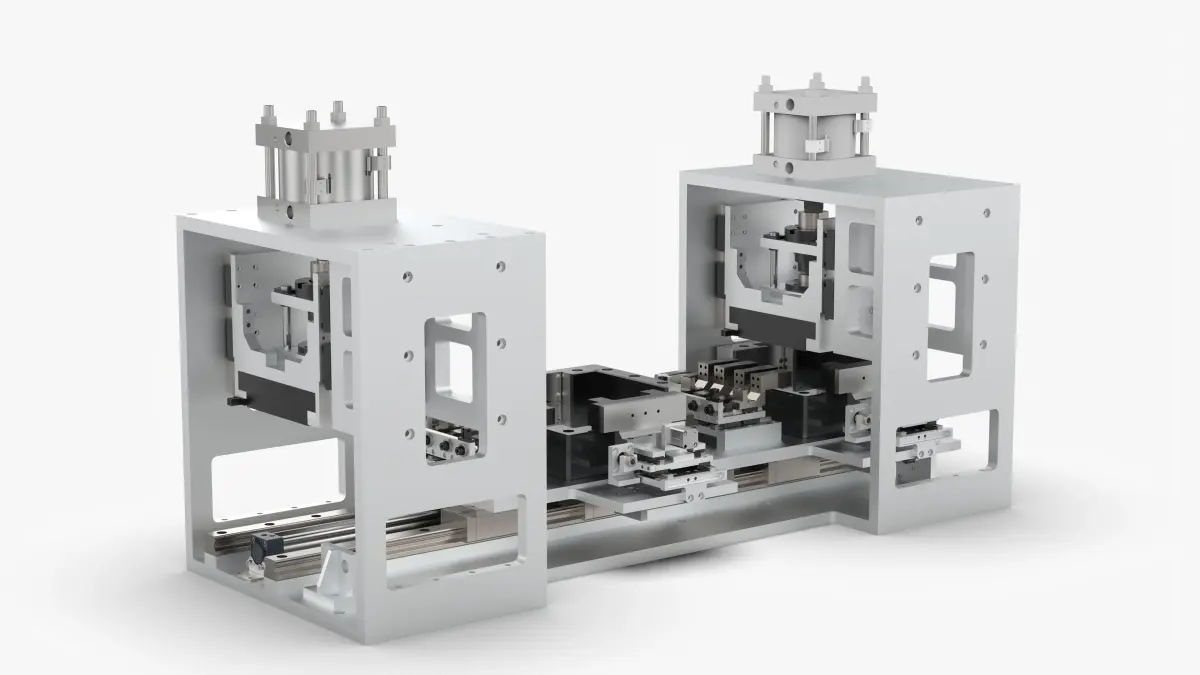

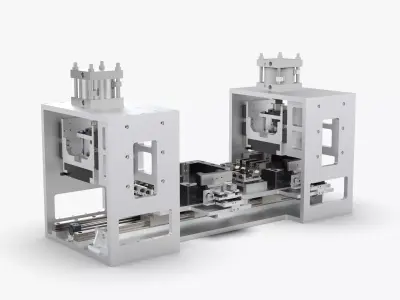

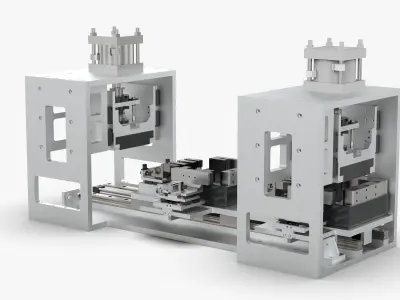

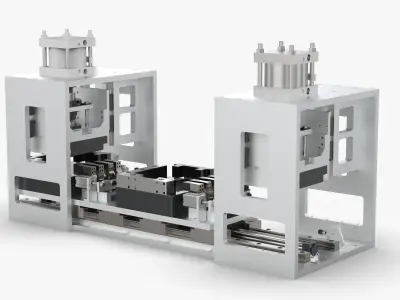

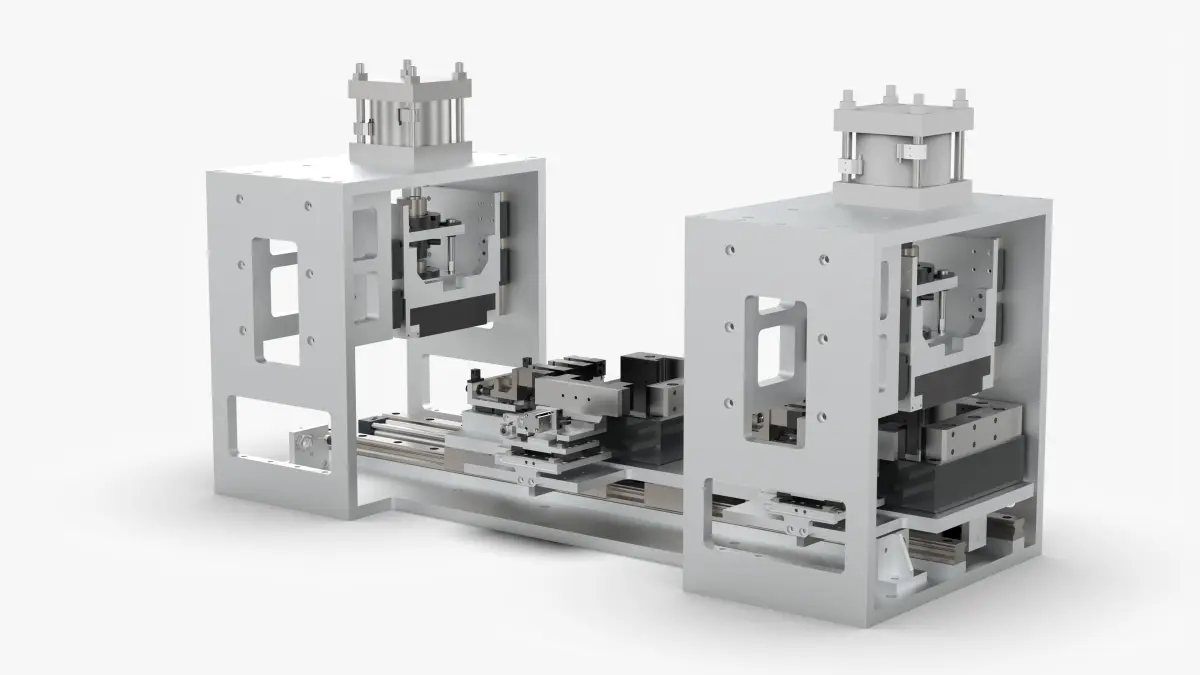

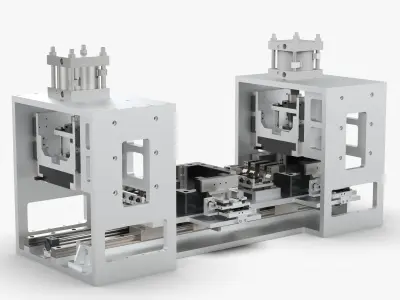

This mechanism is a special mechanism for power square battery size measurement and shaping. The battery is placed in the middle measuring fixture, and the cylinder is pushed into the measuring position for shaping and size measurement. Another station continues to put the battery. The dimension measurement accuracy is plus or minus 0.005mm.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 854,068
Vertice: 2,562,204

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 854068
Vertices: 2562204
Plugins used
Geometry: Polygon mesh

Tags

Automatic Square Battery Size Measuring Machine Scale Tool Solidworks Assembly Keyshot Industrial Machinery Mass production Measurement Shaping Fixture Cylinder Design Industrial machine
