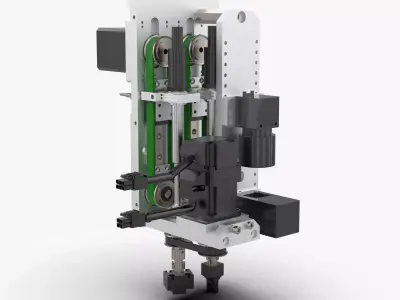

Automatic Swing Angle and Lifting Nozzle Machine 3D model

$19

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

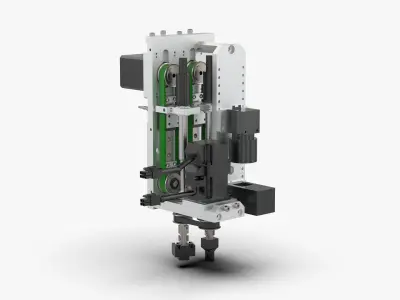

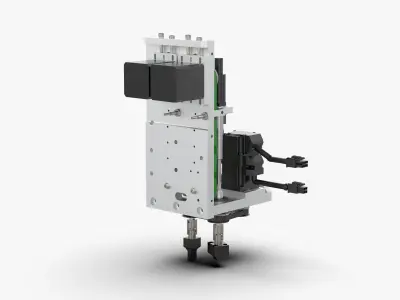

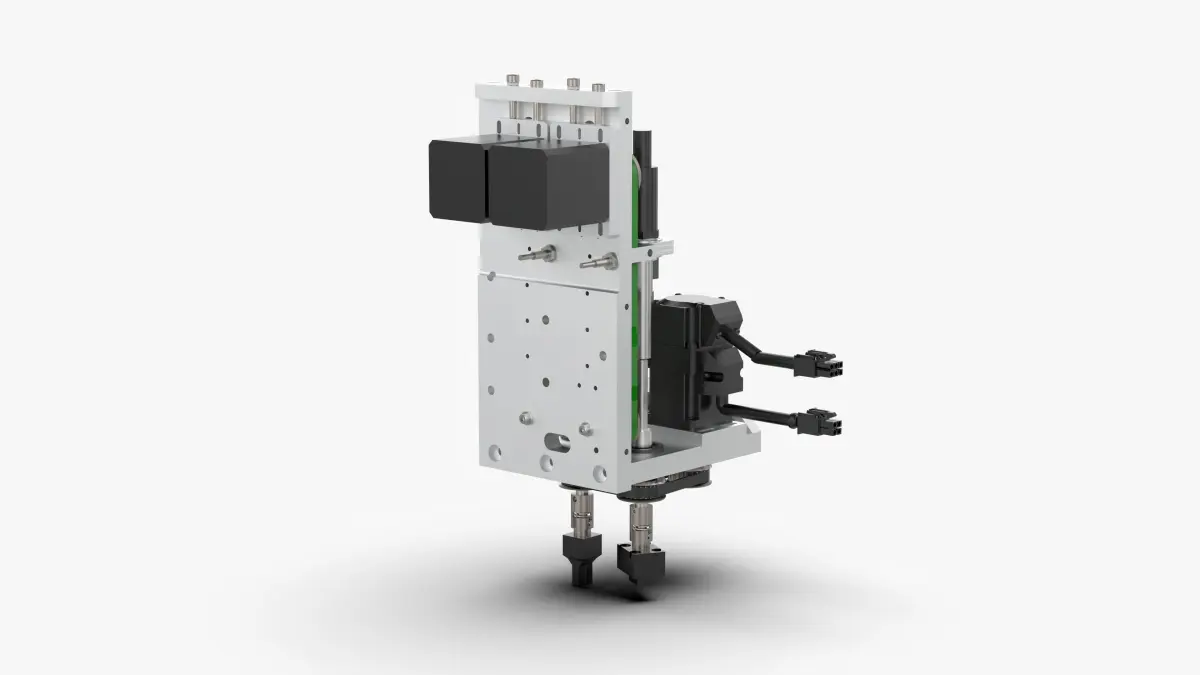

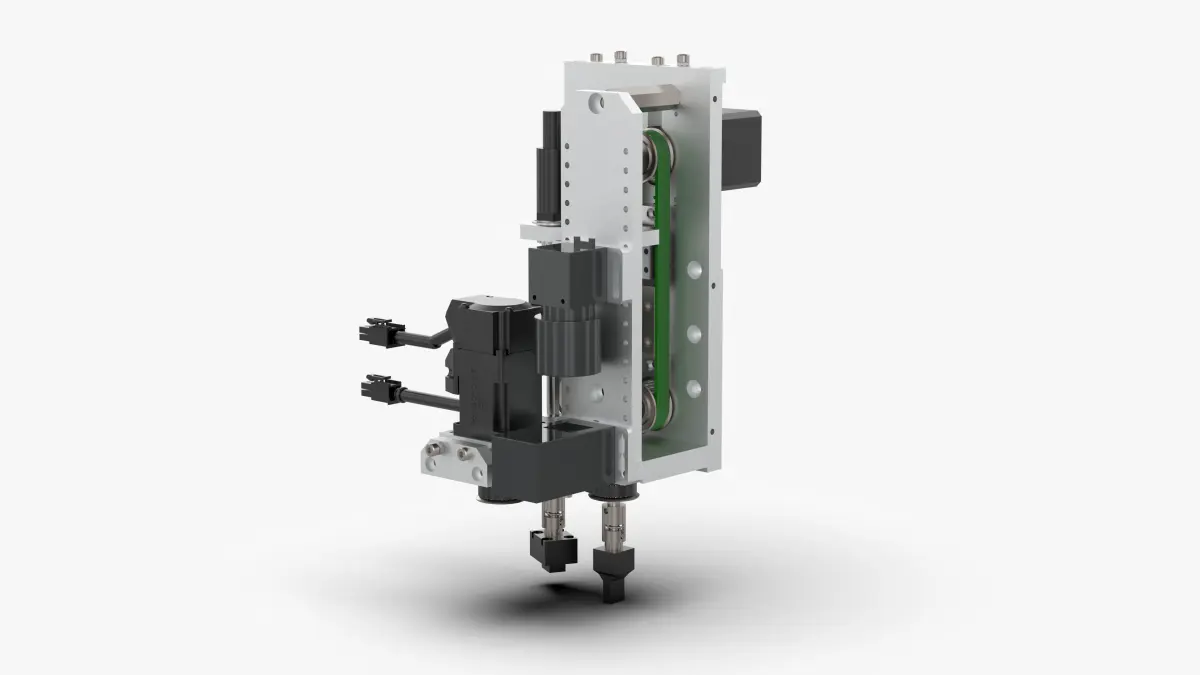

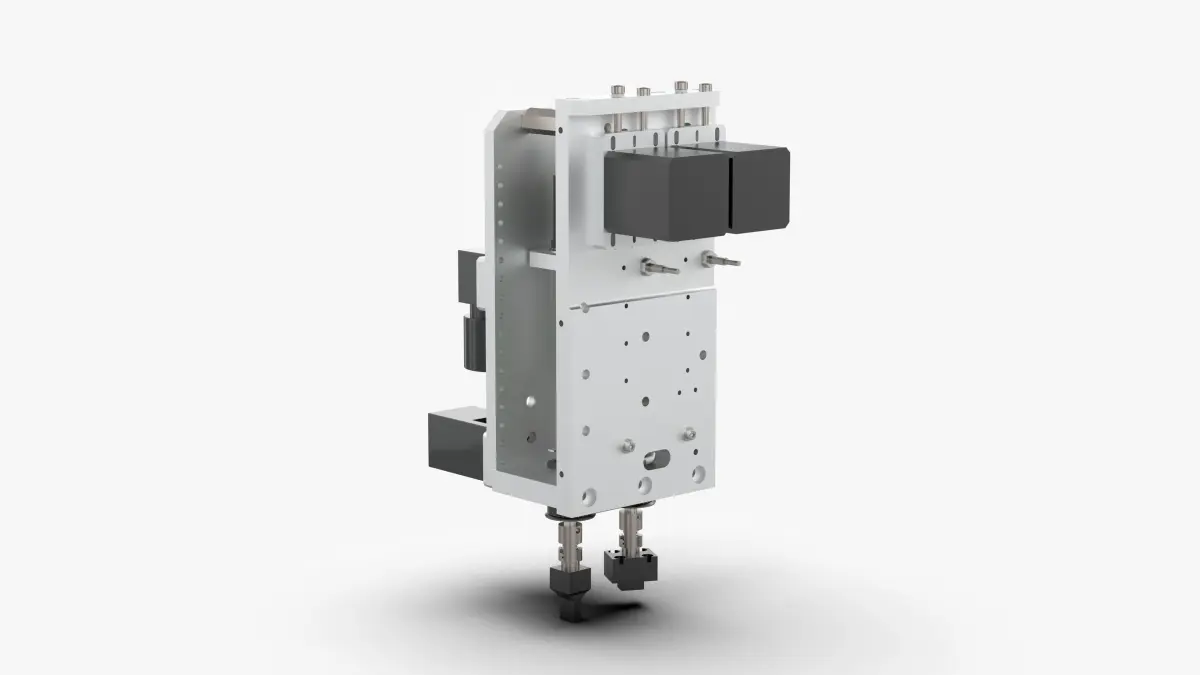

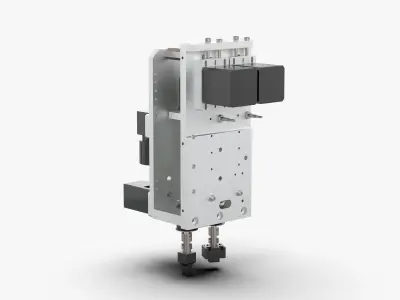

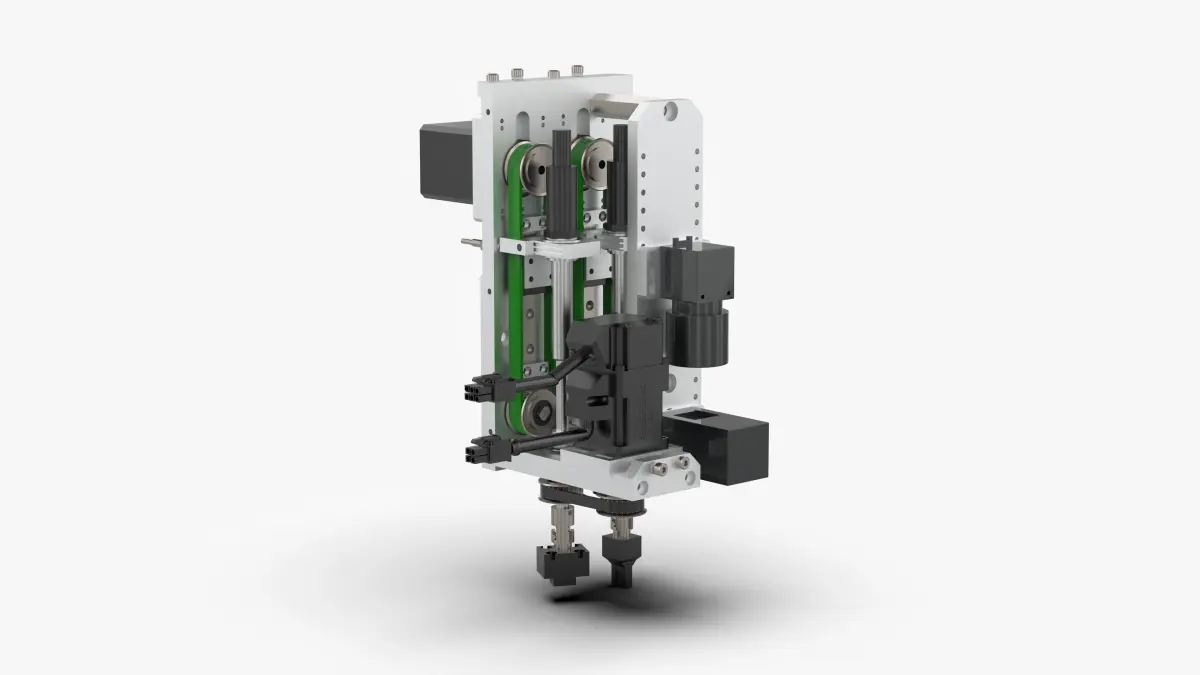

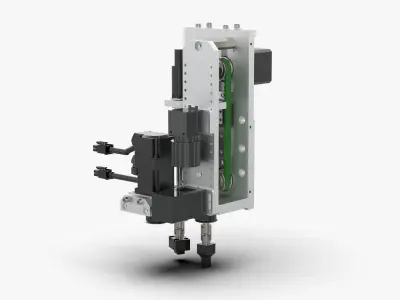

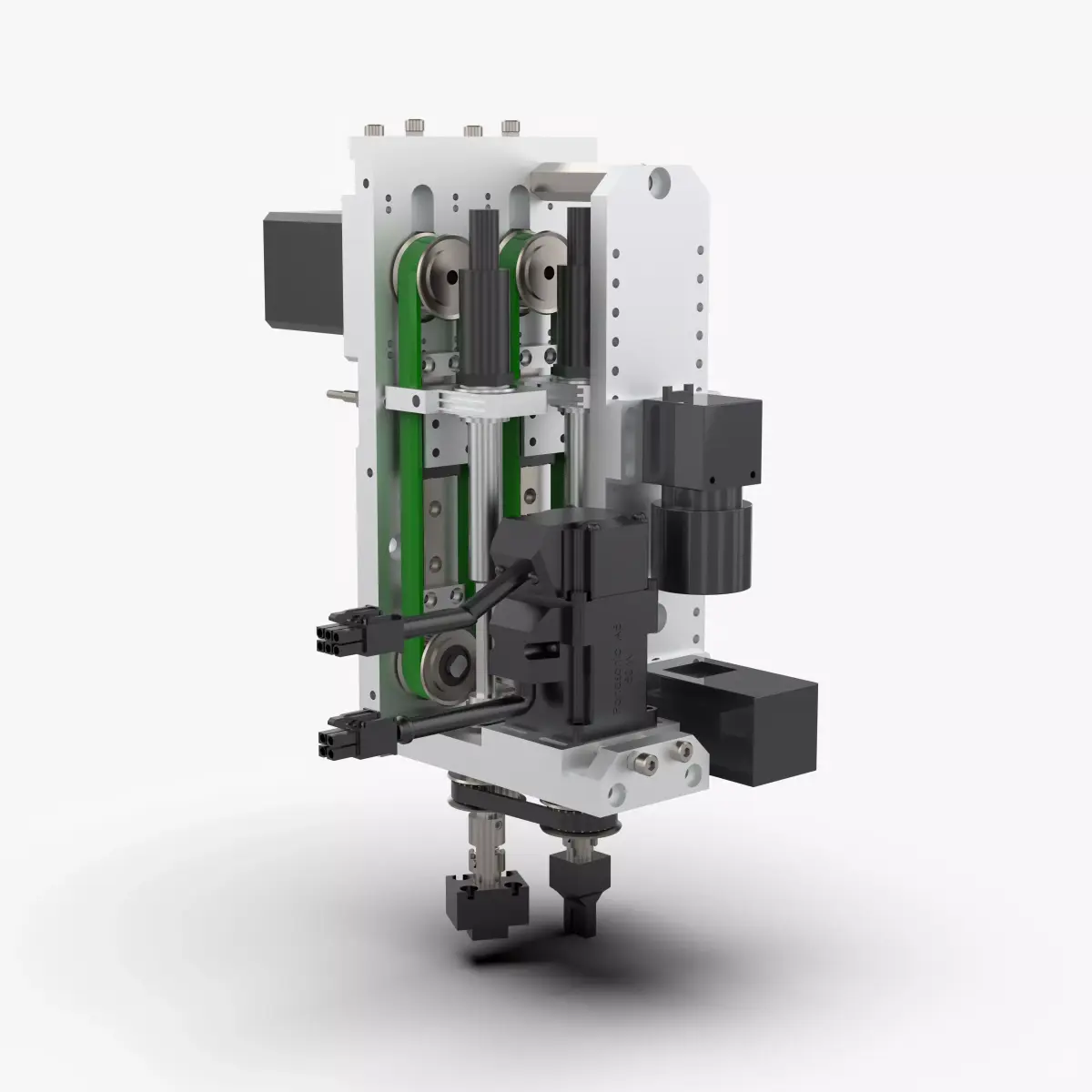

Automatic Swing Angle and Lifting Nozzle Machine

Introduction

A suction nozzle with automatic swing angle and automatic lifting, which is often used in the assembly and inspection of small materials in the 3c industry. This model contains many functions, such as automatic swing angle, automatic lifting, and it is equipped with CCD detection function. After finding the correct position, it can proceed to the next step. Classic structure, welcome to download.

File Formats

STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 1,957,262
Vertice: 5,871,786

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: -
Polygons: 1957262
Vertices: 5,871,786

Tags

Automatic Swing Angle Nozzle Machine Equipment Assembly Solidworks Part Industry Detection Function Position Keyshot Machinery Production Industrial Industrial machine
