Automatic Tent Aluminum Seat Bending Machine 3D model
Home Catalog Aircraft part Automatic Tent Aluminum Seat Bending Machine 3D model
Automatic Tent Aluminum Seat Bending Machine 3D model
Automatic Tent Aluminum Seat Bending Machine 3D model
Automatic Tent Aluminum Seat Bending Machine 3D model
Automatic Tent Aluminum Seat Bending Machine 3D model
Automatic Tent Aluminum Seat Bending Machine 3D model

Publication date: 2024-03-13

Automatic Tent Aluminum Seat Bending Machine 3D model

$129

License: Royalty Free License

author:

Lovano

Buy at www.cgtrader.com - $129 Add to Wishlist
  • Description
  • Formats
Description

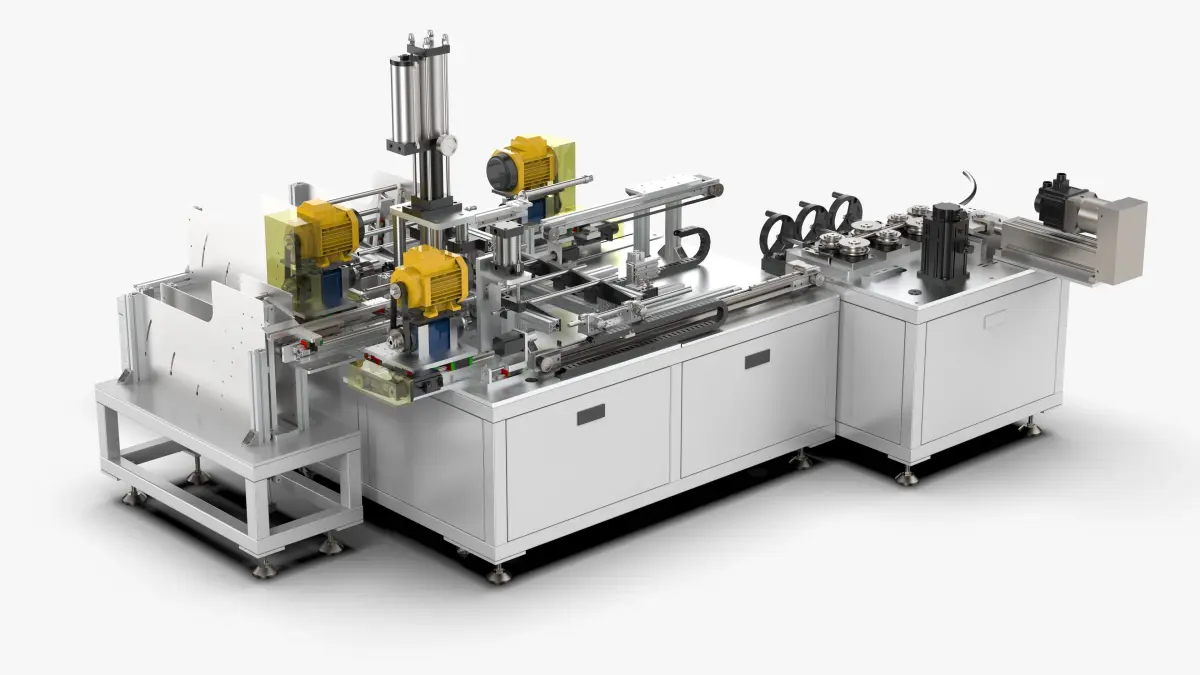

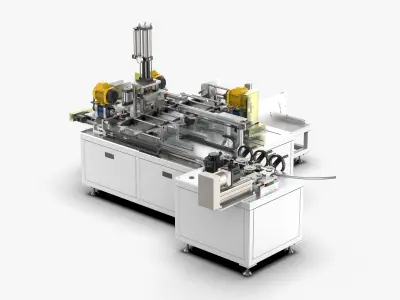

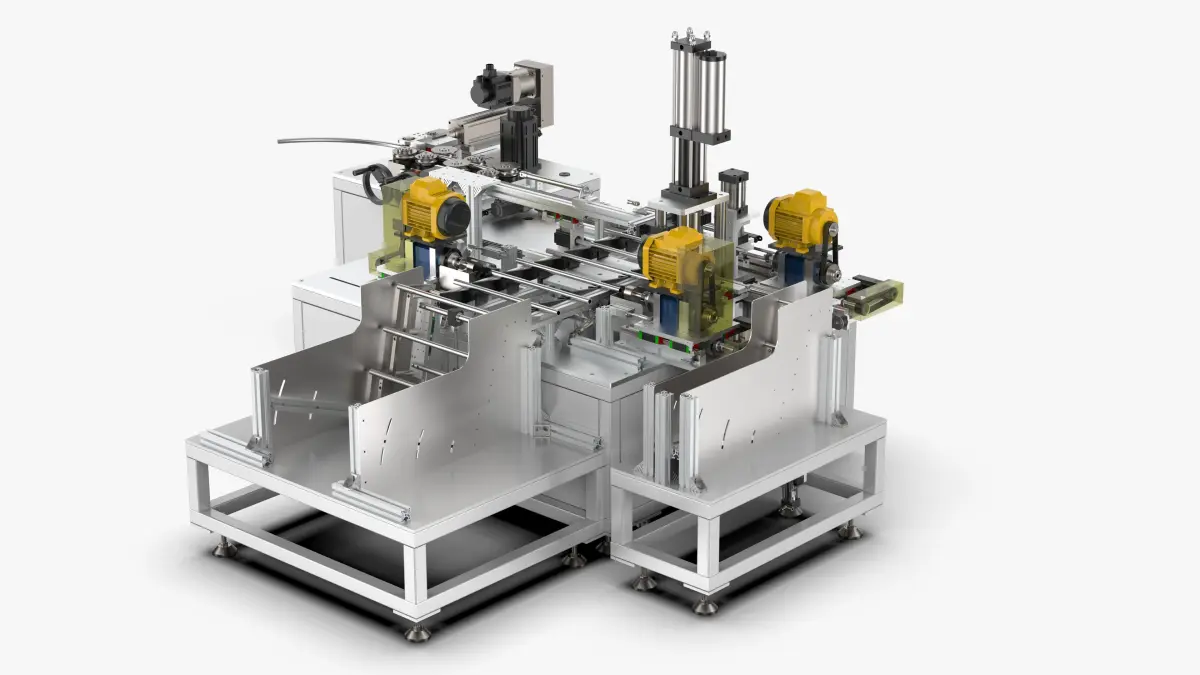

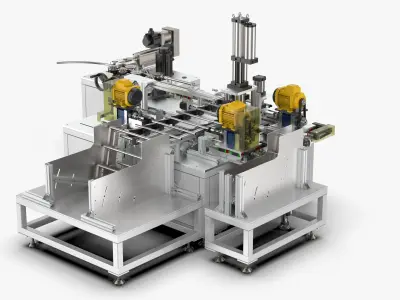

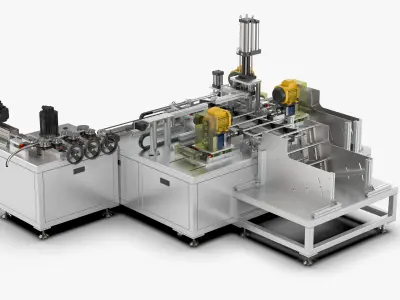

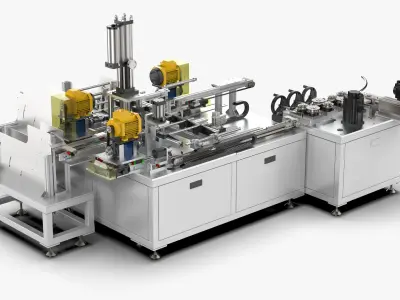

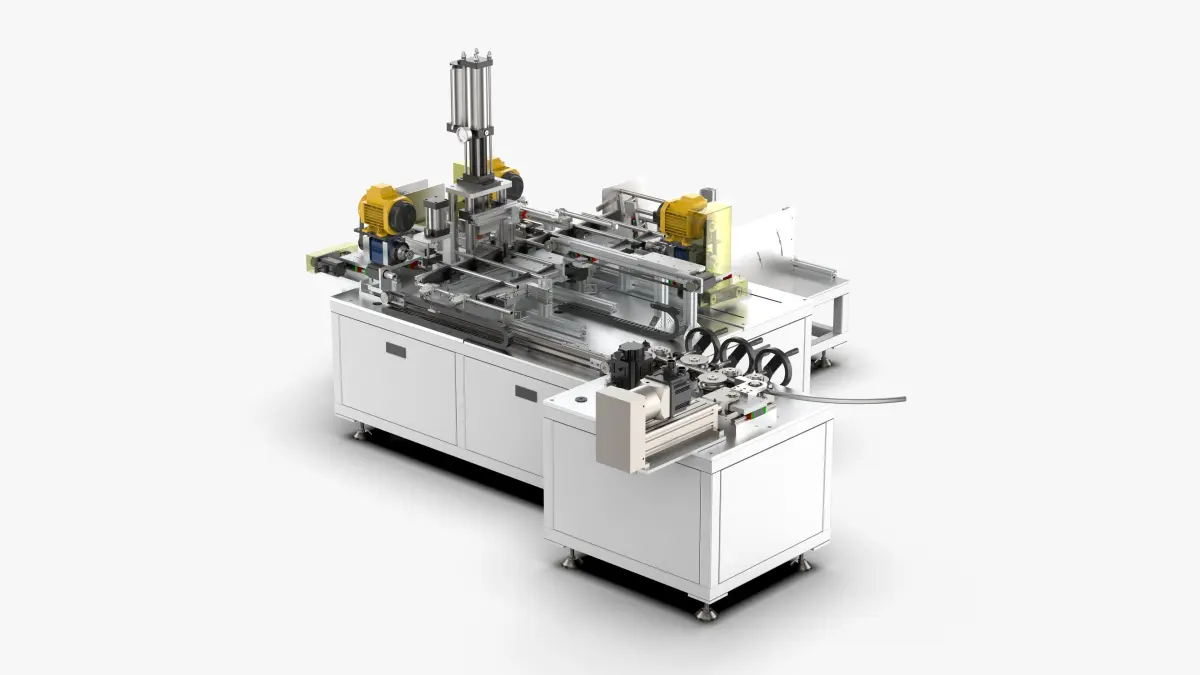

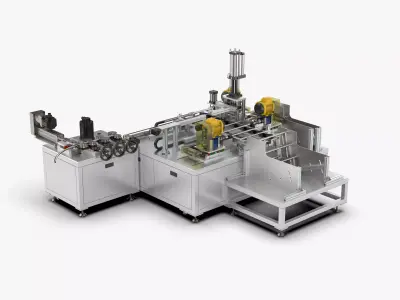

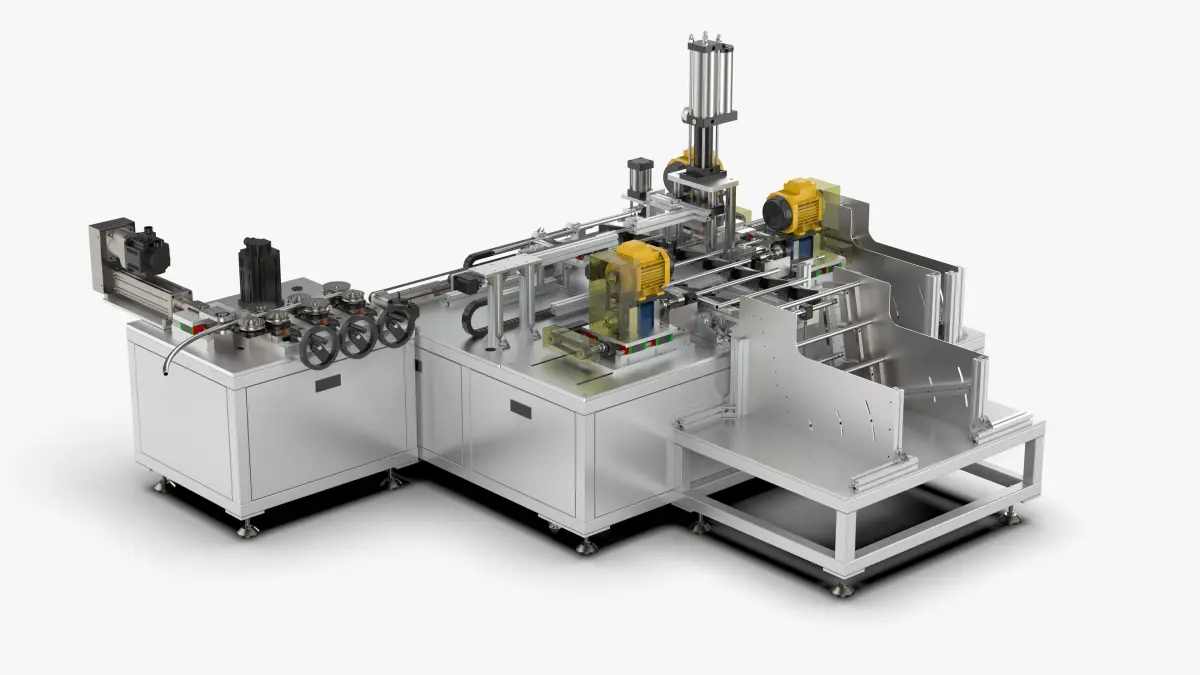

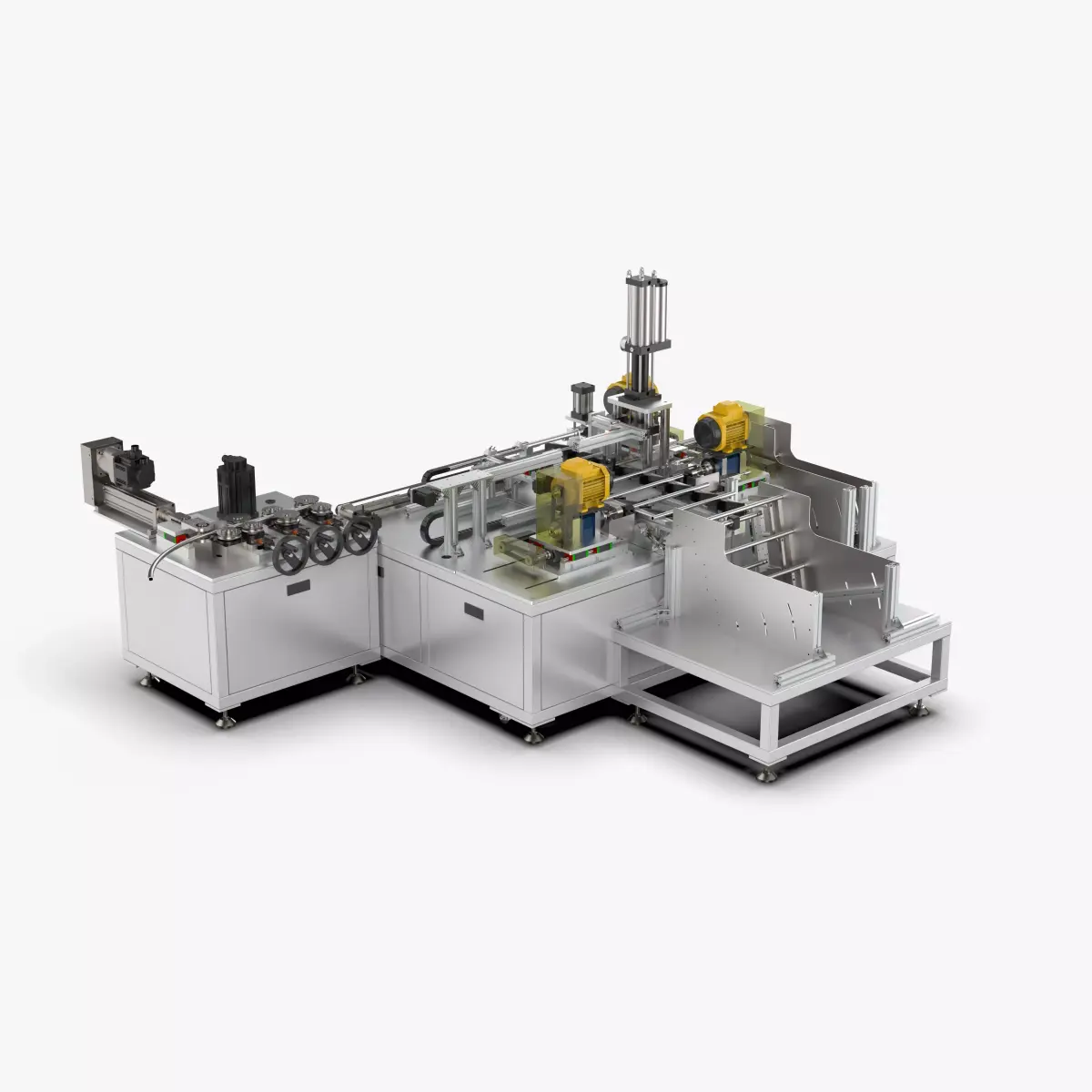

Automatic Tent Aluminum Seat Bending Machine

Introduction

This drawing file is the bending equipment for the aluminum part of the tent skeleton base, which includes 3D drawing files, 2D engineering drawings, BOM tables, programs, and IO points. The design of this machine adopts automatic feeding of product accessories, compatible with various lengths of aluminum tubes, feeding and chamfering from round tubes, automatic feeding of mandrels, assembly of pressure riveting, mandrel chamfering, automatic feeding of bent pipes, bending arcs It can be adjusted freely by the servo motor and is suitable for various arc processing.

File Formats

  • SolidWorks 2020 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 4,149,013
  • Vertice: 12,447,039

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 4,149,013
  • Vertices: 12,447,039
  • Plugins used

Tags

Automatic Tent Aluminum Seat Bending Machine Industrial Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • SolidWorks 2020 ()201 MBVersion: 2020Renderer: Mental Ray 3.0
Exchange
  • Parasolid ()80.6 MB
  • STEP ()61.8 MB
  • IGES ()220 MB
  • OBJ ()324 MB
  • Stereolithography ()198 MB
  • KeyShot ()623 MB
