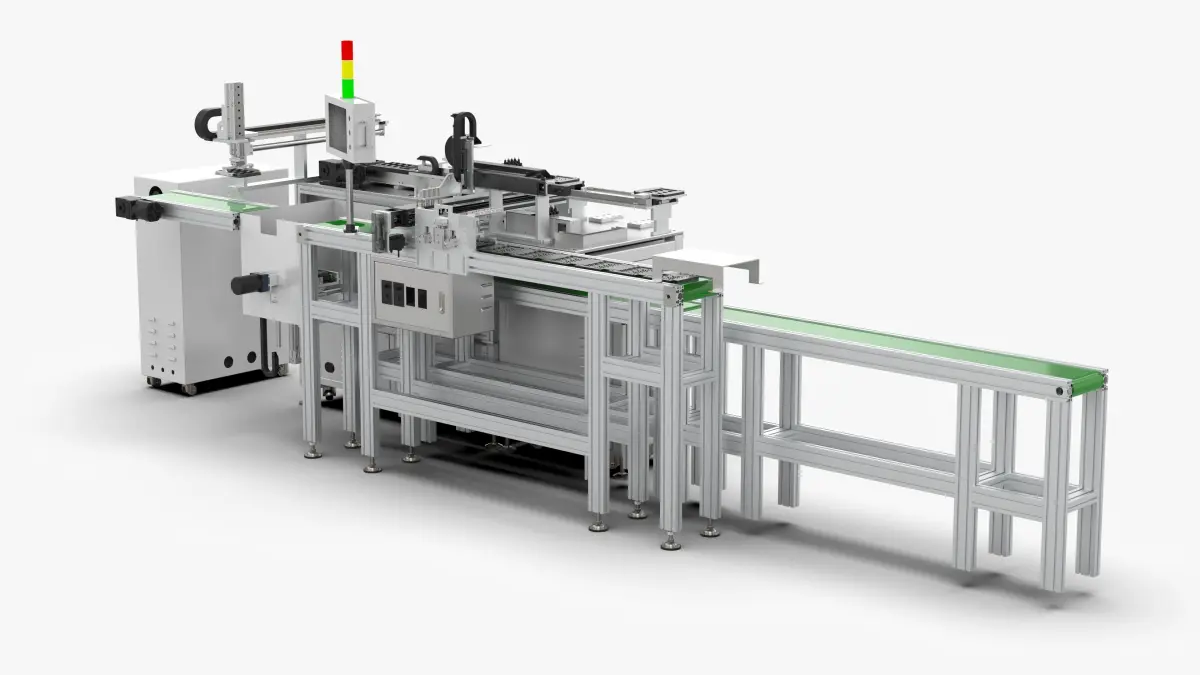

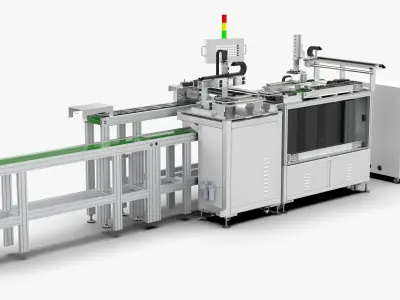

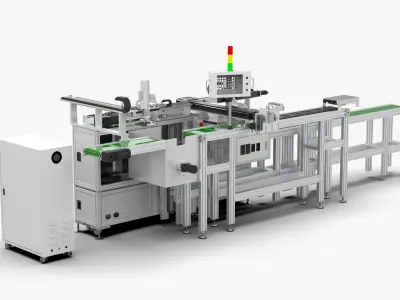

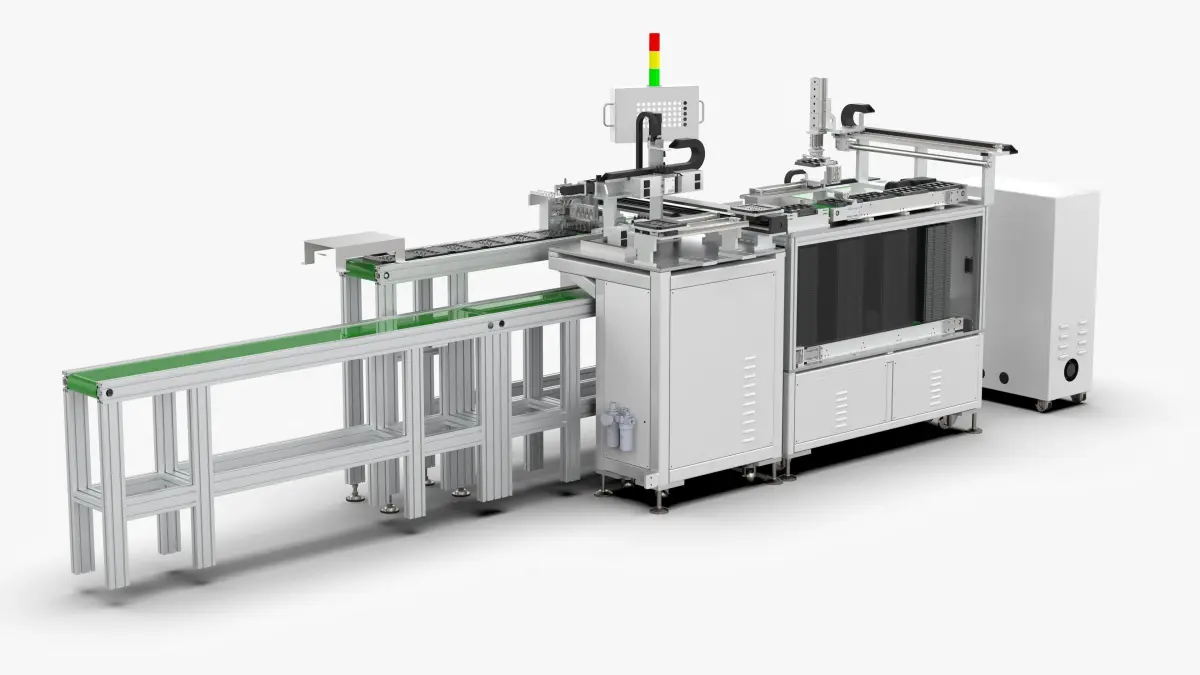

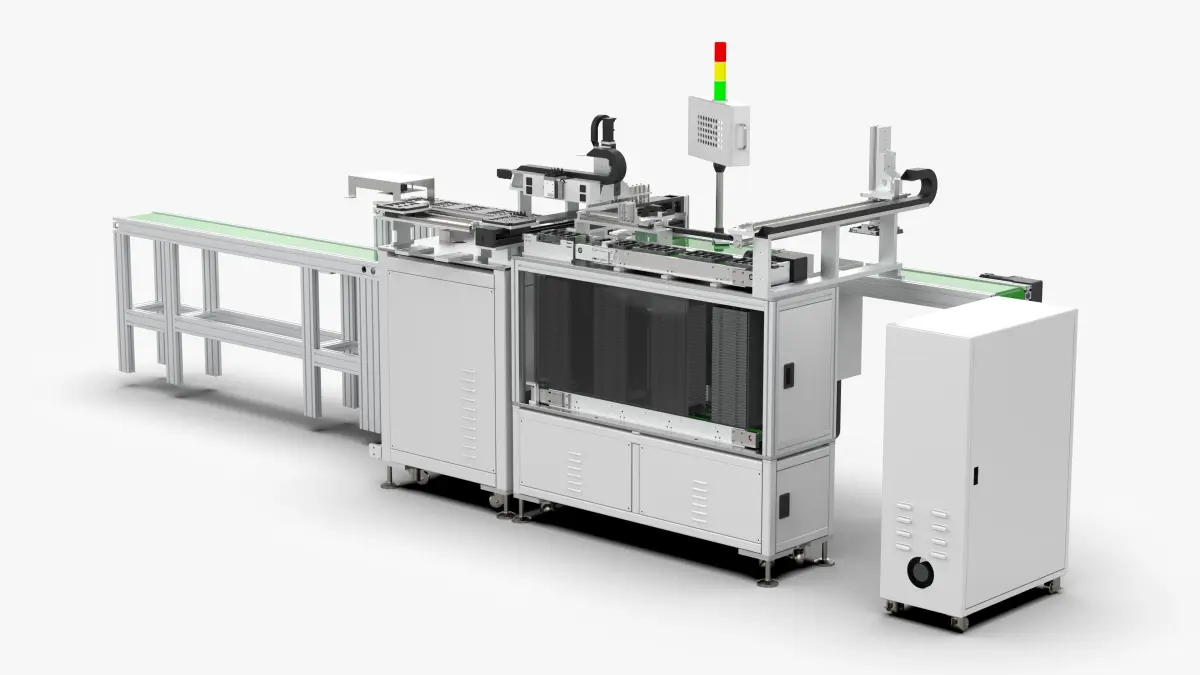

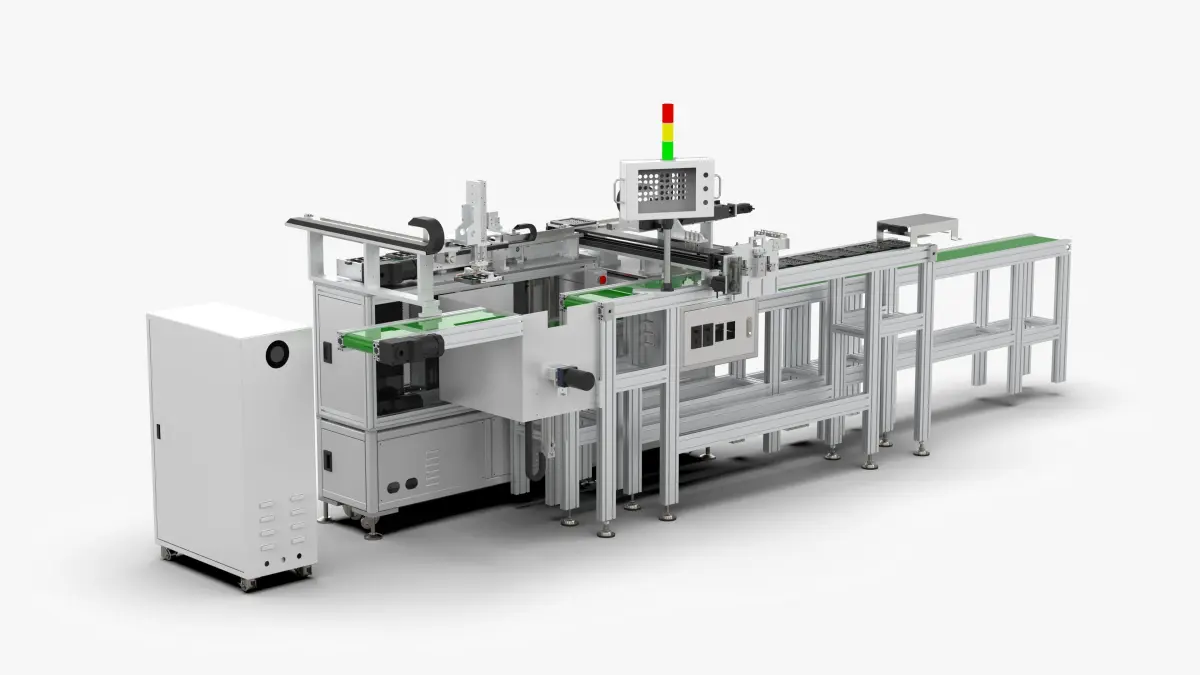

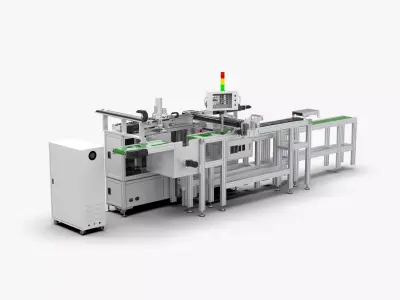

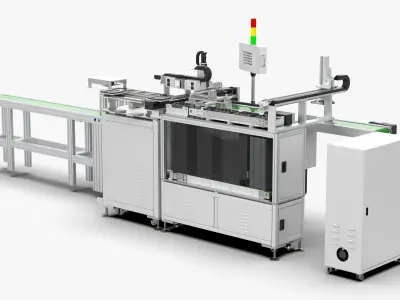

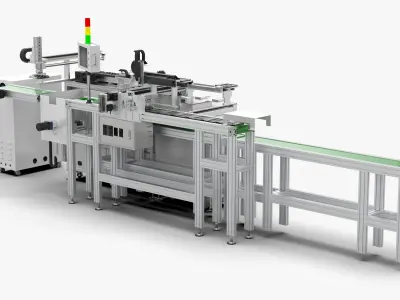

Automatic Testing of Feed Conveying Equipment 3D model

$129

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

Automatic Testing of Feed Conveying Equipment

Introduction

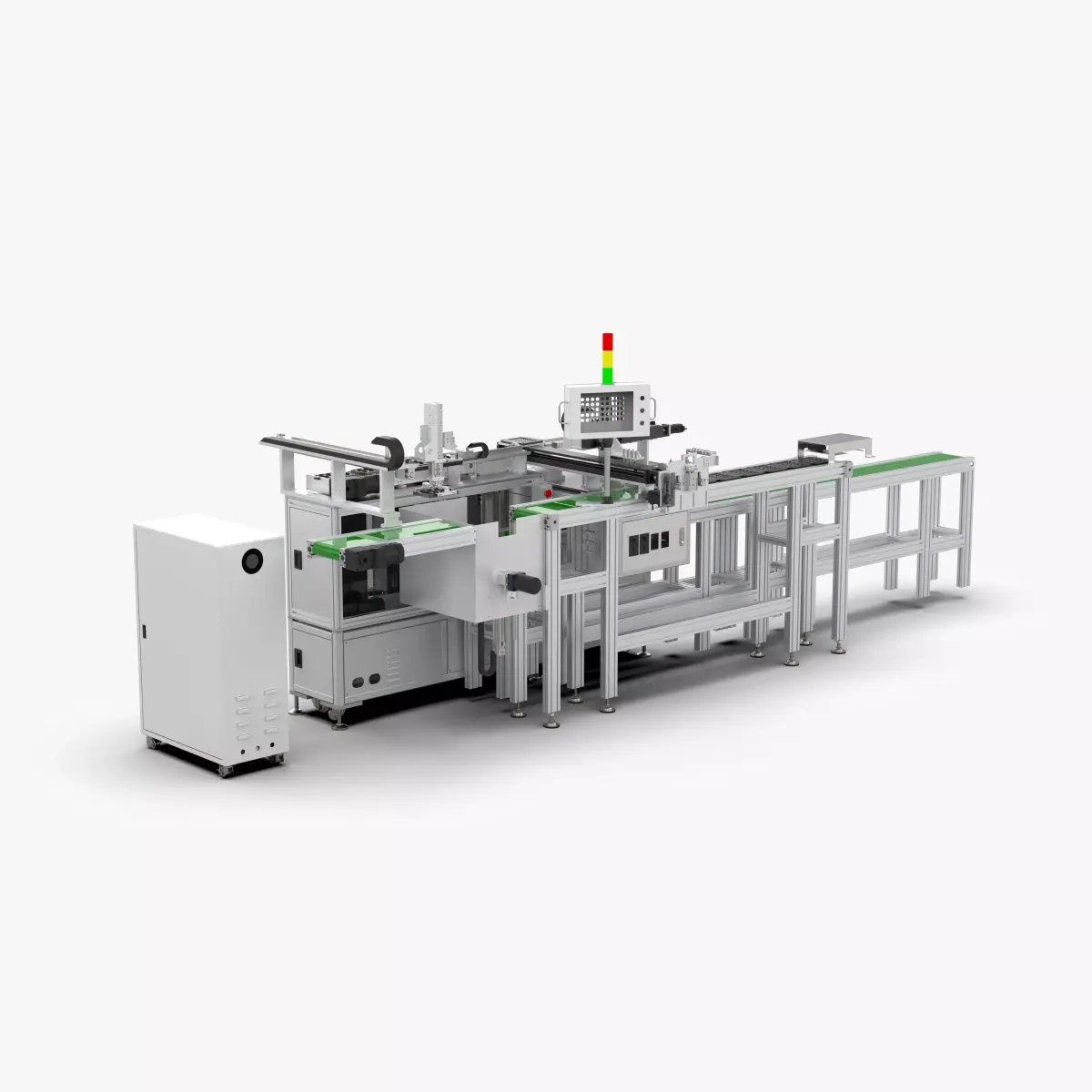

Test the feeding and conveying technical secondary equipment, the Tray is supplied by the wire body and flows into the equipment for internal positioning, the module grabs and positions the material, the carrier is fed by the equipment on the machine to the wire body, and the module XYZ vacuum adsorption module absorbs the pendulum Put it in a fixed position for positioning.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 18,233,682
Vertice: 54,701,046

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 18233682
Vertices: 54,701,046
Plugins used

Tags

Automatic Testing Feed Equipment Solidwork Design Assembly Modeling Automation Machinery Part Machine Mechanism Line Production Robot Manufacture Industrial Industrial machine
