Automatic Tray Positioning and Recycling Machine 3D model

$89

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

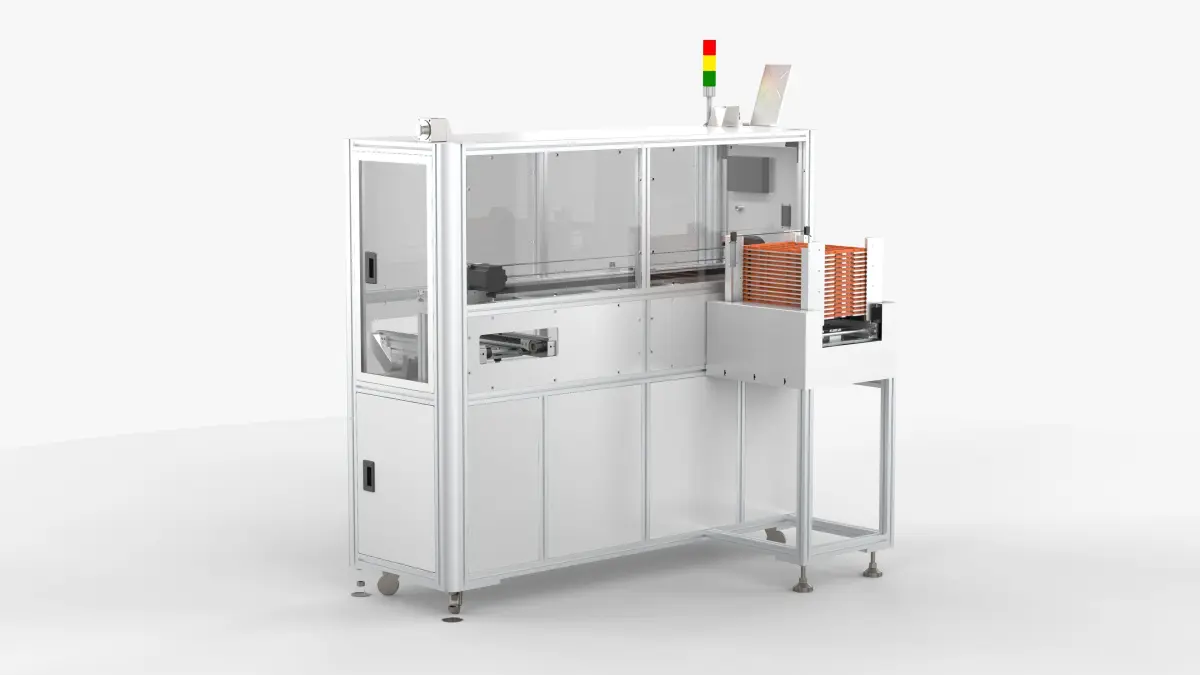

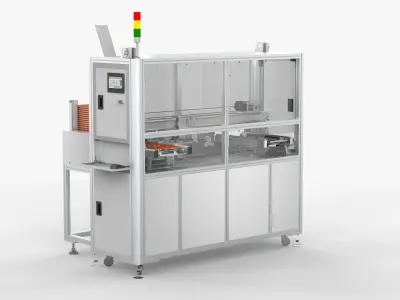

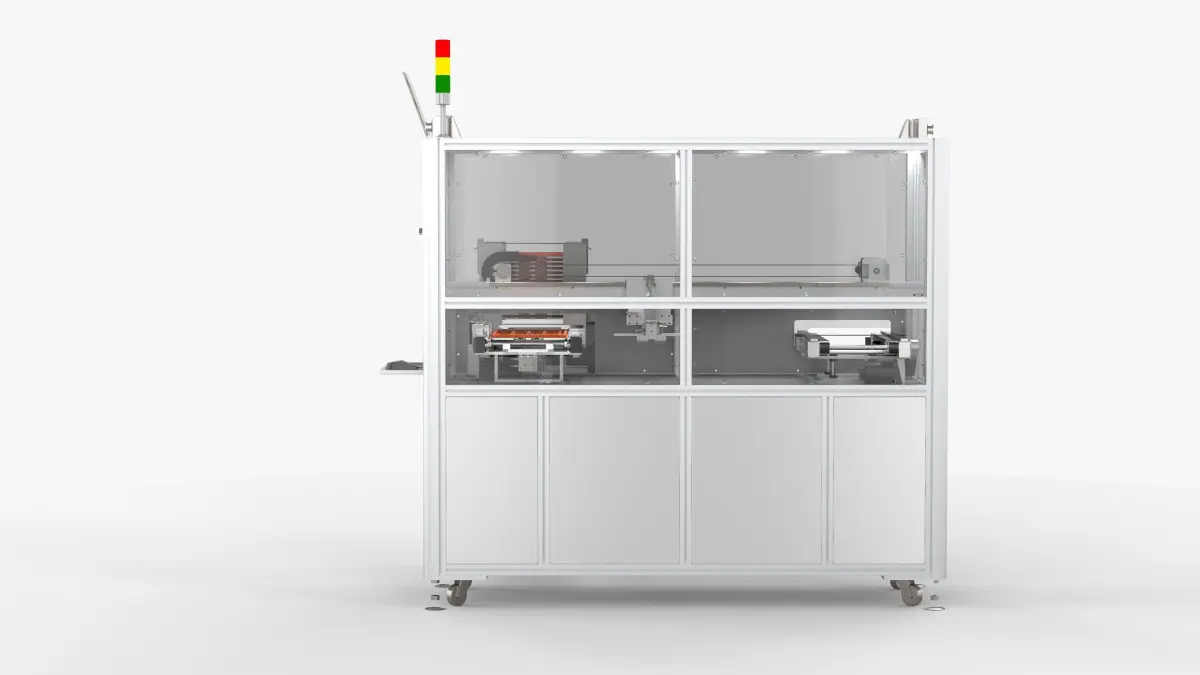

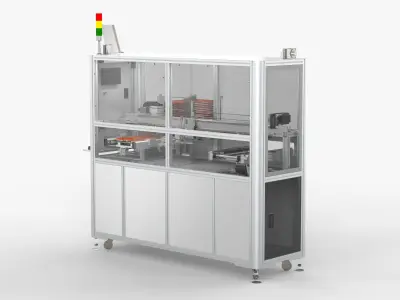

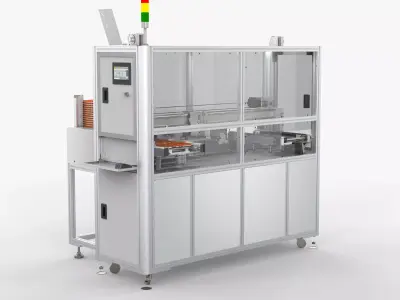

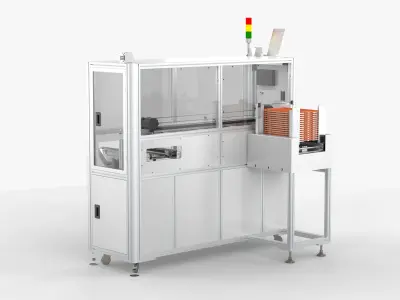

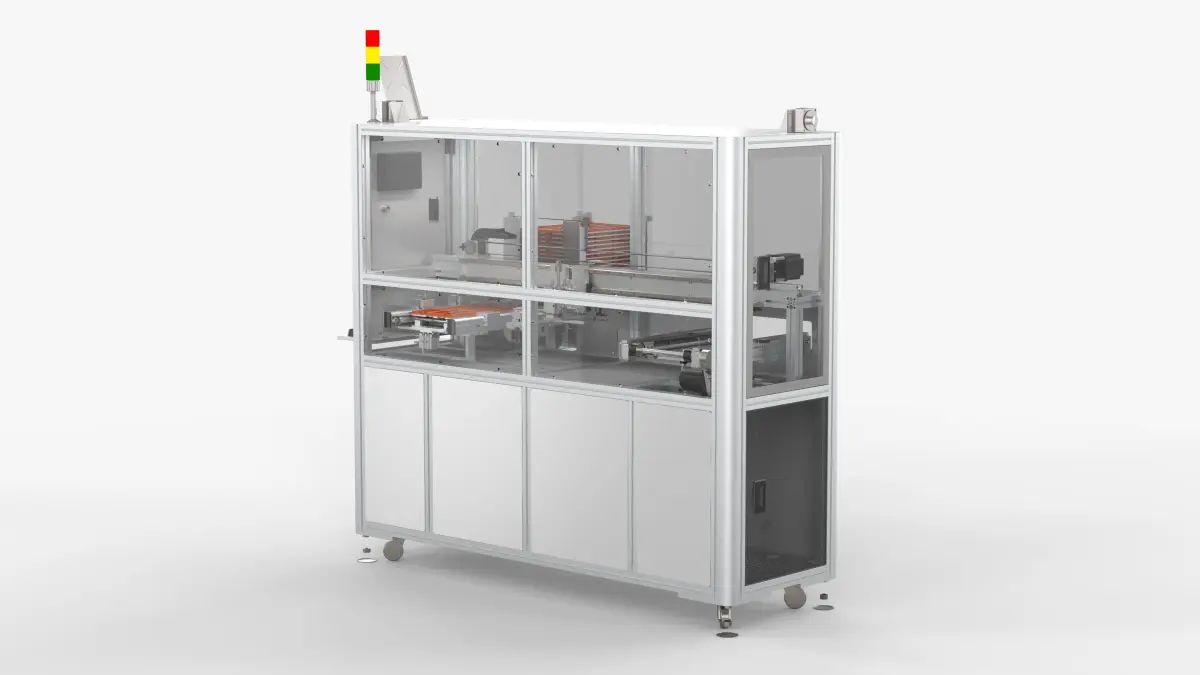

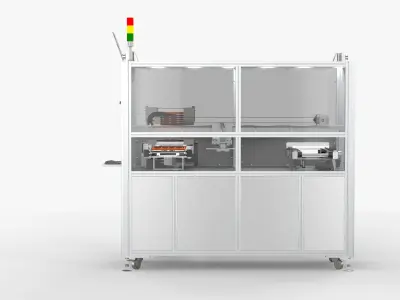

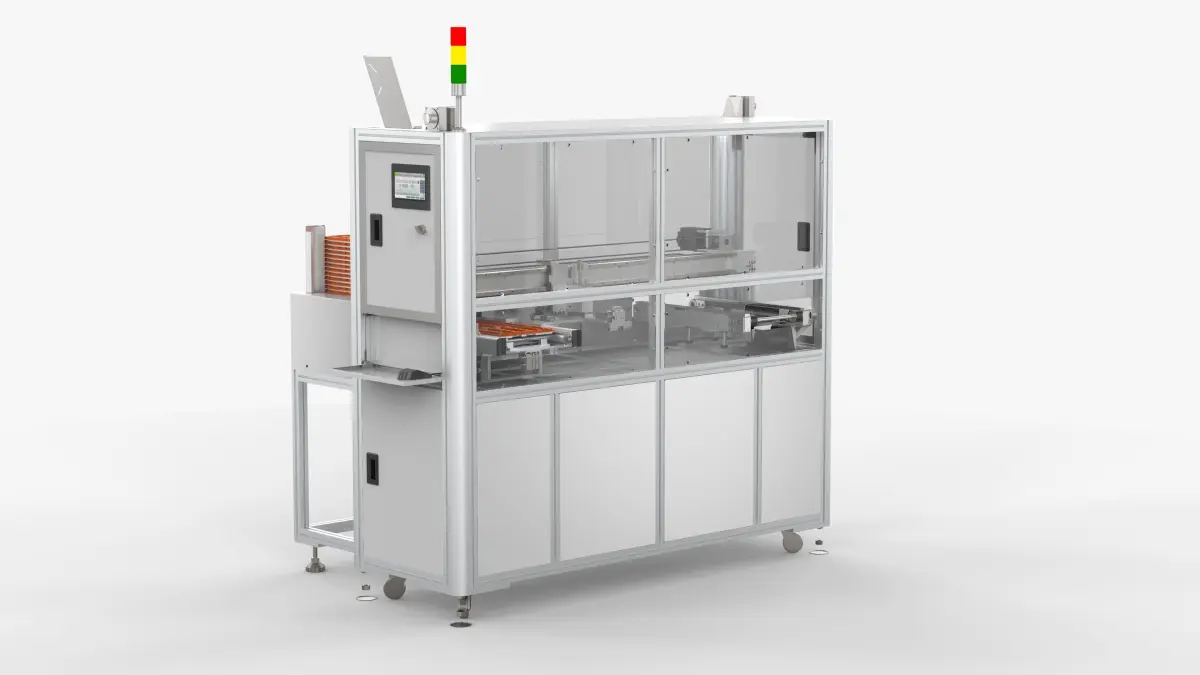

Automatic Tray Positioning and Recycling Machine

Introduction

Blister tray positioning and recycling machine, this machine is composed of 2 belt lines, 1 handling mechanism, 1 positioning mechanism, and 1 recycling mechanism, the incoming material on the conveyor line, the blister tray is positioned and absorbed, and transported to another conveyor line After recycling, the drawing is a standard document, which is an excellent model for learning and reference, and will help your product design.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 4,549,147
- Vertice: 13,647,441

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 4549152
Vertices: 13,647,441

Tags

Industrial Machine Solidwork Design Assembly Modeling Automatic Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Tray Positioning Recycling Industrial machine
