Automatic tray stacking feeding machine 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

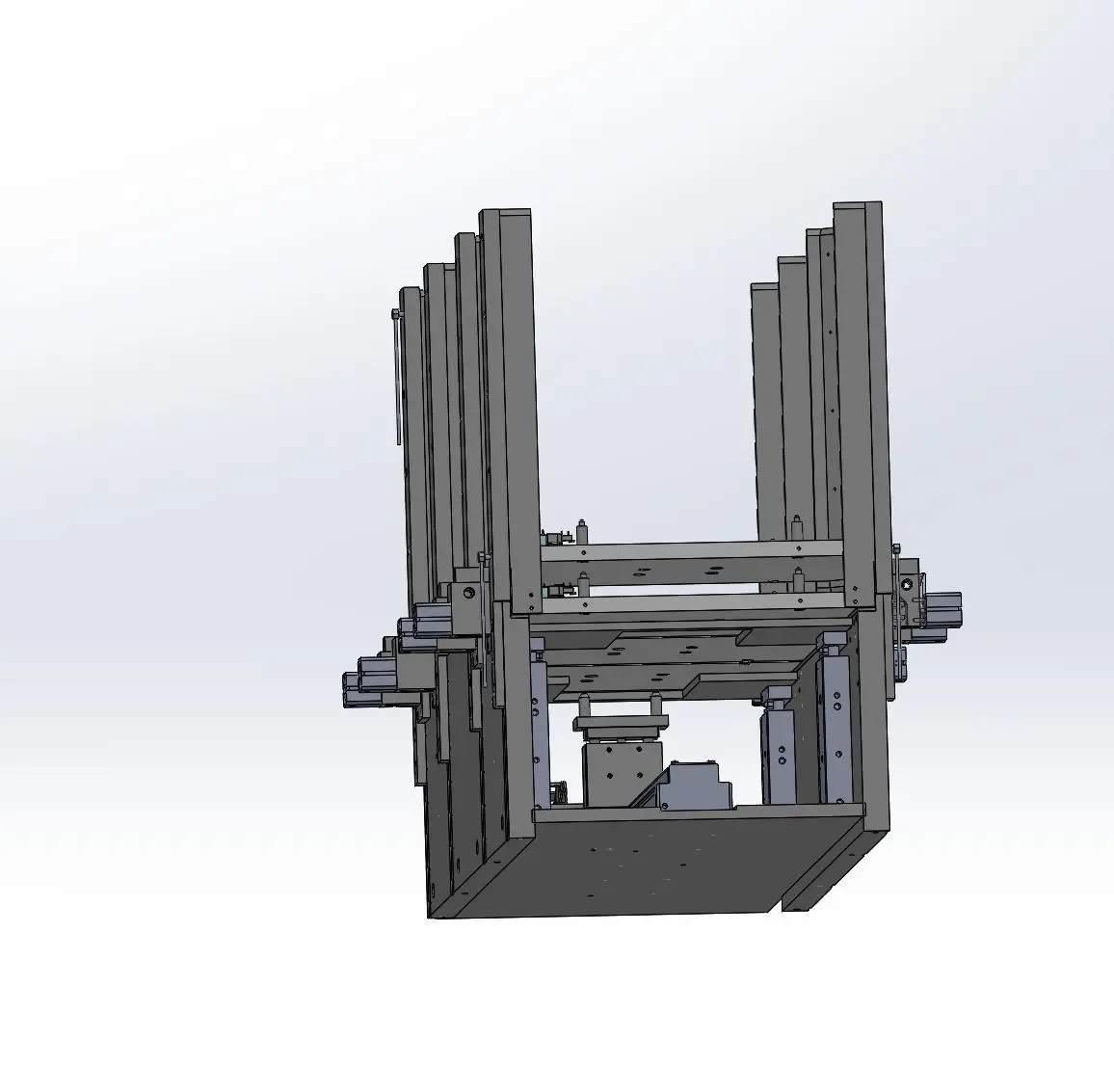

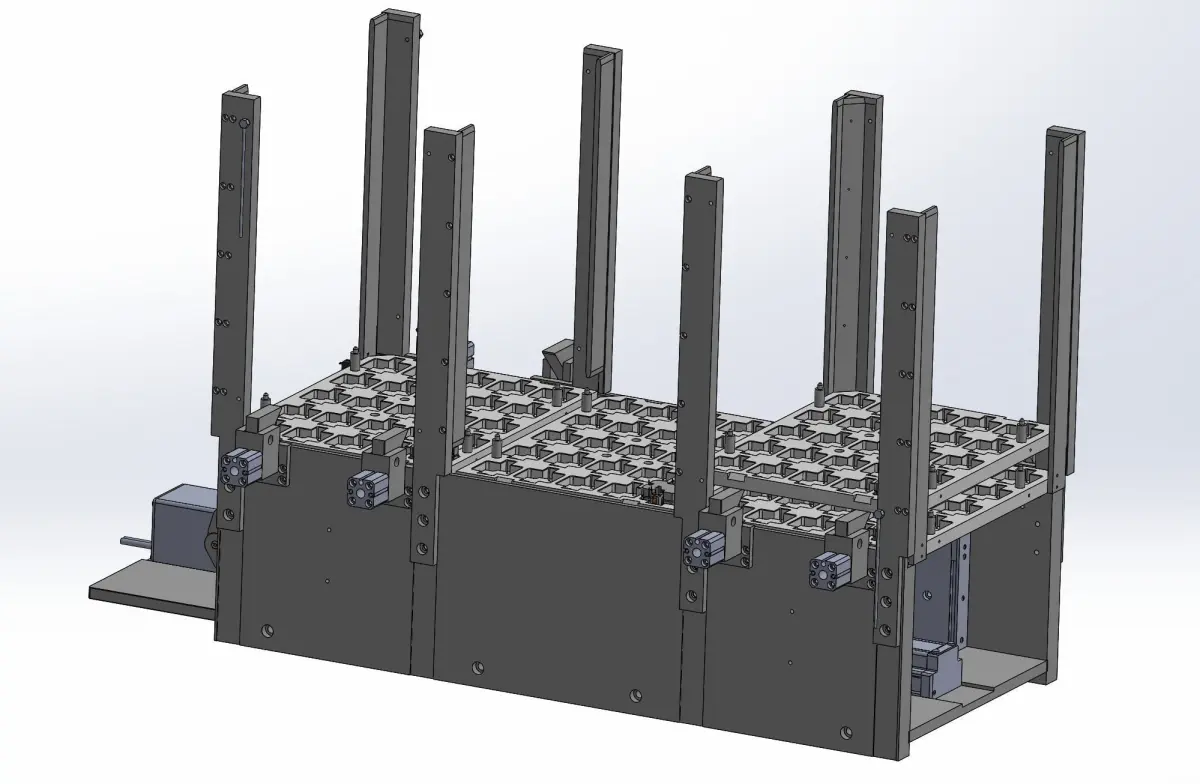

The tray loading mechanism is composed of several sets of cylinders. The tray mechainsm is used for automatic stacking and discharging. The mechanism uses a simple cylinder structure to realize automatic loading and unloading, which is very ingenious

mechanism include

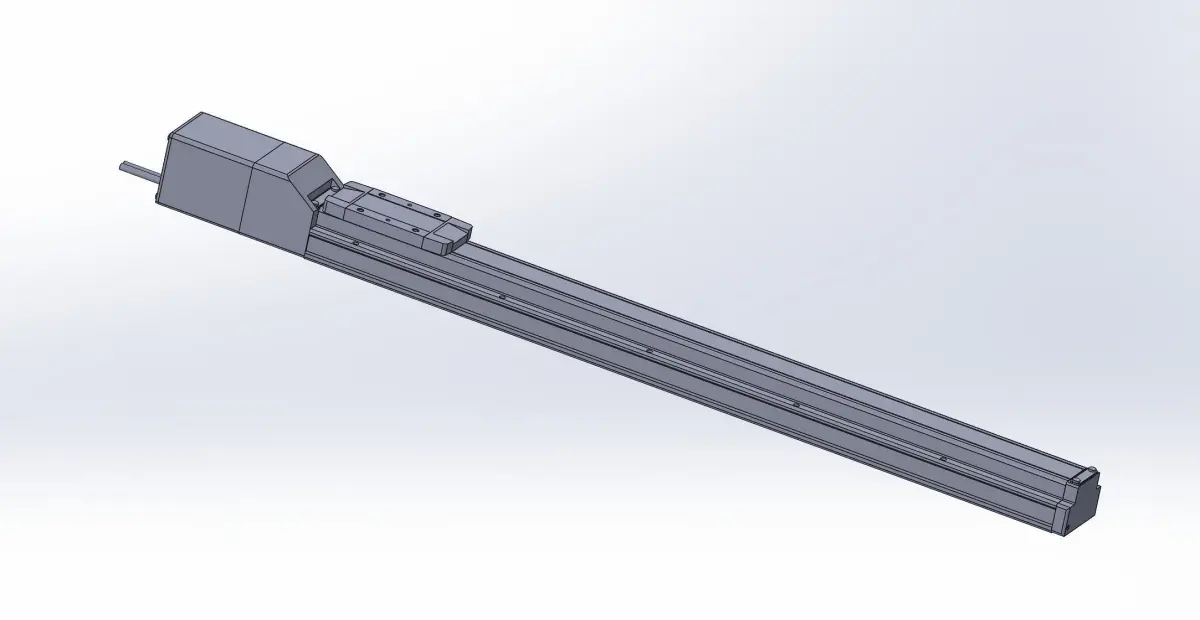

1. Cylinder transverse moving platform

2. Cylinder stacking mechanism

3. Cylinder sticking mechanism

**************************************

Files format contains

-solidworks 2017

-step

-iges

-stl

-obj

-3ds

-Fbx

-3dmax

- and other formats

**************************************

If you like,you can buy for you to get this models or if you have any questions also you can email to me.

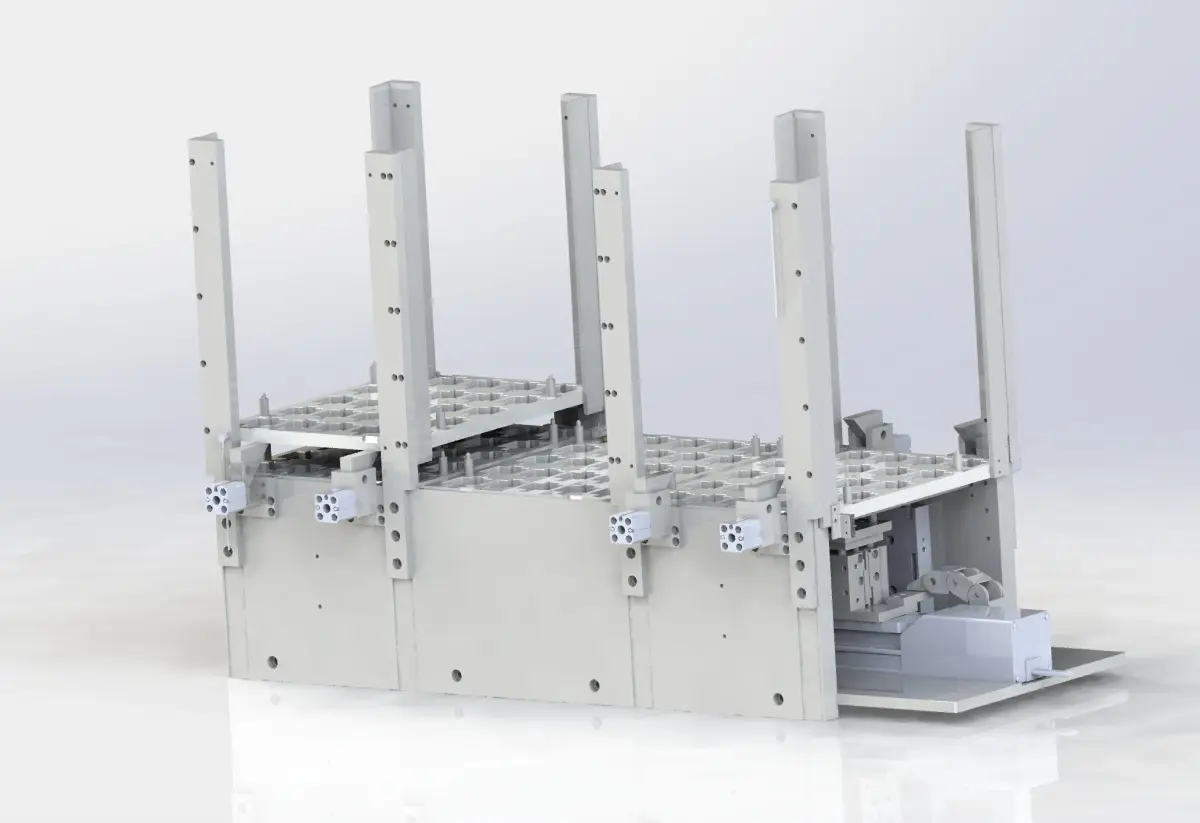

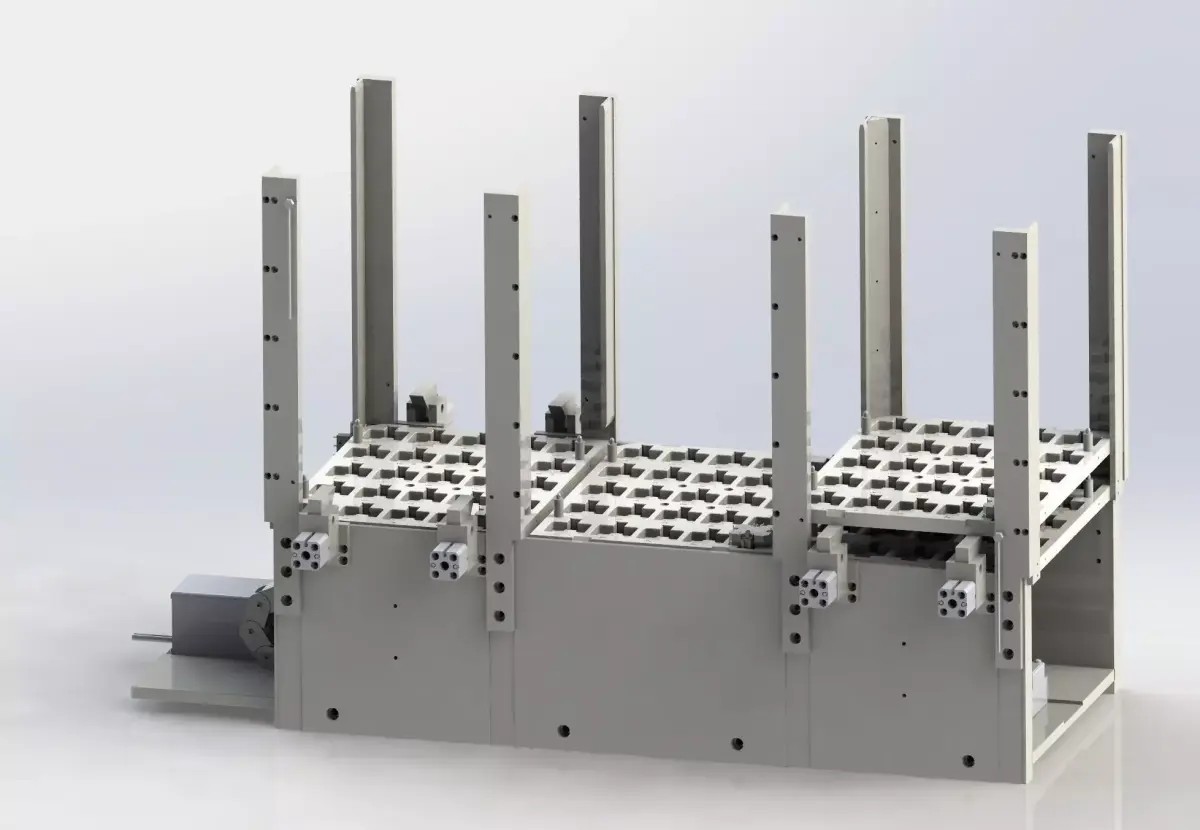

Designed with SolidWorks 2017, render with PhotoView 360

**************************************

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 1029978
Vertices: 2061660
Geometry: Polygon mesh
