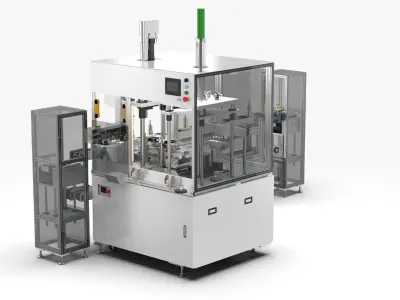

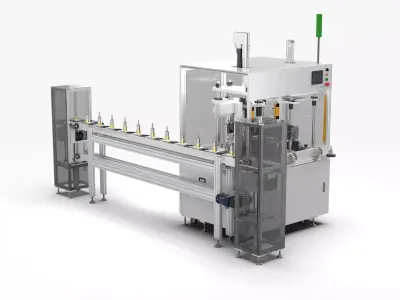

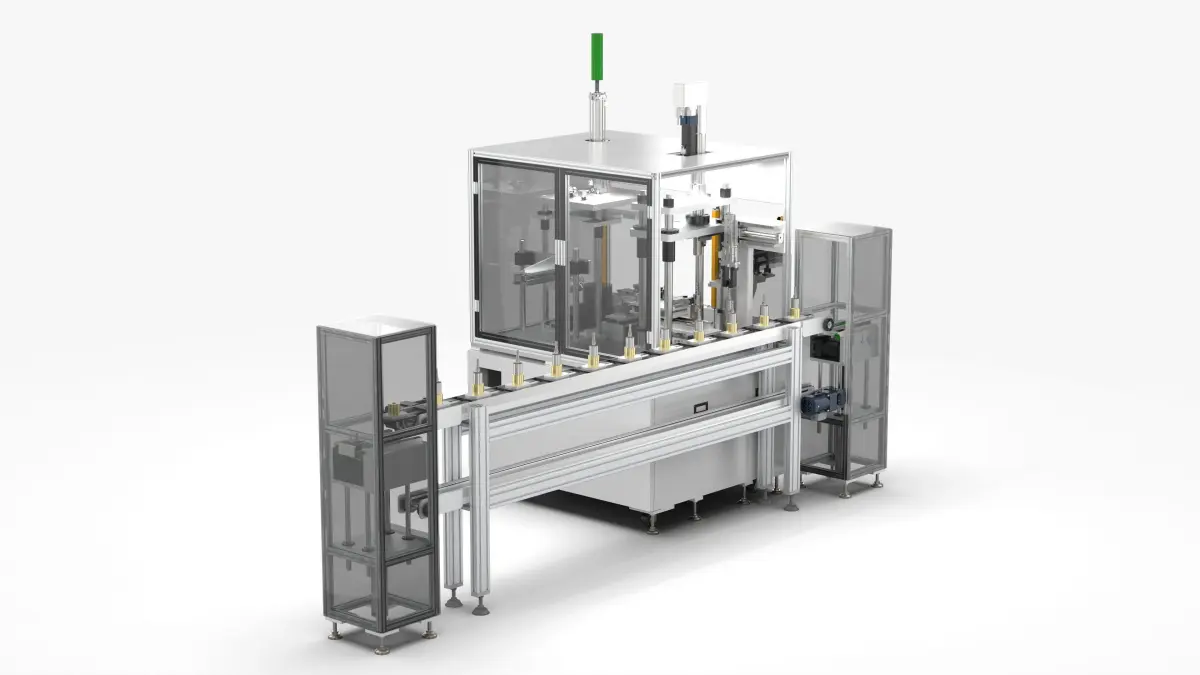

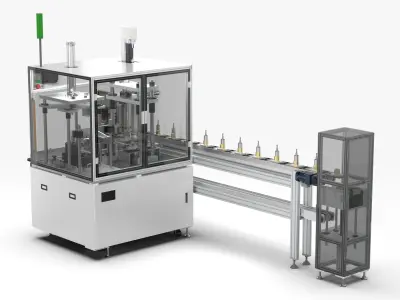

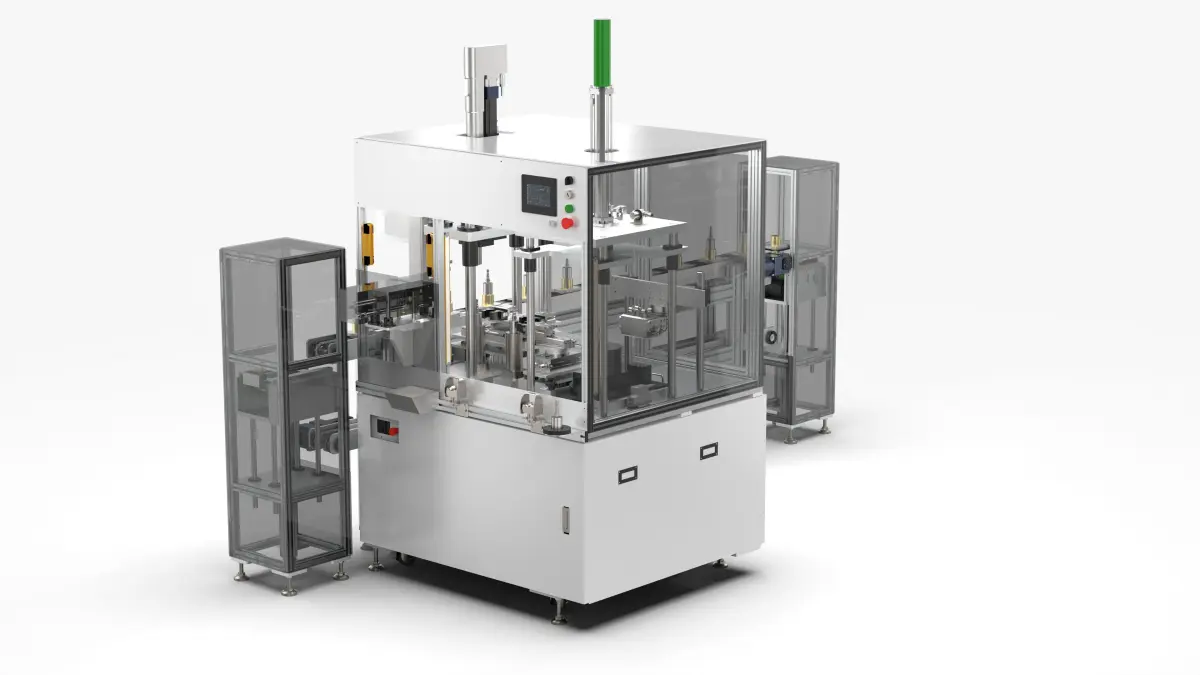

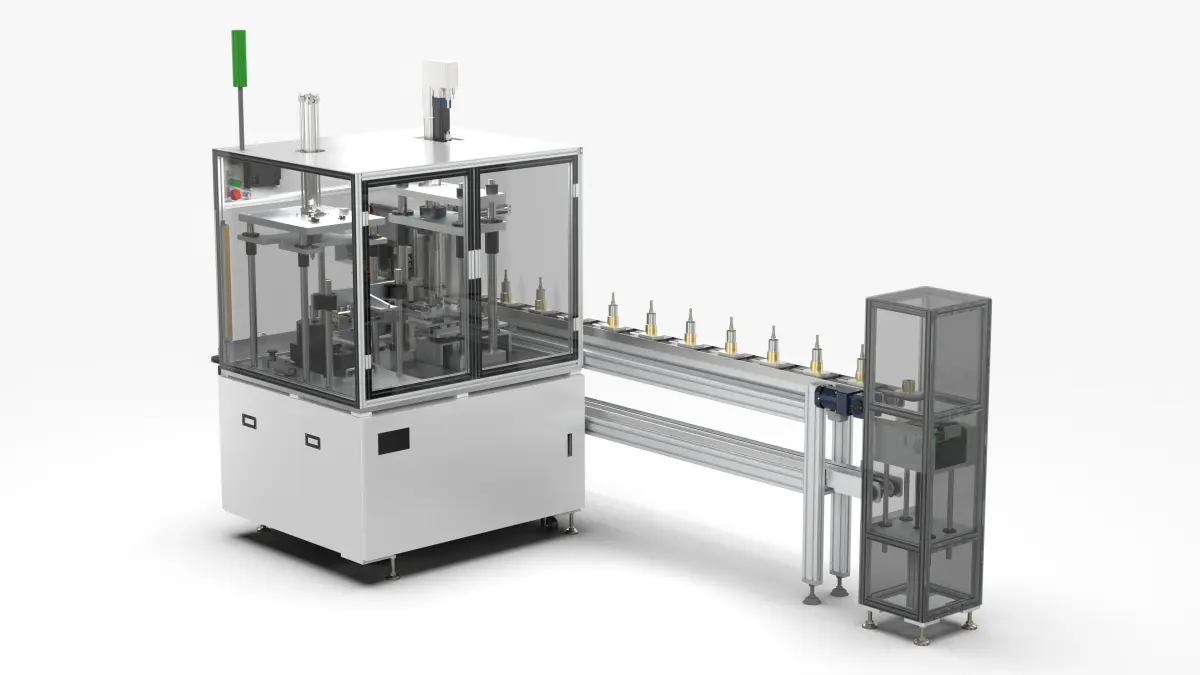

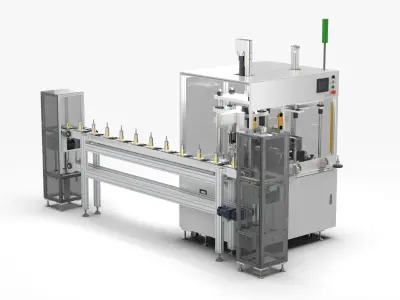

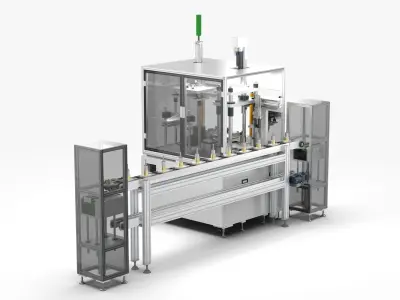

Automatic Valve Body Inlet Port Press Fitting Equipment 3D model

$89

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

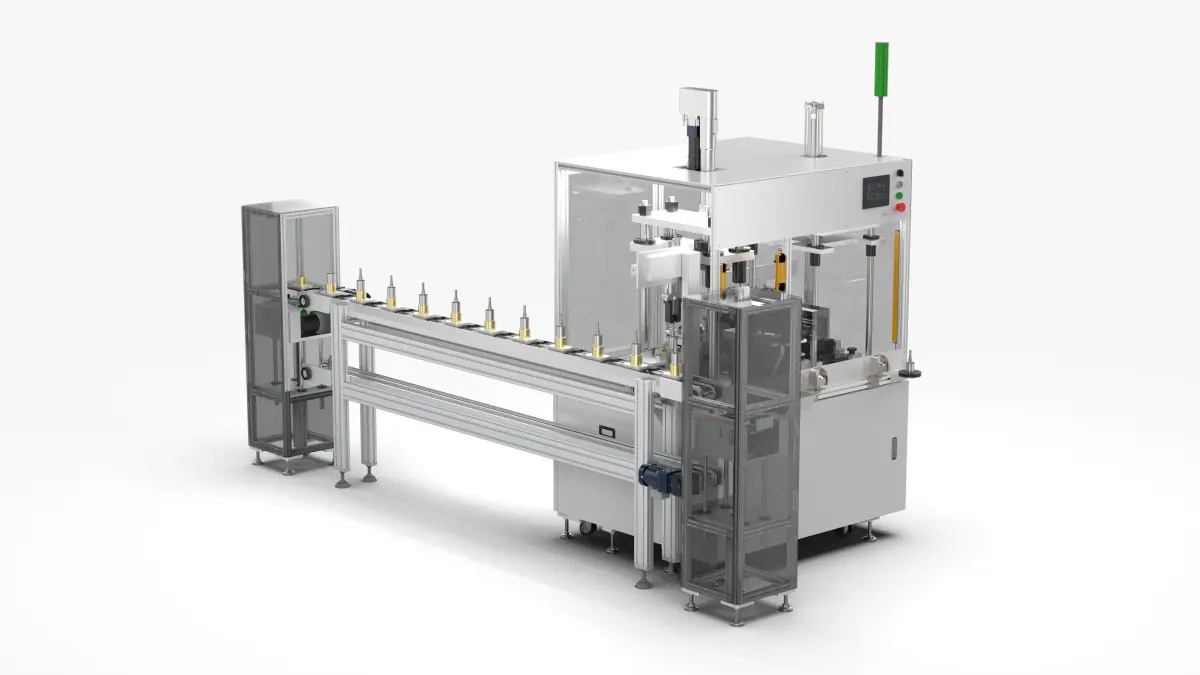

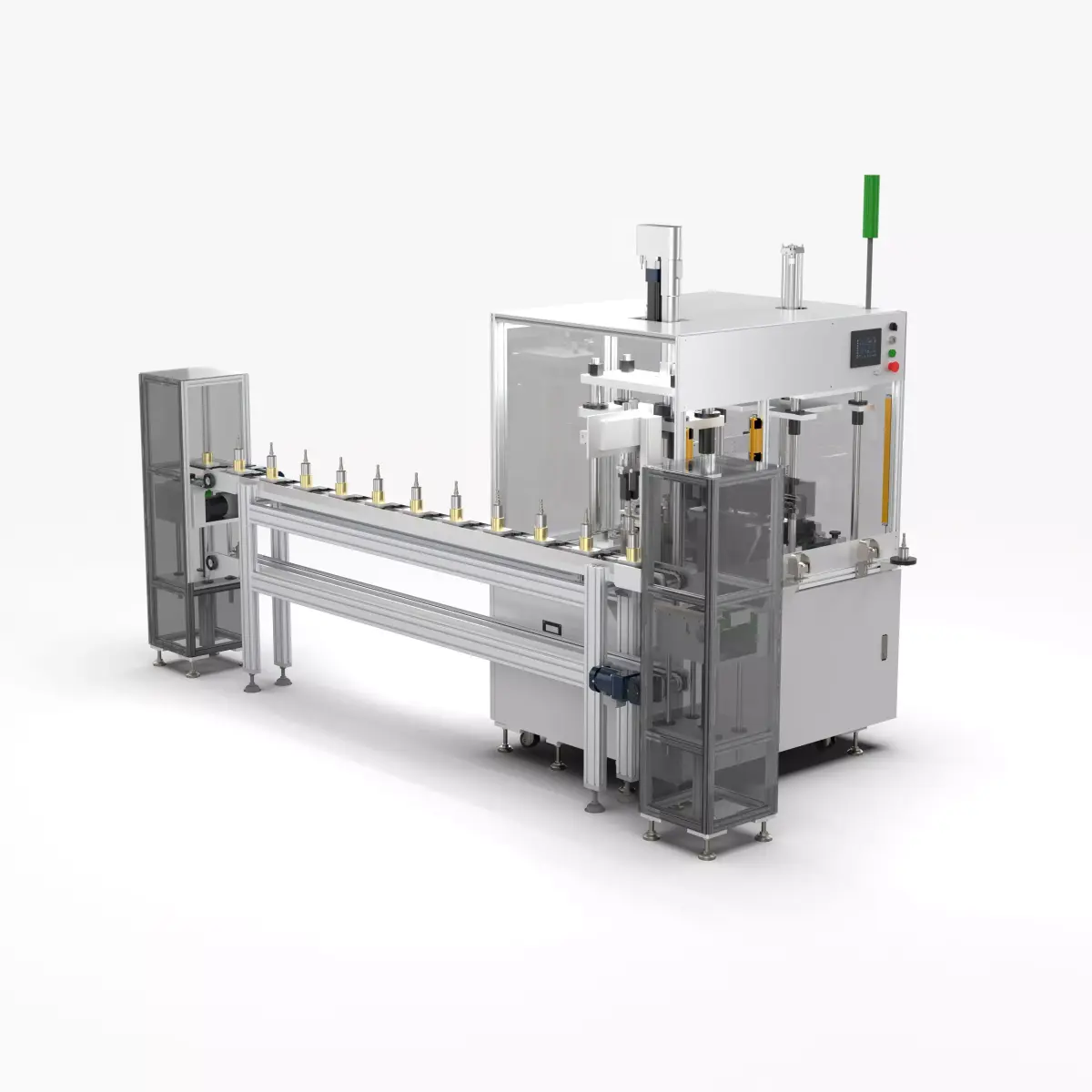

Automatic Valve Body Inlet Port Press Fitting Equipment

Introduction

The equipment is used for the press-fitting machine of the inlet port of the valve body. The double lifter and the lower assembly line can be used for the circular feeding of the jig. The products in the jig are manually taken and placed, and the press-fitting action is completed automatically. The press-fitting height and pressure are possible, and the pressing is completed. After automatic grabbing and cleaning, the equipment has been running stably.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 11,040,292
Vertice: 33,120,876

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 11040292
Vertices: 33,120,874
Plugins used

Tags

Automatic Valve Body Inlet Port Press Fitting Equipment Solidwork Design Assembly Modeling Automation Machinery Part Machine Mechanism Line Production Industrial Industrial machine
