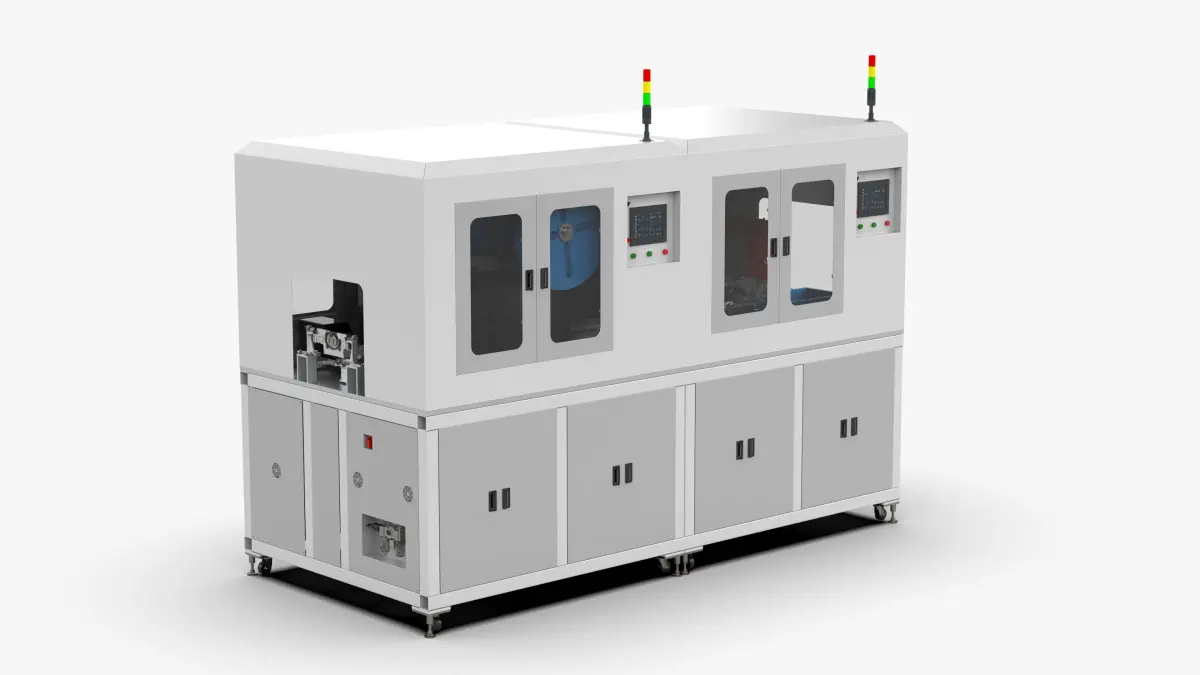

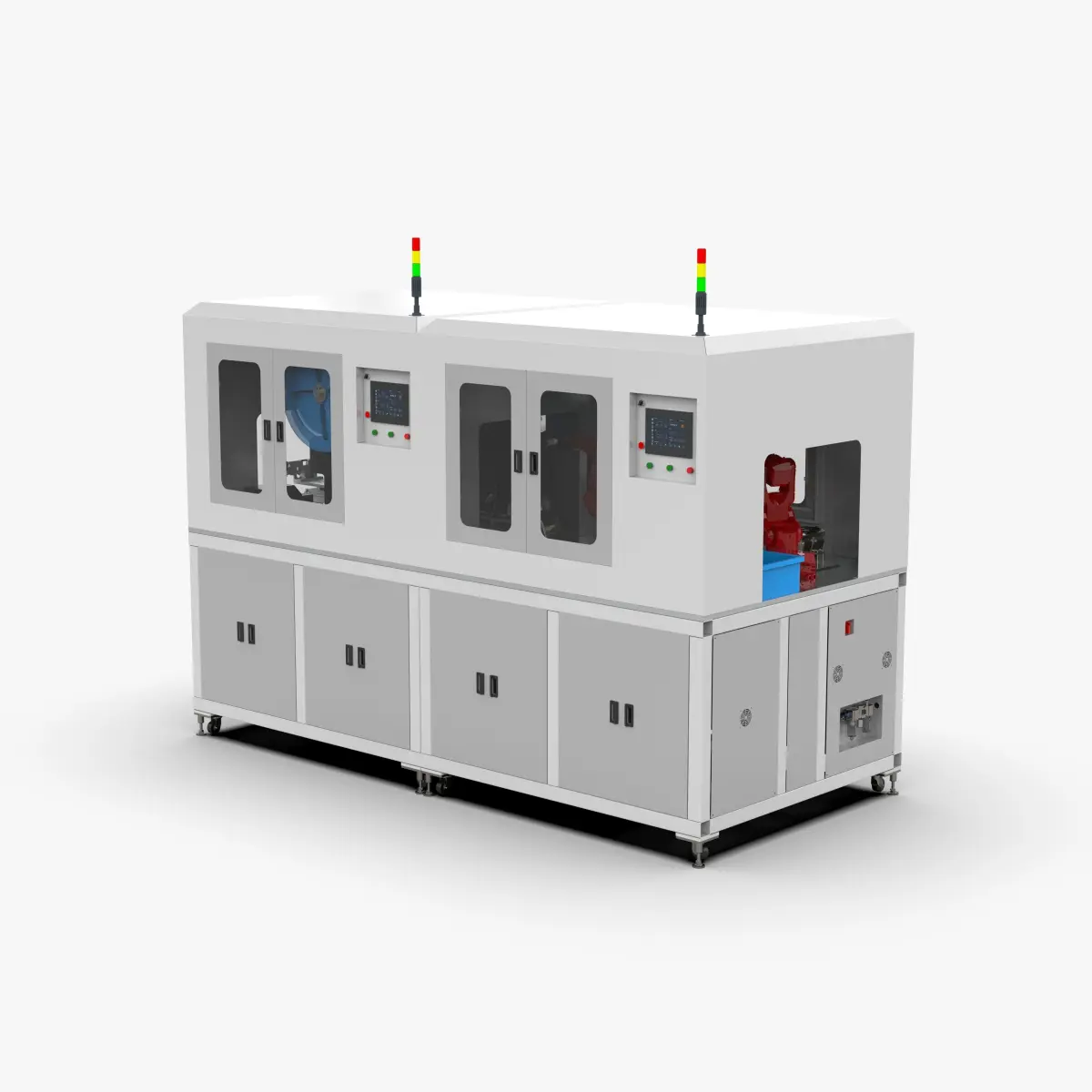

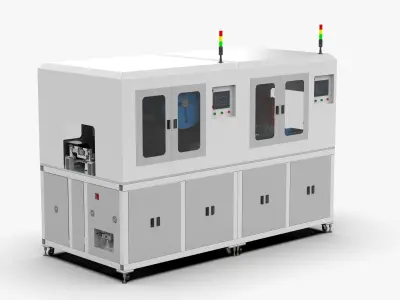

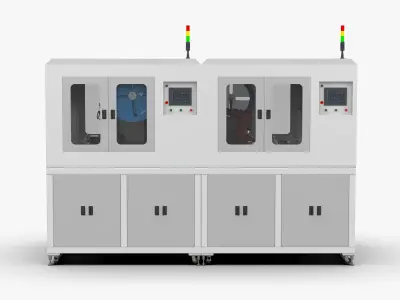

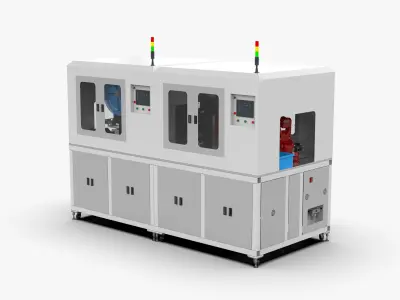

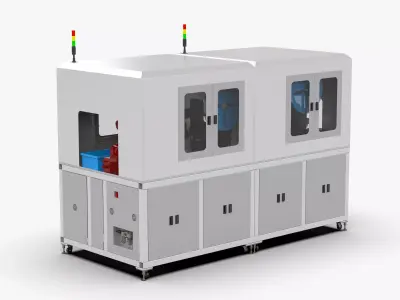

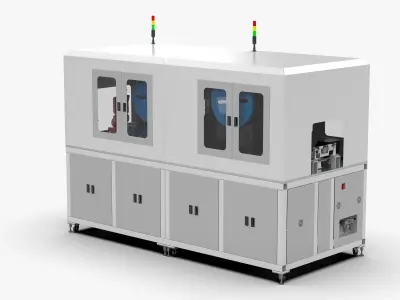

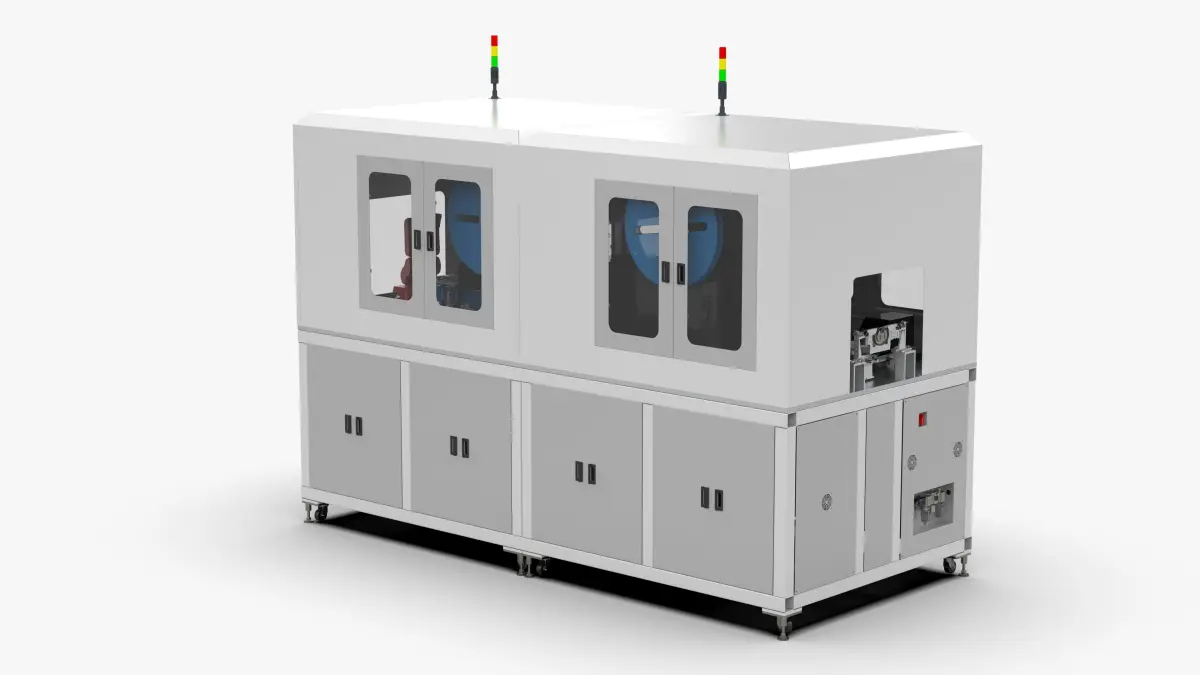

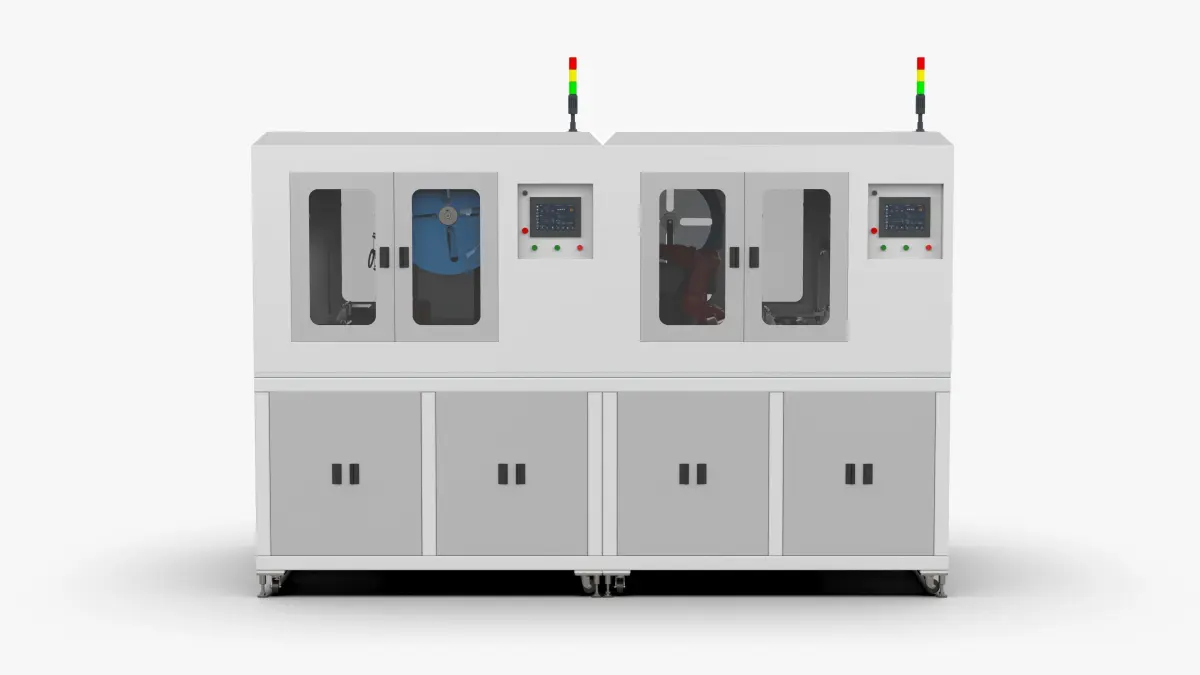

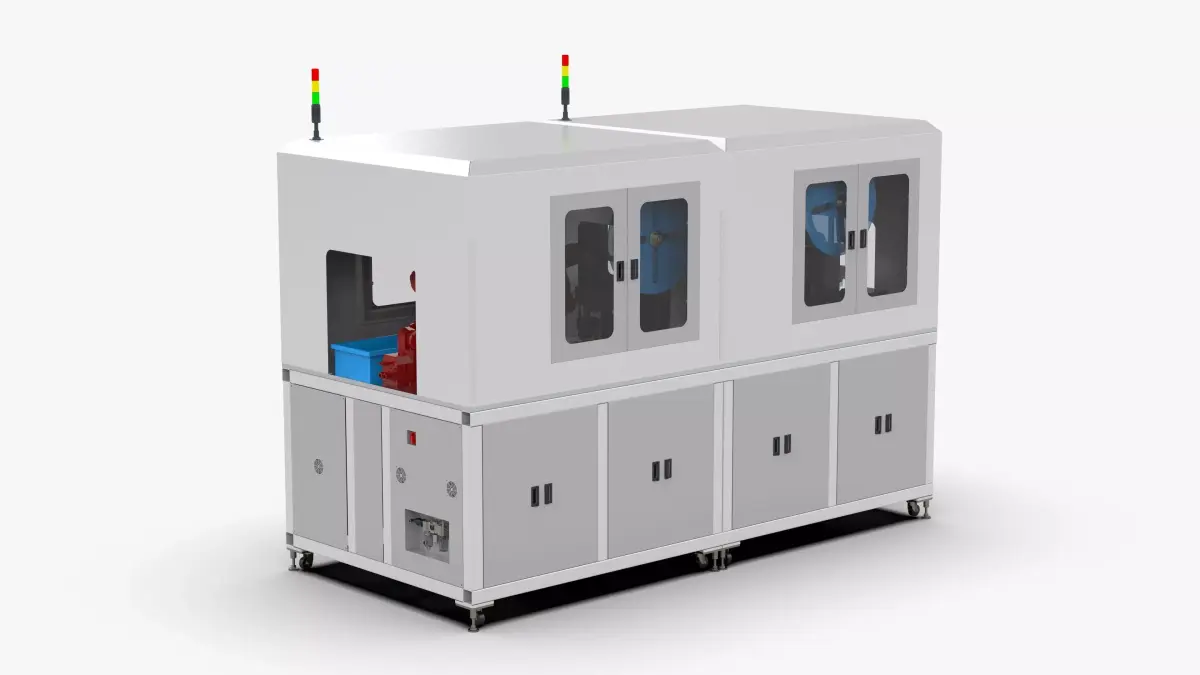

Automatic Wire Processing Machine

Introduction

Wire processing equipment:

  1. Dimensions: length (L) × width (W) × height (H) = 3700mm × 1700mm × 2485mm
  2. Power supply voltage: 220V;
  3. Air pressure: 0.4~0.6MPa.

Working principle:

  1. Loading
  2. Stripping wire
  3. Manipulator A action assists in crimping terminal copper sleeve
  4. Relay table 1 discharges and rotates
  5. Manipulator B assists crimping terminal sticking tin
  6. Relay table 2 discharges and rotates
  7. Manipulator C takes Auxiliary assembly of plug accessories
  8. Plug assembly
  9. Receiving
