B-Kiln Feed Preheater Calciler-2S-ILC Free 3D model
B-Kiln Feed Preheater Calciler-2S-ILC Free 3D model
B-Kiln Feed Preheater Calciler-2S-ILC Free 3D model
B-Kiln Feed Preheater Calciler-2S-ILC Free 3D model

Publication date: 2014-04-08

Download B-Kiln Feed Preheater Calciler-2S-ILC Free 3D model

free

License: Editorial No Ai

author:

harvey-fonseca

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «harvey-fonseca». CGhub does not claim copyright ownership over the content used.
Download at www.cgtrader.com Add to Wishlist
  • Description
  • Formats

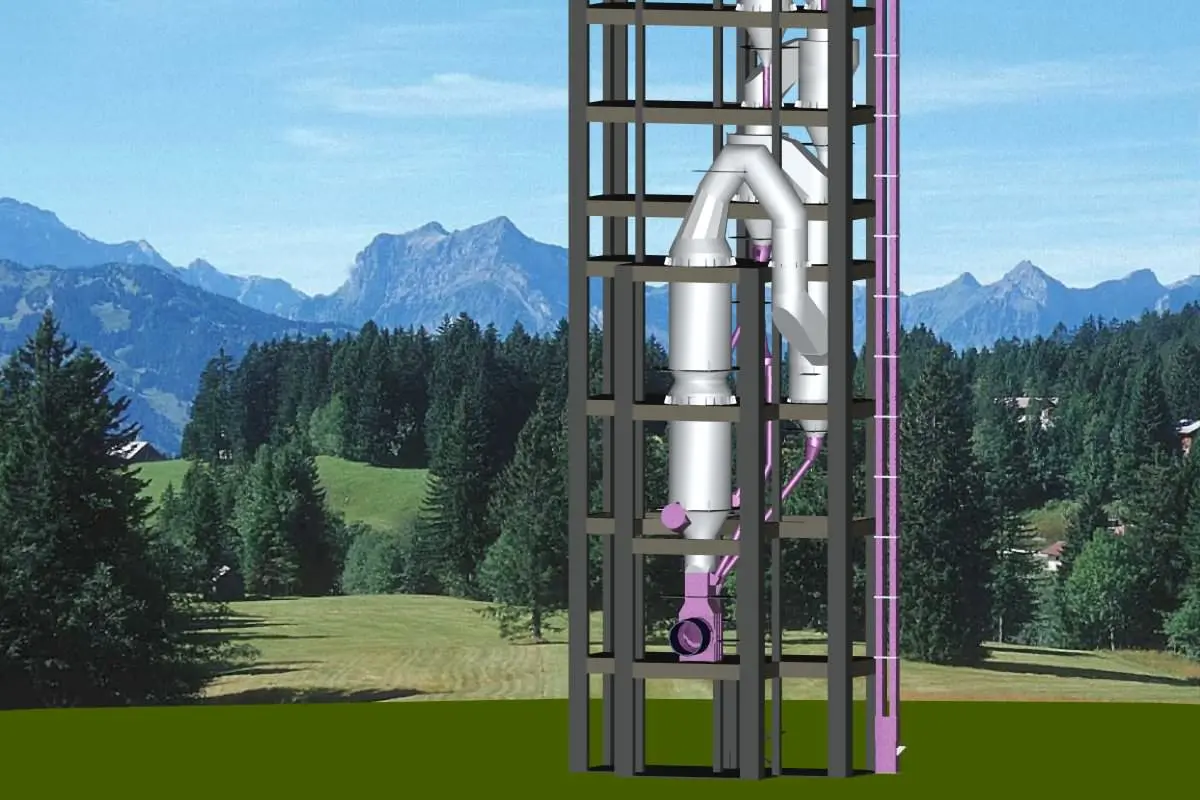

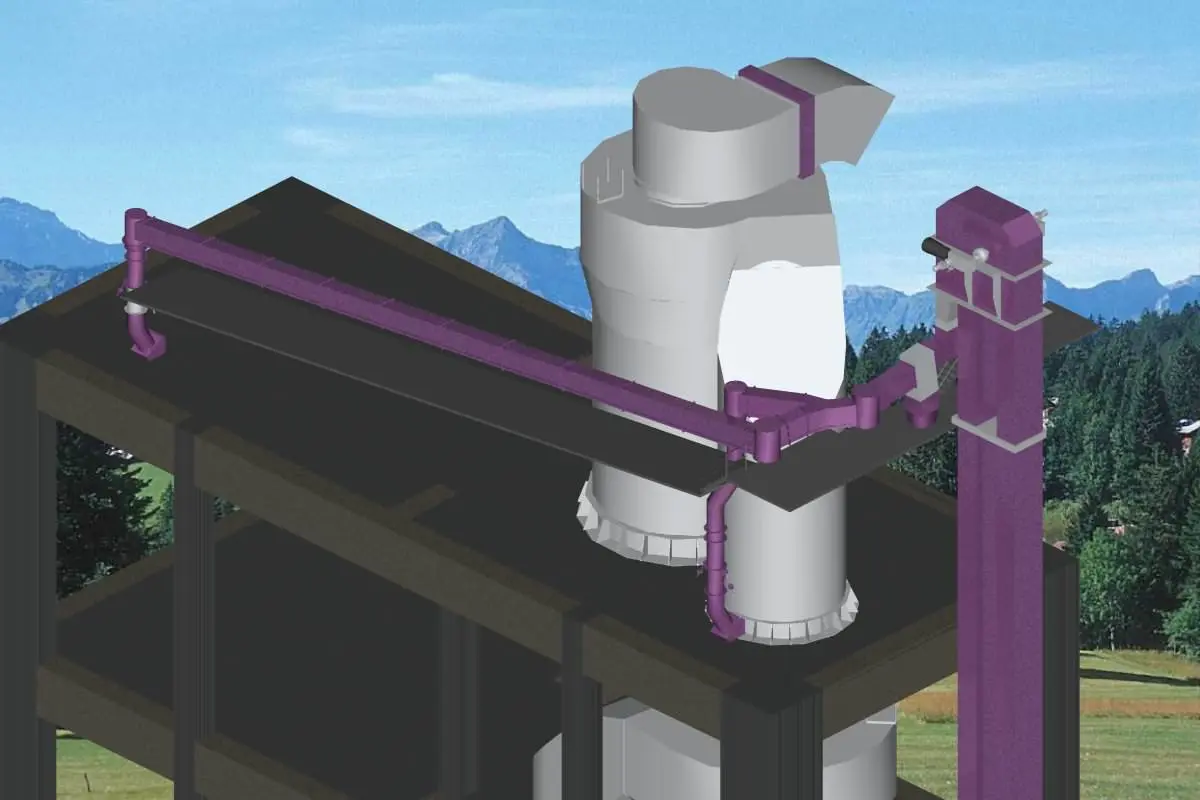

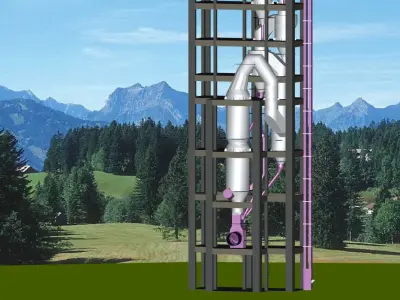

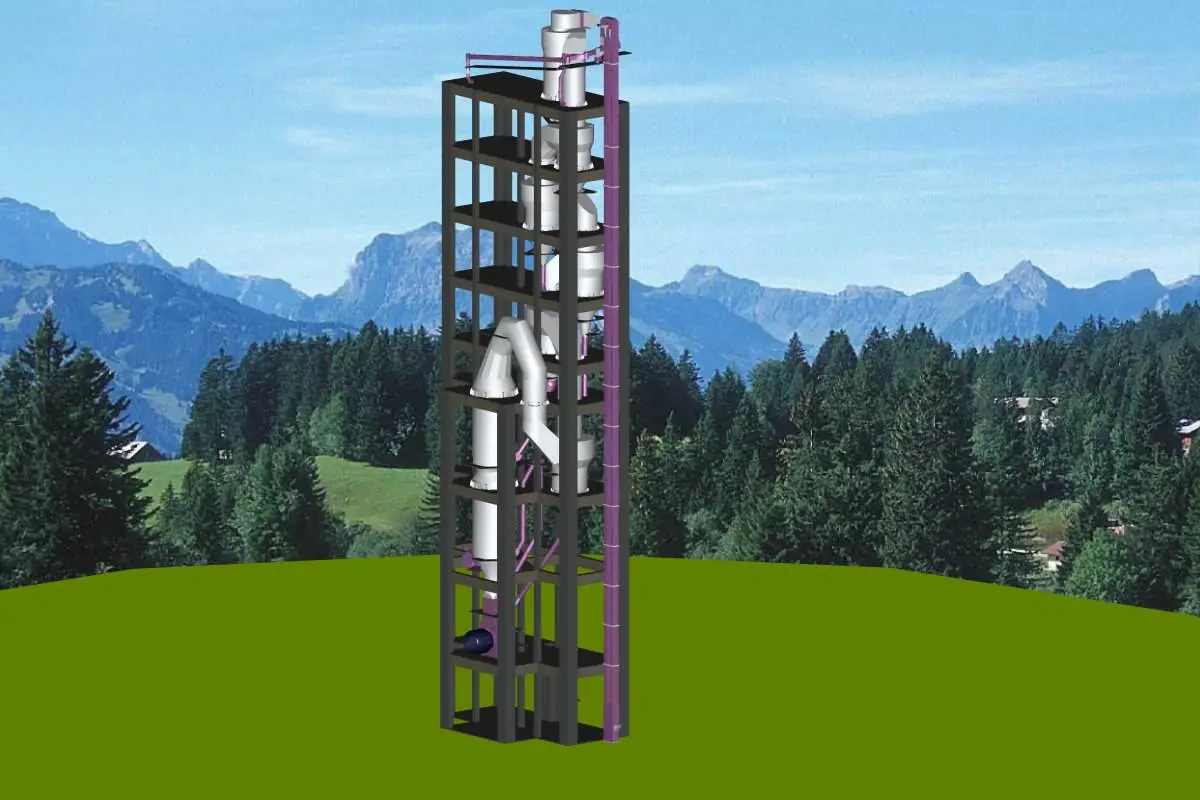

From 1st stage to 6th stage-Cyclone/Riser Pipe/Down pipe diameter (m)=6.6/4.457/0.63, 6.6/4.557/0.900, 6.9/4.757/0.900, 6.9/4.757/1.000, 6.9/4.757/1.000 & 6.9/4.757/1.000. Calciner dia. 8.2 x 15.0 m. Dividing gate dia. 1.000 m. The Kiln Feeding is by a Bucket elevator and air slides. Smoke Chamber (Kiln Hood)=3.1 x 3.1m, Hot Air Duct=2.650 m dia

DWG (AutoCAD, filesize: 5.01 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Polygon mesh

Tags

Other Industrial Feed Calcifer Design
