High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

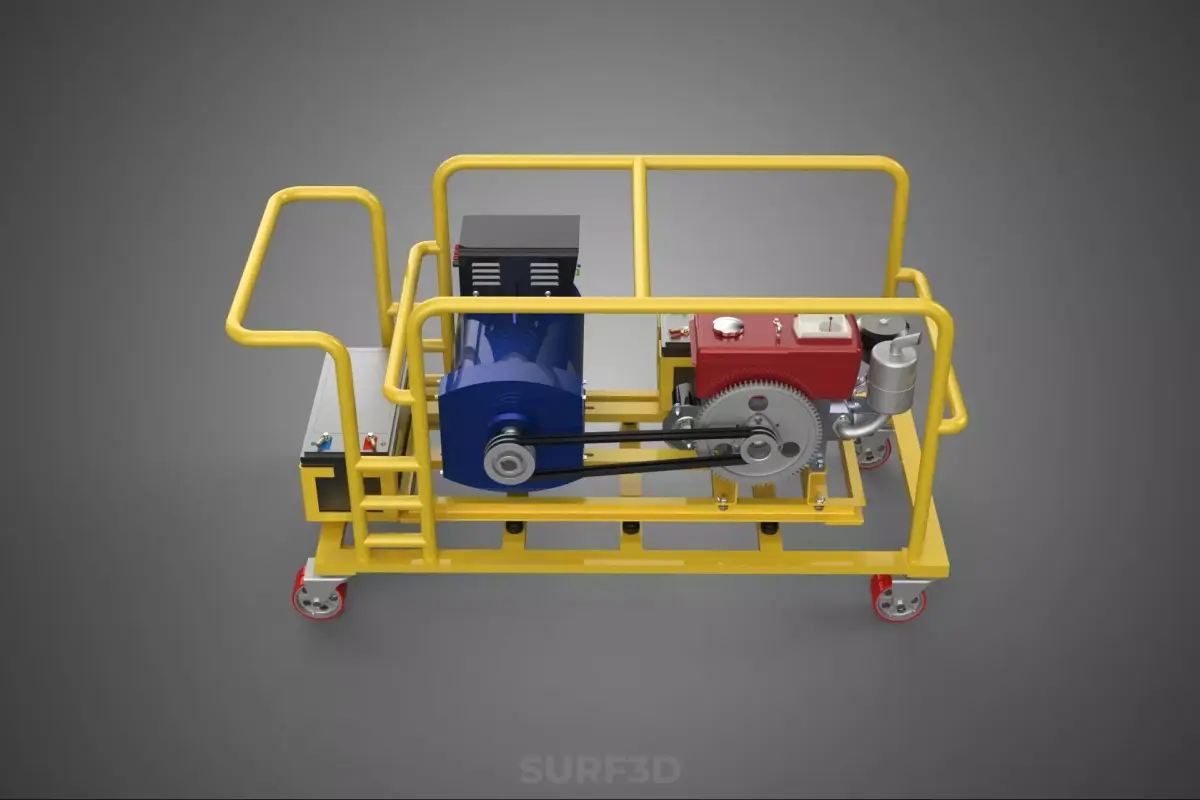

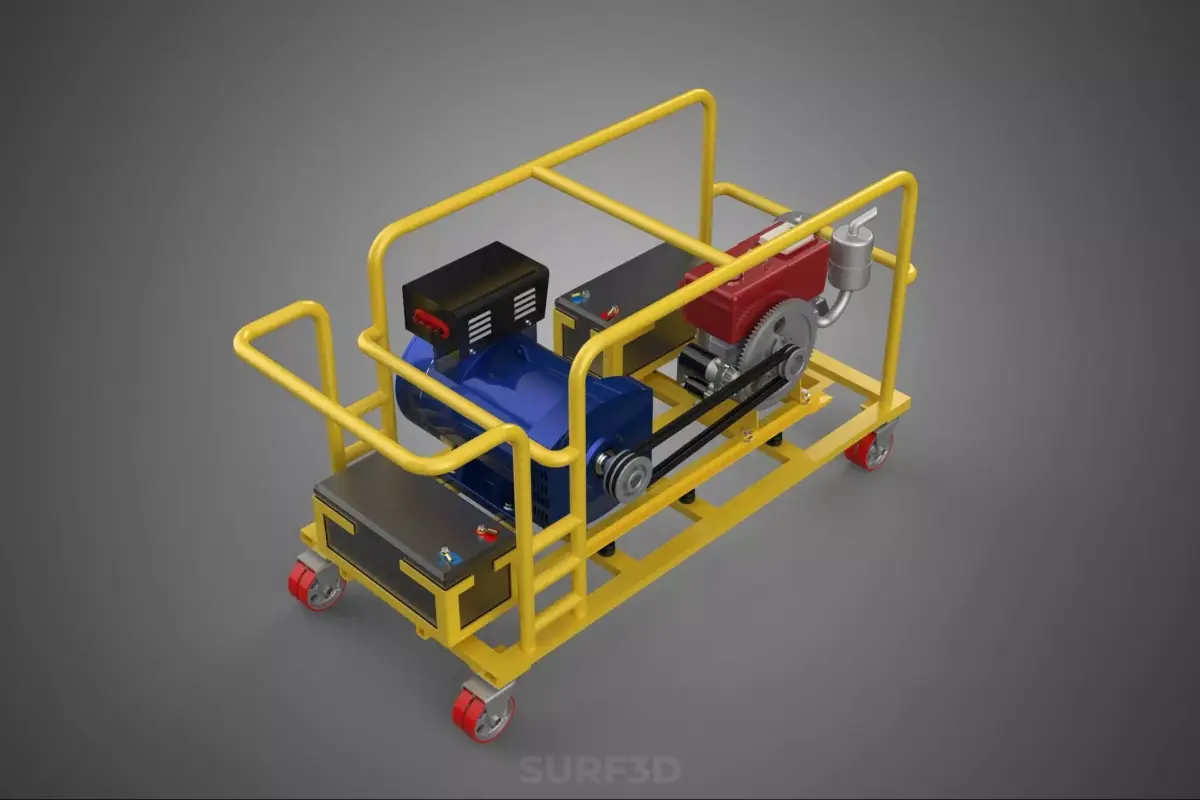

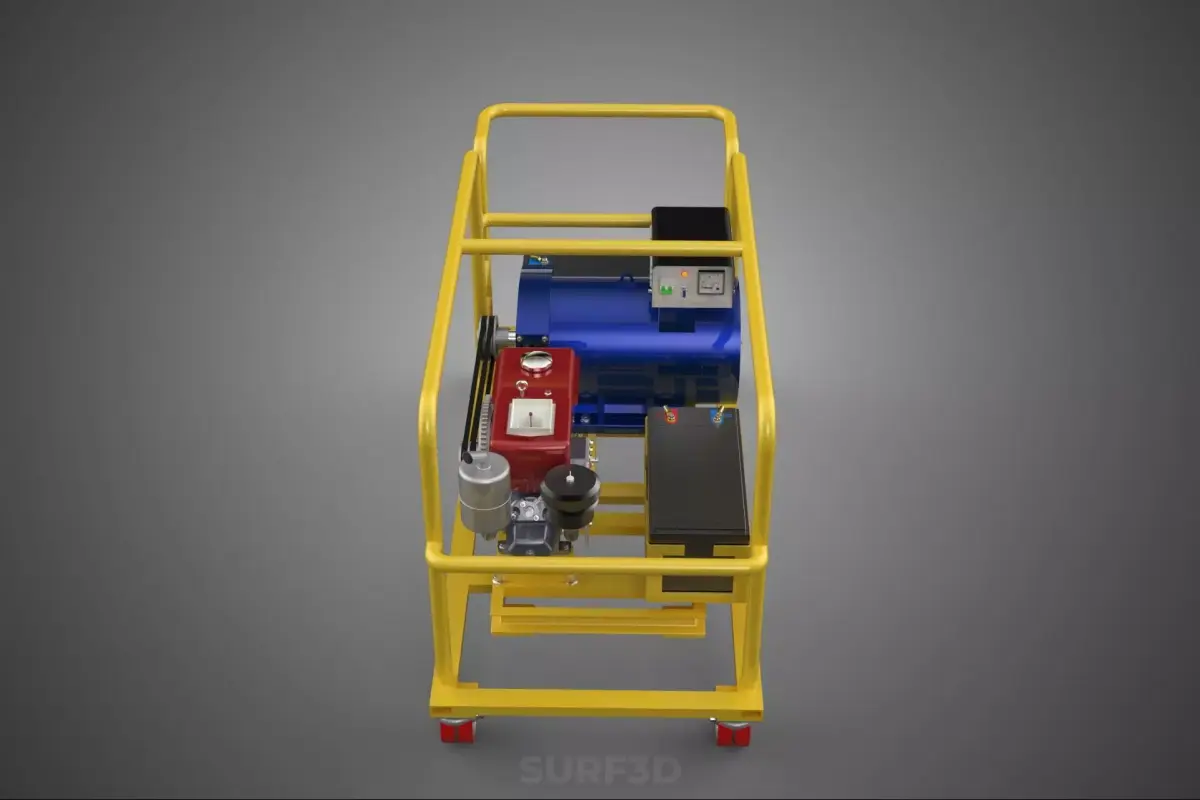

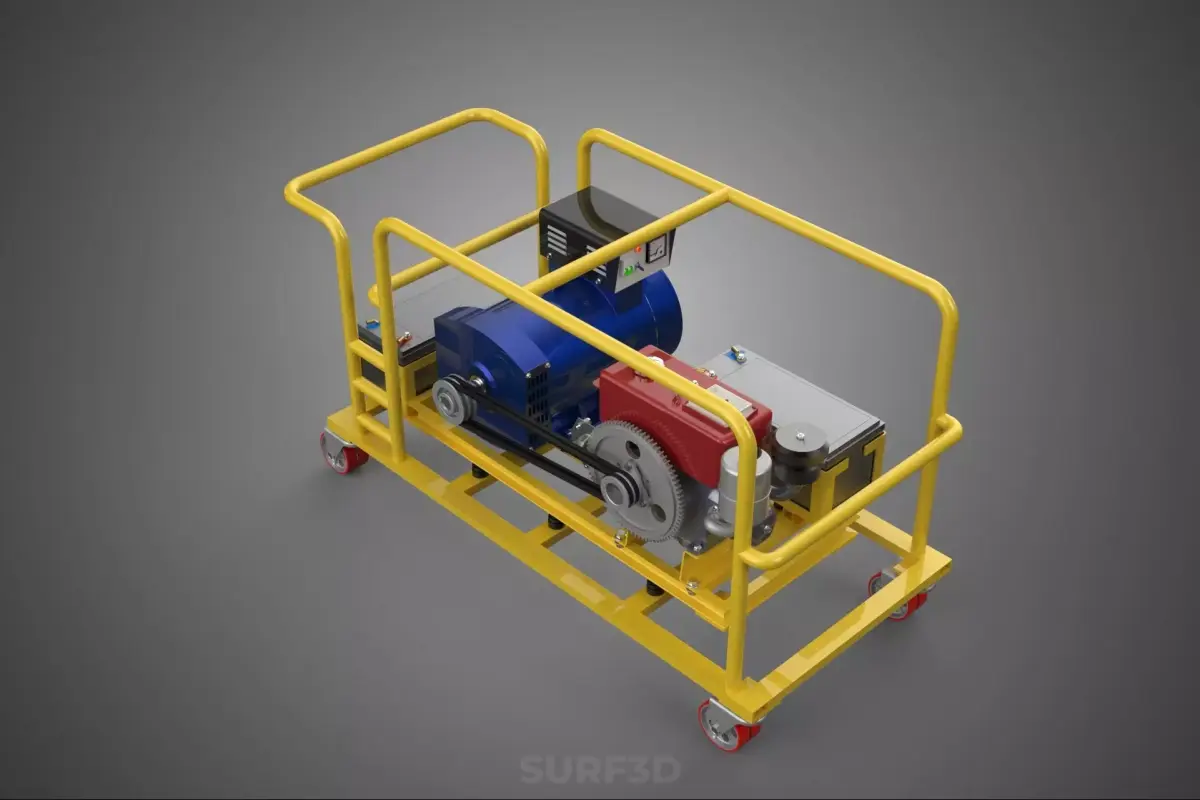

A backup diesel engine power generator set (commonly referred to as a diesel genset) is an integrated electromechanical system designed to supply reliable alternating current (AC) electrical power to a facility during utility grid failure or instability. These units are classified primarily as Standby or Emergency Power Systems, critical for ensuring operational continuity in environments where power loss is unacceptable.
I. Definition and Configuration
A genset consists of the diesel engine (the prime mover) mechanically coupled to an electrical alternator (also known as the dynamo or generator head). The entire assembly is typically mounted on a common structural skid base, which often incorporates a fuel tank and vibration isolation mounts. The system is fundamentally an energy conversion apparatus, transforming the chemical energy stored in compression-ignition diesel fuel into mechanical rotational energy, and subsequently into electrical energy.
The term dynamo motor AC refers to the alternator component, which generates Alternating Current via electromagnetic induction. Unlike DC generators (dynamos), the alternator produces electricity through the rotational movement of magnetic fields past stationary windings (stator), or vice-versa (rotor), to induce the required voltage and frequency.
II. Core Components
- Diesel Engine (Prime Mover): A high-speed internal combustion engine designed for robust, high-torque output. The engine’s speed (Revolutions Per Minute, RPM) must be precisely governed to maintain the required electrical frequency (e.g., 1500 RPM for 50 Hz systems or 1800 RPM for 60 Hz systems).
- Alternator (Generator Head): The electrical component responsible for generating power. Modern gensets utilize synchronous alternators to produce clean, stable AC power output, typically three-phase, at standard industrial voltages.
- Control Panel and Governor: The central processing unit that monitors both engine parameters (oil pressure, temperature, fuel level) and electrical output (voltage, frequency, amperage). It integrates the automatic voltage regulator (AVR) and the electronic governor, which maintains engine speed and load stability.
- Cooling and Exhaust Systems: A heavy-duty radiator and fan manage engine thermal output, and industrial mufflers reduce noise pollution, especially critical in urban or healthcare environments.
- Automatic Transfer Switch (ATS): While often external to the primary genset skid, the ATS is integral to the backup function. It constantly monitors the utility feed and automatically initiates the generator startup sequence when grid power fails, safely transferring the electrical load from the utility to the genset supply. Upon restoration of utility power, the ATS transfers the load back and signals the genset to cool down and shut off.
### III. Operational Classification and Parameters
Diesel gensets are categorized by their intended operational profile, which determines the maximum permissible load and run time:
- Standby Power (ESP): Rated for providing power during an outage for the duration of the utility interruption, often with a limited annual operating hours cap. This is the primary classification for backup units.
- Prime Power (PRP): Capable of running continuously with variable load, typically without an annual limit.
- Continuous Power (COP): Rated for supplying a constant load indefinitely.
Key technical parameters include output capacity, typically measured in kilovolt-amperes (kVA) or kilowatts (kW), voltage output (e.g., 400V, 480V), and operating frequency (Hz). Diesel units are generally preferred for backup power over gasoline or natural gas systems due to the non-flammable nature of the fuel, superior torque delivery, and immediate load acceptance capabilities.
### IV. Applications
Backup diesel gensets are indispensable in critical infrastructure sectors, including:
- Data Centers and IT facilities
- Hospitals and medical centers (requiring life safety power)
- Telecommunication switching stations
- Financial institutions and trading floors
- Large-scale manufacturing and industrial processes
KEYWORDS: Diesel Generator Set, Genset, Backup Power, Standby Power, Alternating Current, AC Power, Prime Mover, Alternator, Dynamo, Automatic Transfer Switch, ATS, Kilovolt-Amperes, kVA, Compression-Ignition, Critical Infrastructure, Emergency Power System, Load Acceptance, Voltage Regulator, Frequency, Governor, Synchronous Generator, Three-Phase Power, Control Panel, Engine RPM, Standby Rating, Continuous Rating, Utility Grid Failure, Load Transfer, Skid Base, Life Safety Systems, Fuel Efficiency.
STL (Stereolithography, filesize: 37.1 MB), OBJ (OBJ, filesize: 75.9 MB), FBX (Autodesk FBX, filesize: 22.8 MB), SAT (3D ACIS, filesize: 56.6 MB), MAX (Autodesk 3ds Max, filesize: 150 MB), 3DM (Rhinoceros 3D, filesize: 91.1 MB), BLEND (Blender, filesize: 68.8 MB), SKP (Sketchup, filesize: 46.6 MB), DAE (Collada, filesize: 125 MB), GLTF (glTF, filesize: 24 MB), STP (STEP, filesize: 37.2 MB), DWG (AutoCAD, filesize: 16.7 MB), IGE (IGES, filesize: 73.5 MB), 3DS (3D Studio, filesize: 22.5 MB)
