Ball Bearing 6210 Deep Groove 62 Series 50x90x20 mm CAD Model 3D print model
Home Catalog Ball Bearing 6210 Deep Groove 62 Series 50x90x20 mm CAD Model 3D print model
Ball Bearing 6210 Deep Groove 62 Series 50x90x20 mm CAD Model 3D print model
Ball Bearing 6210 Deep Groove 62 Series 50x90x20 mm CAD Model 3D print model
Ball Bearing 6210 Deep Groove 62 Series 50x90x20 mm CAD Model 3D print model
Ball Bearing 6210 Deep Groove 62 Series 50x90x20 mm CAD Model 3D print model

Publication date: 2025-05-20

Buy Ball Bearing 6210 Deep Groove 62 Series 50x90x20 mm CAD Model 3D print model

$4.99

License: Royalty Free No Ai

author:

Lasty3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lasty3D». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $4.99 Add to Wishlist
  • Description
  • Formats

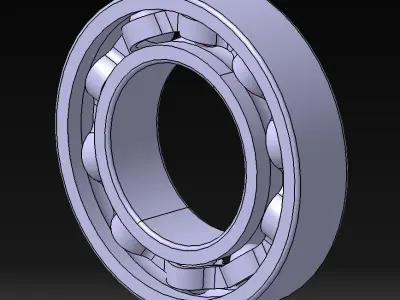

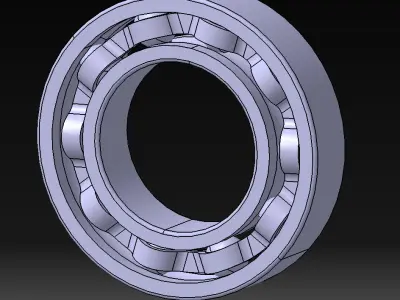

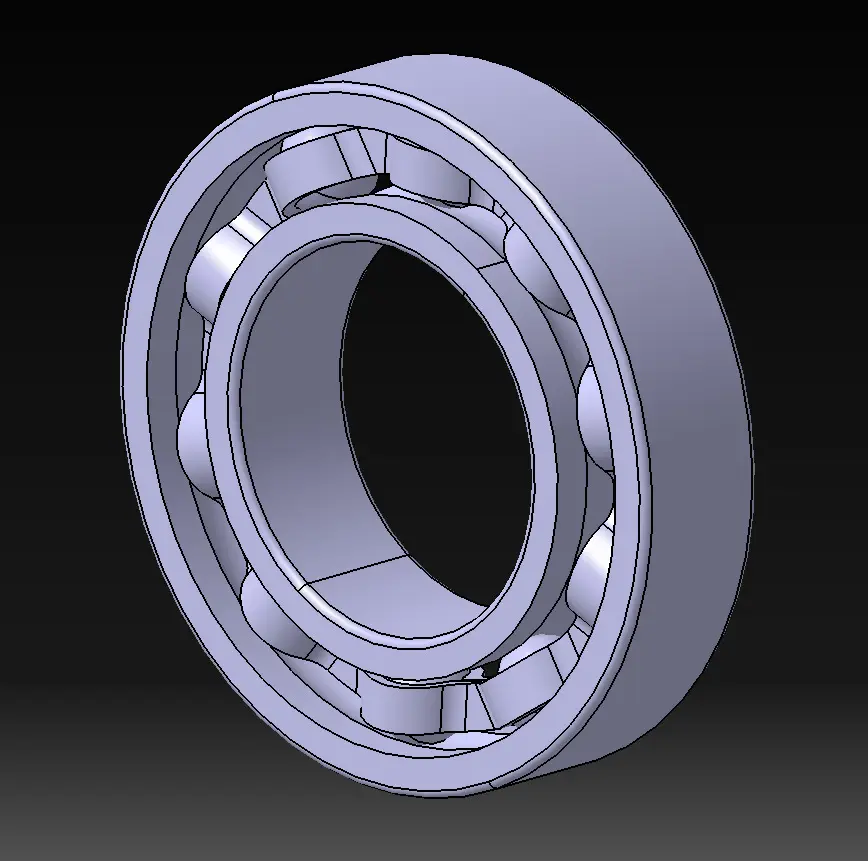

This is a 3D CAD model of a deep groove ball bearing 6210, part of the 62 Series, commonly used in electric motors, gearboxes, pumps, and various industrial applications.

Dimensions:

  • Inner diameter (d): 50 mm
  • Outer diameter (D): 90 mm
  • Width (B): 20 mm
  • Radius (r): 1.1 mm
  • Ball size: 12.7 mm
  • Number of balls: 10

Based on standard specifications for 6210 bearings. The model is made in CATIA and includes STEP and IGES formats for maximum compatibility with other CAD software.

Ideal for:

  • Mechanical design
  • Engineering simulations
  • Product visualization
  • Educational purposes

Available formats:

  • .CATPart (CATIA V5)
  • .STEP
  • .IGES

Includes native and neutral CAD formats. Geometry is clean, parametric, and dimensionally accurate.

Note: This model does not include textures or animation. It is intended for CAD use, not for 3D printing or rendering.

CATPRODUCT (CATIA, filesize: 1.48 MB), IGE (IGES, filesize: 2.97 MB), STP (STEP, filesize: 2.97 MB), PNG (PNG, filesize: 1.48 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown

Tags

Ball Bearing Series Deep Groove Cad Mechanical Part Catia Step Industrial Engineering Components Science
