Description

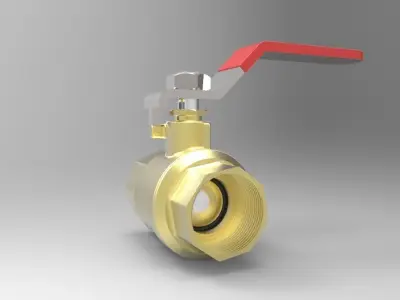

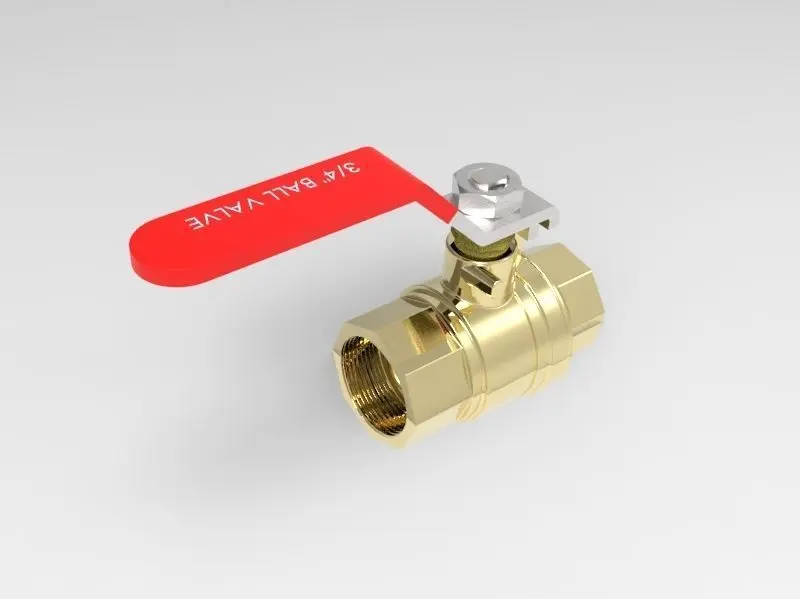

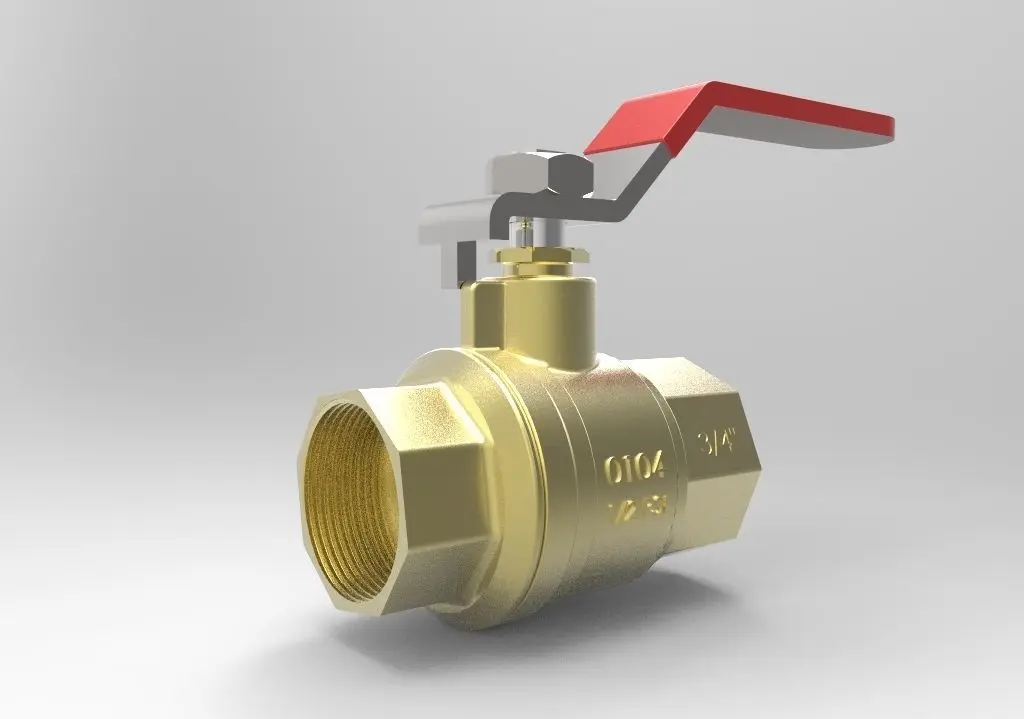

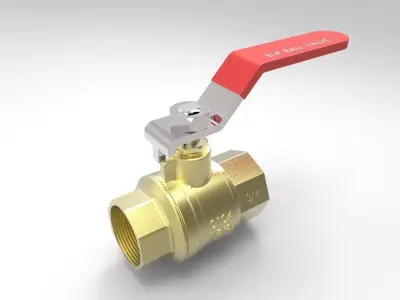

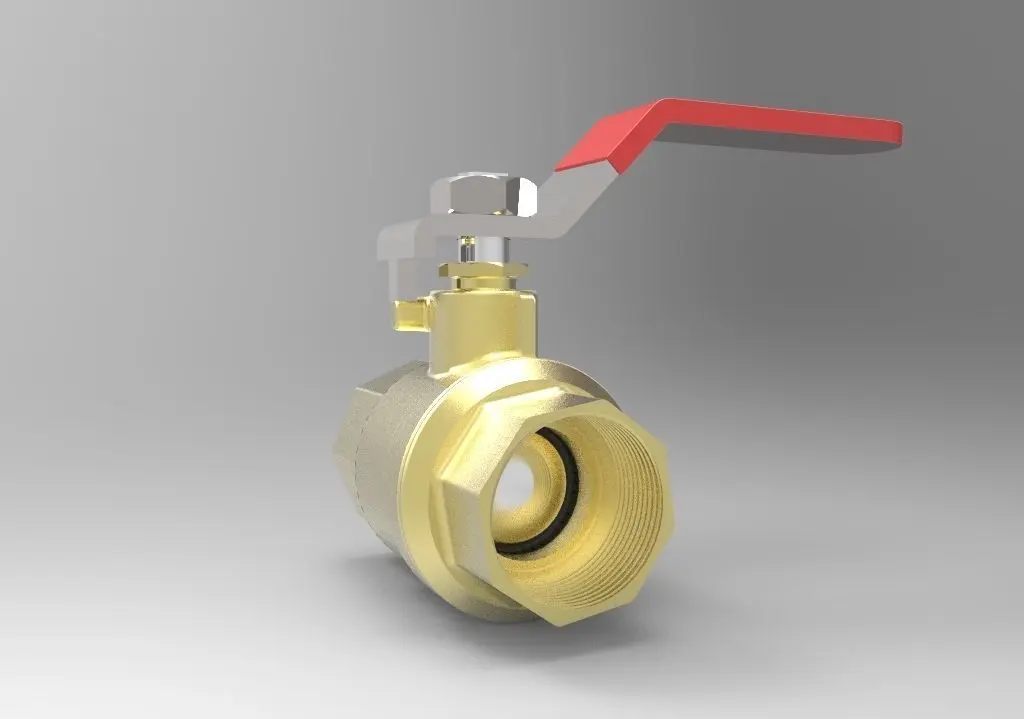

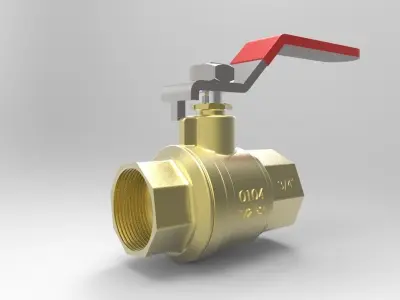

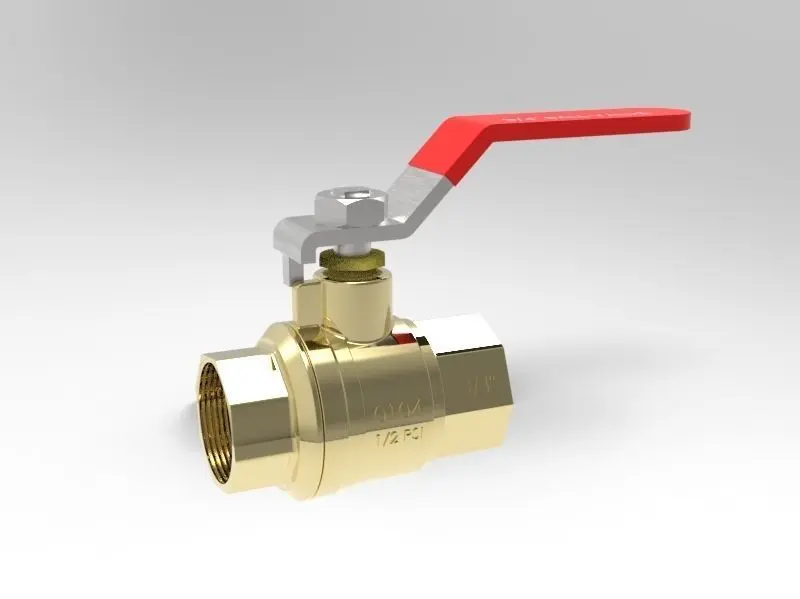

This project is done with SOLIDWORKS software. The 3/4 inch Ball Valve designed in this project consists of 11 individual parts which are explained alongside their quantity & materials:
=======================================
1 - Body (Material - Cast Brass)
============================
2- Valve End (Material - Cast Brass)
============================
3- Ball (Material - Chromium Plate)
============================
4- Hand Lever (Material - Satin Finish Stainless Steel)
============================
5- Packing Gland (Material - Brushed Brass)
============================
6- Seat Ring [Quantity - 2 Parts / Material - Textured Plastic (Black PW-MT11150)]
============================
7- Stem (Material - Chromium Plate)
============================
8- Stem Packing [Material - Textured Plastic (White PW-MT11150)]
============================
9- Grip (Material - Red Gloss Rubber)
============================
10- Hex Jam Nut (Material - Satin Finish Stainless Steel)
============================
Formats of the files consist of: (.sldprt), (.sldasm), (.stp), (.stl), (.igs), (.amf), (.obj), (.mtl), (.3ds) & (.pdf). The model is then rendered in Keyshot 10 software with the relevent materials and the relevent file for executing changes has been also uploaded. All of the individual parts are designed with the part design section and assembled together in the end by using the assembly section of the software. The materials chosen for the parts, are based of the usual materials which are generally used for manufacturing this product in the industry.
