Barrel cam follower 3D model
Barrel cam follower 3D model

Publication date: 2014-11-06

Buy Barrel cam follower 3D model

$7

License: Royalty Free

author:

rupesh-8989

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «rupesh-8989». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $7 Add to Wishlist
  • Description
  • Formats

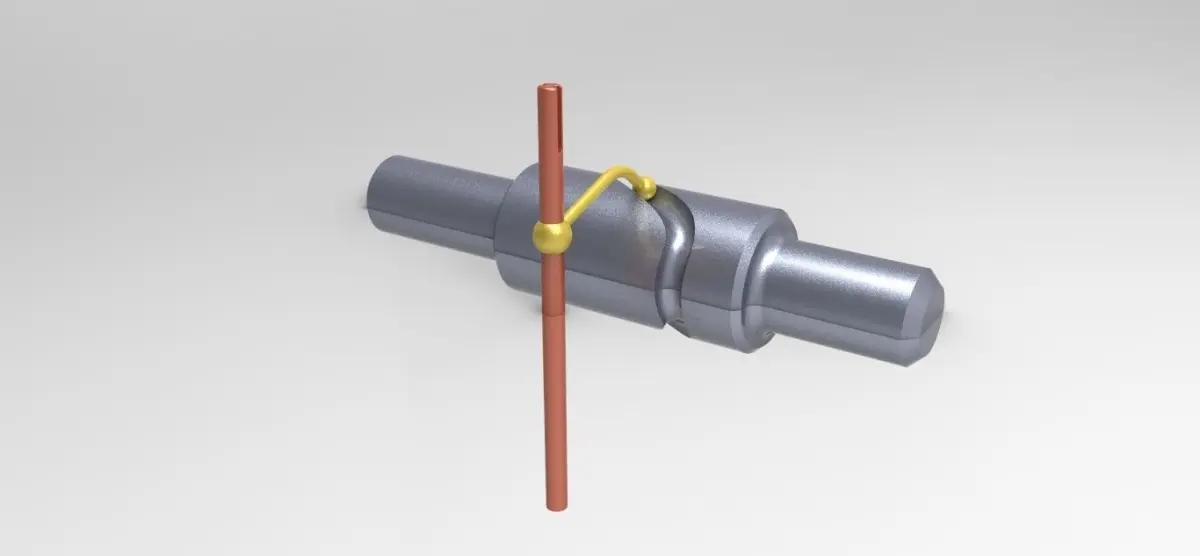

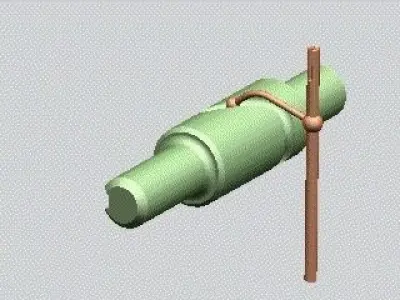

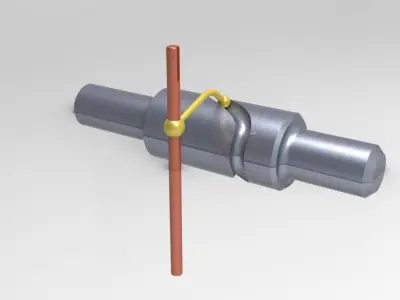

Barrel type cam follower mechanism simulation

These unusual cams are normally composed of a cylinder which has a groove cut out of its surface and it is in this that the follower runs up and down. This type of cam can be seen in some old clock mechanisms and still in modern sewing machines. Machines that perform repetitive movements may use a cylinder cam profile.

OTHER (Other, filesize: 281 KB), IGE (IGES, filesize: 687 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Polygon mesh

Tags

Mechanism Cam Simulation Follower Industrial Tool
