Bathroom Wall Towel Radiator Rail 3D model

License: Royalty Free

author:

droumbas

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «droumbas». CGhub does not claim copyright ownership over the content used.

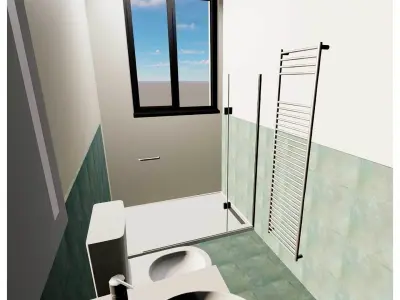

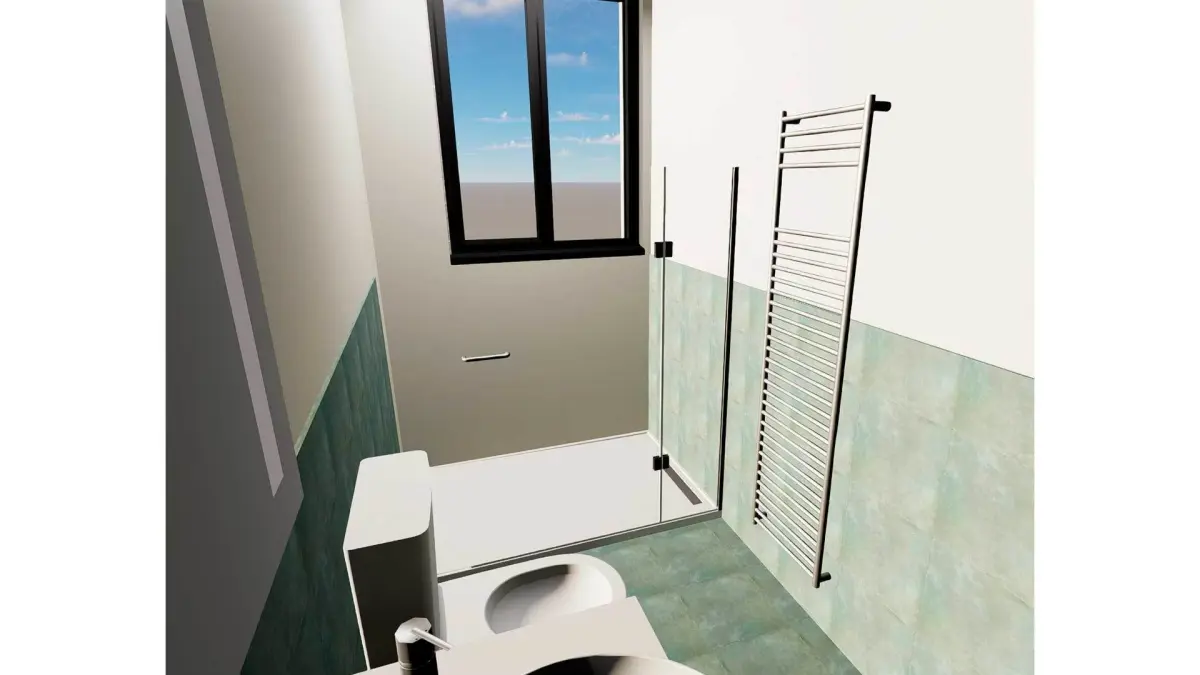

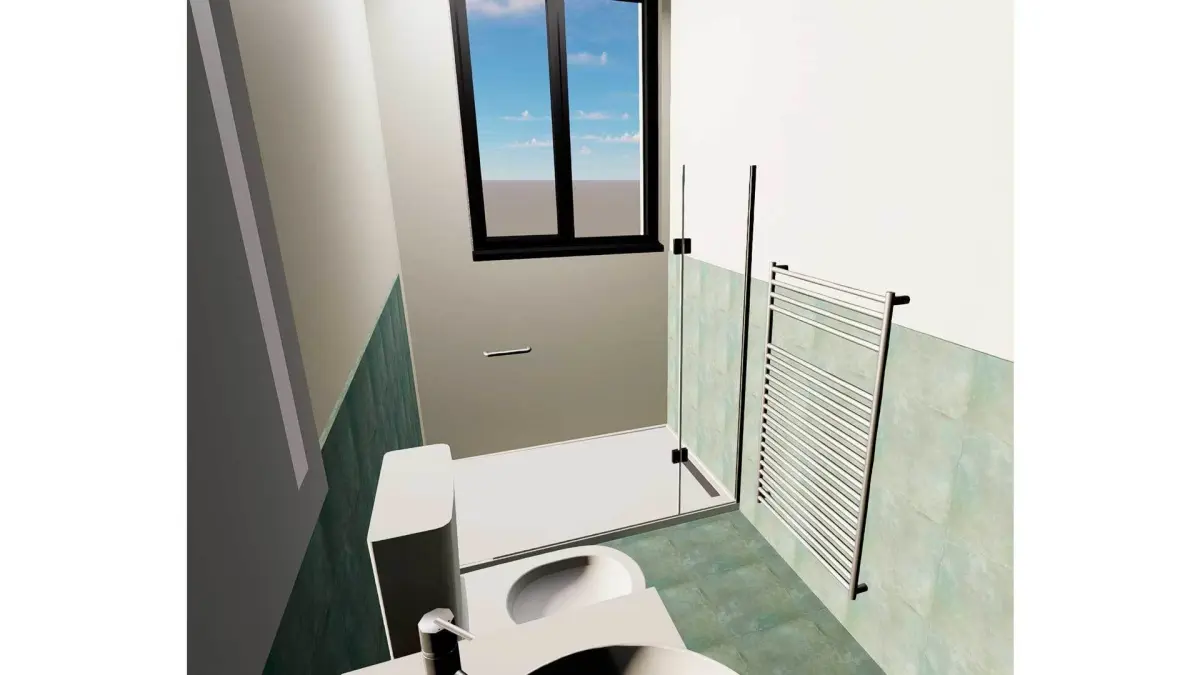

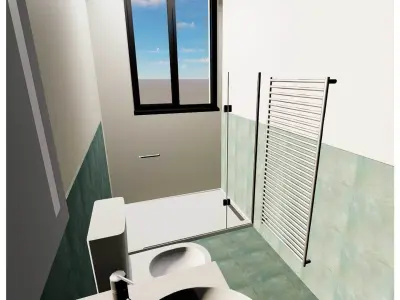

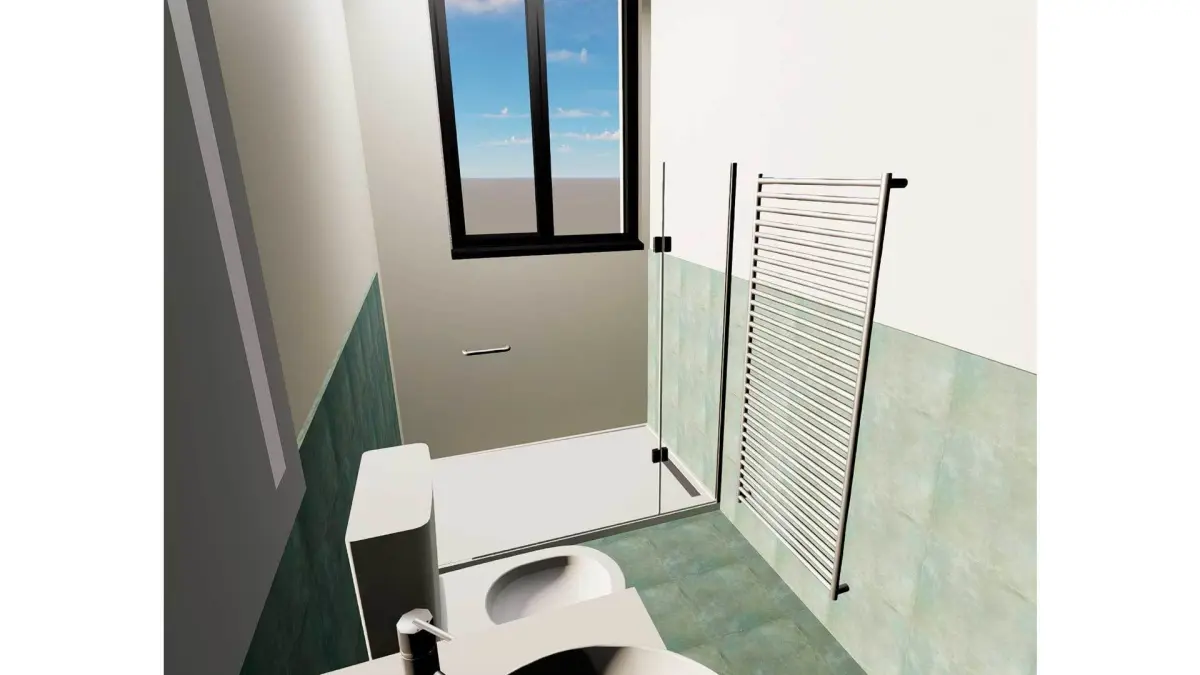

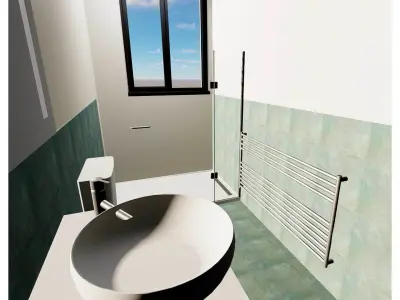

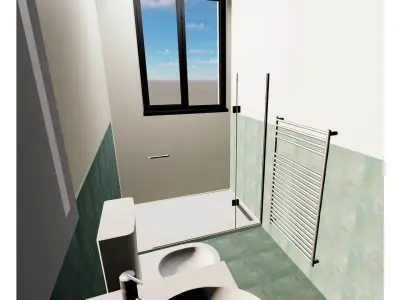

Fully Parametric Revit Family model for a Wall based bathroom towel radiator rail heating element. Model can be placed onto any wall with full customizable parameters to match any design.

User can adjust radiator dimensions, height from floor, option to have a gap between rails, rails diameter and distance between them as well as the material of the rails. See below list of all adjustable parameters.

Model can be flipped on both axes and adjust distance from wall.

ATTRIBUTES:

Revit Version : 2022
Family Type : Wall Based
File Extension : .rfa

PARAMETERS:

Radiator rail width and height
Elevation from reference floor
Vertical and horizontal rails diameter
Supported distance from wall
Wall Support top and bottom offset
Rails Gap Height ( you can reduce the gap to 1mm for no gap option )
Distance between rails
Height of rails above the gap
Rails material parameter

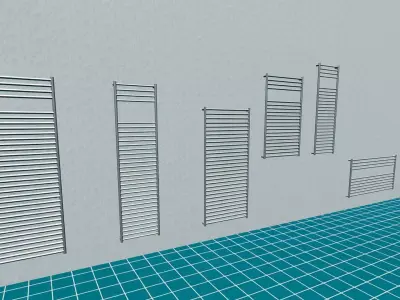

FAMILY TYPES:

W600XH1500mm, Gap 120mm, 20mm RAILS, 200mm from Floor
W600XH1300mm, No Gap, 20mm RAILS, 200mm from Floor
W1200xH600mm, No Gap, 20mm RAILS, 200mm from Floor
W400xH1500mm, Gap 200mm, 16mm RAILS, 200mm from Floor
W1200xH600mm, Gap 150mm, 20mm RAILS, 200mm from Floor
W600mmxH1000mm, Gap 150mm, 20mm Rails, 900mm from Floor
W400mmxH1200mm, Gap 150mm, 16mm Rails, 900mm from Floor

Unlimited number of family type variations can be created

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Plugins used
Geometry: Unknown

Tags

Revit Family Parametric Wall based Heating Radiator Rail Towel Bathroom Fixture Design Building Model Architecture Interior Architectural Rails Bim House Equipment
