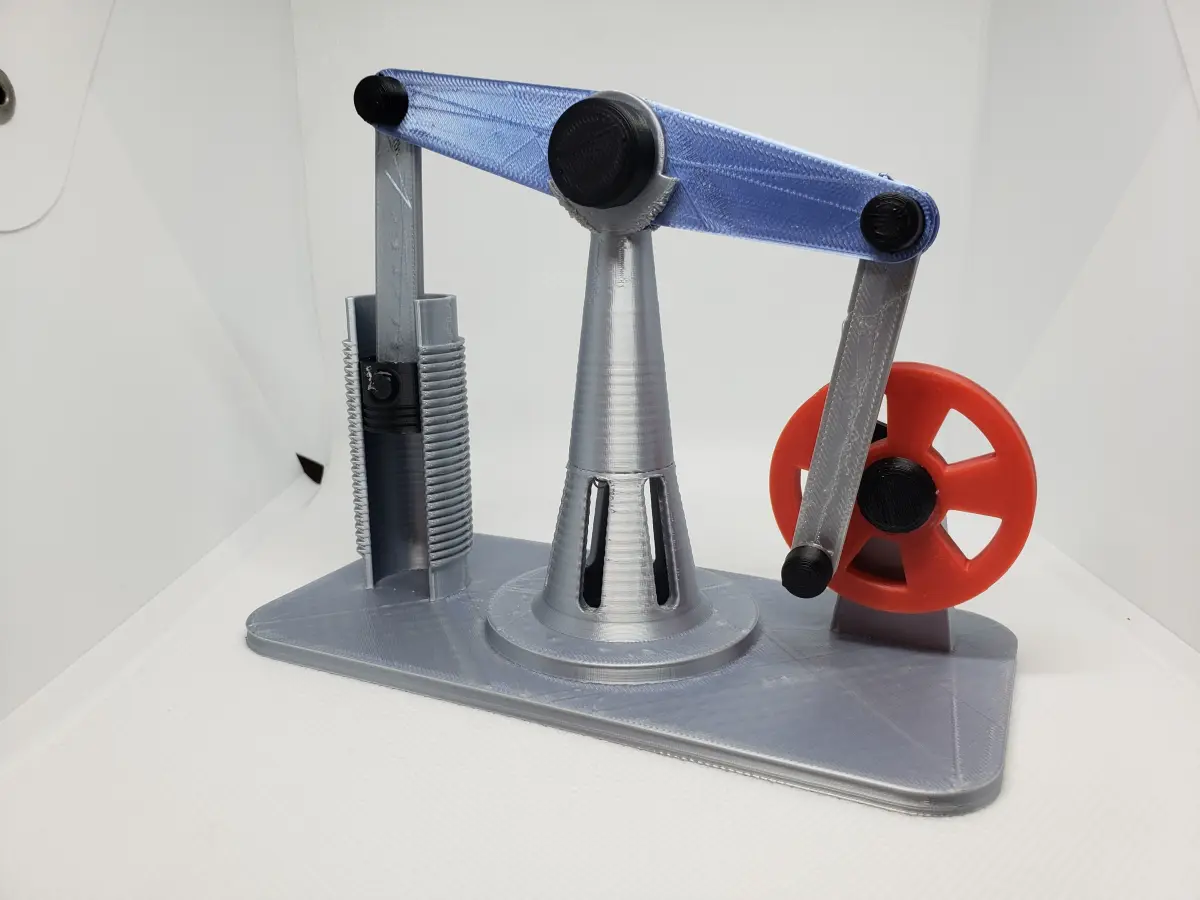

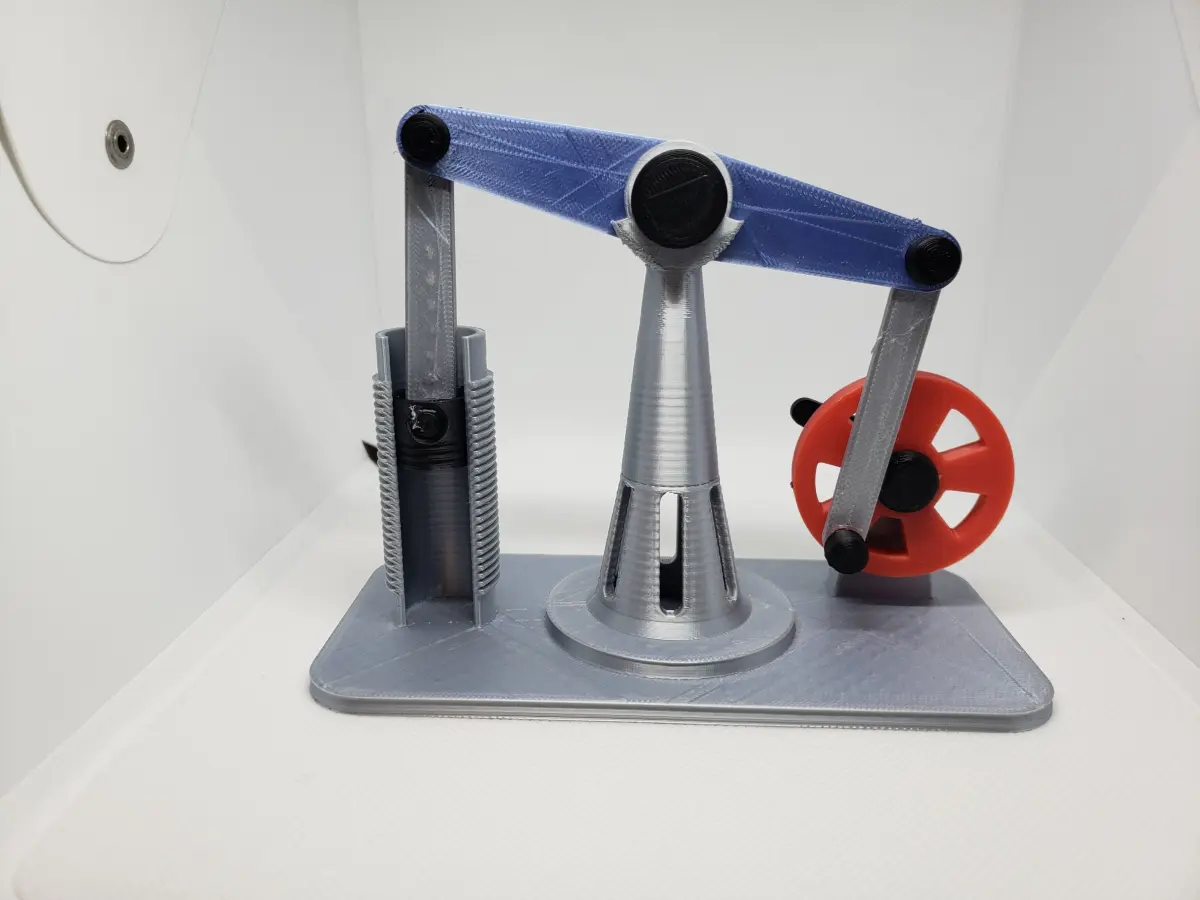

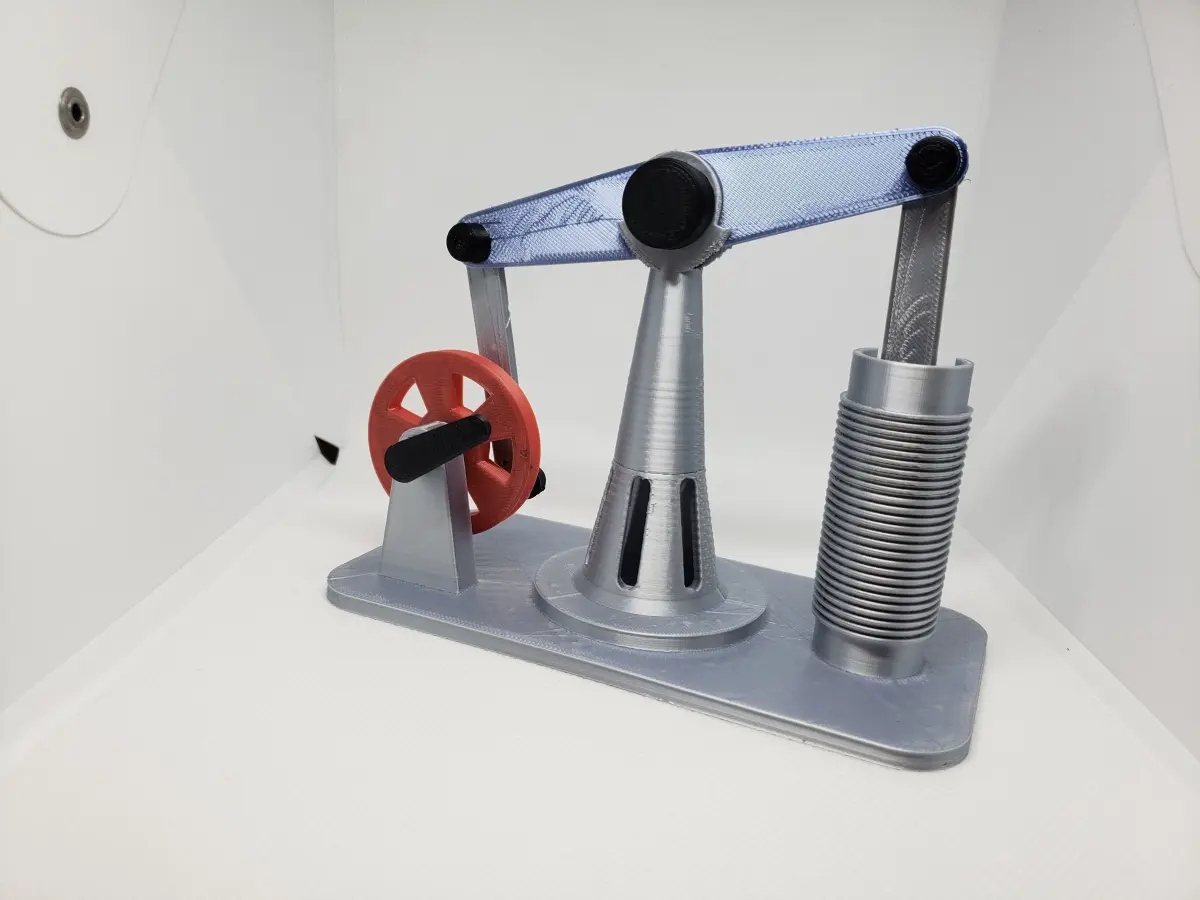

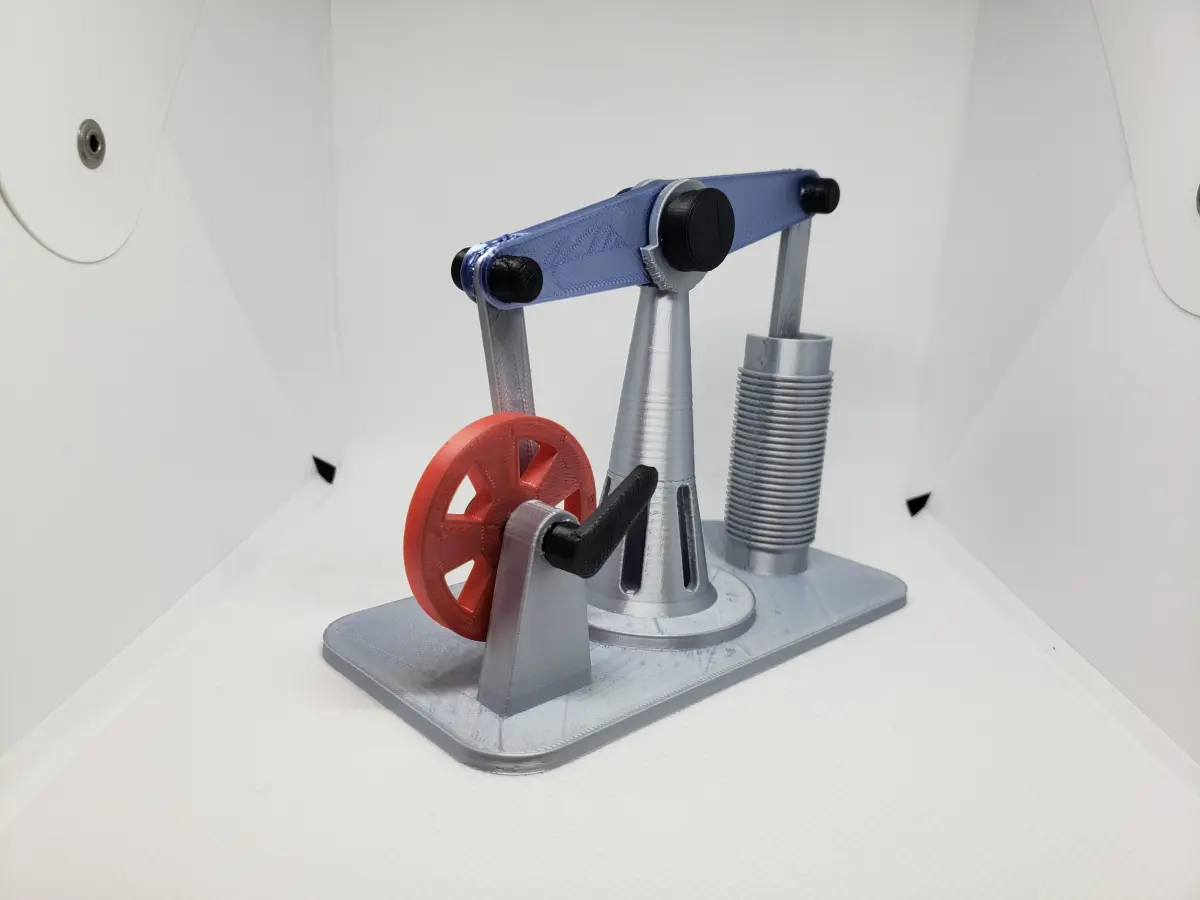

Beam Engine 3D print model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

jcawarner2011

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «jcawarner2011». CGhub does not claim copyright ownership over the content used.

What is a Beam Engine and How does it Work?

A beam engine is a type of steam engine where a pivoted overhead beam is used to apply the force from a vertical pistonto a vertical connecting rod.

Beam engines were first used to pump water out of mines or into canals, but could be used to pump water to supplement the flow for a waterwheel powering a mill.

Check out my blog post for assembly instructions and a brief history of beam engines

https://printmypassion.com/how-does-a-beam-engine-work/
