Bend Pipe with Intersection and Flanged Coupling 3D print model

$6.99

License: Royalty Free No Ai Html

author:

Lasty3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lasty3D». CGhub does not claim copyright ownership over the content used.

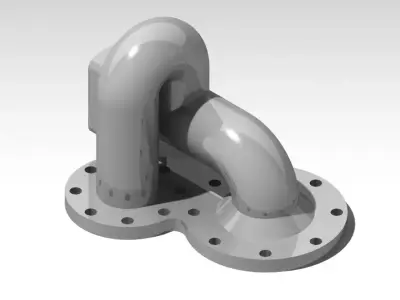

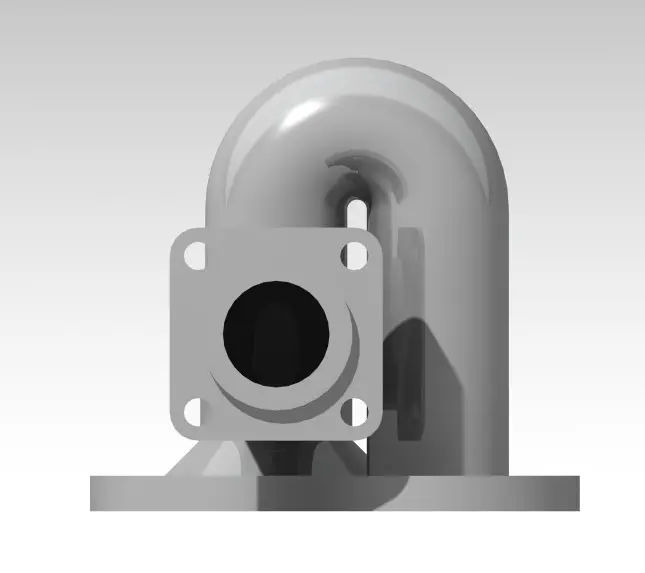

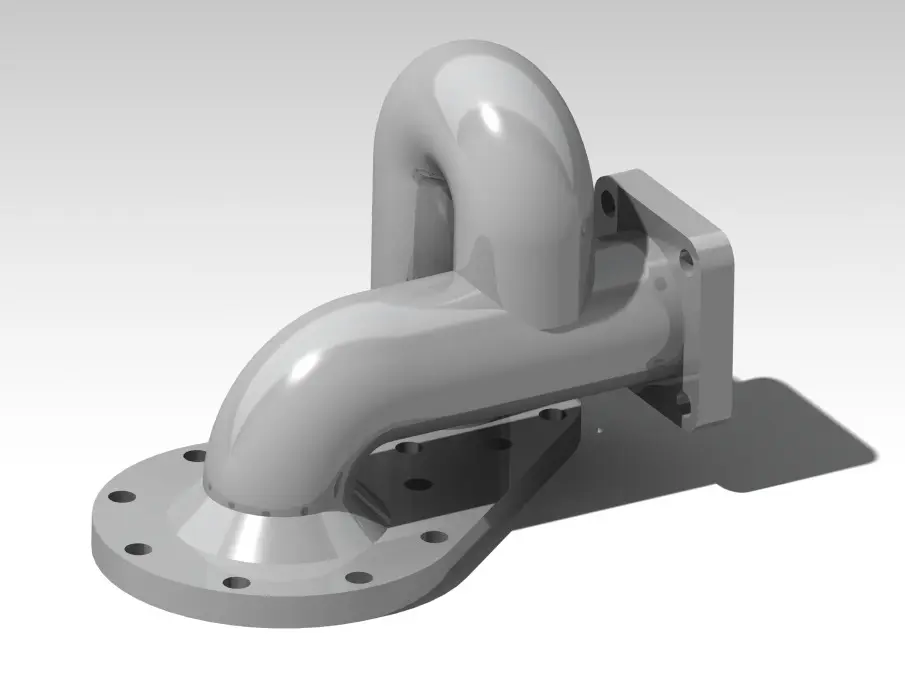

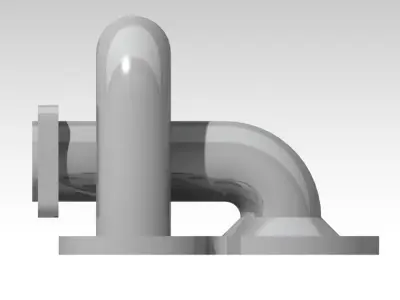

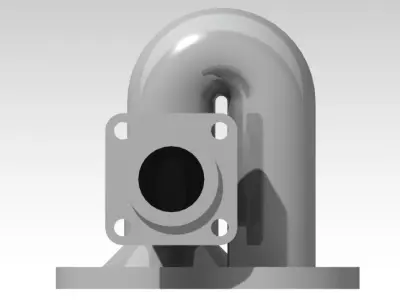

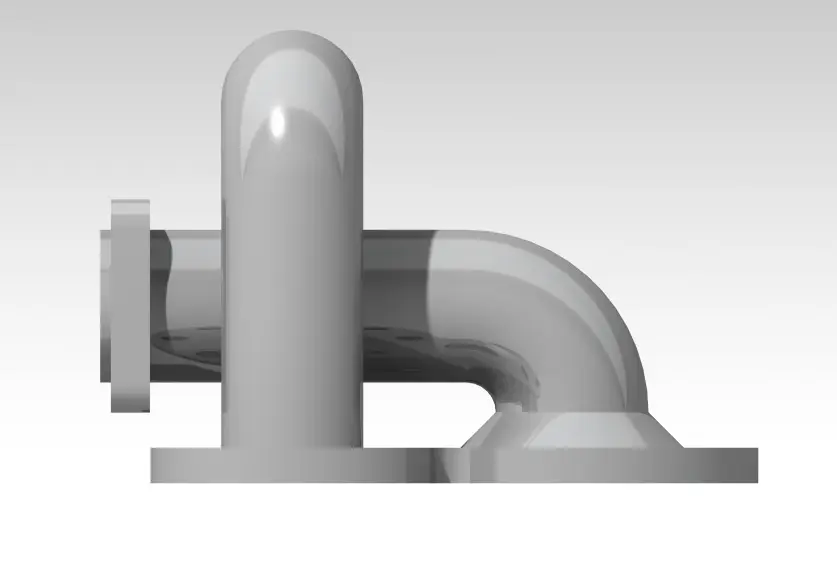

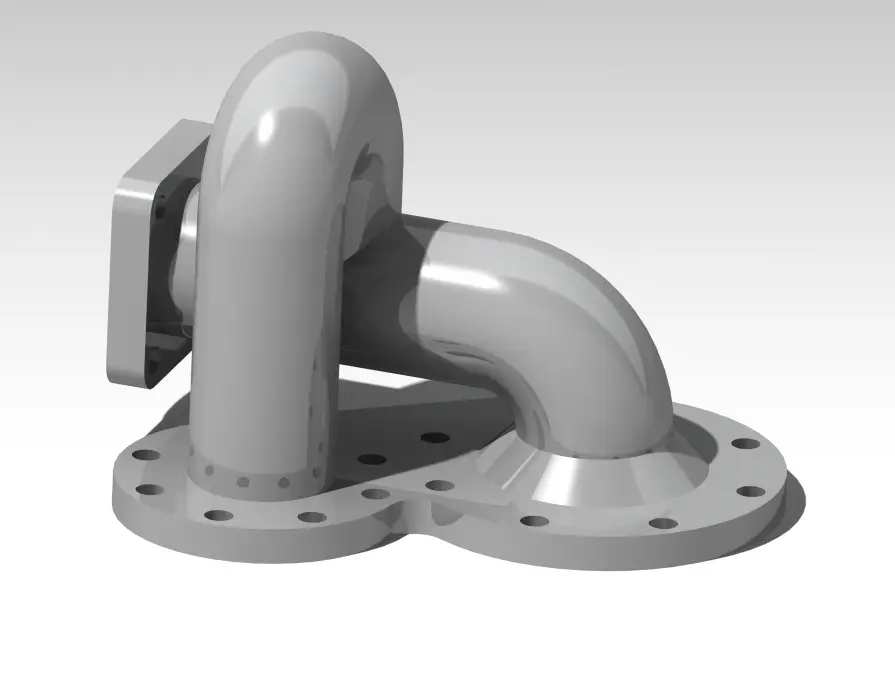

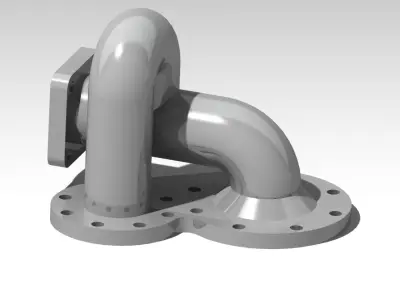

This is a high-quality 3D CAD model of a bend pipe with intersection and flange couplings, commonly used in complex piping layouts for industrial fluid or gas transport systems.

The model features a curved pipe section with an orthogonal intersecting branch, all terminated with standard flanged ends for secure bolt-on assembly. Perfect for use in plant design, piping layout, flow simulation (CFD), or educational demonstrations.

Designed in CATIA V5 with manufacturing-grade precision.

Features:

Bend pipe geometry with perpendicular intersection
Dual and triple flange configuration
Standard flange layout for bolted connections
Ideal for engineering studies and simulation
Accurate surface transitions and inner contours
Ready-to-use in piping assemblies

Formats Included:

CATPart (CATIA V5 native)
STEP (.stp)
IGES (.igs)
STL (for 3D printing or meshing)

Applications:

Piping and plant layout design
HVAC and industrial plumbing
Oil & gas and chemical processing industries
CFD simulation and stress analysis (FEM/FEA)
Mechanical design and component assemblies
