Publication date: 2025-06-12

Bevel Gear Precision 3D Model with Technical Drawing 3D print model

$10

License: Royalty Free No Ai Html

author:

m-y-senidac

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «m-y-senidac». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $10 Add to Wishlist
  • Description
  • Formats

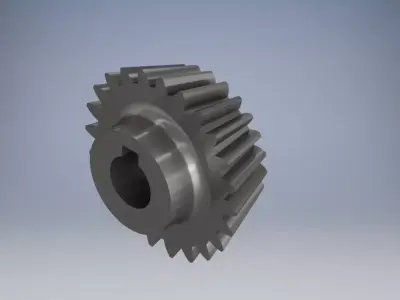

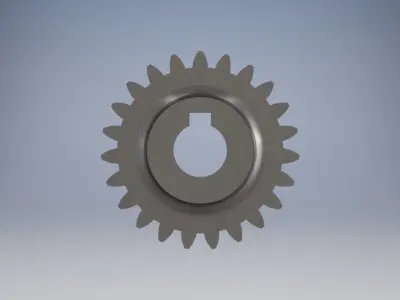

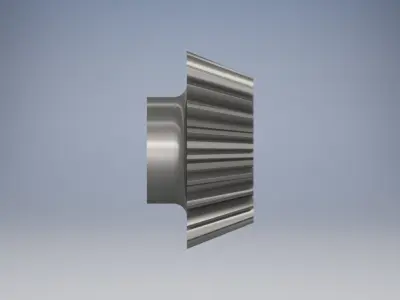

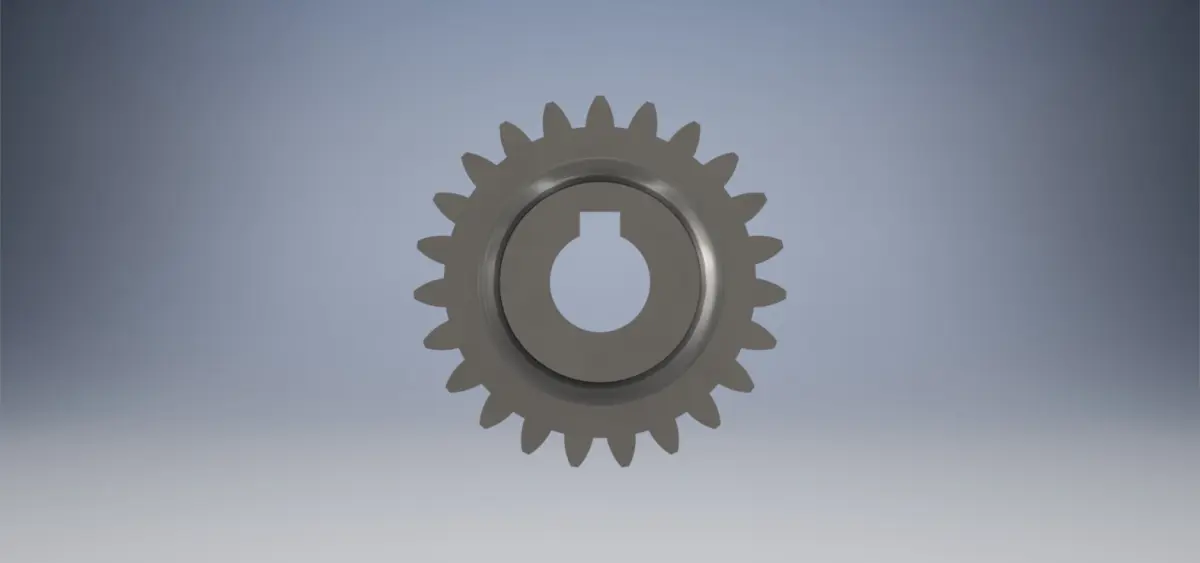

High-precision Bevel Gear model designed using Autodesk Inventor.Suitable for mechanical design, 3D printing, simulations, or educational use.

Files Included:

stl for 3D printing

step and .iges for CAD/CAM use

.ipt source file (Inventor)

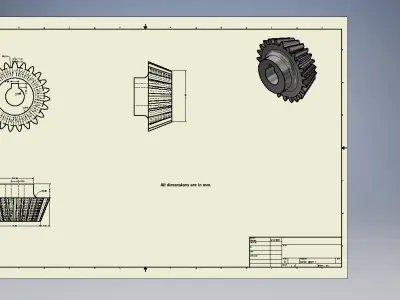

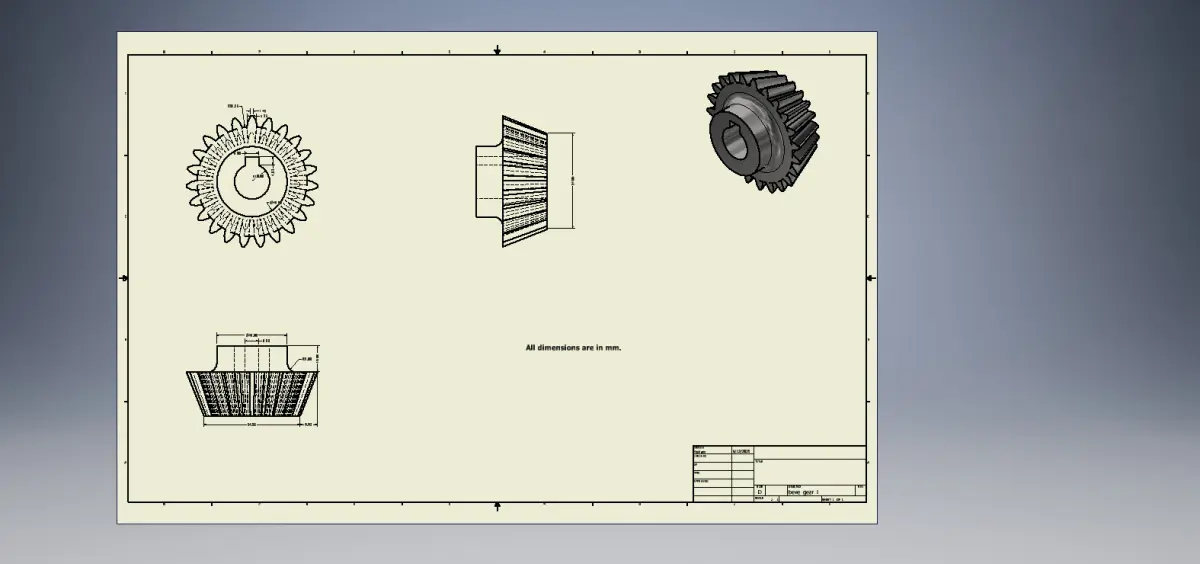

PDF Technical Drawing with dimensions

Optimized geometry for smooth printing or CAD use. Easy to scale and modify depending on your application.

Native Formats: IAM (Autodesk Inventor, filesize: 1.05 MB) Exchange Formats: STL (Stereolithography, filesize: 772 KB), IGE (IGES, filesize: 187 KB), STP (STEP, filesize: 167 KB), PDF (PDF, filesize: 213 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Bevel Gears Mechanical Cad 3d Printing Inventor Model Transmission Machinery Drawing Science Engineering
