Blisk spinning blade Free 3D model

free

License: royalty_free_no_ai

author:

i-d-spasic

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «i-d-spasic». CGhub does not claim copyright ownership over the content used.

A blisk (or bladed disk) is a single engine component consisting of a rotor disk and blades, which may be either integrally cast, machined from a solid piece of material, or made by welding individual blades to the rotor disk. The term is used mainly in aerospace engine design. The word is a portmanteau of blade and disk, the two components it replaces in turbomachinery. Blisks may also be known as integrally bladed rotors (IBR).

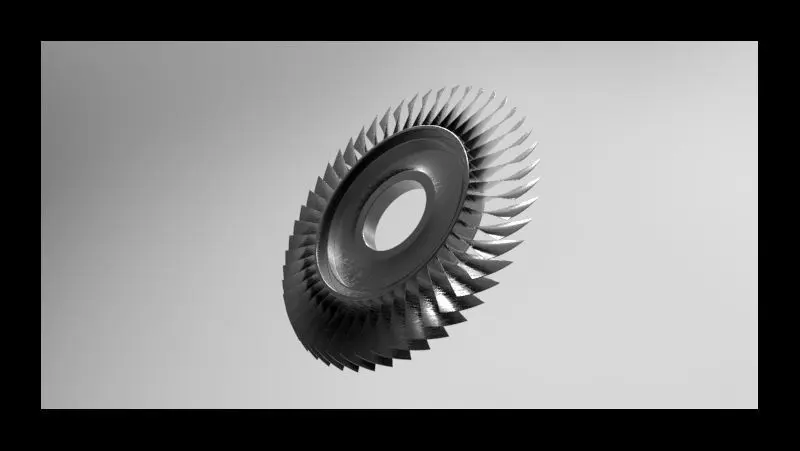

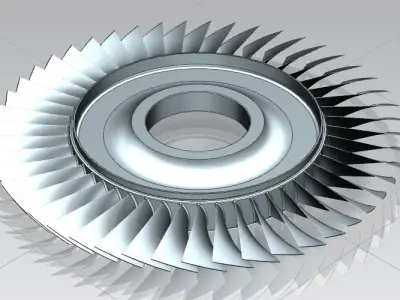

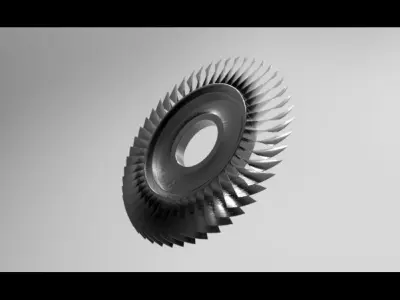

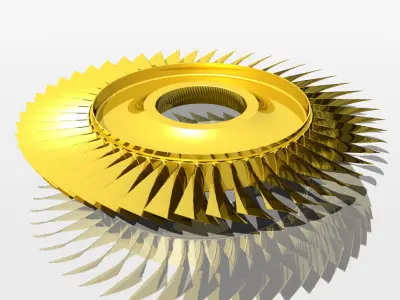

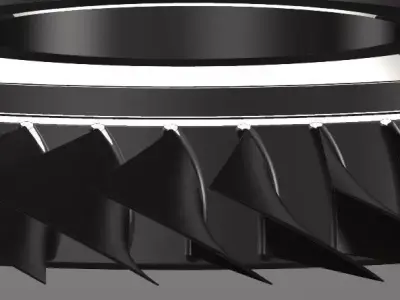

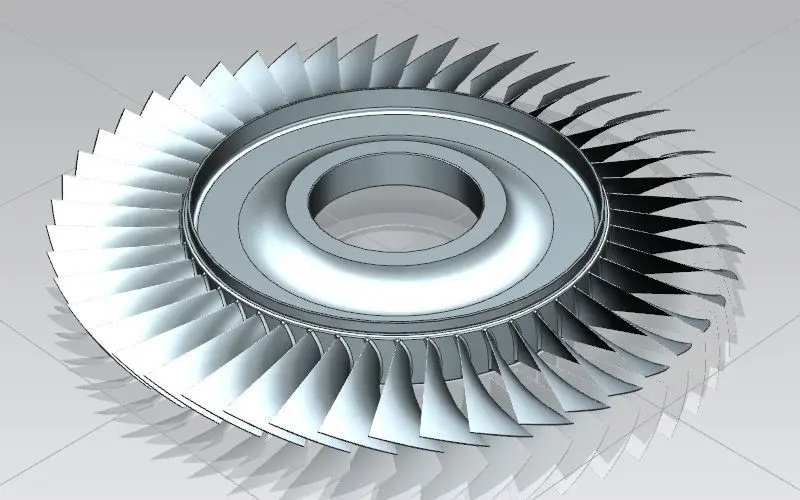

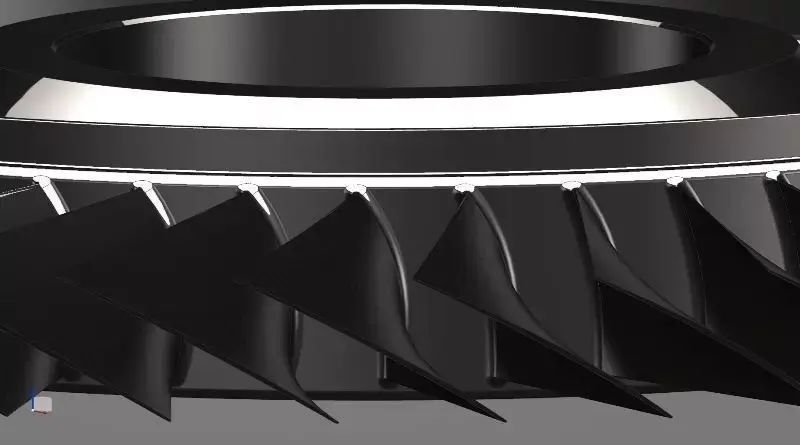

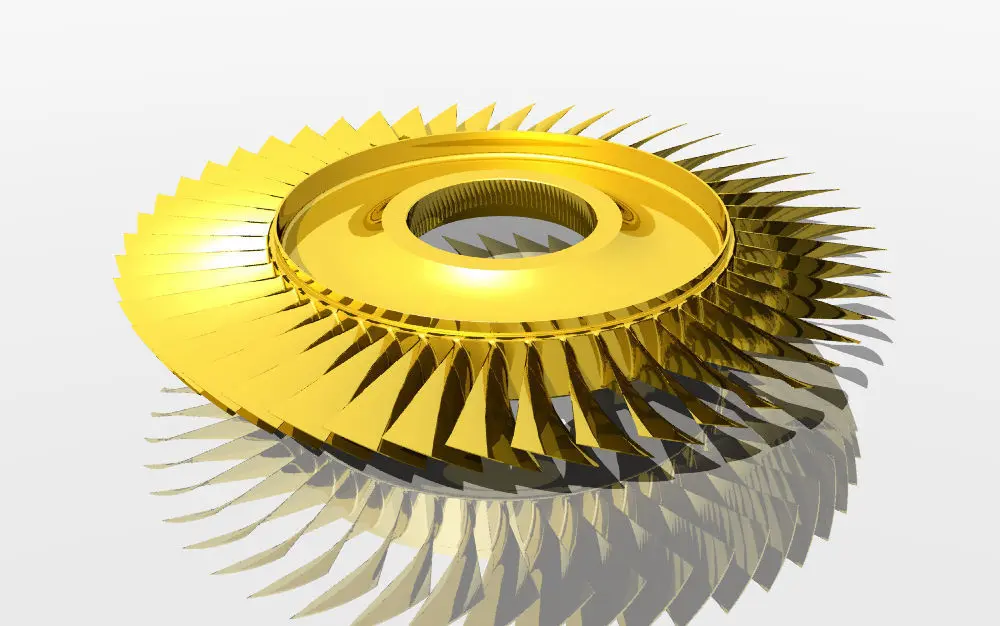

This model is made for my colleague who is working CAM and he needed blisk model for his CAM project (you can see movie of CAM processes in this post). This is not model of real blisk as it is designed by edit of real turbo engine blade and merging it with custom disk, it is designed to be machined from a solid peace of material. This blade is only for show of CAM processes needed for machining this kind of model.
