Publication date: 2021-12-09

Buy Boiler water bottle with silver buttons 3D model

$2

License: Royalty Free

author:

MK-3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «MK-3D». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $2 Add to Wishlist
  • Description
  • Formats

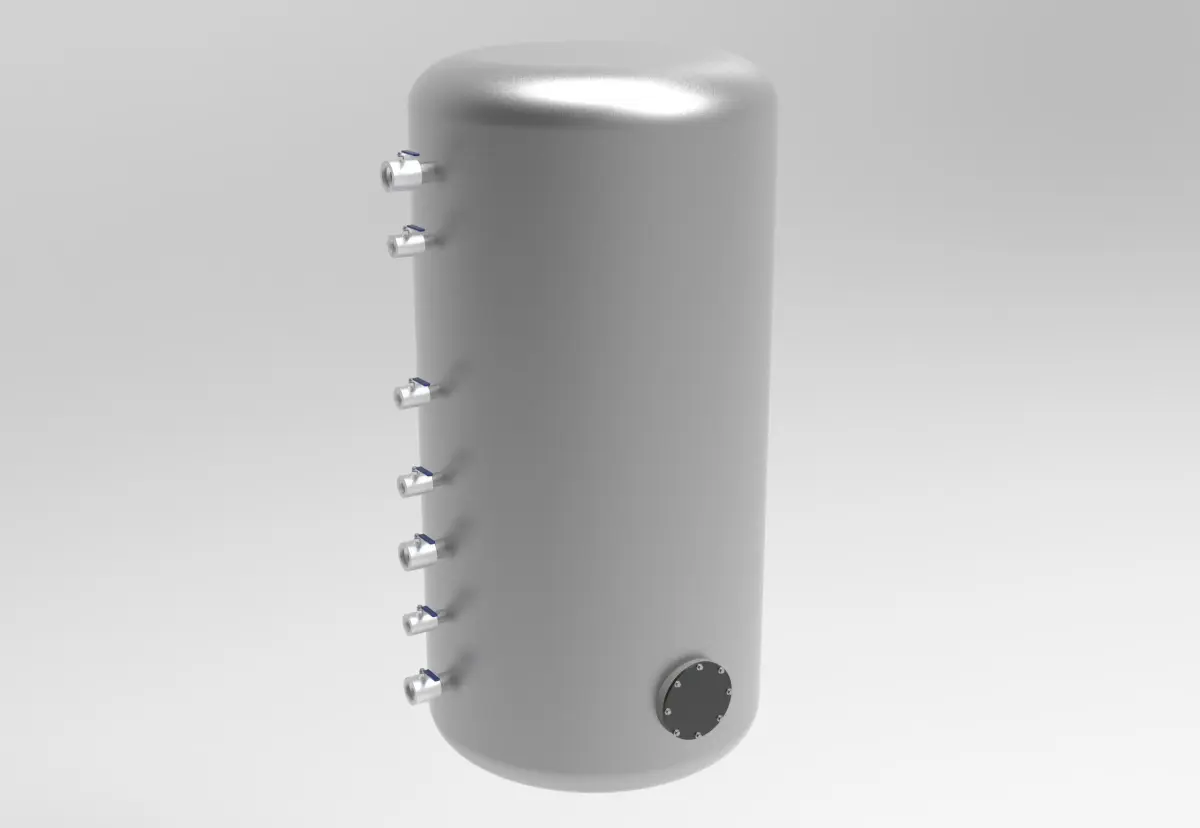

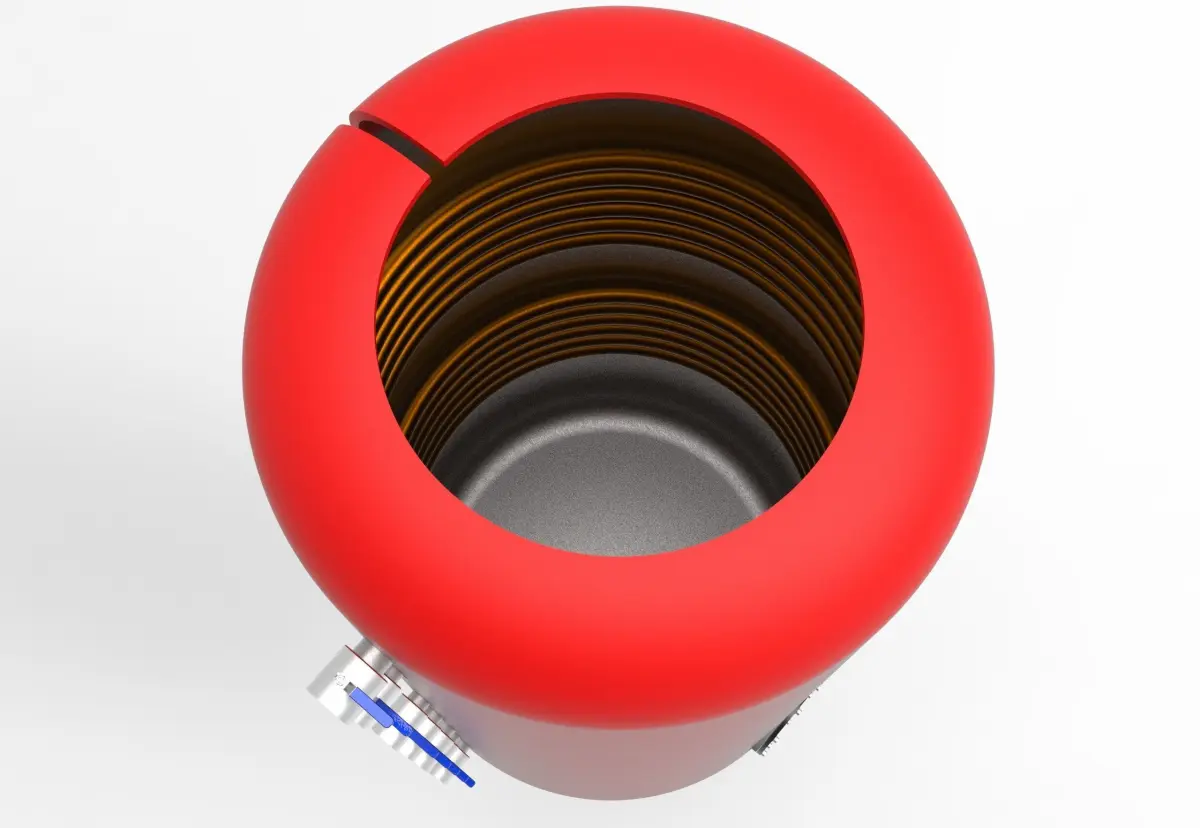

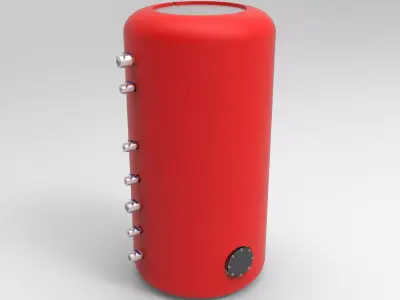

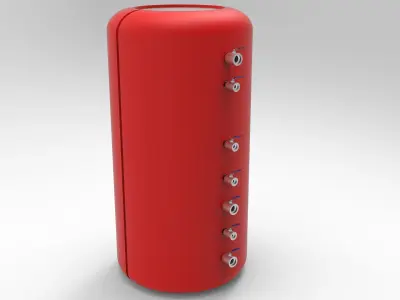

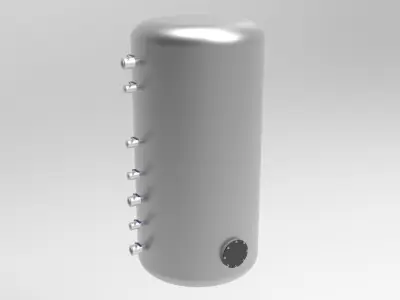

Double serpentine 2000 liter boiler system

The boiler capacity is 2000 liters.

Boiler dimensions:

Diameter: 109cm

Height: 219 cm

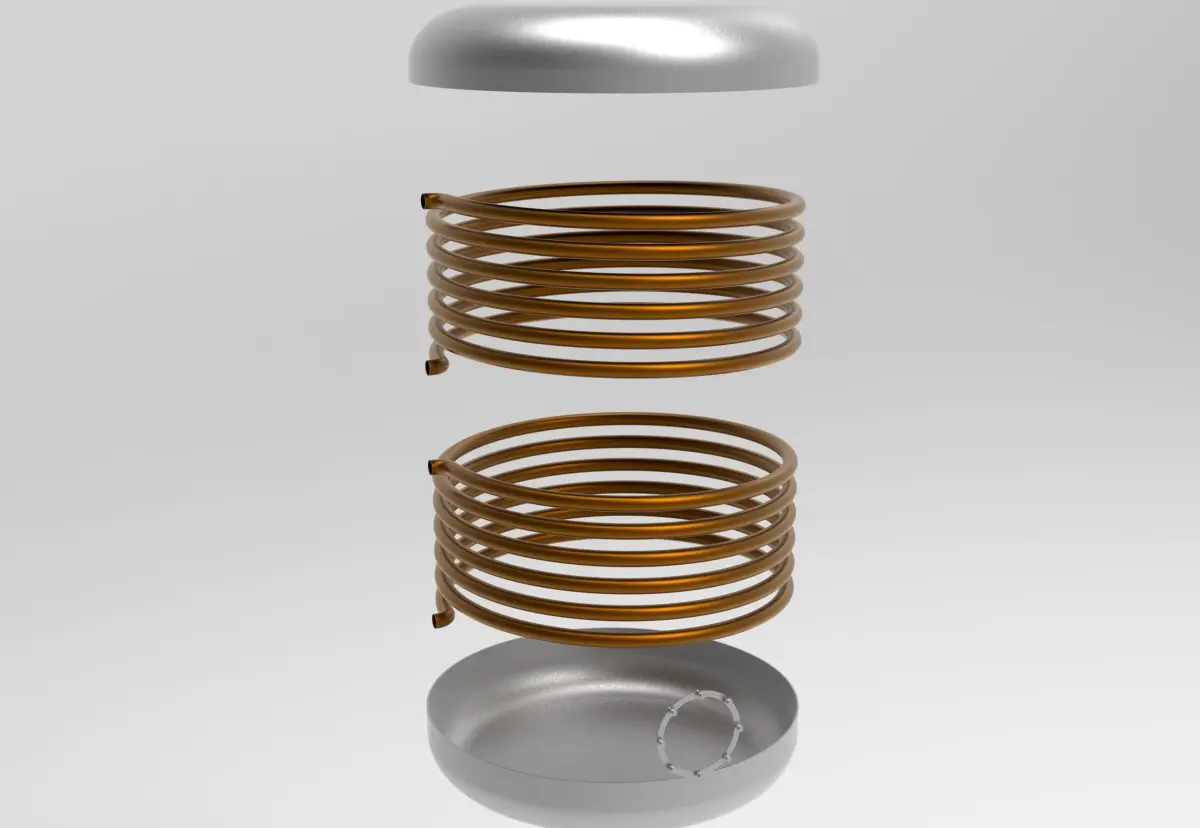

Coil Diameter: 42.4 mm

Serpentine Surface Area: 9.6 m²

This boiler can be fed by solar energy or fuel boiler.

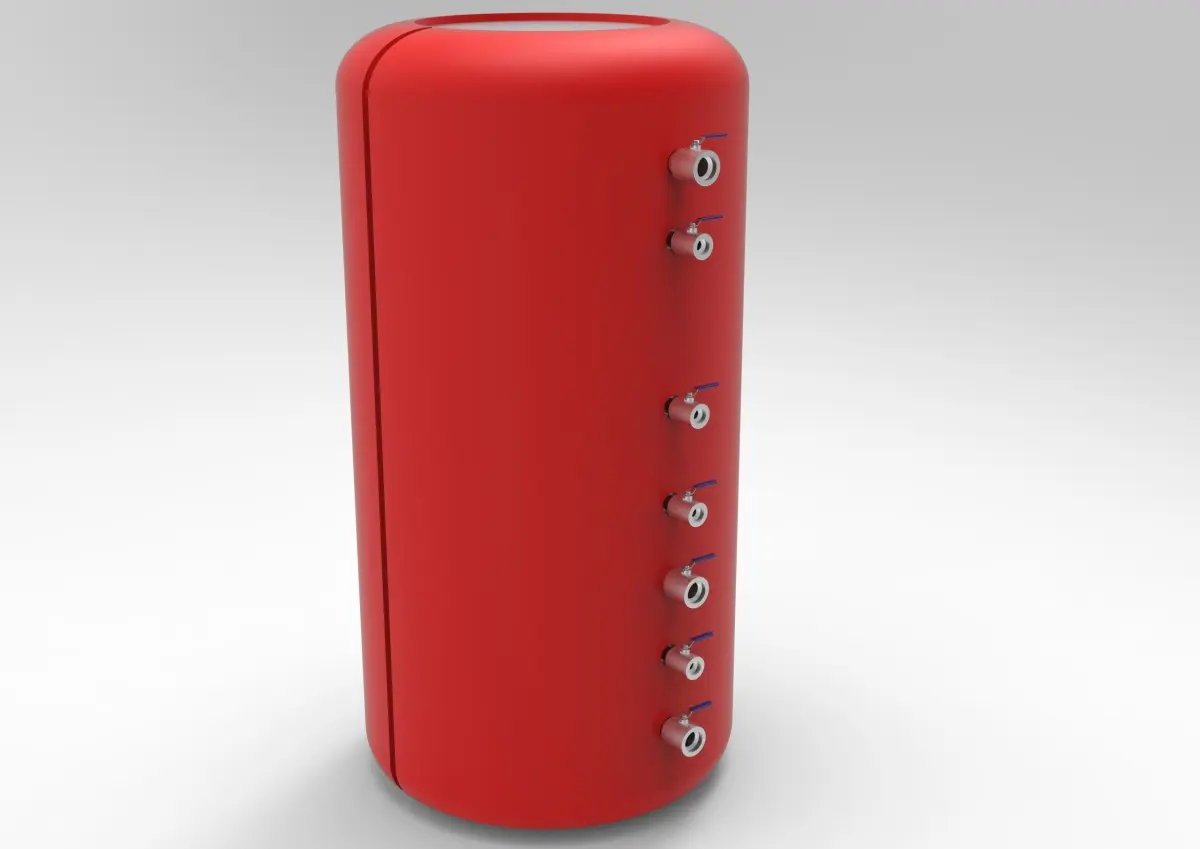

From top to bottom:

  1. Valve: Boiler hot water outlet

  2. Valve: Serpentine hot water inlet

  3. Valve: Serpentine cold water outlet

  4. Valve: Serpentine hot water inlet

  5. Valve: Recirculation

  6. Valve: Serpentine cold water outlet

  7. Valve: Boiler cold water inlet

The boiler has a cleaning cover.

The design of the boiler was made in solidworks 2020 software.

Different file formats are available.There are file extensions of software such as 3ds max, blender, autocad, solidworks.

STL (Stereolithography, filesize: 11 MB), OBJ (OBJ, filesize: 16.5 MB), WRL (VRML, filesize: 9.13 MB), DXF (DXF, filesize: 85.5 MB), FBX (Autodesk FBX, filesize: 6.06 MB), SLDPRT (SolidWorks, filesize: 3.68 MB), BLEND (Blender, filesize: 18.1 MB), IGE (IGES, filesize: 22 MB), STP (STEP, filesize: 32.7 MB), BIP (KeyShot, filesize: 376 MB), MAX (Autodesk 3ds Max, filesize: 6.52 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: No N-gons | No faceted geometry | Manifold geometry |
