Break Disc 3D print model

$4.99

License: Royalty Free

author:

Lasty3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lasty3D». CGhub does not claim copyright ownership over the content used.

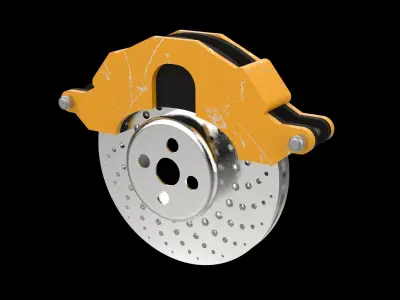

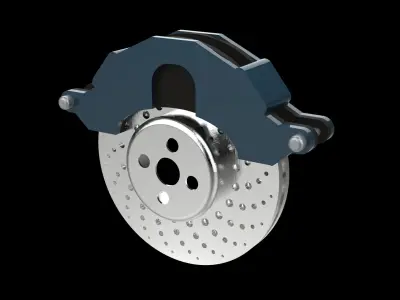

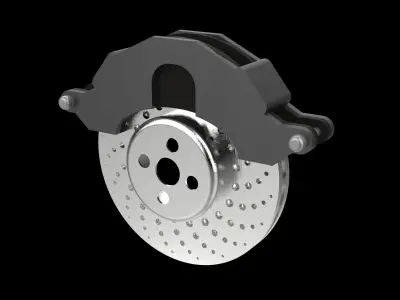

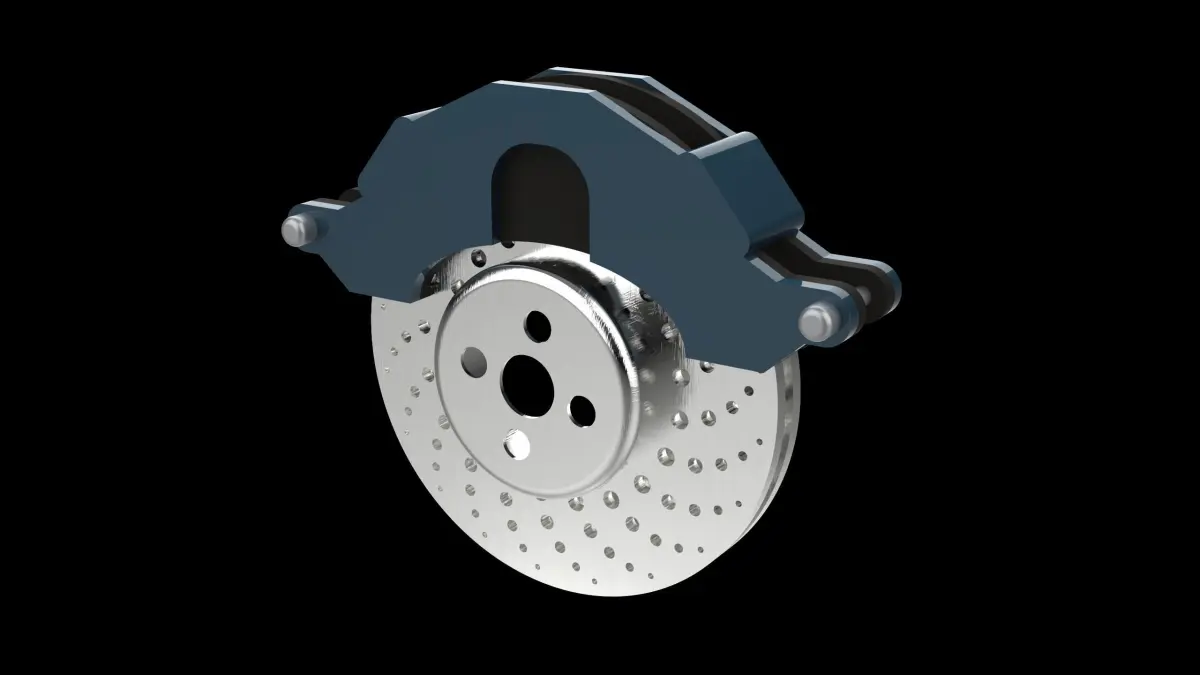

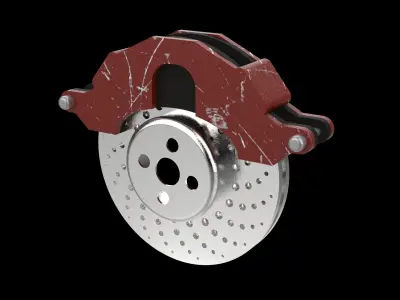

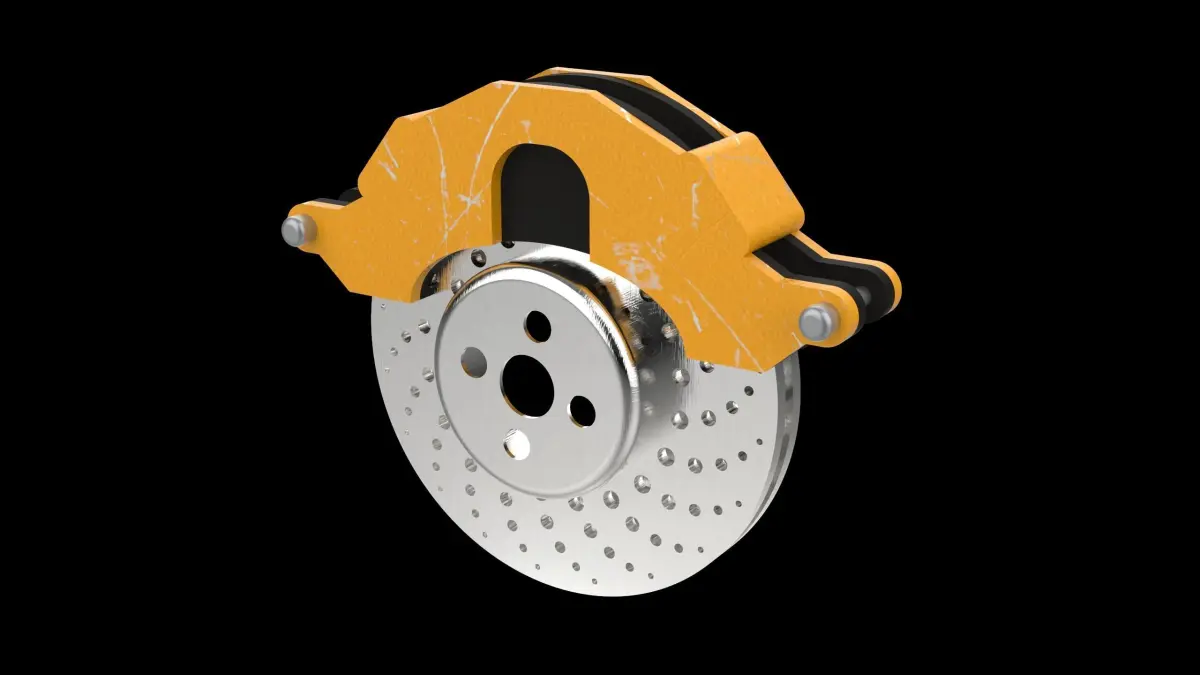

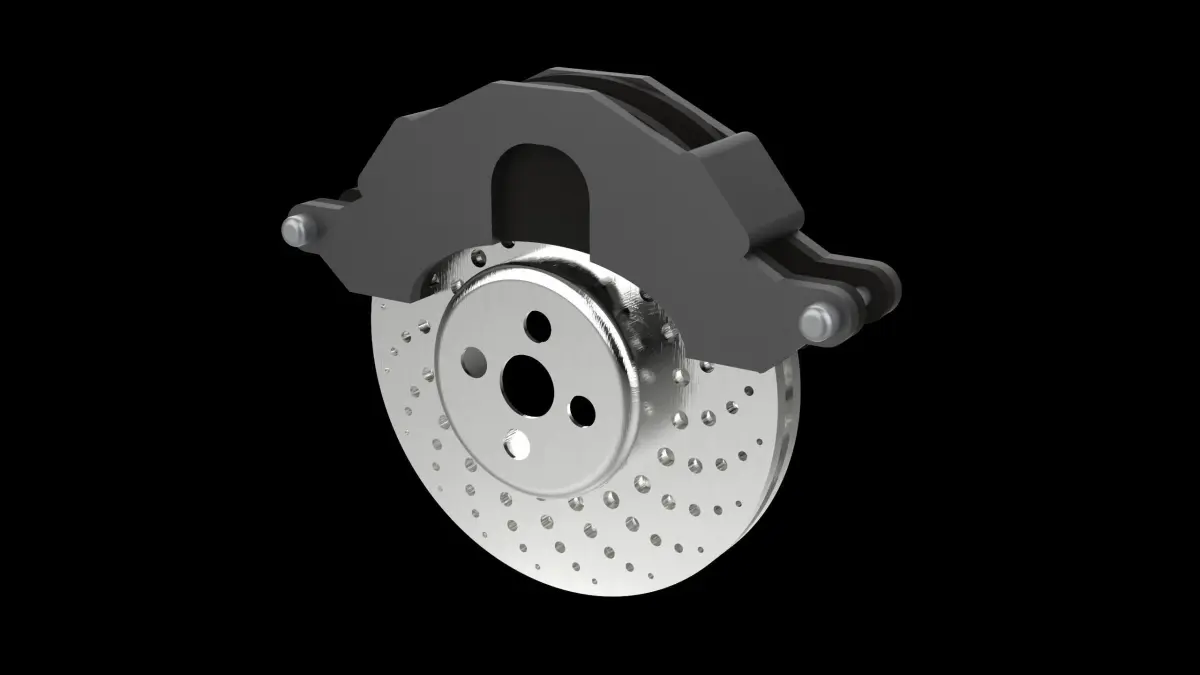

A break Disc composed by 4 diferent components, assembly in Catia V5 and rendered in Keyshot. All files included.

A disc brake is a type of brake that uses the calipers to squeeze pairs of pads against a disc or a rotor to create friction. This action slows the rotation of a shaft, such as a vehicle axle, either to reduce its rotational speed or to hold it stationary. The energy of motion is converted into waste heat which must be dispersed.

Hydraulically actuated disc brakes are the most commonly used form of brake for motor vehicles, but the principles of a disc brake are applicable to almost any rotating shaft. The components includes the disc, master cylinder, caliper (which contains cylinder and two brake pads) on both side of the disc.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Steel Wheel Disc Brake Car Race Metallic Tire Racing Technology Machinery Design Aluminum Anodized Bolt Disk Round Chrome Glazed 3d Science Engineering Racing car Brake disc Car design Car tire Car wheel Race car
