Brembo 402x39 6 Piston Brake 3D Model 3D model

Brembo 402x39 6 Piston Brake 3D Model

The product includes variants of a 402x39 mm brake disc and a 6 piston brake caliper.

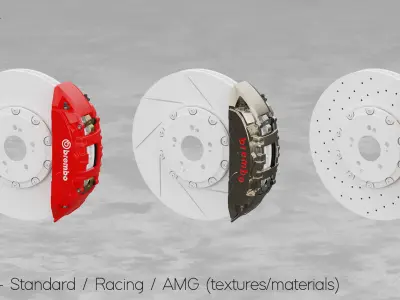

Included variants:

• Standard Brembo caliper
• Brembo Racing caliper
• AMG caliper
• Flat iron disc
• Slotted iron disc
• Drilled carbon ceramic disc

Modeled (unit: mm) and visualized with Blender 3.4.1

You get the base mesh with deactivated subdivision-modifiers as a .blend file, so you can choose by yourself how many subdivisions you want
+ the base mesh as .fbx and .obj
+ the subdivided mesh with a mix of subdivision level 1 and 2 as .fbx and .obj

Base mesh (low poly):

Caliper:

• 27.078 vertices
• 27.202 faces

Flat Disc:

• 24.962 vertices
• 25.122 faces

Slotted Disc:

• 27.082 vertices
• 27.250 faces

Drilled Disc:

• 28.322 vertices
• 28.730 faces

Subdivided mesh (high poly):

Caliper:

• 108.544 vertices
• 108.492 faces

Flat Disc:

• 100.234 vertices
• 100.268 faces

Slotted Disc:

• 108.730 vertices
• 108.764 faces

Drilled Disc:

• 114.402 vertices
• 114.700 faces

Real world dimensions:

• diameter of brake disc: 402 mm
• width of brake disc: 39 mm
• ptc: 5x112 mm

Included textures:

• Standard caliper: 1x 4K PNG (Decal)
• Racing caliper: 3x 4K PNG (Decal, Height, Normal)
• AMG caliper: 3x 4K PNG (Decal, Height, Normal)
• Brake pad: 4x 1K PNG (Color, Height, Normal, Roughness)
• Carbon ceramic brake disc (friction): 4x 4K PNG (Color, Height, Normal, Roughness)
• Carbon ceramic brake disc (no friction): 4x 4K PNG (Color, Height, Normal, Roughness)
• Iron brake disc (friction): 4x 4K PNG (Color, Height, Normal, Roughness)
• Iron brake disc (no friction): 2x 4K PNG (Color, Roughness)
• Standard brake disc bell: 3x 4K PNG (Decal, Height, Normal)
• AMG brake disc bell: 3x 4K PNG (Decal, Height, Normal)

Included fileformats:

• .blend (native file with base mesh and materials)
• .fbx (base mesh + subdivided mesh)
• .obj+.mtl (base mesh + subdivided mesh)

Additional informations:

• This product is meant to be used for digital visualizations. It is NOT suitable for purposes of engineering and manufacturing.
• The UV maps are made in a way to work with the included textures/materials. If you have any special requirements for the UV maps (e.g. texture painting, multiple UV-maps, UDIMS) you might have to customize them for your individual workflow.
• If you have any questions before the purchase, feel free to contact me.
