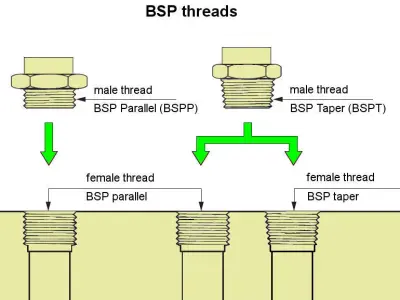

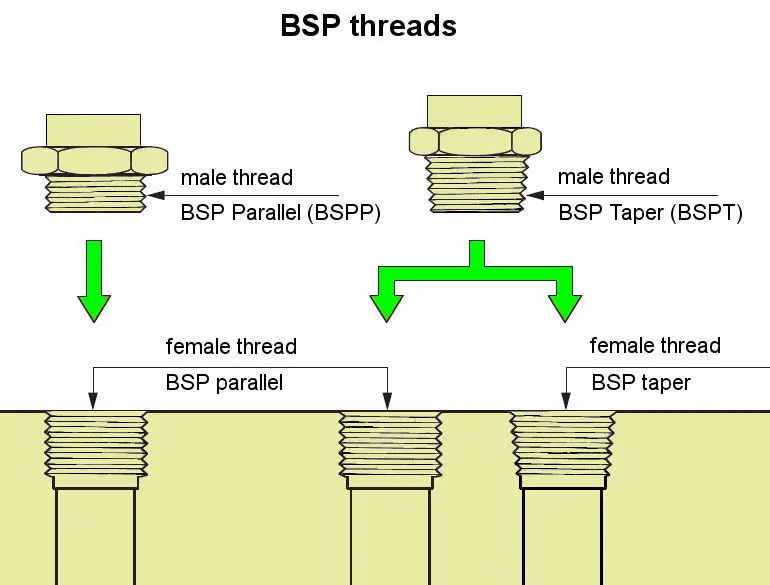

British Standard Pipe Parallel Taper threads ISO 228-1 ISO 7-1 3D print model

$39

License: Copyright

author:

Twillert1979

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Twillert1979». CGhub does not claim copyright ownership over the content used.

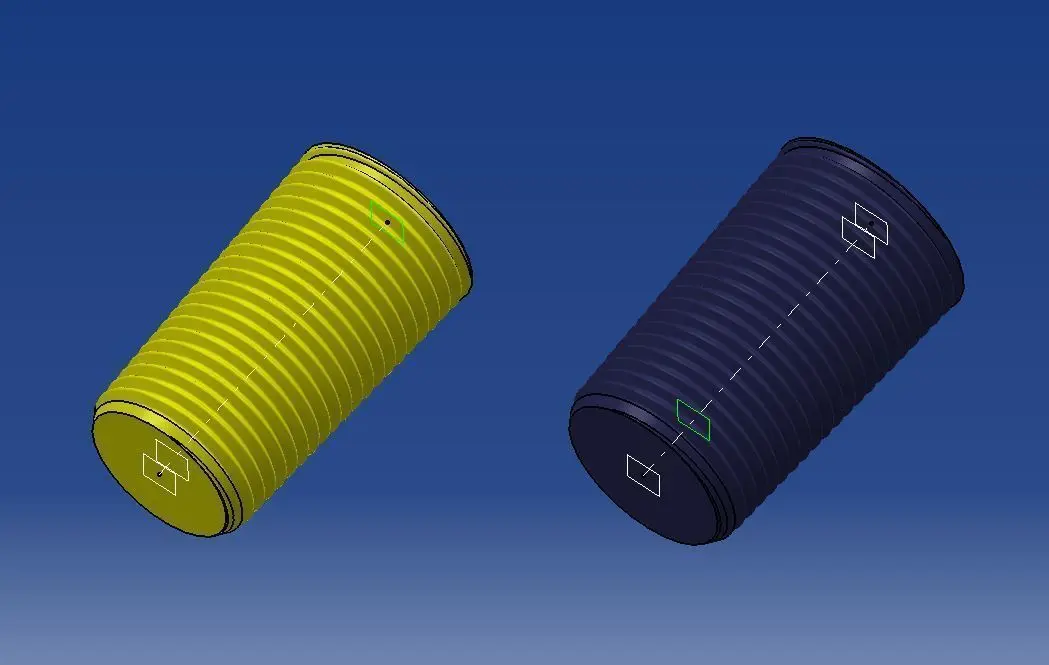

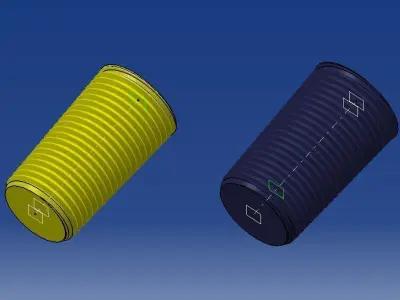

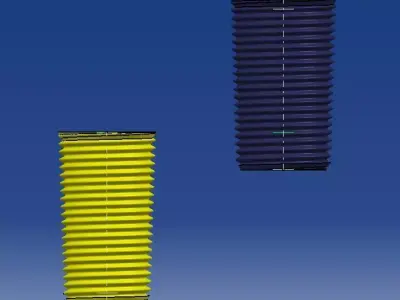

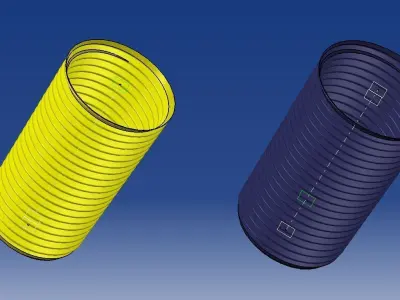

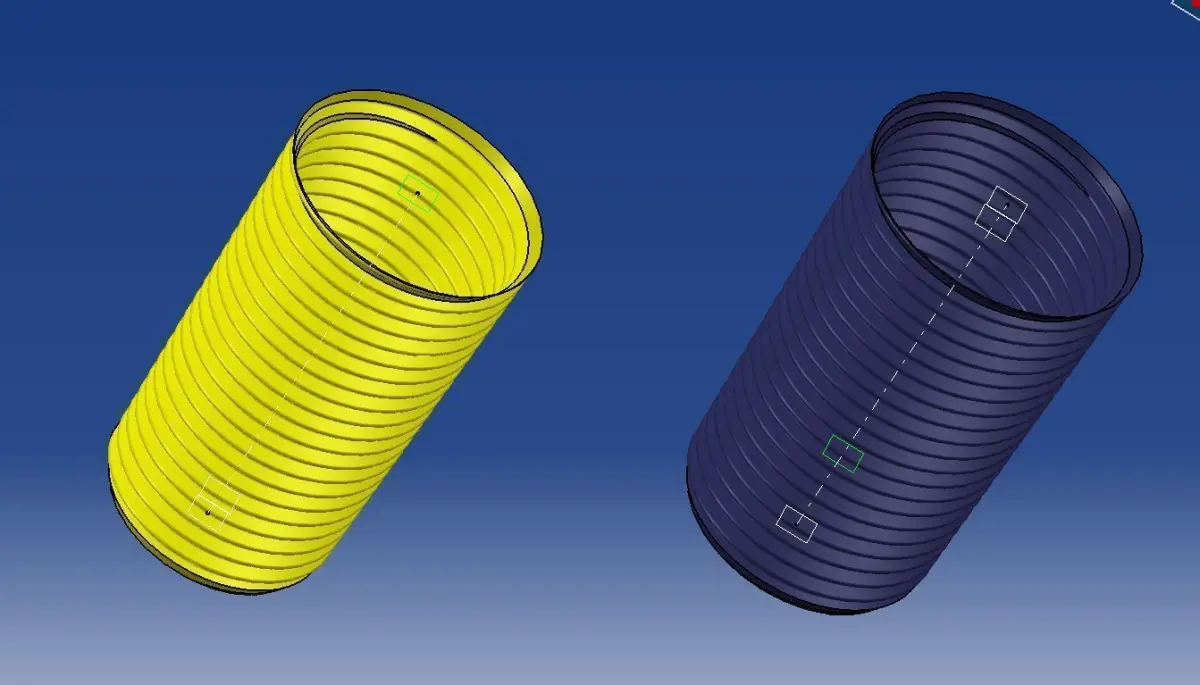

Catia V5 R24 surface model of all BSP(P)(T) threads according to ISO 228-1 & ISO 7-1.

• With parameters.

• With thread run-out.

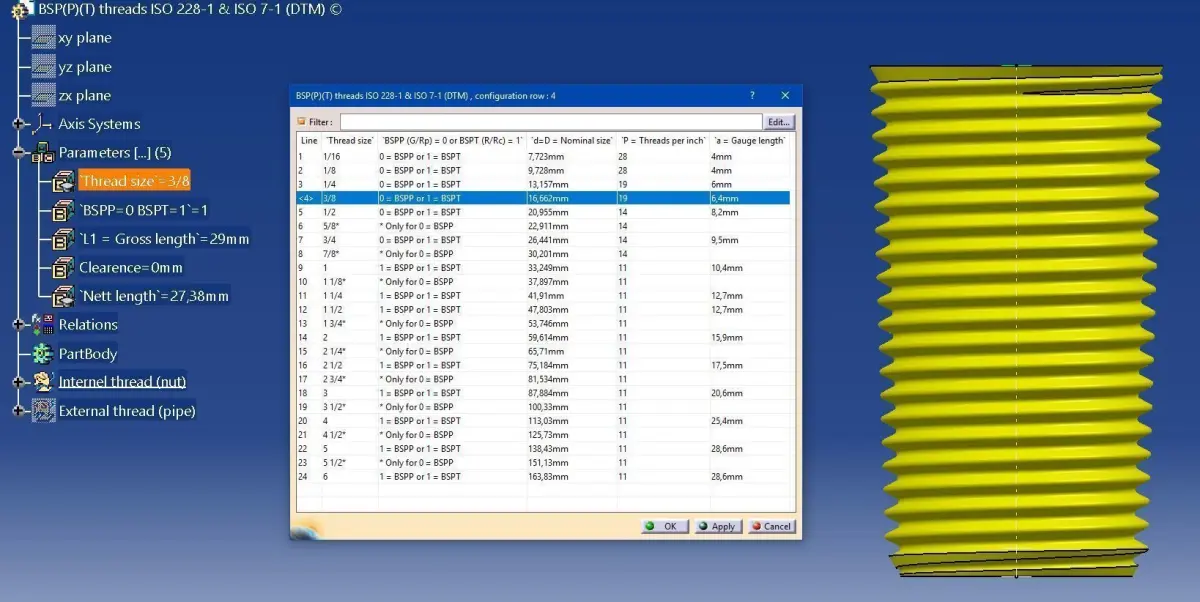

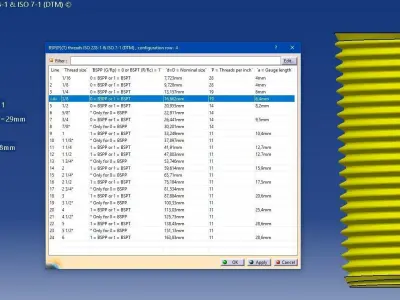

Configurable inputs in 'Design table mode' (DTM):

• d=D = Thread size

• BSPP (G/Rp) or BSPT (R/Rc)

• L1 = Gross length

• Clearence

Configurable inputs in 'Manual mode' (MM):

• BSPP (G/Rp) or BSPT (R/Rc)

• d=D = Nominal size

• P = Threads per inch

• a = Gauge length

• L1 = Gross length

• Clearence

Outputs:

• Internel thread (nut)

• External thread (pipe)

• Gauge plane (a)

• Nett length (Gross - Run-out)

A request for the desired .stl file is also possible.

Also available metric screw threads ISO 724.
