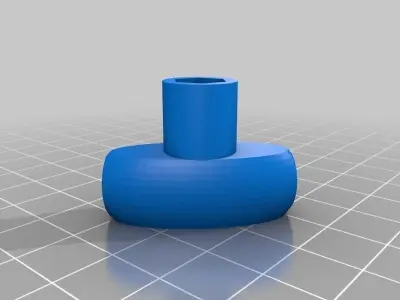

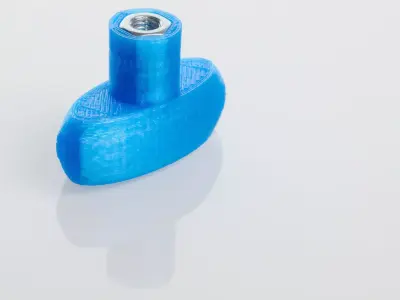

Download Butterfly nut for M5 Free 3D print model

Name: Butterfly nut for M5 Free 3D print model
Brand: makers-3dmodels
SKU: 667509
Availability: InStock

free

License: Custom No Ai

author:

makers-3dmodels

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «makers-3dmodels». CGhub does not claim copyright ownership over the content used.

Summary

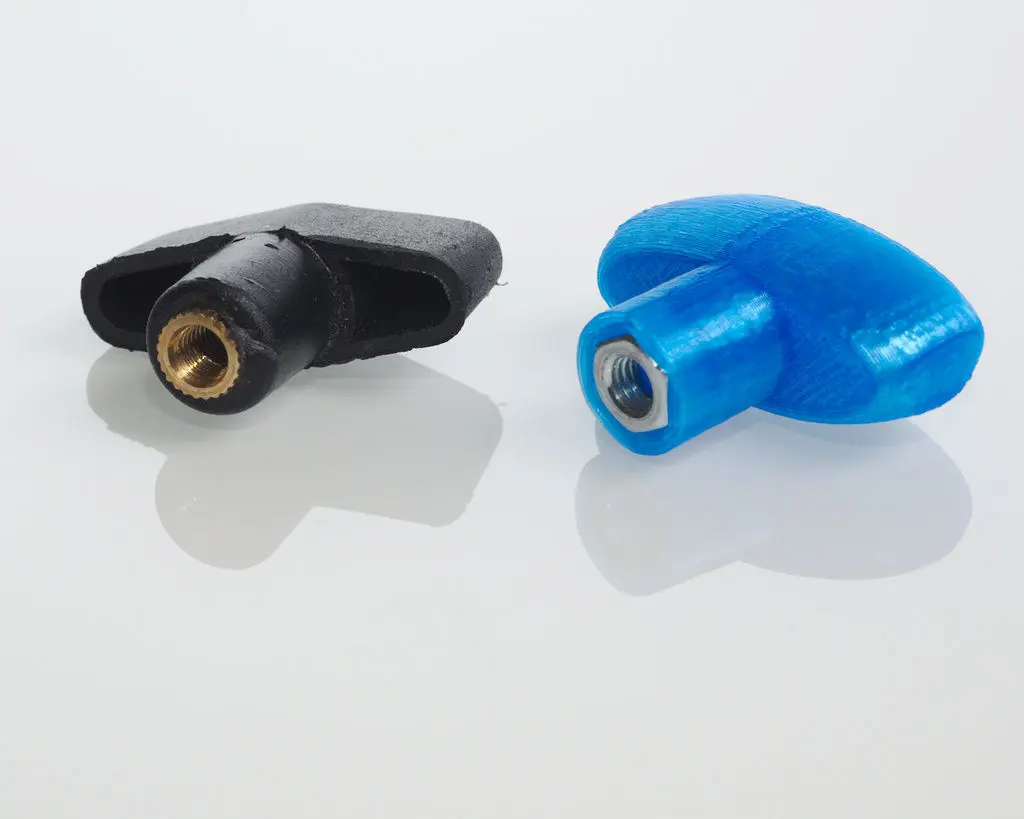

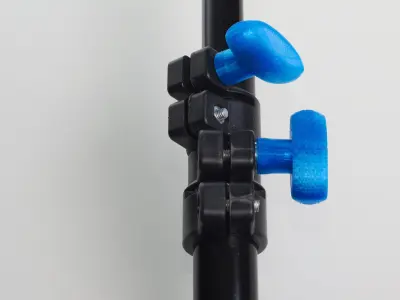

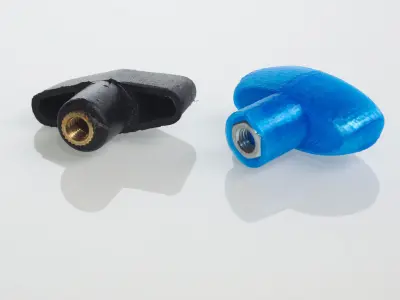

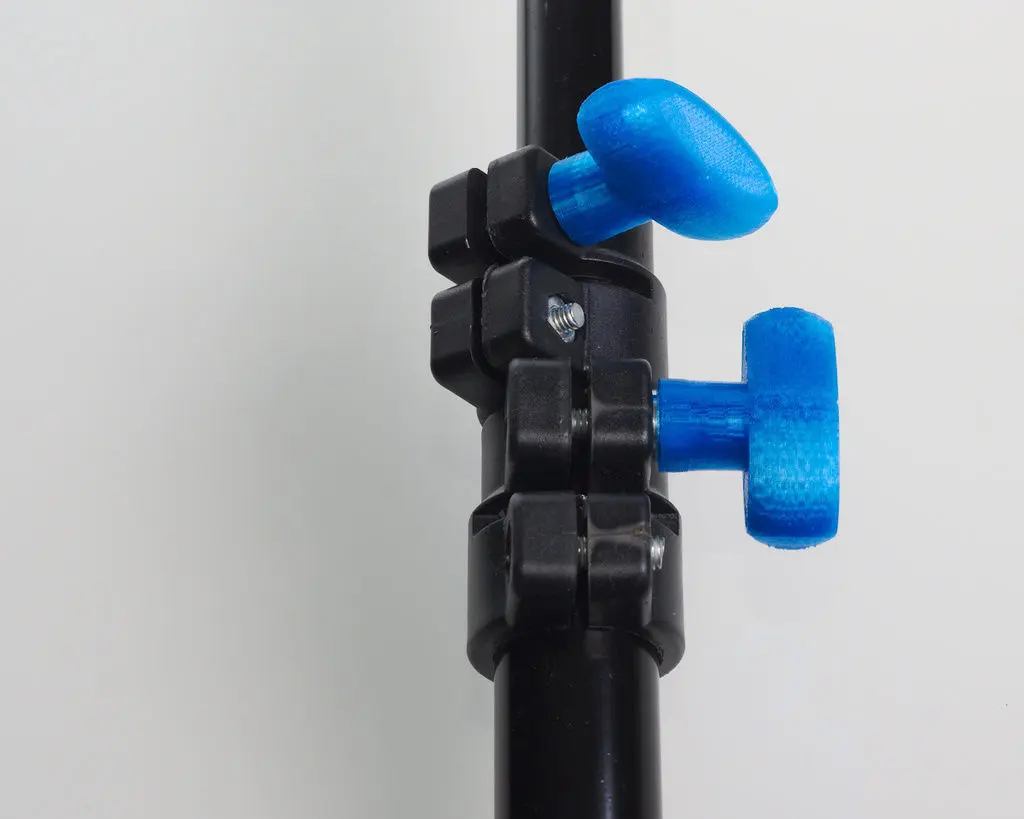

A bit similar to the thumbwheel nut I previously posted but this one was designed as a replacement for some broken parts on a cheap light stand (http://dx.com/p/603-magnalium-folding-studio-photography-light-tripod-black-max-5kg-164000).

Many parameters can be adjusted in the SCAD file in order to customize the part to different needs.

Instructions

Just print if you have a 8mm nut.

Customize and print if you need a different diameter. There are a set of variables in the SCAD file to change the dimensions.

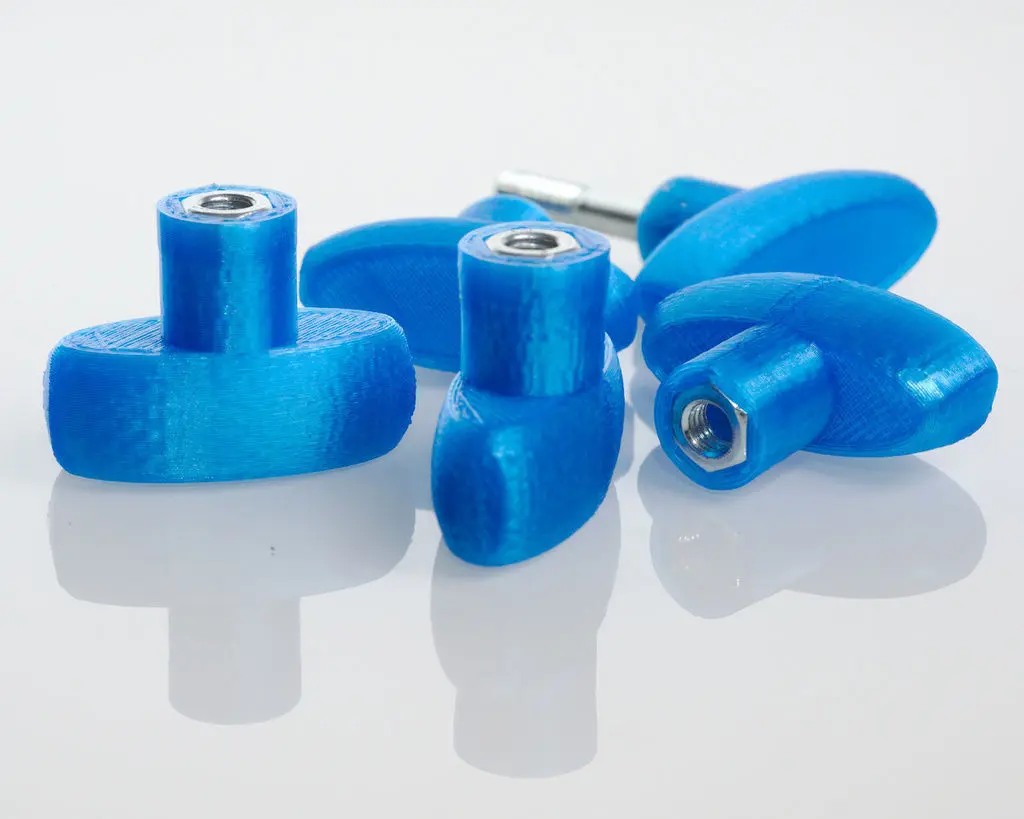

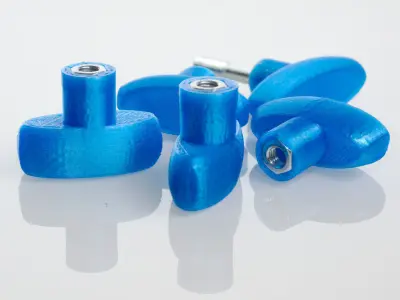

After a few tests we settled for 0.22mm layers, 3 shells and 35% infill. Printer in PLA on a Replicator 2.

The weak part is the hexagon holding the nut. If you need to tighten the nut hard, it is probably a good idea to properly glue it in place.
