Buy CAD DESIGN OF AN EXTERNAL GEAR PUMP 3D model

Name: CAD DESIGN OF AN EXTERNAL GEAR PUMP 3D model
Brand: franksolidcad
SKU: 194507
Price: 5.00 USD
Availability: InStock

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

franksolidcad

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «franksolidcad». CGhub does not claim copyright ownership over the content used.

Gear pumps are mostly used for transferring viscous fluids under high pressure by the rotation of the meshing gears.They are also more reliable than centrifugal pumps in terms of transferring viscous fluid under very high pressure. This is because gear pumps use suction by first drawing fluid into the cavity occupied by the meshing gears and with their rotation push the fluid via the exit hole.

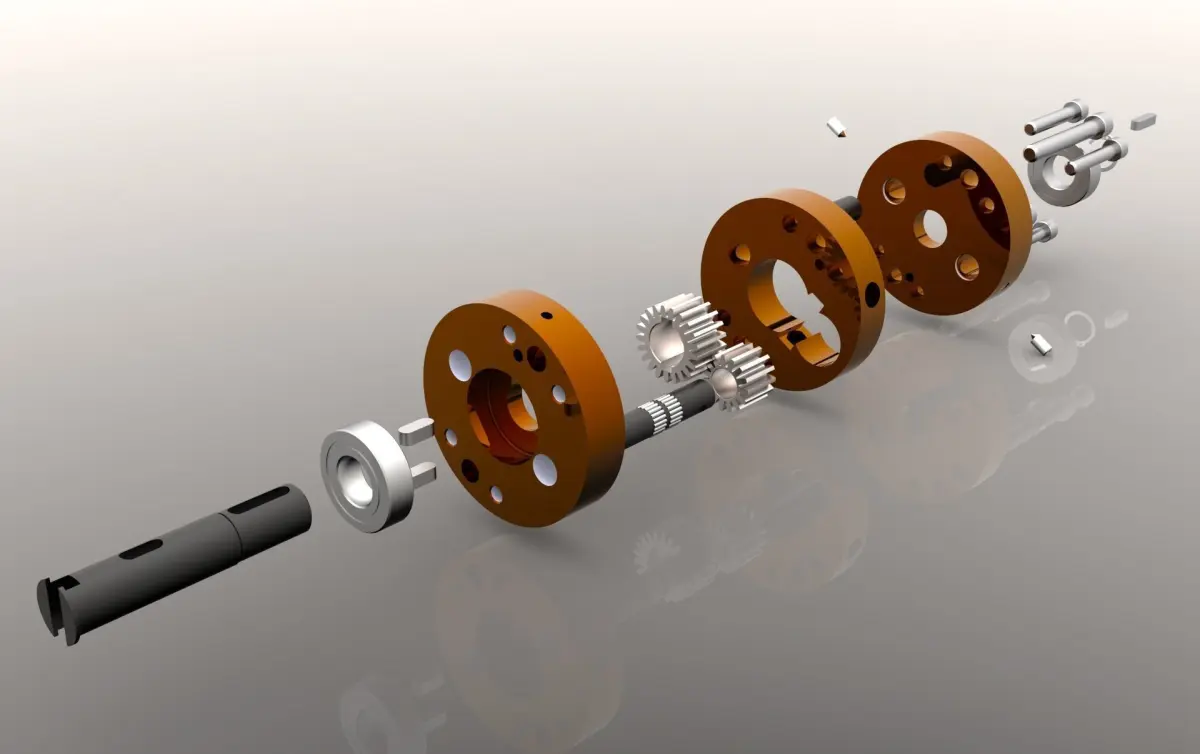

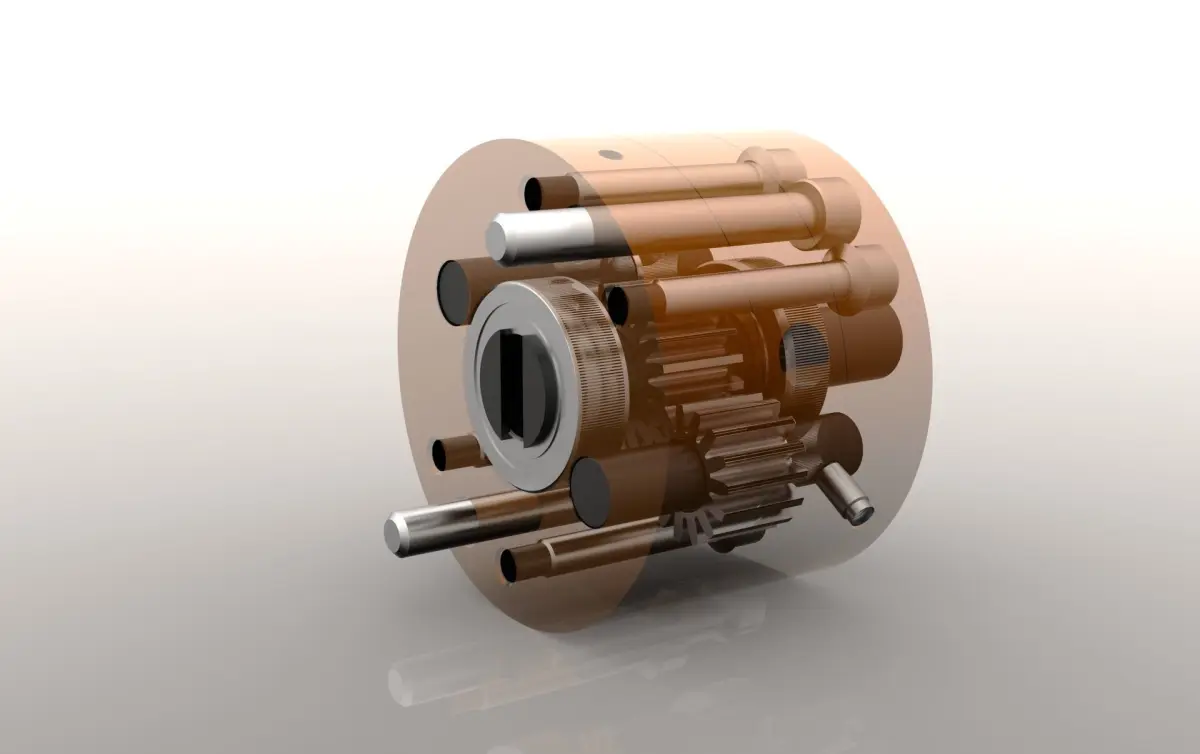

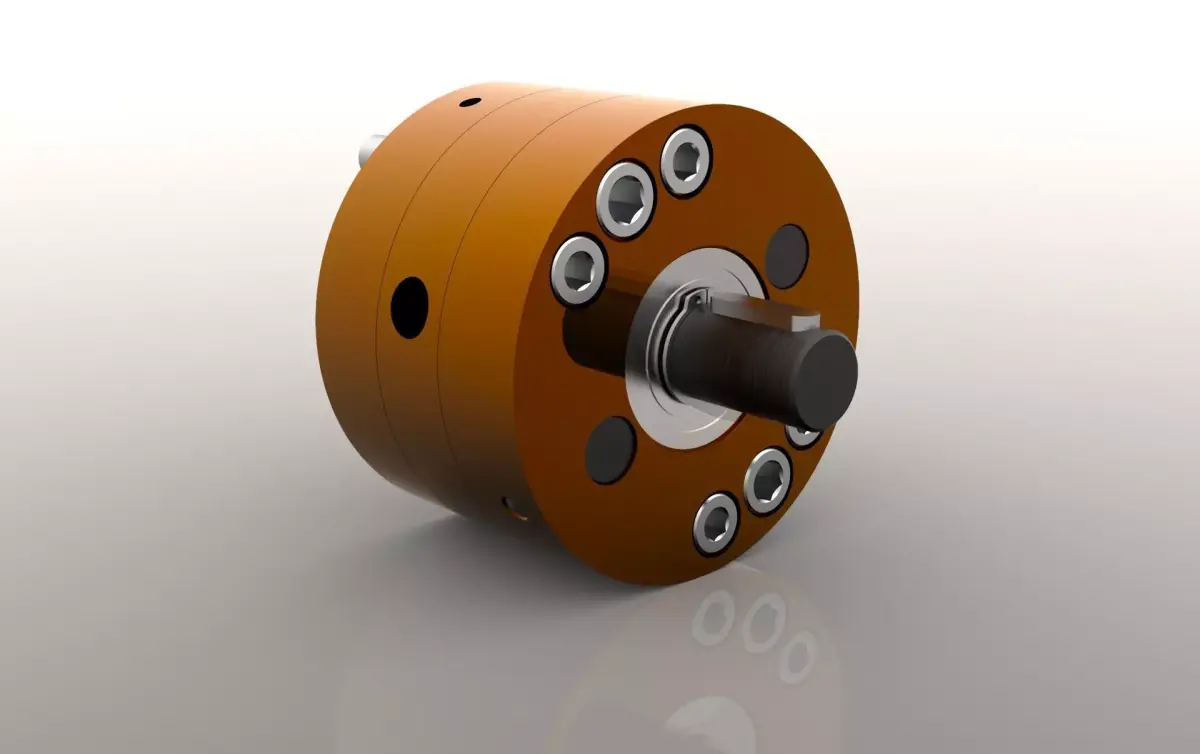

This model was designed in Solidworks with accuracy to dimensions and tolerancing standards. It also includes other CAD formats like step files and STL files to aid the production of its parts.
