High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

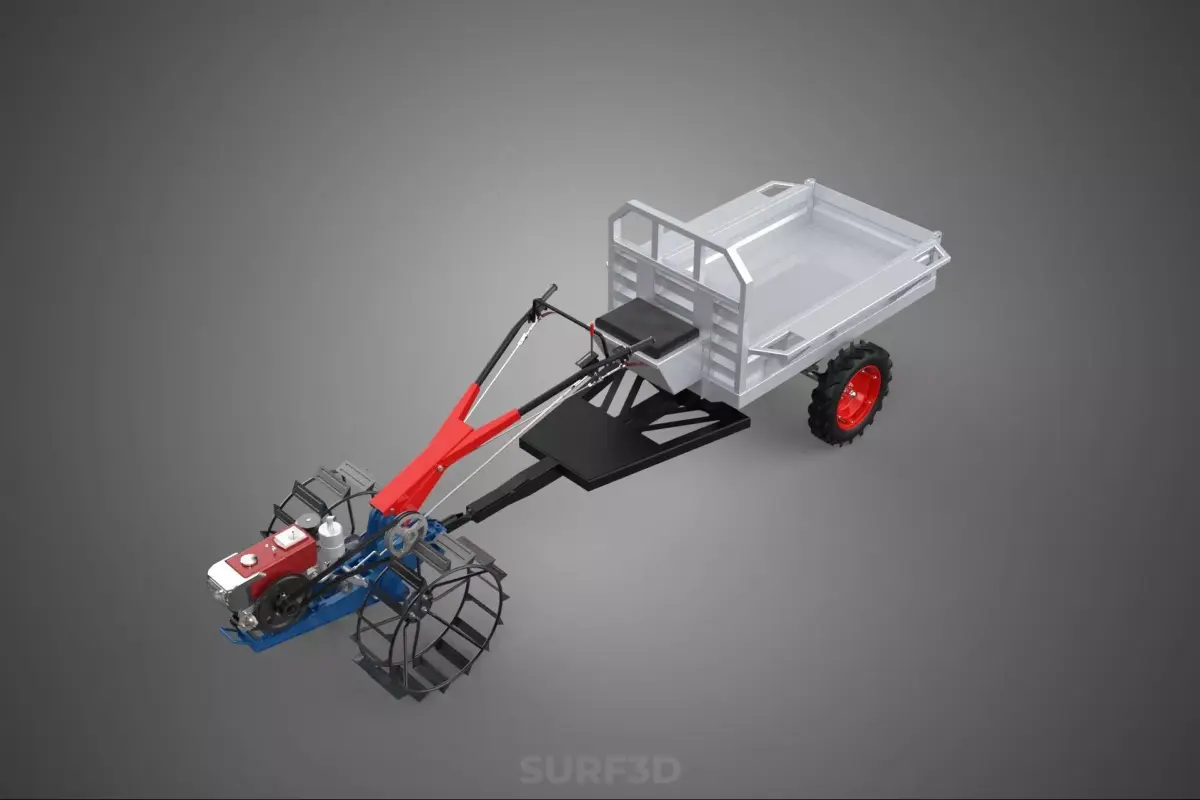

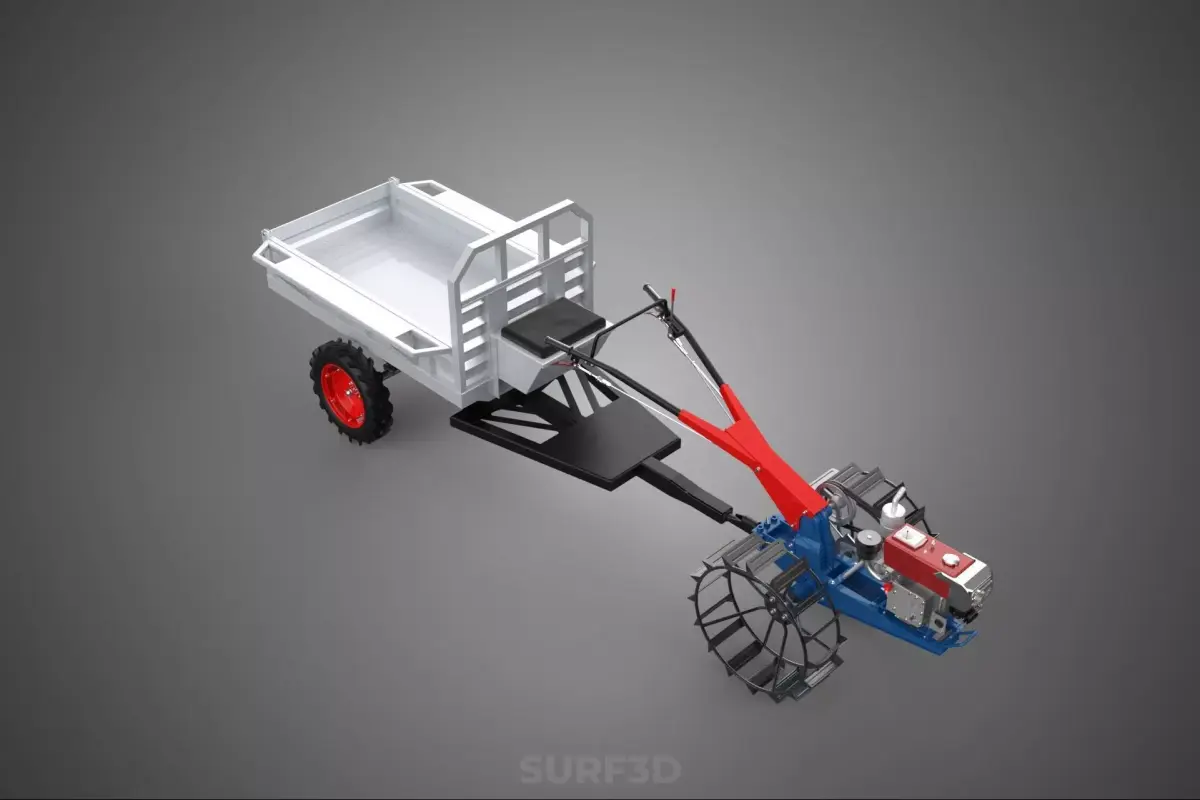

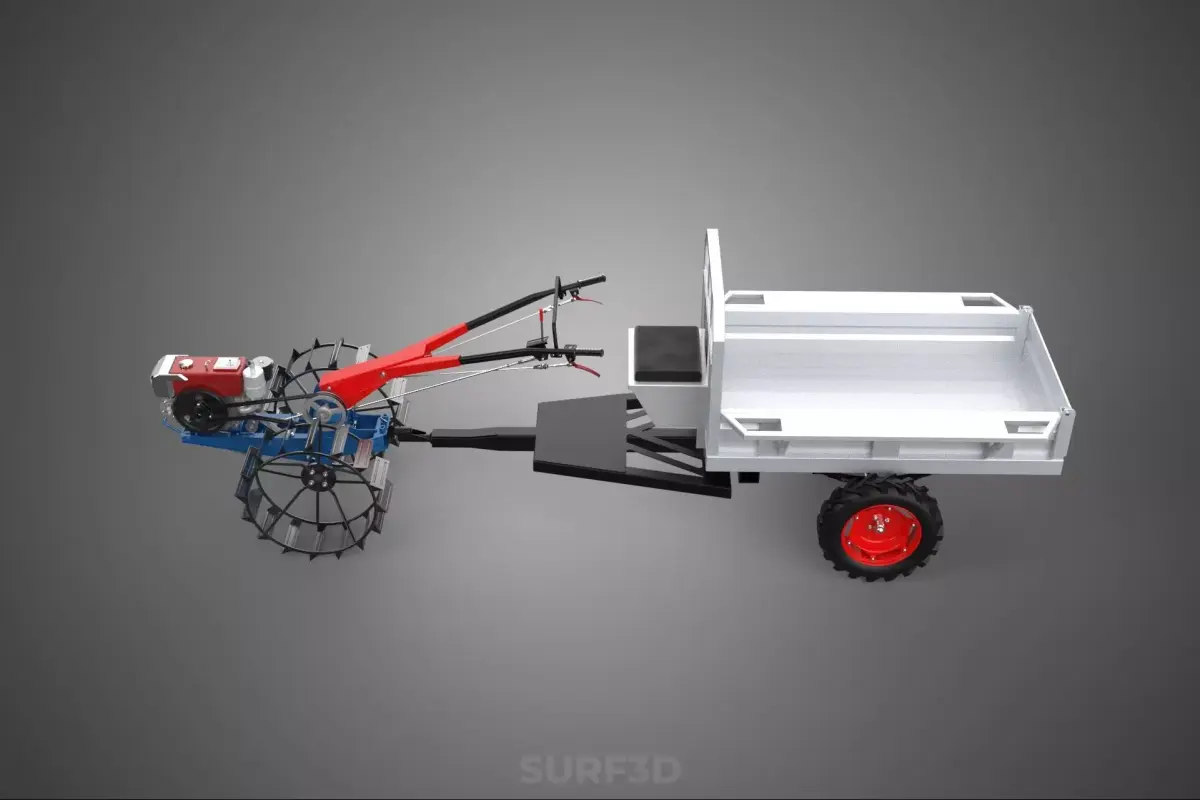

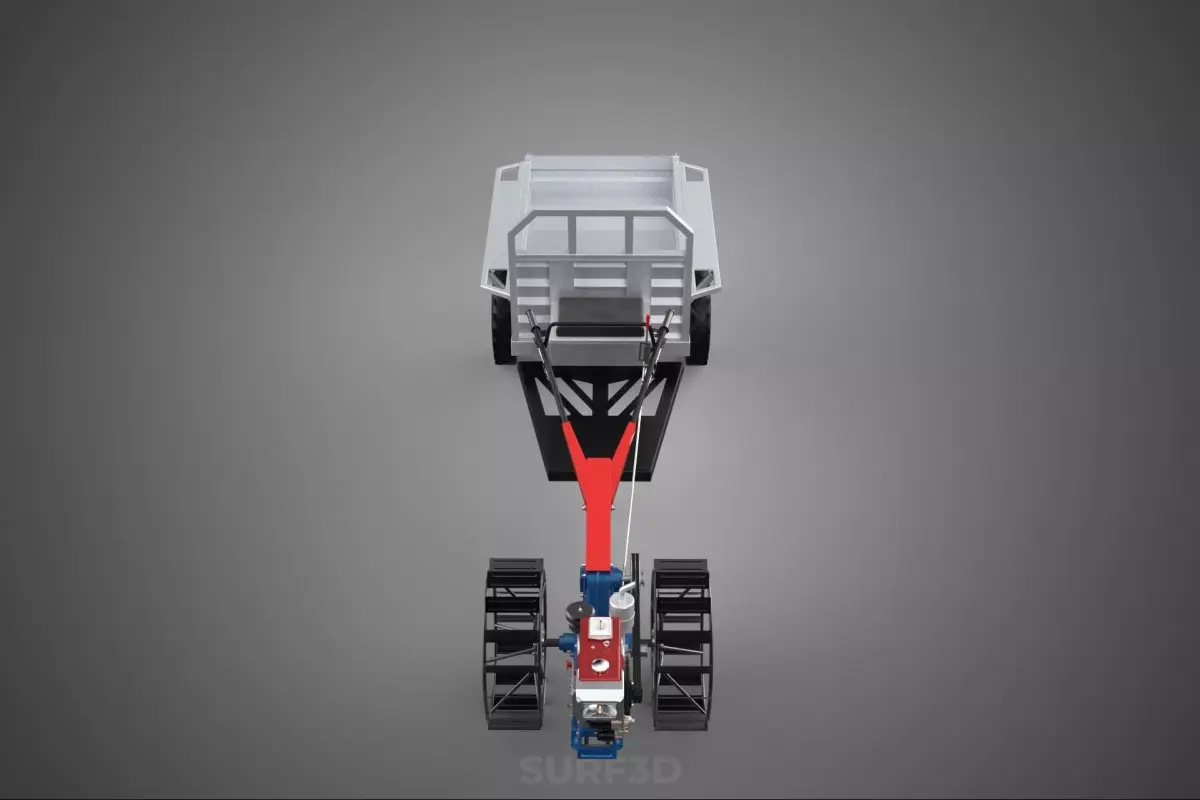

The configuration described as the Cage Wheel Tractor Vehicle Trailer Cart Cargo Car Transport Farm constitutes a highly specialized agricultural logistical system designed for operation in adverse soil conditions, most commonly saturated environments such as paddy fields, marshy ground, or heavily irrigated tracts. This mechanized assembly prioritizes high tractive efficiency and minimal soil sinkage over high road speed or large payload capacity typical of conventional trucks.
Nomenclature and System Components
This system is characterized by three primary, functionally distinct components integrated through standard drawbar coupling:
1. The Motive Unit (Tractor Vehicle):
The power source is typically a small, maneuverable agricultural tractor. Often, this is a two-wheel drive utility tractor (4WD small chassis) or, frequently in developing agricultural regions, a two-wheeled power tiller (or walking tractor). These power units are selected for their low maintenance requirements and ability to articulate effectively in tight spaces inherent to smallholder farming plots.
2. The Cage Wheel Assembly:
The defining feature is the use of non-pneumatic, open-framework metallic wheels, known variously as cage wheels, skeleton wheels, or paddle wheels. These components temporarily replace standard pneumatic tires when the vehicle is operating off-road in saturated soil.
The design relies on several engineering principles to achieve superior traction in mud:
- Reduced Ground Pressure (Nominal): While the lugs create high localized pressure, the overall design spreads the load laterally, preventing the entrapment and flotation issues associated with smooth, wide tires in hydroplastic soil.
- Shear Resistance and Propulsion: The lattice structure is fitted with numerous large, welded steel lugs or blades. These lugs penetrate the surface water layer and engage the high-density subsoil or mud base, generating high shear resistance necessary for propulsion (traction).
- Self-Cleaning: The open nature of the frame allows mud and water to pass through the structure continuously, preventing the buildup of material that would otherwise clog standard tire treads and lead to a significant loss of friction and traction.
3. The Transport Unit (Trailer/Cart/Cargo Car):
The towed element is a detachable utility trailer or cart, specifically designed for agricultural transport. These trailers are typically two-wheeled, constructed of durable steel, and frequently feature a dumping or tipping mechanism to facilitate the unloading of bulk materials. The capacity is calibrated to the output of the motive unit, balancing payload requirements against the high drag forces encountered in soft ground. This unit facilitates the movement of agricultural inputs (fertilizer, seeds, tools) to the field and the subsequent transportation of harvested products (e.g., rice paddy, root crops, sugarcane) to storage, processing facilities, or local markets.
### Functional Context and Operational Utility
The Cage Wheel Tractor Transport system operates primarily within the agricultural logistics chain, bridging the distance between the point of harvest (the field) and the main transport infrastructure (roads).
The critical utility of this configuration lies in its ability to operate during wet seasons or immediately post-irrigation when conventional vehicles would become immobilized. The system ensures that the tractor maintains enough forward momentum and load-pulling capacity to extract heavy cargo from the field environment. This efficiency minimizes the reliance on manual labor for intra-field transport, significantly reducing harvest time and associated labor costs in regions where water management is intensive.
The utilization of cage wheels is a crucial adaptation in farm mechanization, allowing the same power unit to perform various tasks: tilling (when wheels are narrow), cultivating (when wheels are narrow/medium), and heavy logistical transport (often requiring dual, wider cage wheels for maximum flotation and traction).
KEYWORDS: Agricultural Logistics, Cage Wheels, Power Tiller, Paddy Field, Wet Soil Traction, Farm Transport, Skeleton Wheel, Agricultural Machinery, Two-Wheel Tractor, Utility Trailer, Cargo Cart, Soil Compaction, Shear Resistance, Rice Cultivation, Mechanization, Lugs, Drawbar Coupling, High Mobility, Off-Road Transport, Farm Vehicle, Towed Implement, Field Extraction, Hydroplastic Soil, Smallholder Farming, Transport System, Asian Agriculture, Low Ground Pressure, Mud Propulsion, Farm Input Delivery, Harvest Haulage.
STL (Stereolithography, filesize: 46.7 MB), OBJ (OBJ, filesize: 95.7 MB), IGE (IGES, filesize: 163 MB), MAX (Autodesk 3ds Max, filesize: 207 MB), SKP (Sketchup, filesize: 85.9 MB), GLTF (glTF, filesize: 31.7 MB), 3DS (3D Studio, filesize: 29.2 MB), DWG (AutoCAD, filesize: 28.8 MB), 3DM (Rhinoceros 3D, filesize: 193 MB), SAT (3D ACIS, filesize: 98.3 MB), FBX (Autodesk FBX, filesize: 29.5 MB), STP (STEP, filesize: 100 MB), DAE (Collada, filesize: 160 MB), BLEND (Blender, filesize: 86.6 MB)
