Buy Cam Mechaninsm 3D Model Pack

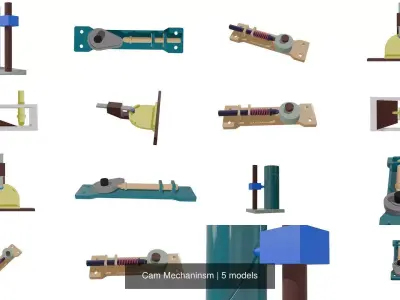

Name: Cam Mechaninsm 3D Model Pack
Brand: Atypical-Engineer
SKU: 884098
Price: 10.00 USD
Availability: InStock

$10

License: Royalty Free

author:

Atypical-Engineer

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Atypical-Engineer». CGhub does not claim copyright ownership over the content used.

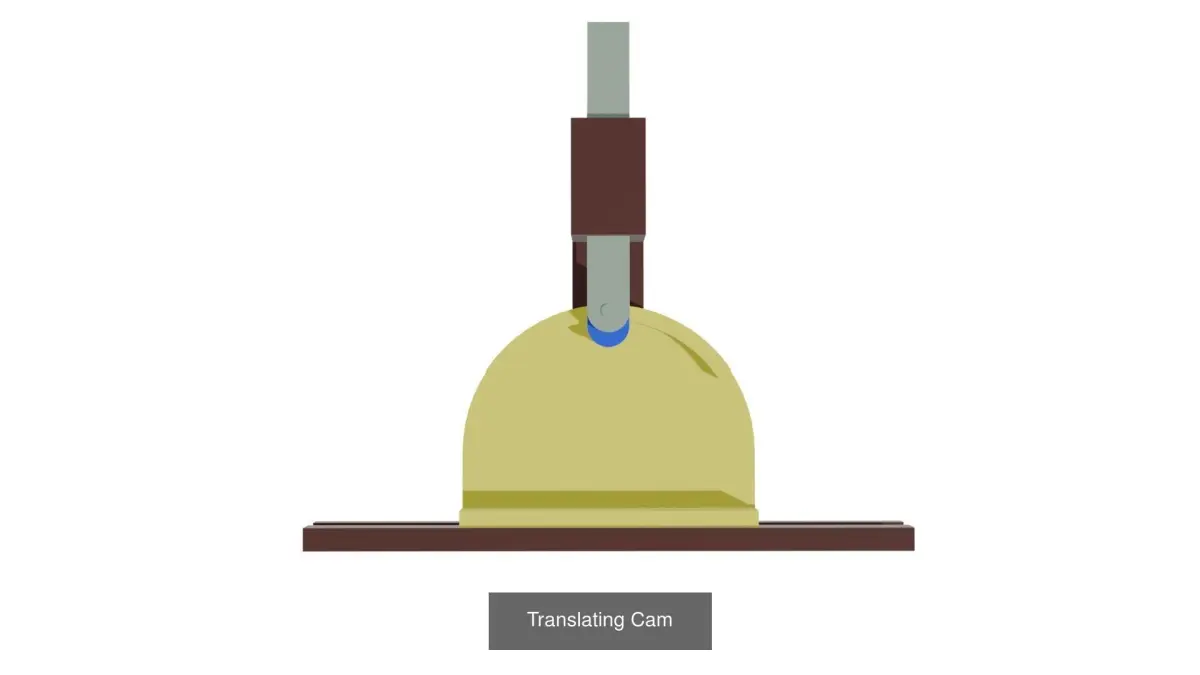

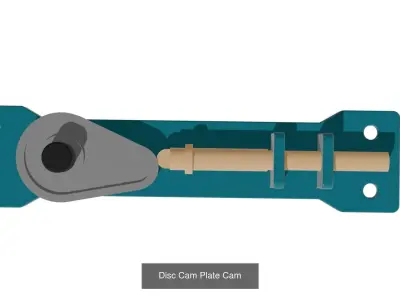

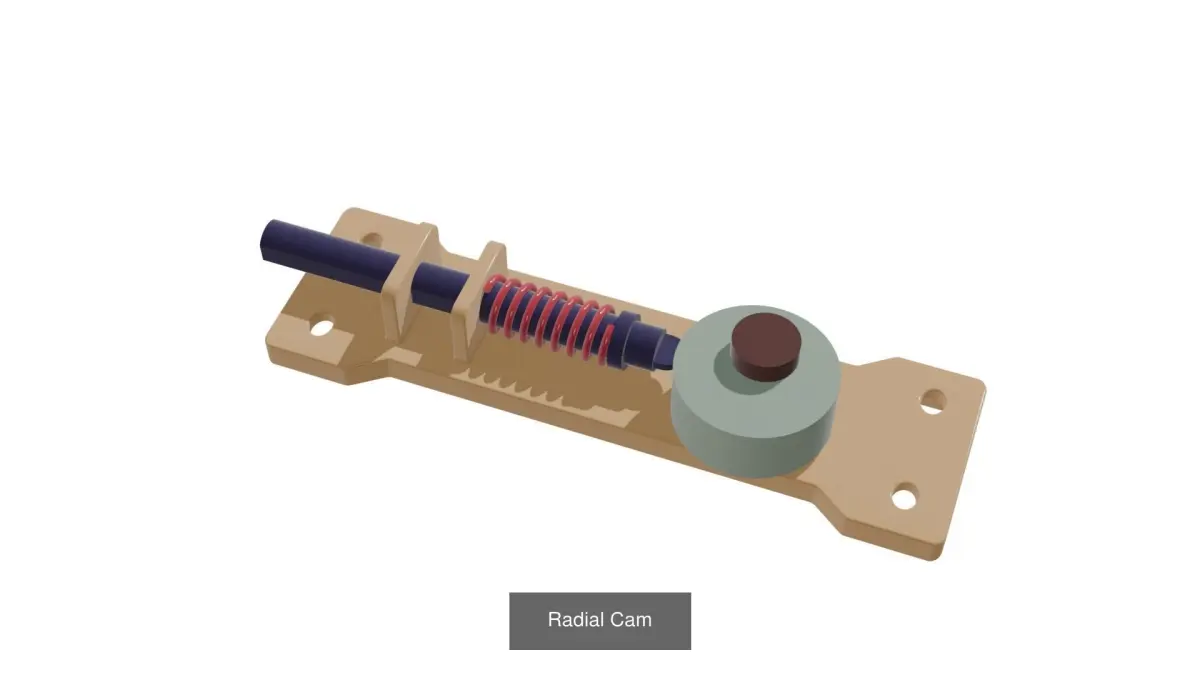

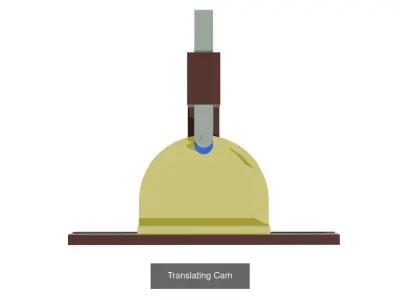

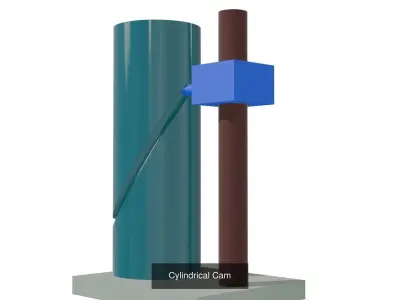

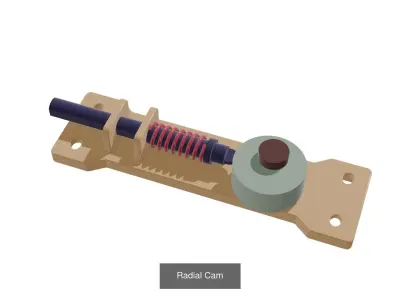

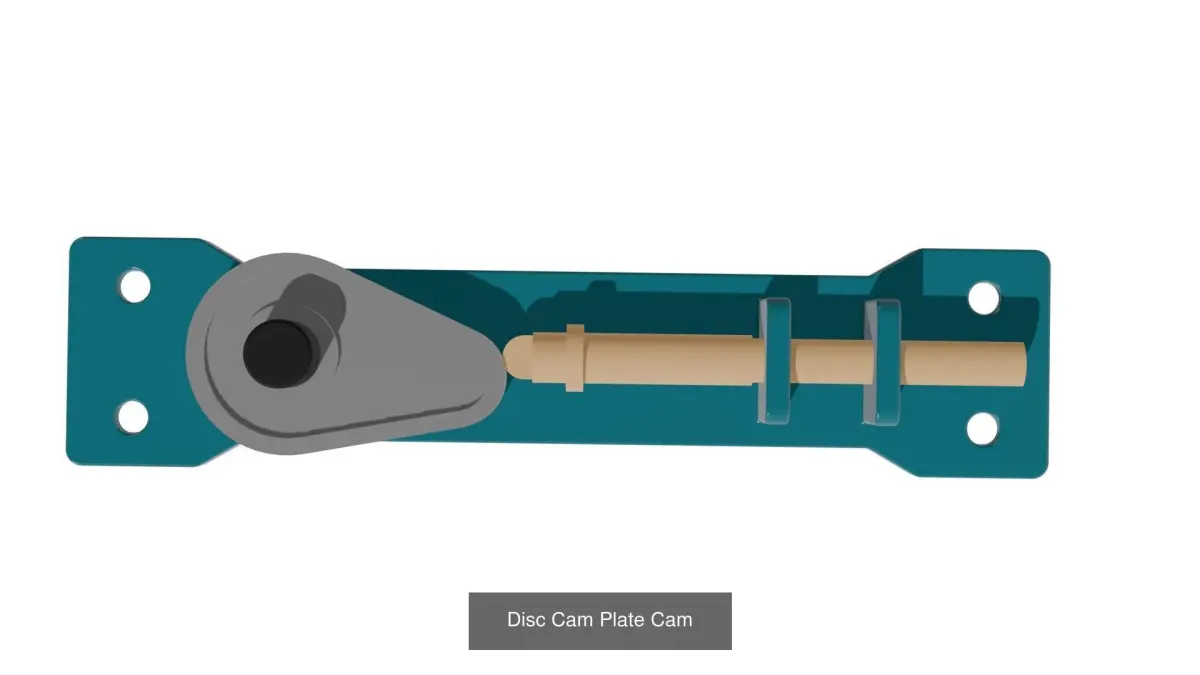

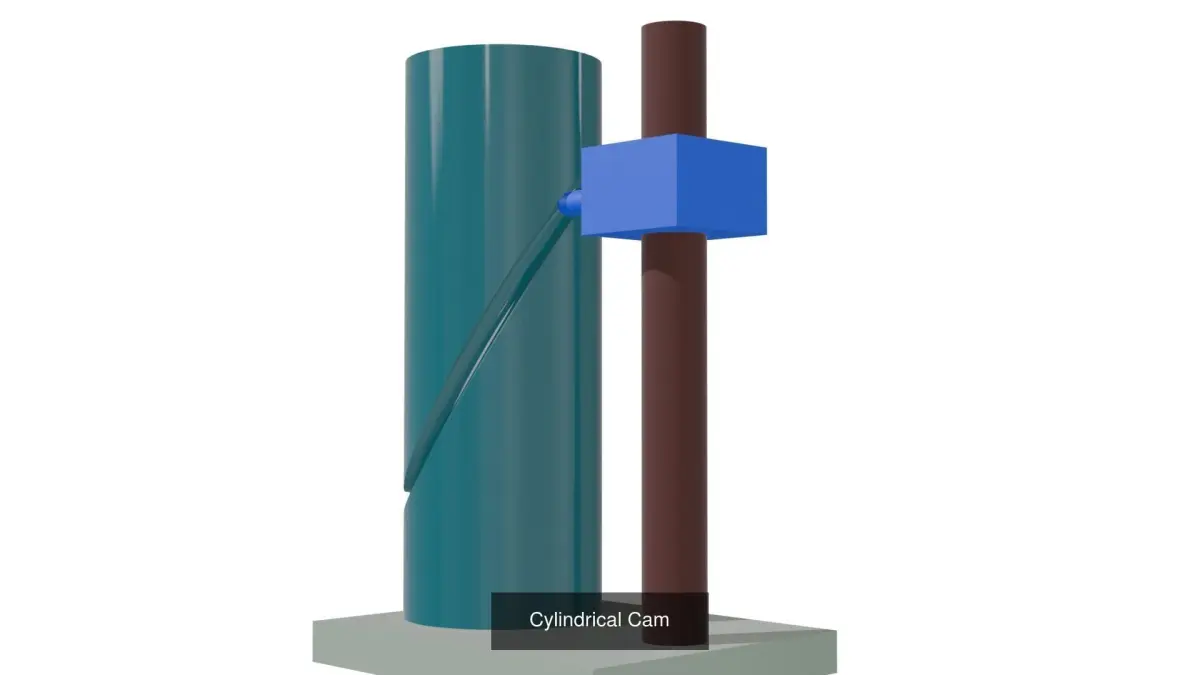

Cylindrical Cam: A cylindrical cam is a rotating cam where the follower moves along a groove or profile cut into the surface of a cylinder, often used in machines requiring linear motion.Wedge Cam: A wedge cam is a flat or inclined cam that converts its straight-line motion into linear or oscillatory motion in the follower.Radial Cam: A radial cam features a profile cut along its flat, circular surface, causing the follower to move radially outward or inward as the cam rotates.Disc Cam: A disc cam, also known as a plate cam, has a flat, disc-like shape with a profile that controls the motion of the follower in a precise pattern.Translating Cam: A translating cam moves linearly, transferring its motion to the follower through a groove or profile to produce controlled displacement.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: Unknown

Tags

Cylindrical Cam Rotary Linear Motion Machine Components Mechanical Design Profile Groove Mechanism Industrial Automation Follower Systems Part Industrial part
