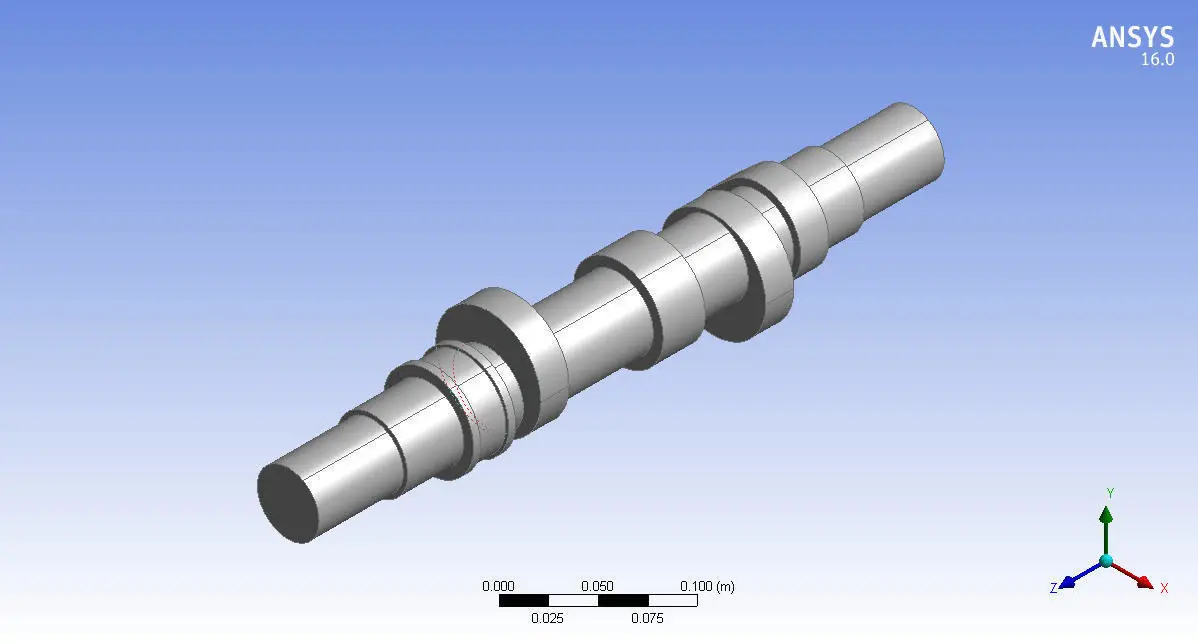

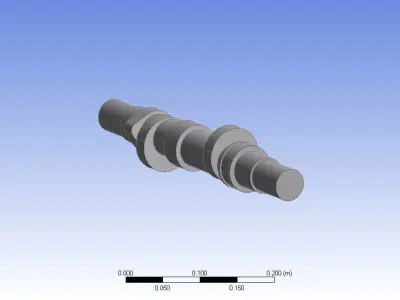

Camshaft 3d model design in Mechanical Engineering 3D print model
Camshaft 3d model design in Mechanical Engineering 3D print model
Camshaft 3d model design in Mechanical Engineering 3D print model

Publication date: 2024-07-13

Buy Camshaft 3d model design in Mechanical Engineering 3D print model

$4

License: Royalty Free

author:

softappsun

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «softappsun». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $4 Add to Wishlist
  • Description
  • Formats

camshaft involves several key terms and components that describe its design and function. Here are the main elements:

Cam Lobes: The raised portions on the camshaft that push against followers to open and close engine valves.

Base Circle: The smallest diameter of the cam lobe, which serves as the reference point for measuring the lift.

Lift: The maximum height the cam lobe reaches from the base circle to the peak of the lobe, determining how far the valve opens.

Duration: The period during which the valve remains open, typically measured in degrees of crankshaft rotation.

Lobe Center Angle (LCA): The angle between the centerlines of two adjacent cam lobes, influencing valve timing and overlap.

Ramp: The gradual incline or decline of the cam lobe that allows smooth movement of the follower.

Follower: The component that rides on the cam lobe, translating its motion into valve movement.

Camshaft Gear: Connects the camshaft to the crankshaft, ensuring synchronization of valve timing with the engine cycle.

Timing Belt/Chain: A belt or chain that drives the camshaft from the crankshaft, maintaining proper timing between the two.

Material: Camshafts are often made from steel or cast iron for durability and strength.

STP (STEP, filesize: 54.4 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown

Tags

Camshaft Part Mechanical Concept Heavy Solidworks Engineering Editable Cad Science
