Cantilever multi-axis manipulator 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

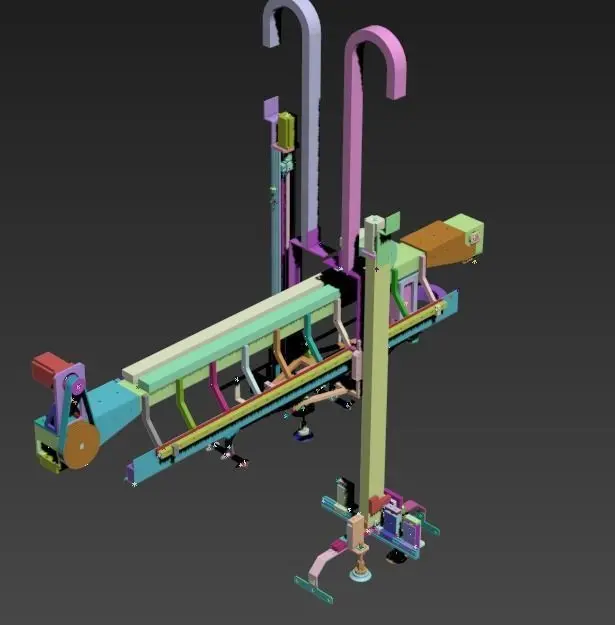

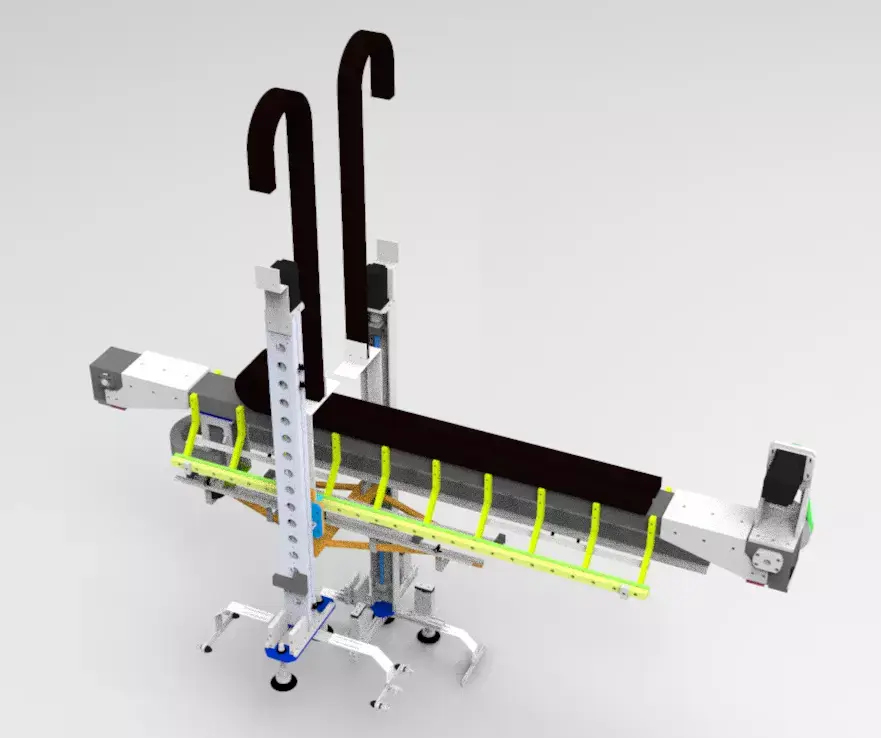

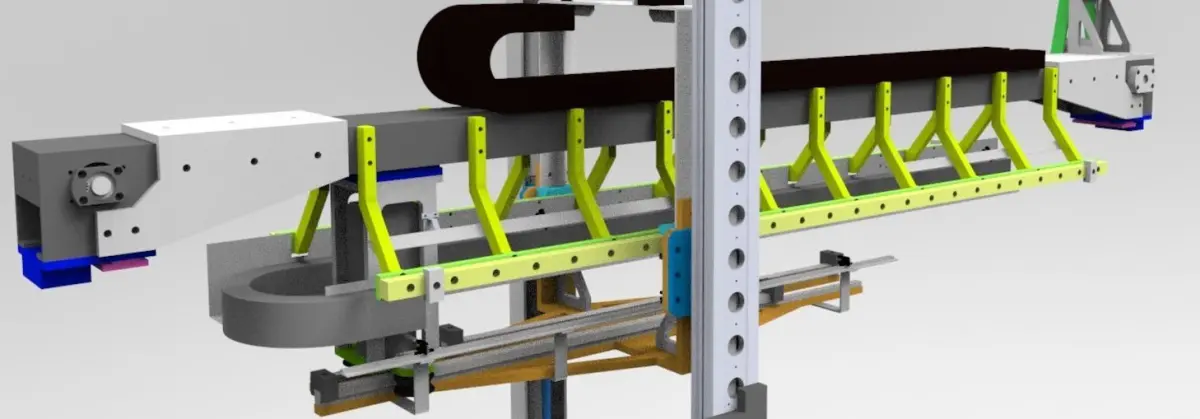

Cantilever multi-axis manipulator, the device is connected through the dragon skeleton body mechanism, including the screw rod horizontal movement mechanism, through the synchronous belt transmission can achieve large displacement horizontal movement, through the rack and pinion mechanism, to achieve two-way movement module up and down module to achieve up and down movement function, the overall combination of a group of feeding manipulator mechanism includes

Cantilever keel mechanism
Screw rod transverse movement mechanism
Horizontal movement mechanism of synchronous belt
Gear rack movement module

Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax

- and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.If you have any questions about the details and design of the model, you can email me at any time, and I will give you all the answers as soon as possible.This is especially true after the purchase.

Designed with SolidWorks 2017；vray with keyshot

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 385715
Vertices: 385358
Plugins used

Tags

Machine Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Robot Cantilever Screw Synchronous Belt Gears Manipulator Industrial machine Industrial part Industrial factory Industrial robot
