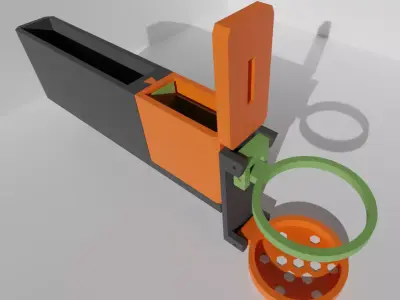

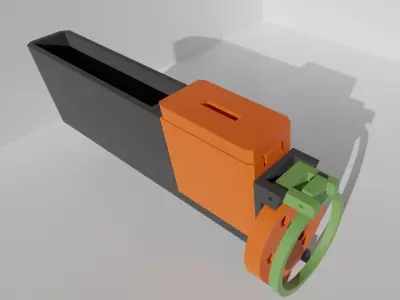

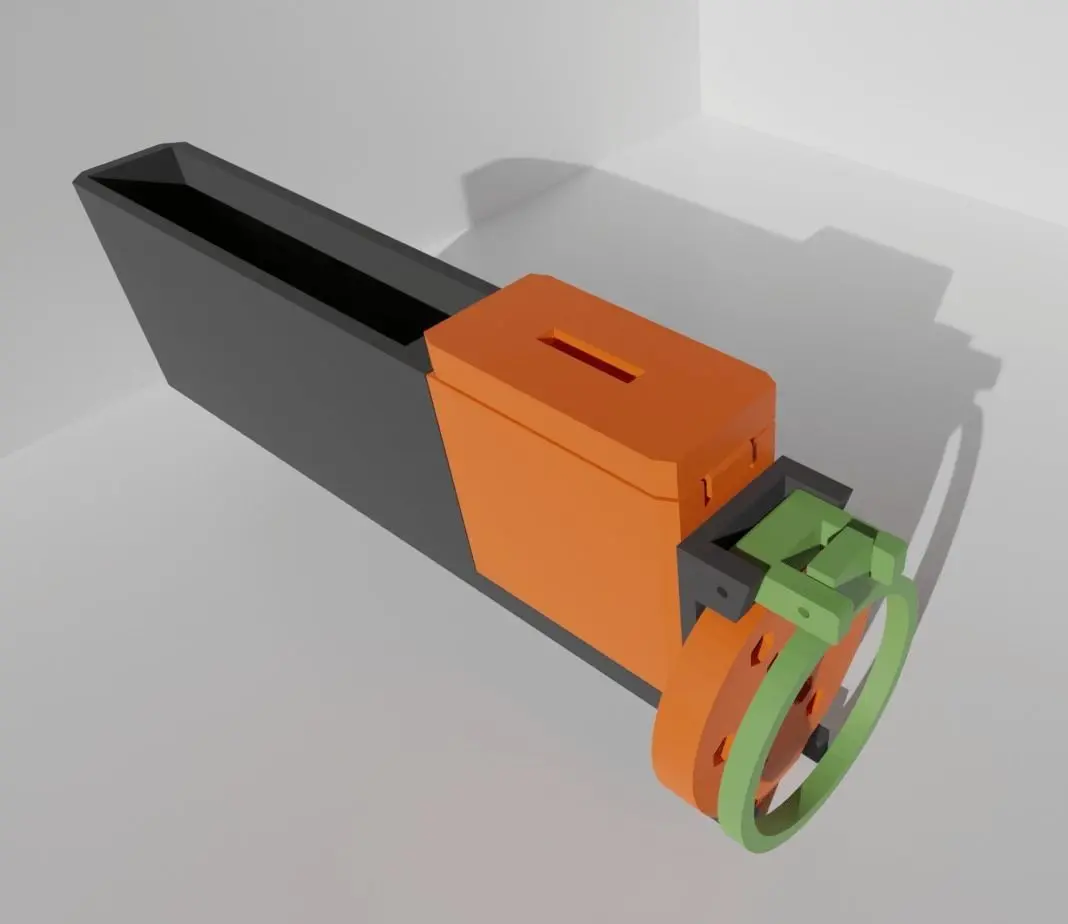

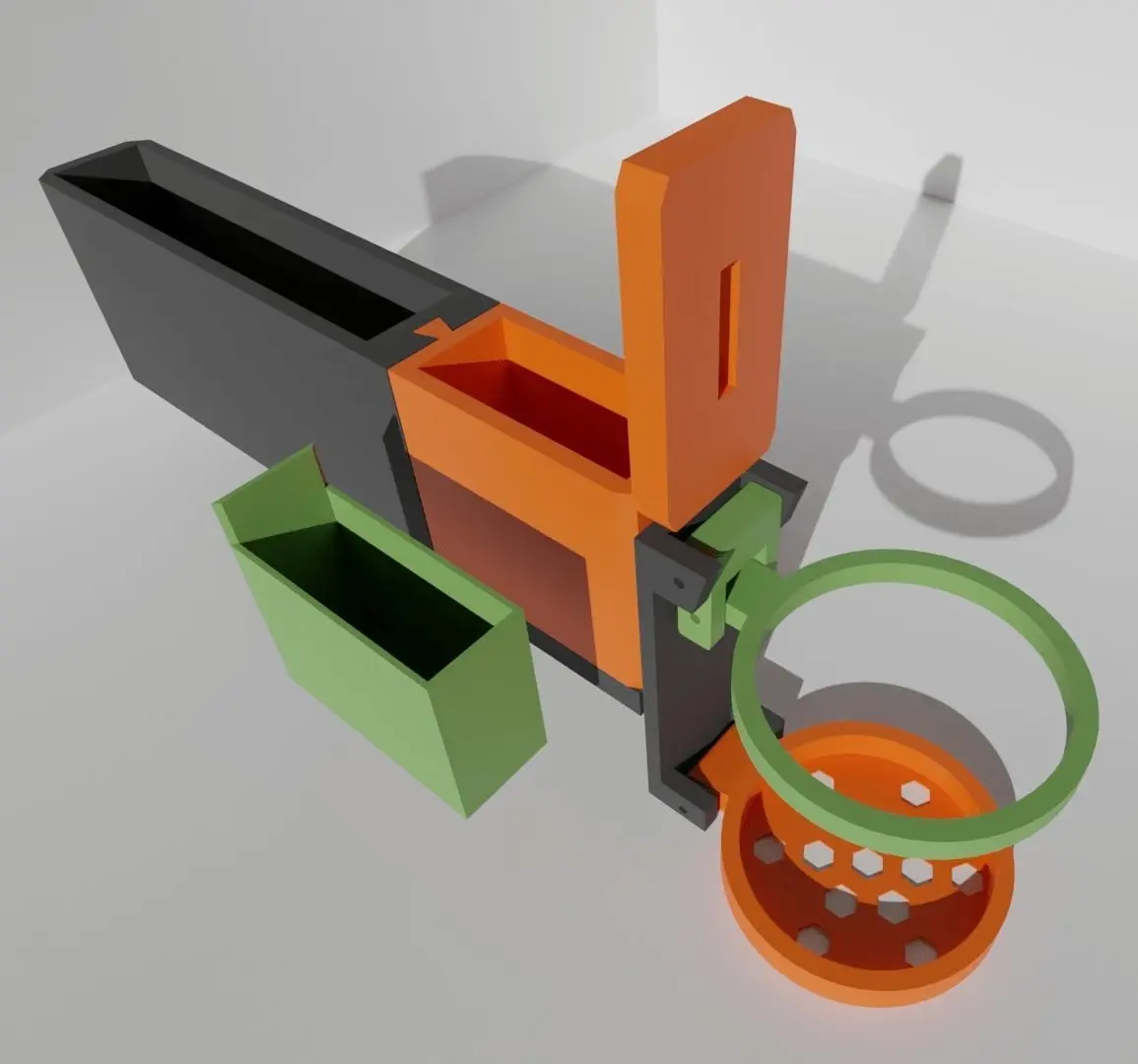

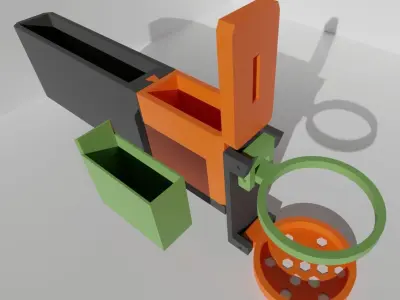

Car Coinbox and Foldable Cup Holder 3D print model

$60

License: Custom

author:

thunderfury

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «thunderfury». CGhub does not claim copyright ownership over the content used.

Notes for before print;

Cup holder can be changed by https://aliexpress.com/item/1005002006729754.html

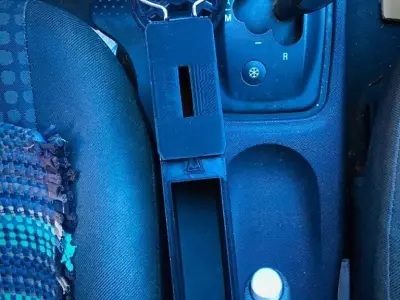

I dont use bot1.stl, and bot2.stl files because it takes 14hrs for printing. These files requires for box footer. I made it from wood and use paint with black color because it stays under the seat. I added these files if you dont want to use wood or other options etc..
You can use glue for body to footer part, coin box no needs.
I used simple fridge magnets for coin box cap, its cheap and can be found anywhere, can be cut with scissors.
Coin box has self hinge and needs support.
Cup holder screw holes 3mm you can use M3 or hardened metal wire (I dont want to use self hinge because of the fragility. Im used 3mm copper wire)
I recommended ABS or PETG filament. In hot climates, there is a risk of the PLA being warped inside the vehicle.
As an alternative to the coinbox, 4 ports USB can be used. The file is attached. https://aliexpress.com/item/32788040895.html (Also can be used non-circuit female usb port to manually connections)
I'm used 10% infill for body and 15% for coin box + 20% cup holder (4 Wall thickness)
