- Basic Product Information

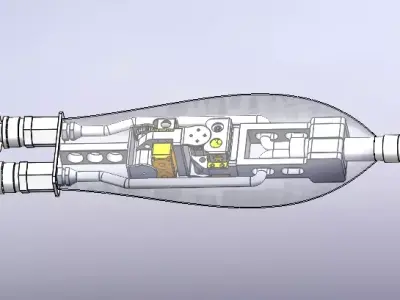

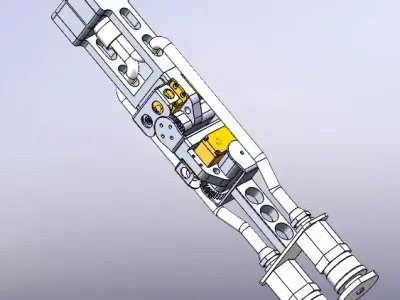

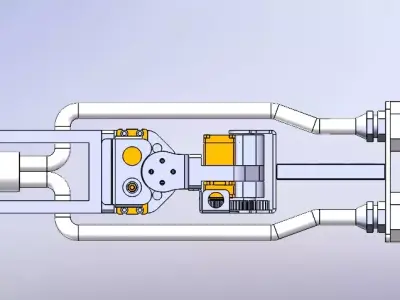

• Product Name: Cardan Swing Cleaning Head Mechanism
• Transmission Structure: Adopts pure mechanical gear transmission for stable and reliable operation
• Movement Mode: Supports dual-axis linkage swing (left-right & up-down) to realize real universal swing
- Core Functions & Problems Solved
• Enlarges the cleaning coverage area to complete a larger area of cleaning in one positioning
• No need to frequently move or adjust the drone position, greatly improving cleaning efficiency
• Effectively solves the problems of missing cleaning and blind areas easily caused by traditional unidirectional swing cleaning heads
• Swing left and right to supplementary clean the areas not covered on both sides
• Swing up and down to supplementary clean the insufficient height range
• Reduces incomplete and uneven cleaning, improving overall cleaning quality
- Structural Design & Adaptability
• Overall lightweight structure optimized for drone mounting without excessive load
• Equipped with a special external protective shell to effectively protect internal transmission parts
• Reduces component wear, simplifies later maintenance and extends service life
• Equipped with a waterproof motor, suitable for complex outdoor humid and water-spraying working environments
- Spraying Medium Functions
• The cleaning head nozzle supports high-pressure clean water spraying for routine washing
• Also supports foam spraying for pre-soaking of stubborn stains
• Dual-medium switching provides stronger cleaning effect and wider application scenarios
SLDPRT (SolidWorks, filesize: 7.94 MB), STP (STEP, filesize: 8.03 MB), IGE (IGES, filesize: 15.2 MB), SAT (3D ACIS, filesize: 13.9 MB), X_T (Parasolid, filesize: 8.35 MB)
