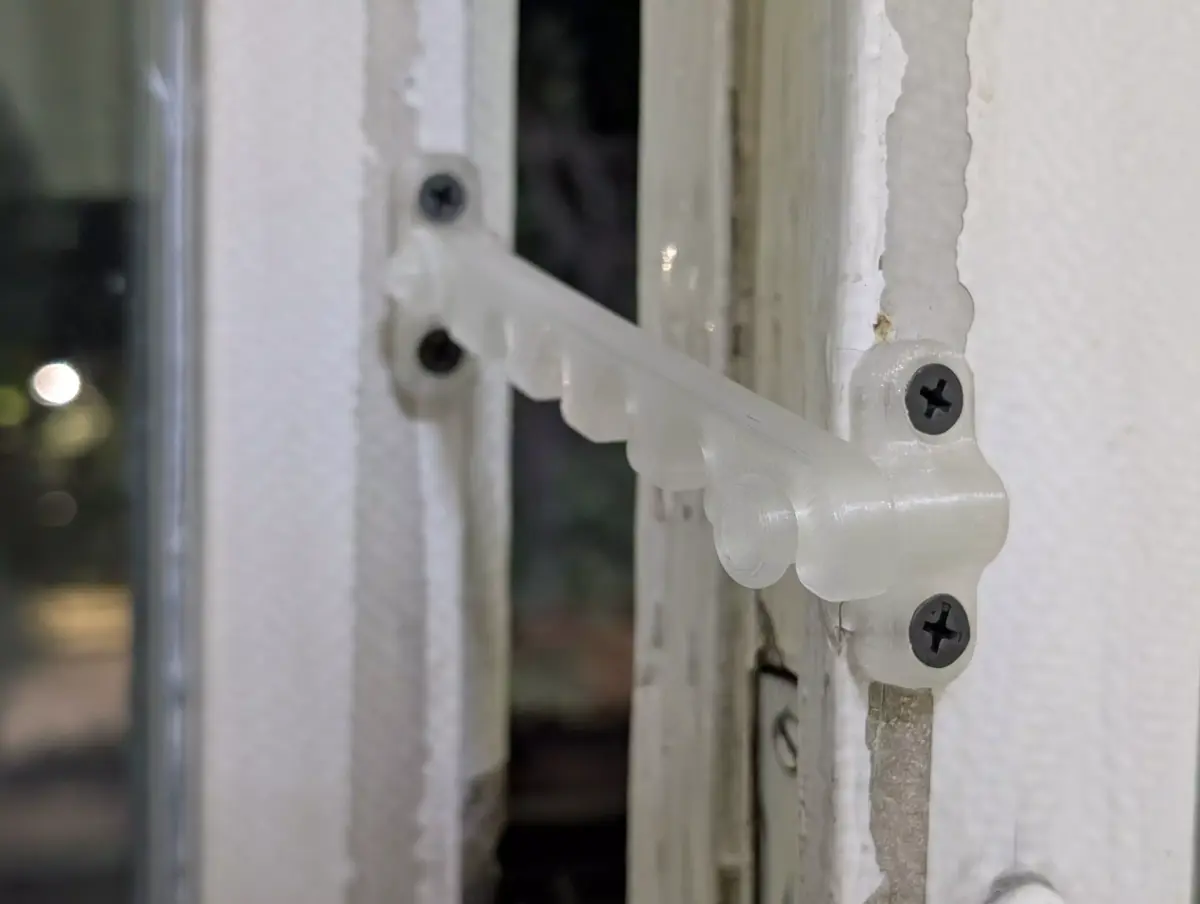

A 3D-printable casement window stay (restrictor) that holds the window in a slightly open position for ventilation while preventing full opening.

The design requires no additional bolts, pins, or fasteners for assembly — all parts snap together. Print the components, assemble by snapping, and mount to the window frame using standard screws.

Two hook variants are included to match different frame configurations.

Lever + Mounting Plate combined length: 137 mm.

Specifications

Total Length (Lever + Plate): 137 mm
Function: Holds casement window in a fixed partially open position

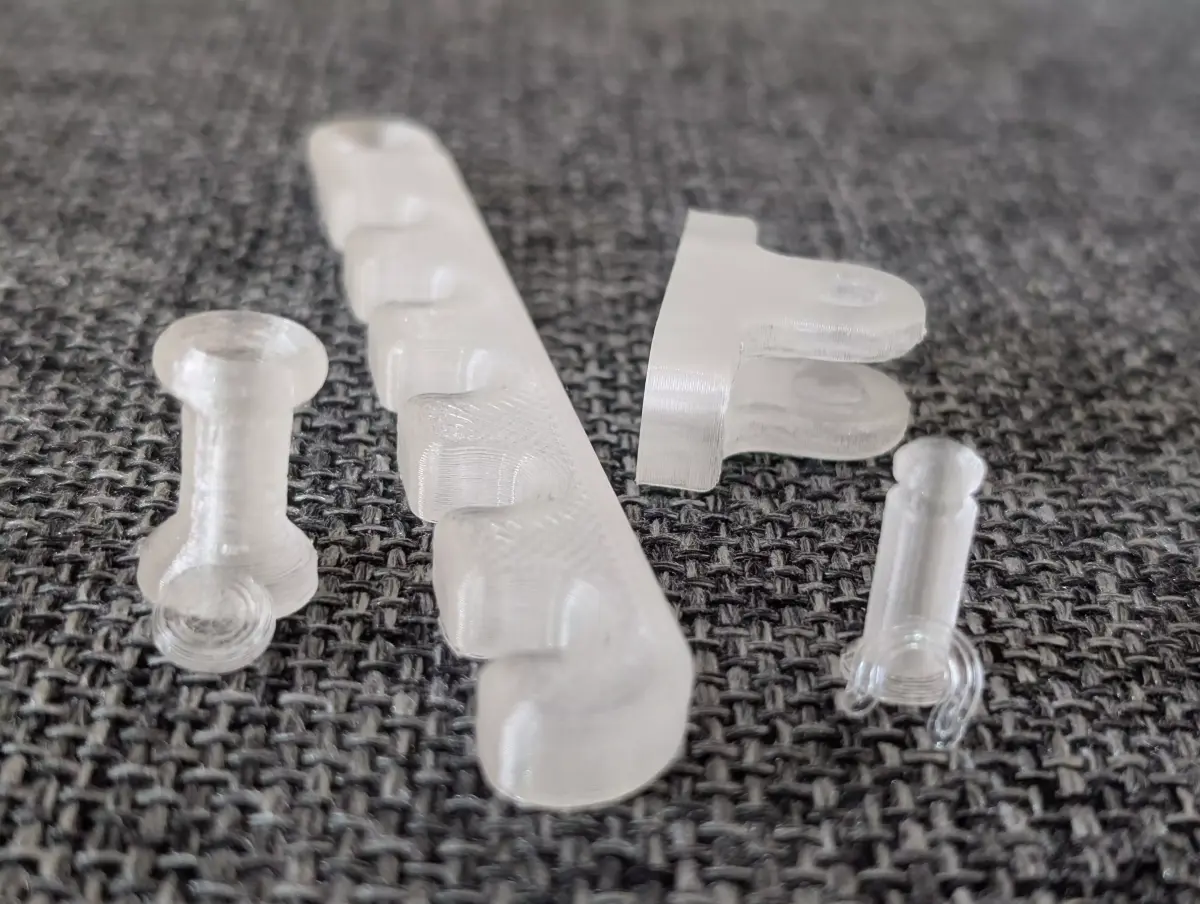

Components: Lever, mounting plate, two hook options
Assembly: Snap-fit, no extra hardware needed
Mounting: Standard screws (not included)

Material Recommendations

PETG: Recommended for durability and weather resistance outdoors.
ASA: Preferred for direct sun exposure (high UV stability, low warping).
Infill: 40%+ recommended; 4+ perimeters for strength.

Notes & Assembly

Snap Assembly: Parts click together without tools or pins.
Installation: Mount plate to frame, hook to window; adjust position as needed.
Support-free: Designed for FDM printing with minimal or no supports.
Hardware: Use appropriate countersunk screws for your frame material.
