Cement Plant-Cyclone Preheater-ILC-S Inlined Calciner-Separate Free 3D model

Publication date: 2014-04-07

Cement Plant-Cyclone Preheater-ILC-S Inlined Calciner-Separate Free 3D model

free

License: Editorial No Ai License

author:

harvey-fonseca

Description

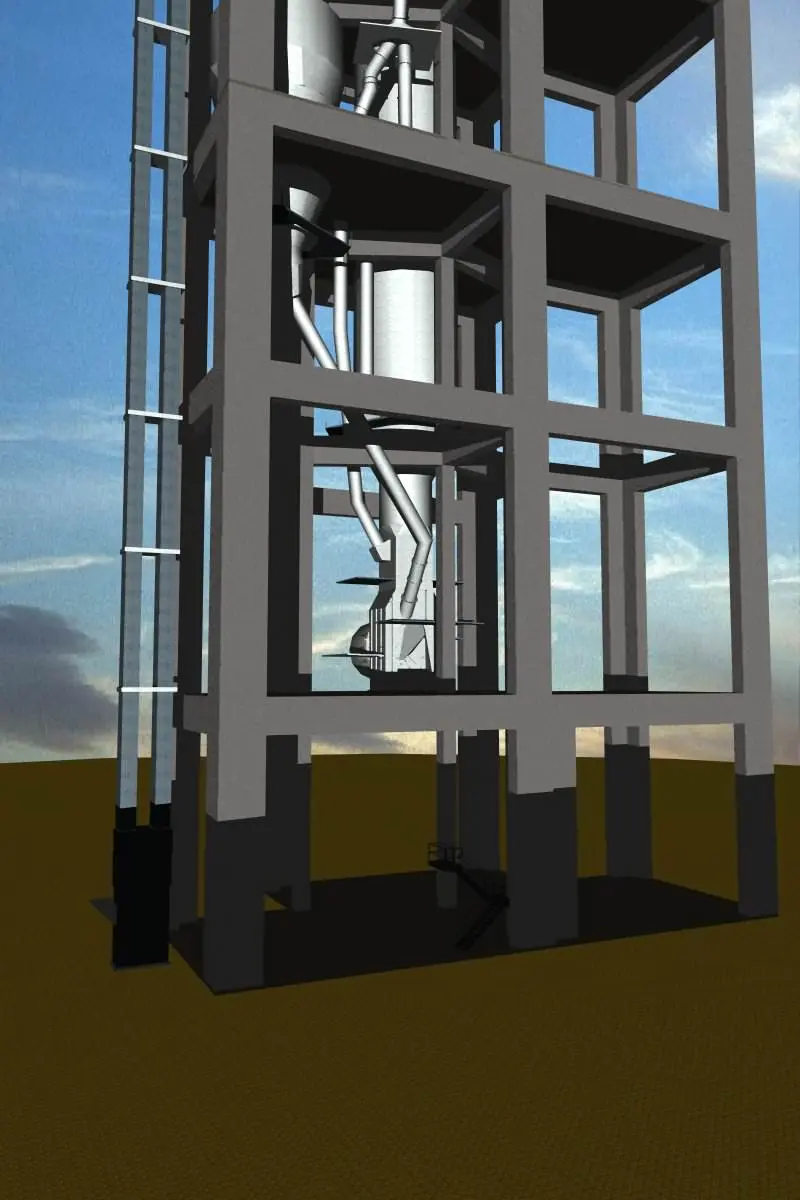

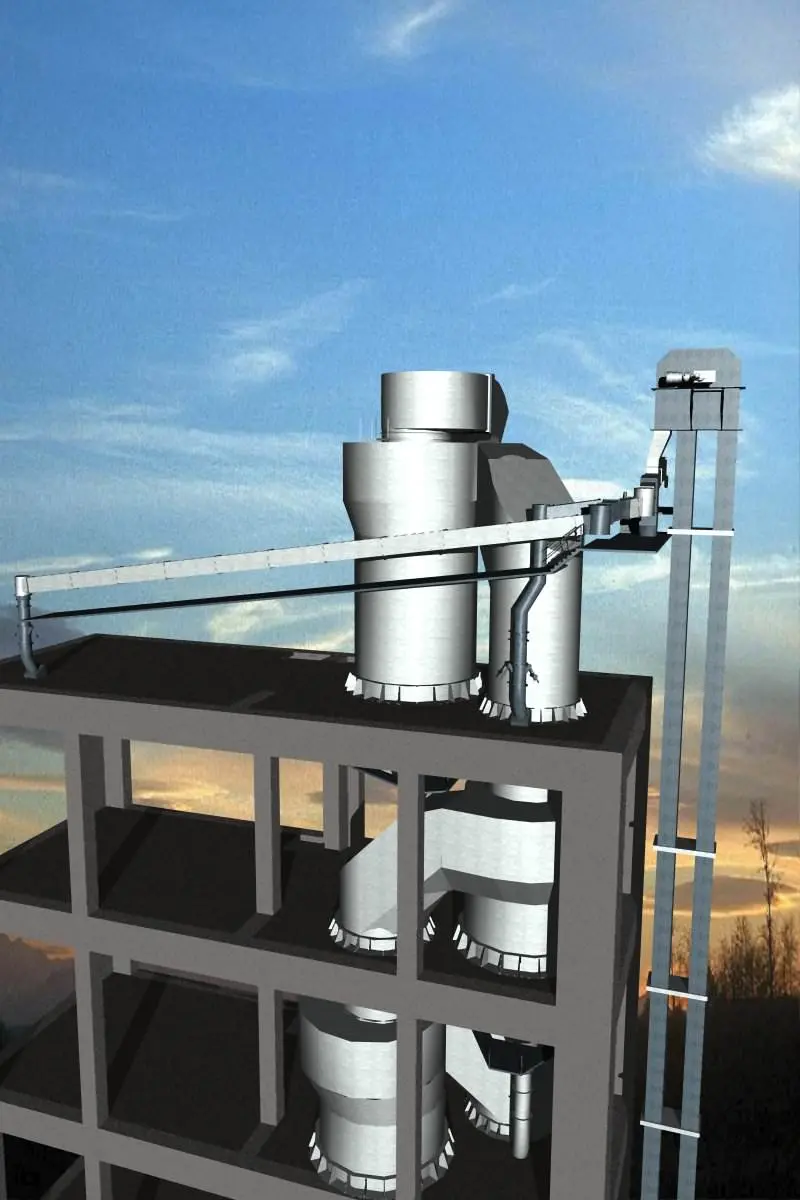

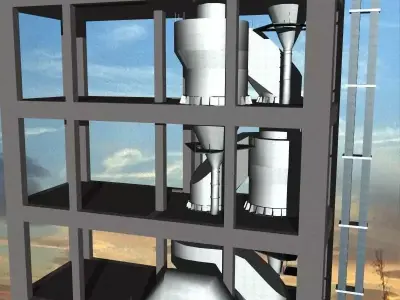

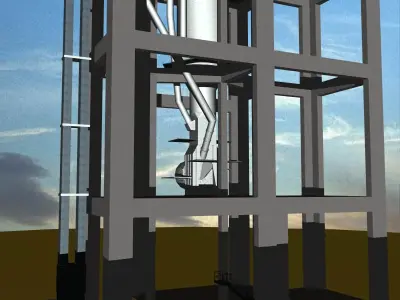

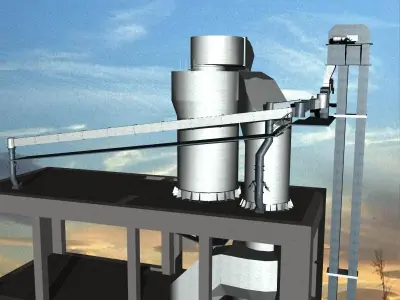

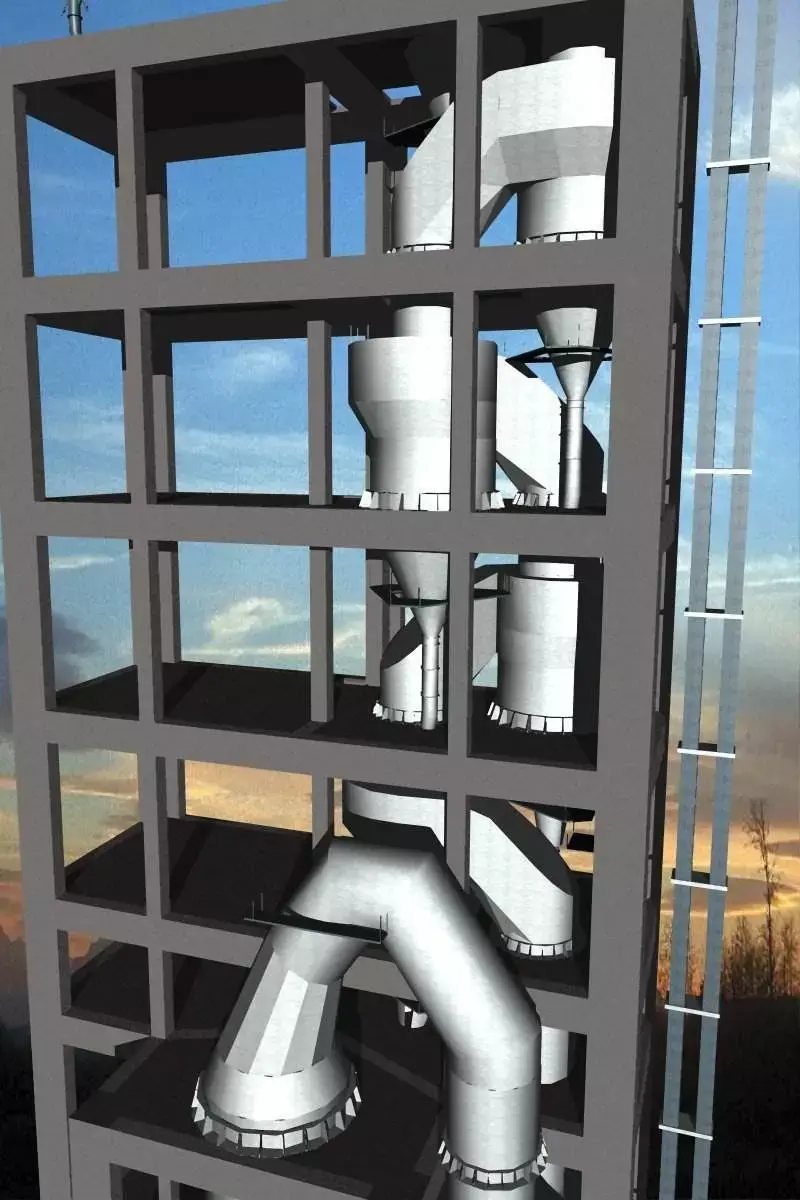

Cyclone Sizes from 1st stage-6.6, 6.6, 6.9, 6.9, 6.9 & 6.9 m. Calciner diameter 8.2 m. Syphone dia. 4.7 m. Dividing Gate dia. 1000 mm. Hot Air inlet dia. 2650 mm. Kiln dia 4.75 m. Smoke Chamber 3.10 x 3.10 m. Bucket Elevator 2750 x 1550. Air slides and all other relevant sizes are mentioned in layers of the 3D drawing

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 0
Vertices: 0

Tags

Industrial Part Cement Cyclone Design Separate Industrial part

All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «harvey-fonseca». CGhub does not claim copyright ownership over the content used.
