Buy Centrifugal Circulating Pump 3D model

Name: Centrifugal Circulating Pump 3D model
Brand: radubruno
SKU: 831187
Price: 5.00 USD
Availability: InStock

License: Royalty Free

author:

radubruno

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «radubruno». CGhub does not claim copyright ownership over the content used.

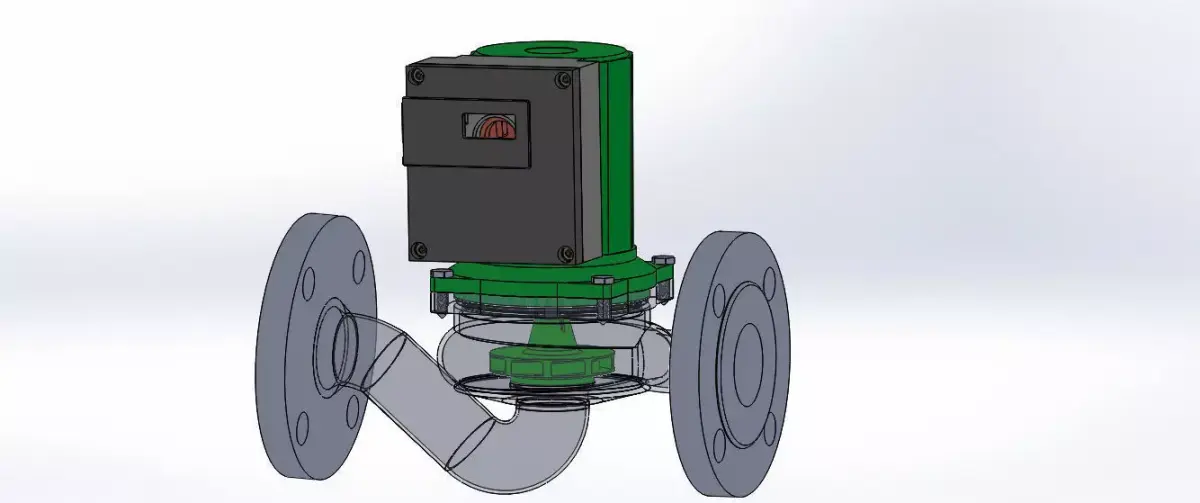

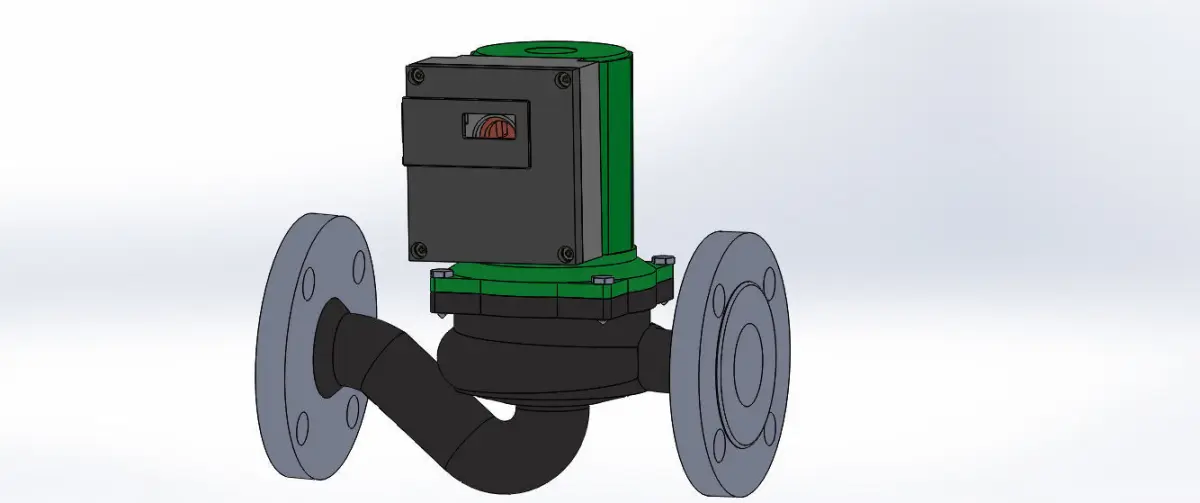

Centrifugal Circulating Pump in: SolidWorks (.prt; *.sldprt; *.asm; *.sldasm), Catia Graphics(.cgr), ProE/Creo Asembly(.asm), Stereolithography(.stl), Dassault Systemes 3D XML(*.3dxml). Construction materials Pump case - manufactured from cast iron The impeller – plastic armed with glass fibre (polifenilenoxid-PPO) The shaft - stainless steel (chrome steel) The bearing – graphite ingrained with metal The pump used drawn and studied in this thesis is Wilo Top S30. This is a circulating pump wet rotor for inline mount with manual reverse of the speed in three steps. This type of pump is used in heating installations, cooling and cold water systems and closed industrial installations.
