Name: Centrifugal Pump Assembly and Exploded View 3D model
Brand: ESIndustrial3D
SKU: 892237
Price: 19.00 USD
Availability: InStock

$19

License: Royalty Free

author:

ESIndustrial3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «ESIndustrial3D». CGhub does not claim copyright ownership over the content used.

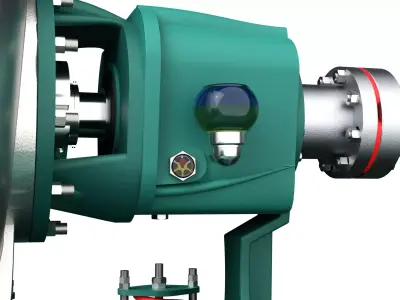

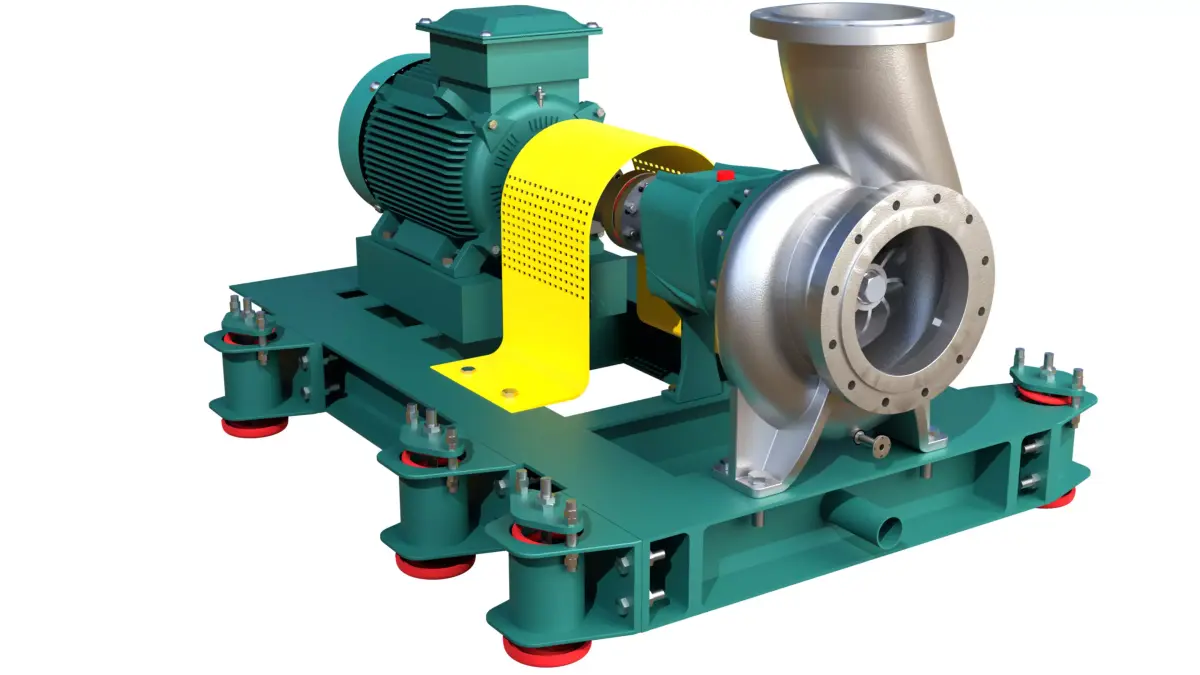

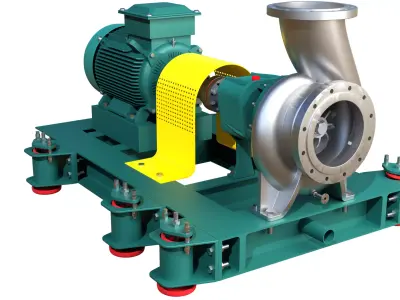

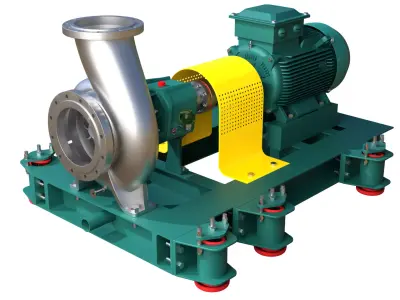

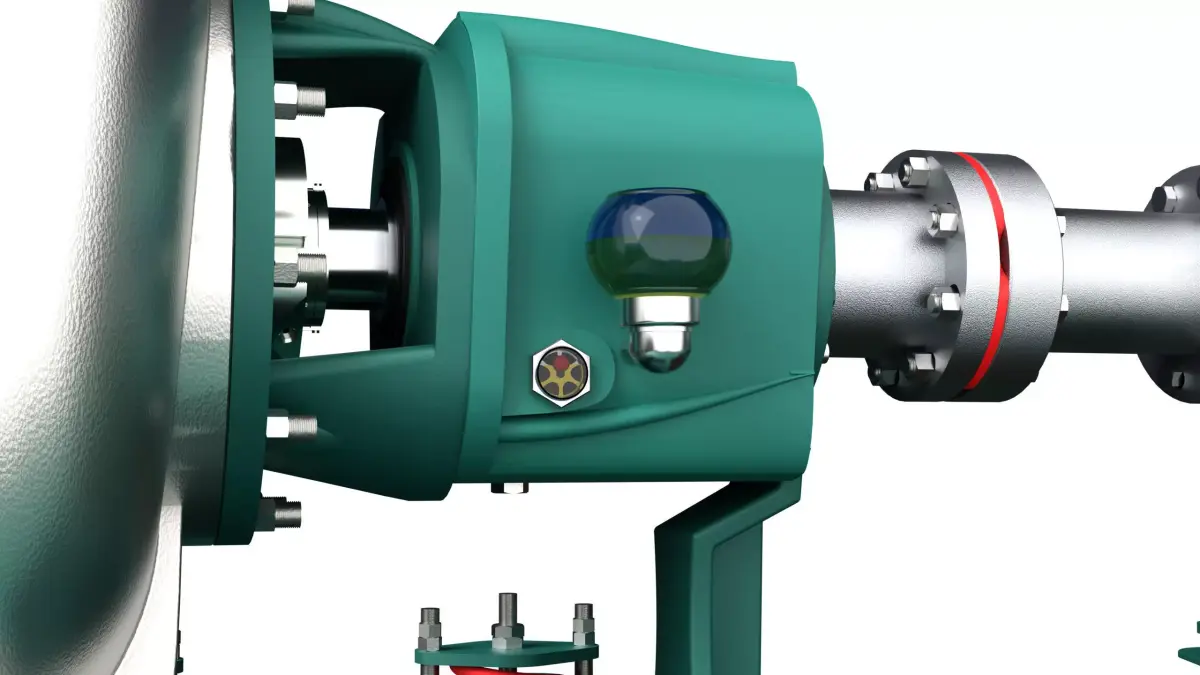

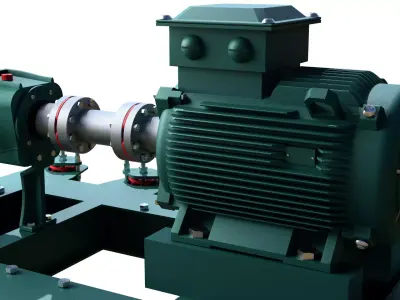

This model represents a detailed 3D CAD assembly of an industrial centrifugal pump with electrical motor .

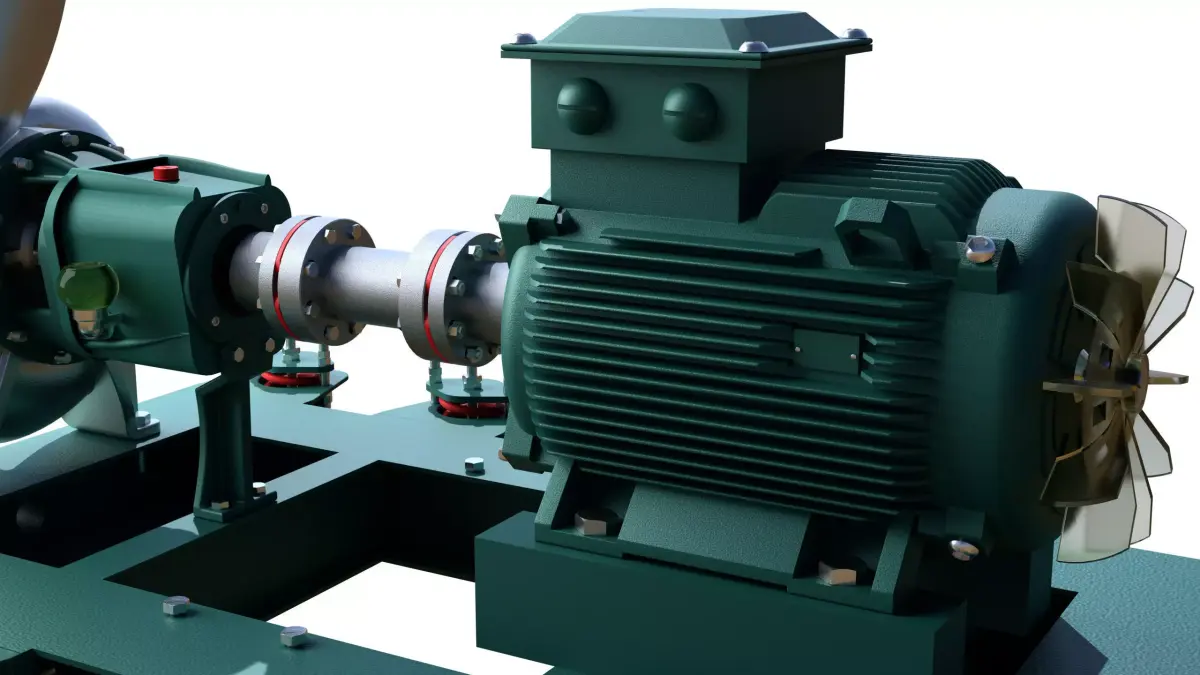

The model includes the full pump unit with motor, coupling, base frame supported with spring . All parts are organized and suitable for mechanical visualization, engineering presentations, and industrial equipment rendering.

Features:• Detailed mechanical pump assembly• Exploded view for all components• Clean and organized CAD structure• Suitable for mechanical engineering projects• High quality render-ready model

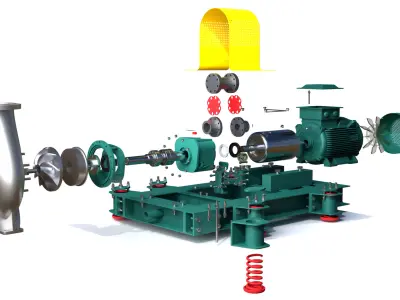

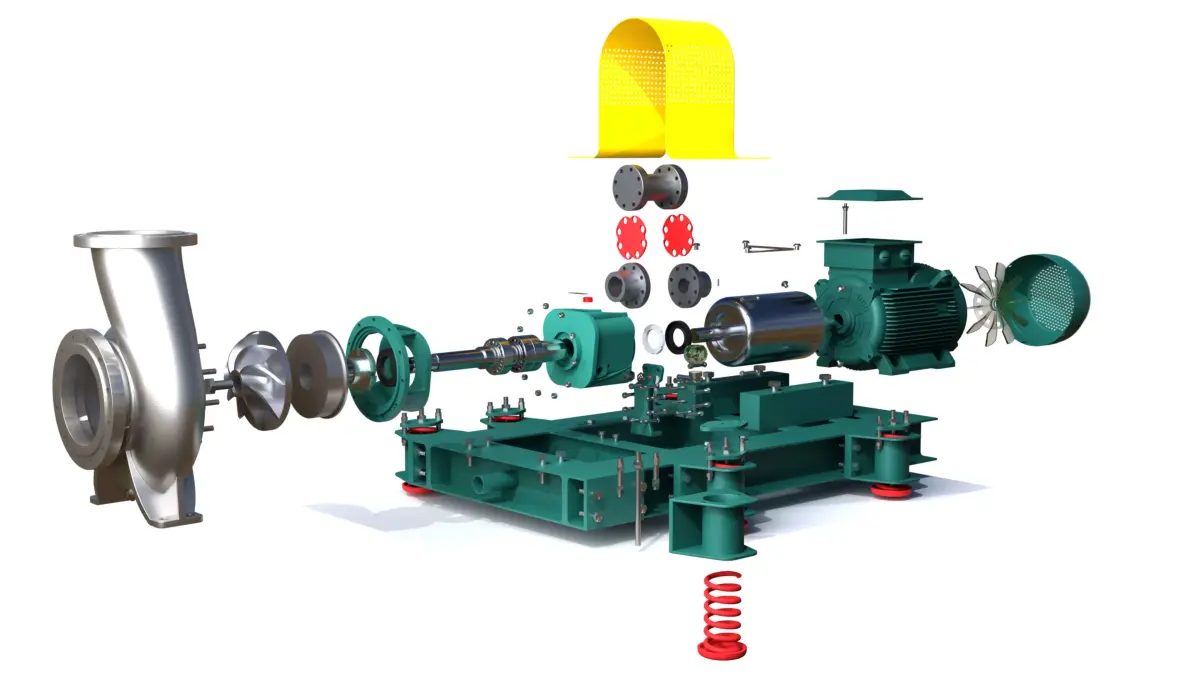

The Blender file contains two scenes:1- Full pump assembly2- Exploded view showing internal components

Software used:• SolidWorks – CAD modeling• Blender – Rendering and visualization

Available formats:BLENDFBXOBJSTLSLD ASMSLD PRTSTEPThis model is suitable for industrial visualization, mechanical design presentations, and engineering projects.

Created by ES Industrial 3D.
