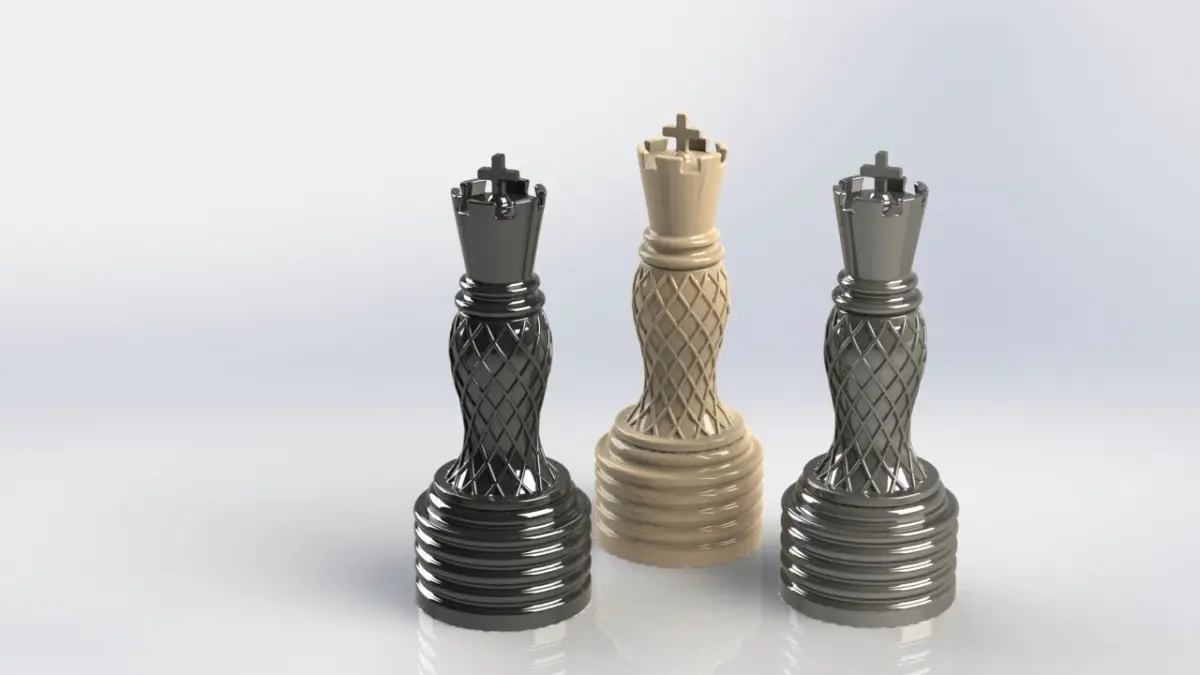

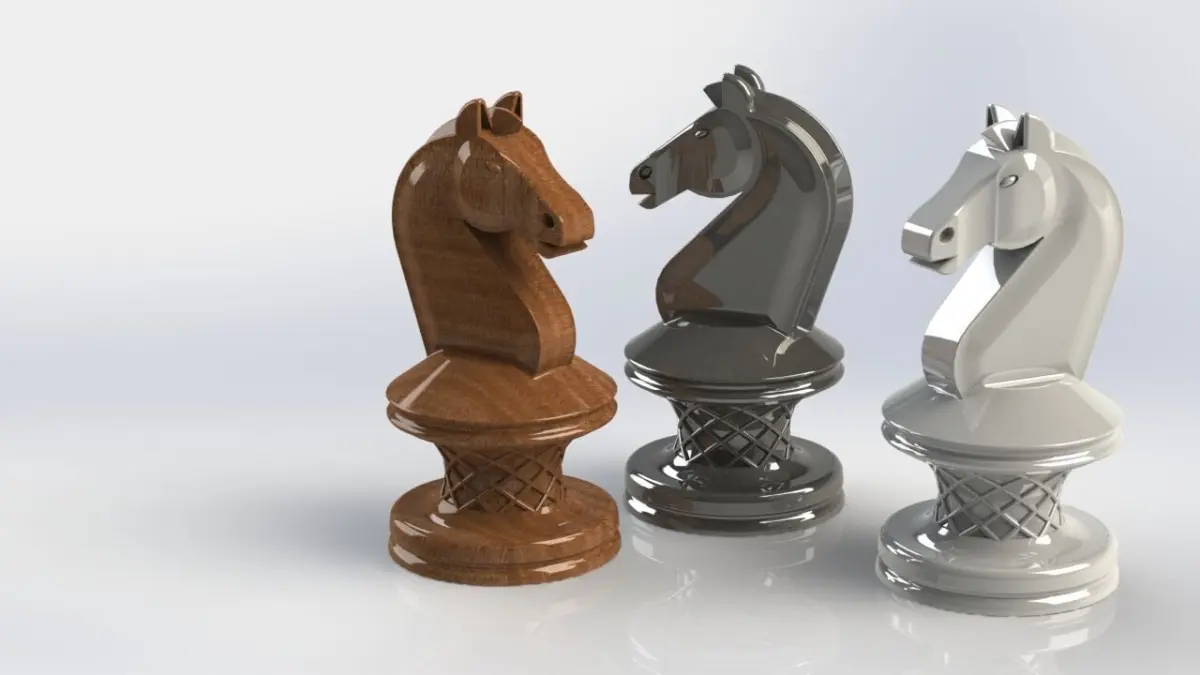

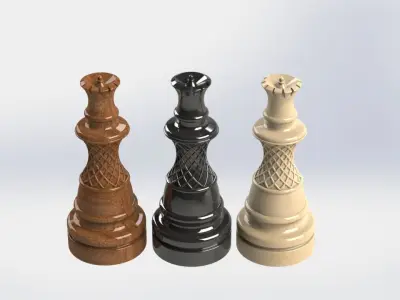

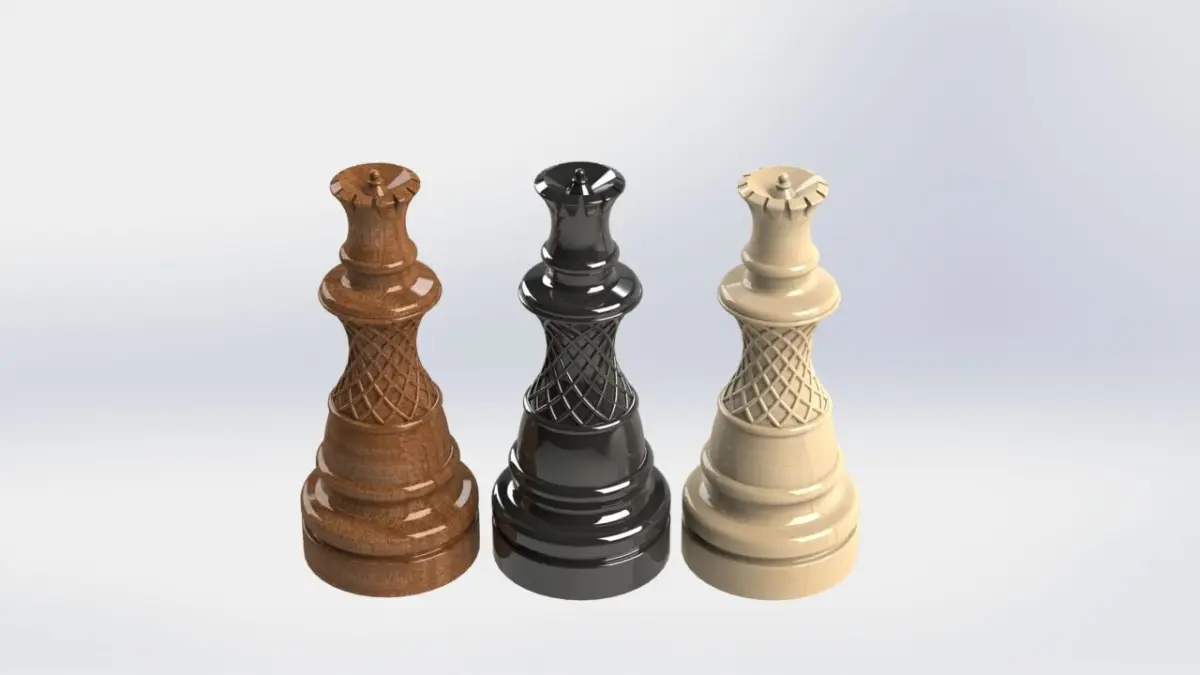

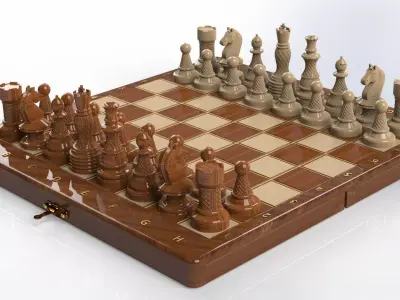

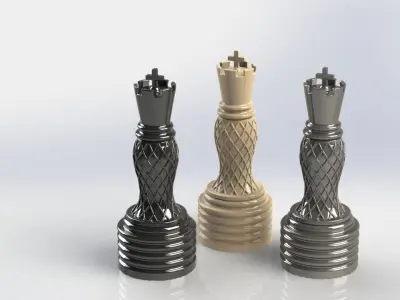

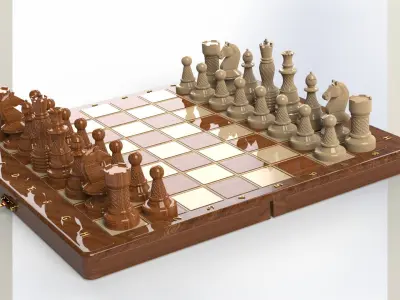

A complete stylized chess set ready for 3D printing or CNC manufacturing.The board is designed as a foldable assembly made of wooden parts with integrated piece storage.Each piece comes with a technical drawing, 3D models (.STEP, .STL, .IGS, .SLDPRT) and renders.Assembly instructions and exploded views included.Designed for personal or commercial use.

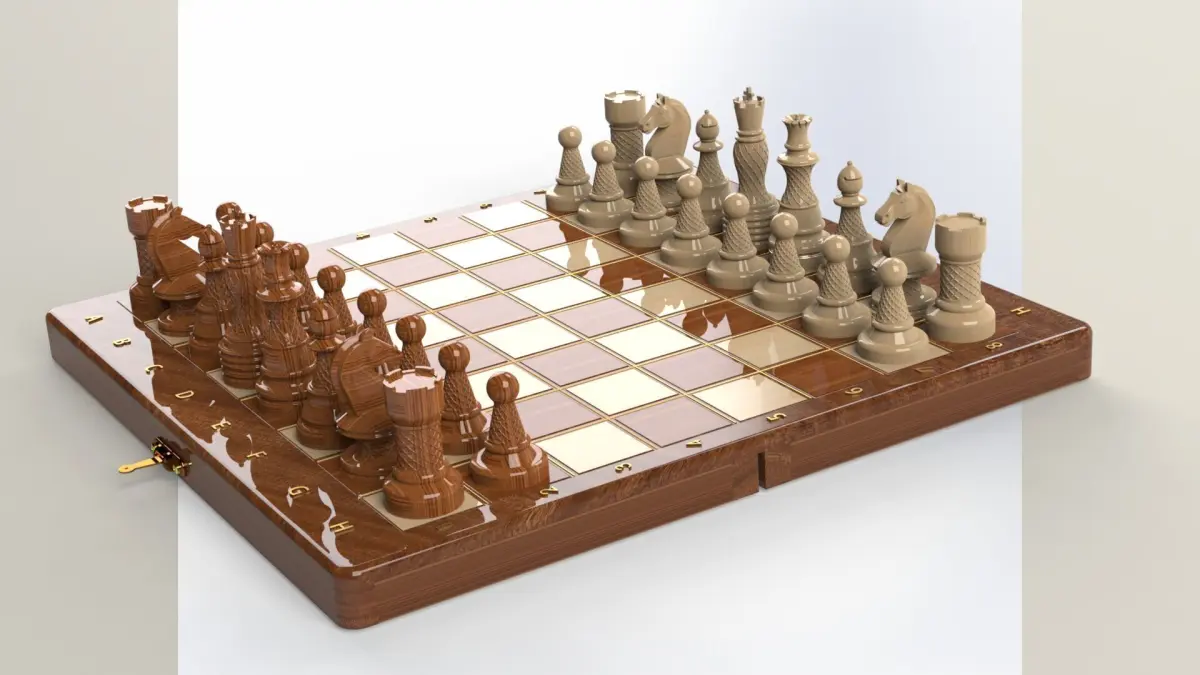

*The chessboard shown in the embedded YouTube video on this page does not differ significantly in dimensions from the model sold in this package. The gold threads between the squares, gold letters and numbers indicating piece positions, fillets on larger slats, and extruded squares instead of decal stickers were added purely for aesthetic purposes, resulting in a more visually refined and sophisticated final product. However, all dimensions and parts remain exactly as modeled and detailed in the technical drawings and files.
For a detailed walkthrough of the modeling process, please visit my YouTube channel: https://www.youtube.com/@nikolastankovic4540.
Native Formats: SLDPRT (SolidWorks, filesize: 94 MB)
Exchange Formats: PDF (PDF, filesize: 94 MB), IGE (IGES, filesize: 188 MB), STL (Stereolithography, filesize: 94 MB), JPG (JPG, filesize: 94 MB), STP (STEP, filesize: 94 MB)
