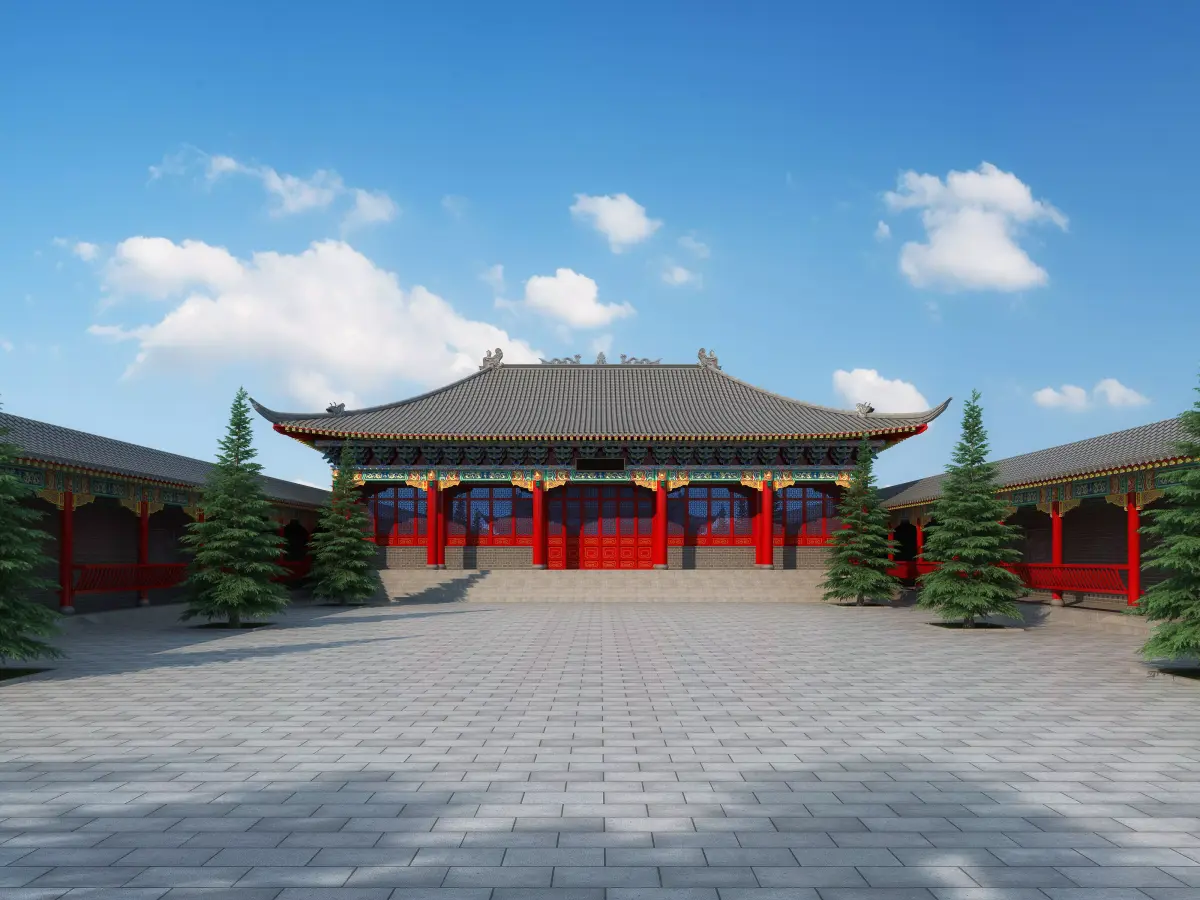

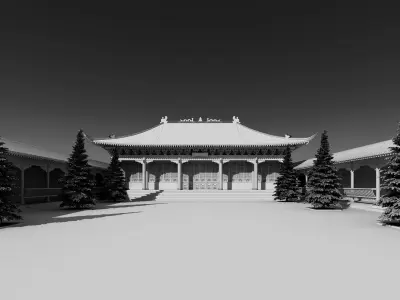

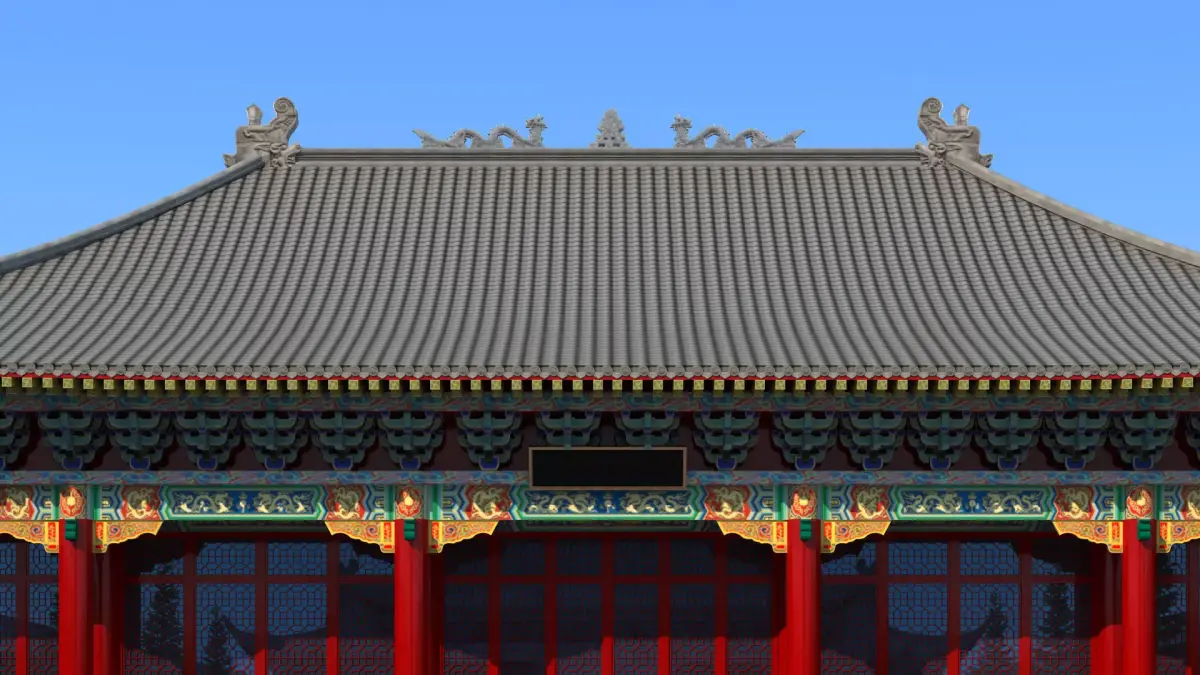

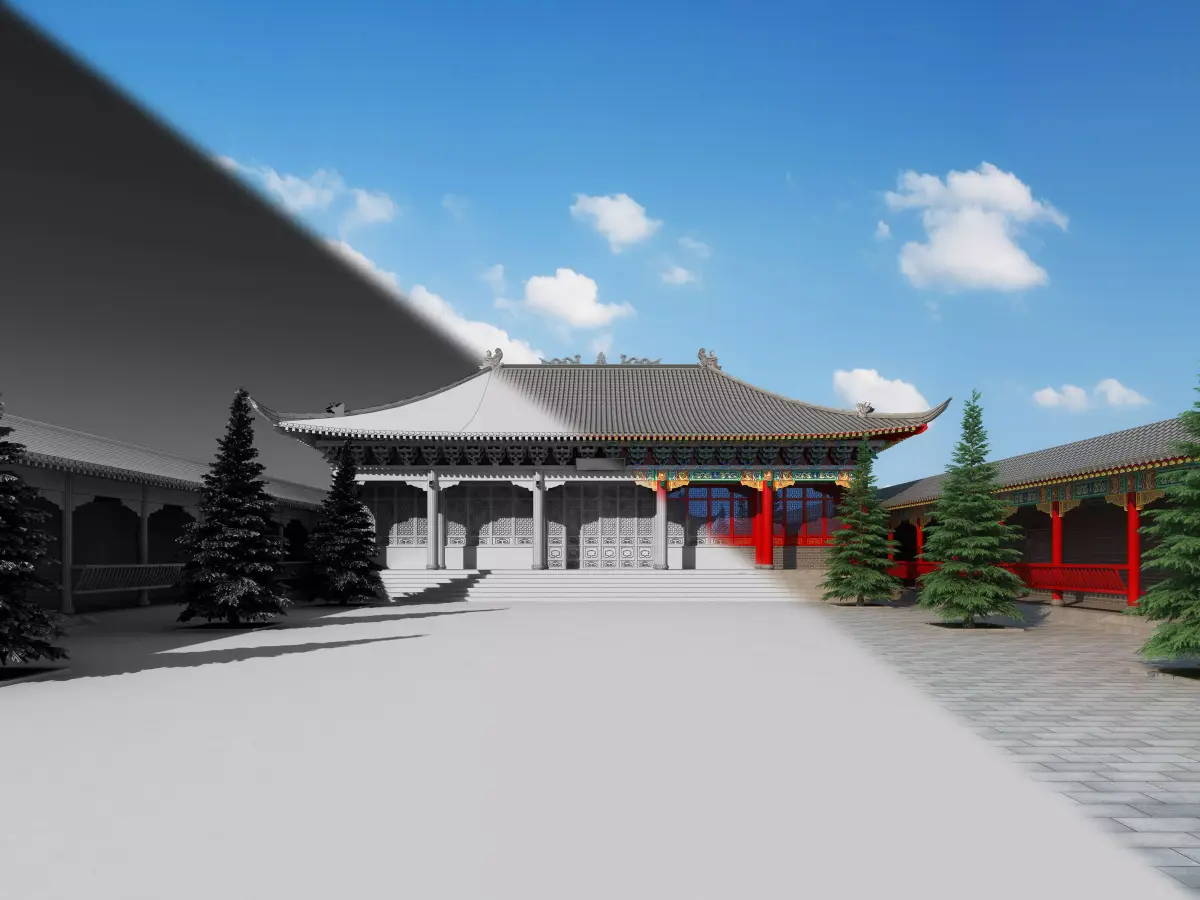

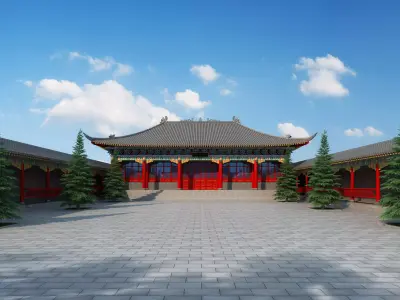

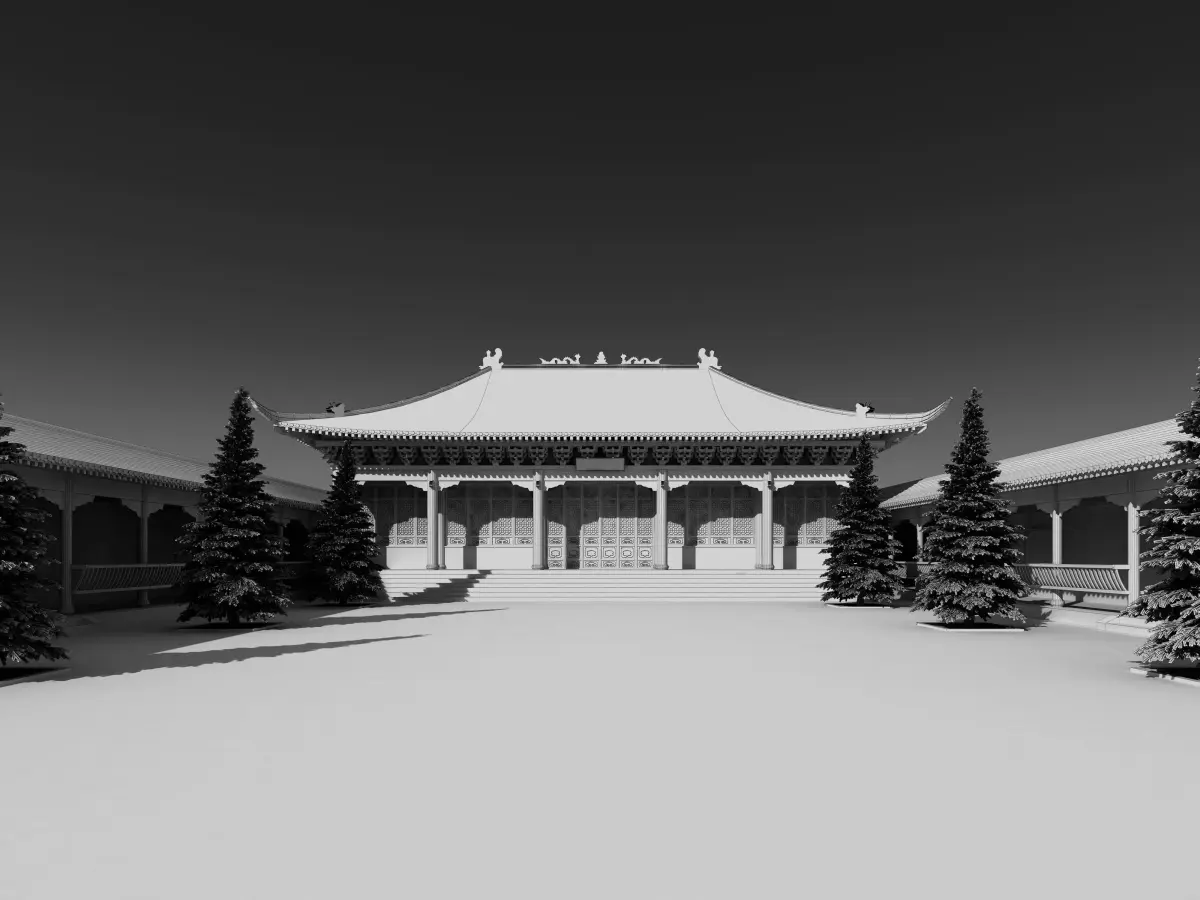

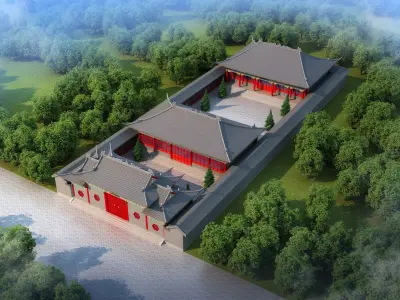

The design of this ancestral hall adopts a traditional courtyard layout with three courtyards and symmetrical central axis. The mountain gate, enjoyment hall, and sleeping hall are arranged along the central axis in sequence, surrounded by corridors on both sides, forming a complete pattern of front hall, back sleeping hall, symmetrical left and right. The overall orientation facing north and south not only conforms to traditional feng shui regulations, but also ensures building lighting and ventilation. The courtyard progresses layer by layer, transitioning from an open front square to a solemn sacrificial space, creating a sense of ceremony from the outside to the inside, from movement to stillness, which is in line with the solemn atmosphere of clan worship. The building is surrounded by high walls and blends naturally with the surrounding trees, which not only ensures the privacy of the ancestral hall, but also reflects the traditional creative wisdom of gathering wind and energy.The main body of the building adopts the traditional shape of the combination of Xieshan Mountain and gable roof: the mountain gate is a multi eaved Xieshan Mountain, the eaves are flexible, and the eaves are decorated with kissing animals and ridges, highlighting the majesty of the entrance; The Xiangtang and Dormitory adopt a single eave gable roof, with blue and gray tube tiles on the roof, and the lines are gentle and smooth, retaining the solemnity of traditional architecture while avoiding excessive complexity. The facade features red columns, grey walls, and red doors and wooden windows as the core color scheme. Red symbolizes the prosperity of the clan and the connection of blood, while blue grey tiles and plain walls reflect a calm and introverted temperament, in line with the spiritual core of the ancestral hall's respect for ancestors and pursuit of distance.Model making: 3ds Max 2014Renderer: VRay 3.60.03 for 3ds Max 2014
OBJ (OBJ, filesize: 75.1 MB), MAX (Autodesk 3ds Max, filesize: 46.7 MB), JPG (JPG, filesize: 182 MB), FBX (Autodesk FBX, filesize: 60 MB)
