Clappers positioning structure 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

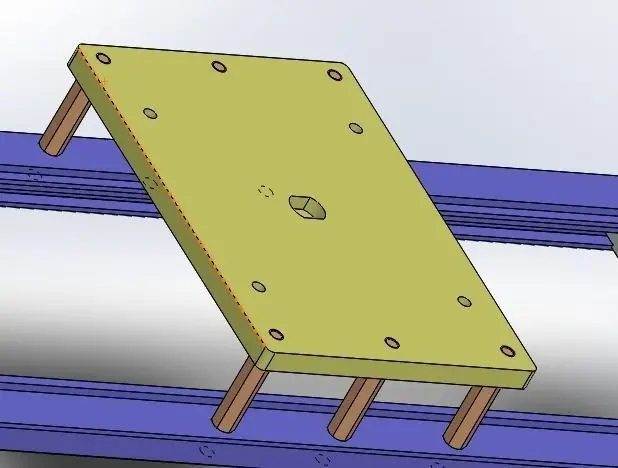

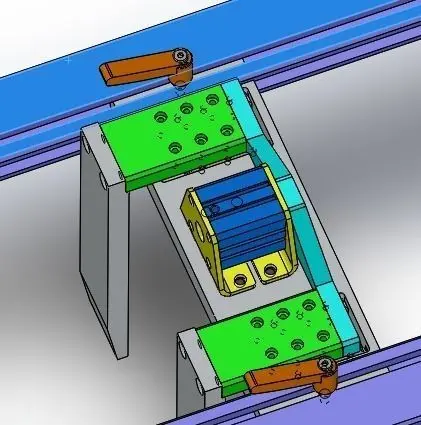

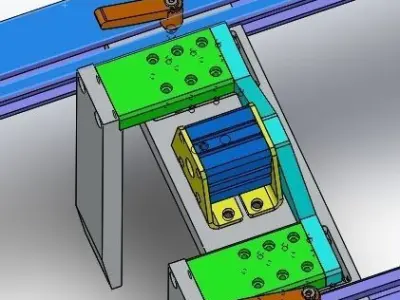

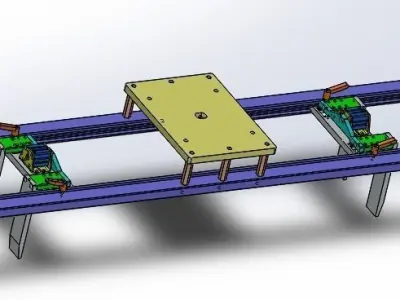

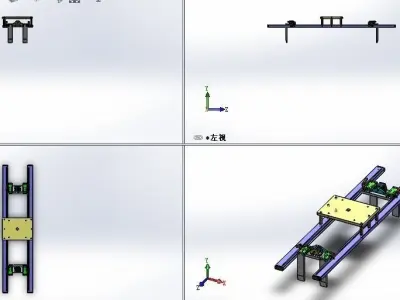

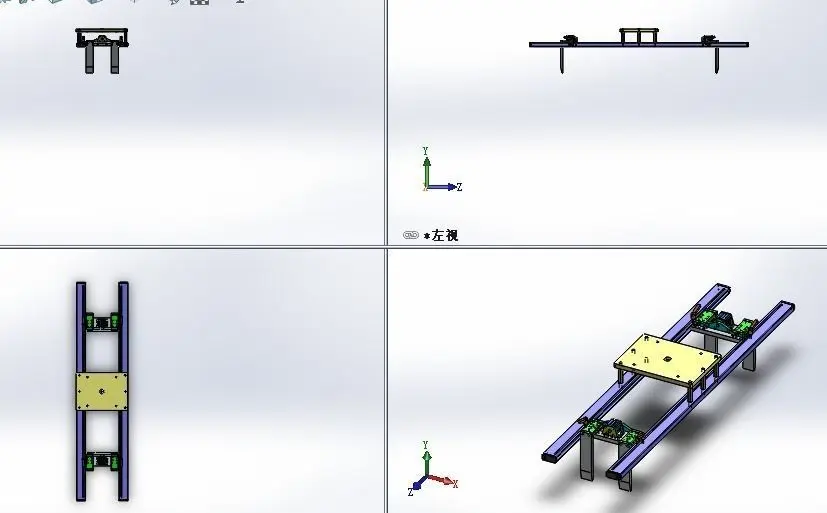

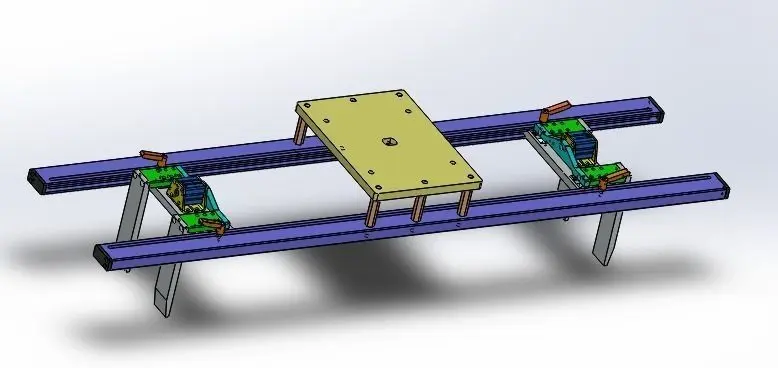

Clappers positioning structure, the agency adopts cantilever structure, installed on the frame of the agency, the agency by coarse location size, fine adjustment clappers, around through the cylinder to size the incoming products positioning.The advantages of this mechanism are: 1. Large size coarse adjustment structure, 2. Small size cylinder positioning size.In this paper, the accuracy of positioning and the classic reliable model are obtained by using the two methods.This model is transformed into step and iges general model download, please refer to!Also includes 3d original files, welcome to download!if you like,you can paypal for you to get this models or if you have any questions also you can email to me.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs:
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Positioning Large Size Cantilever Clapper Adjust Cylinder Clamping Fixture Manually Machine Industry Equipment Manufacture Production Assembly Factory Automatic Engine Industrial Industrial machine Industrial factory
