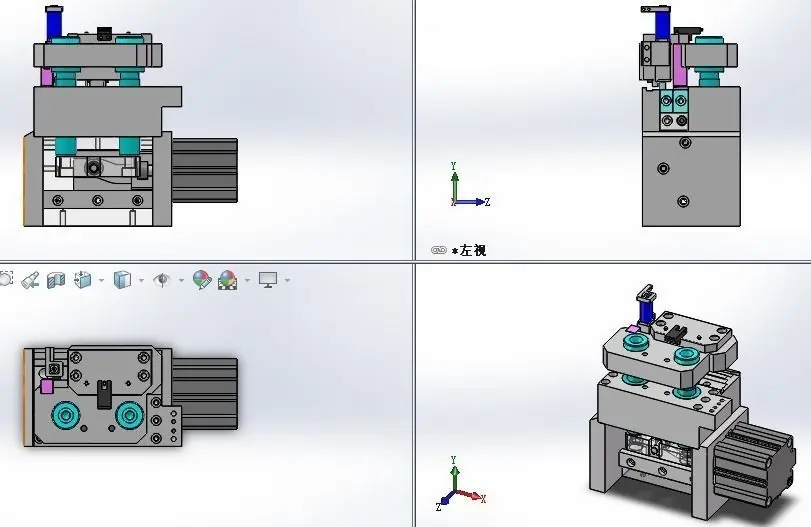

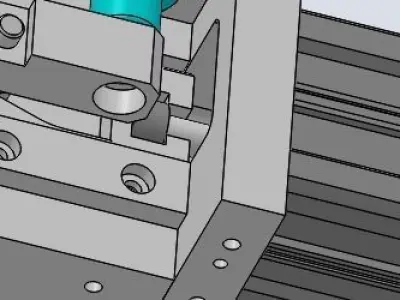

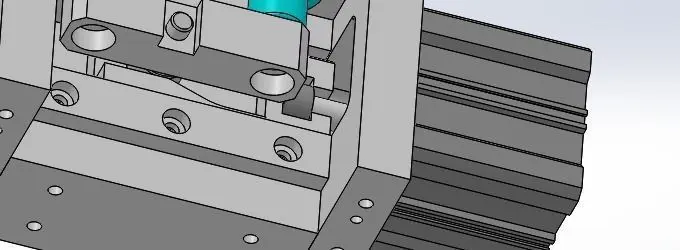

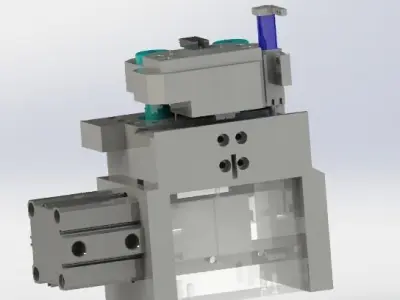

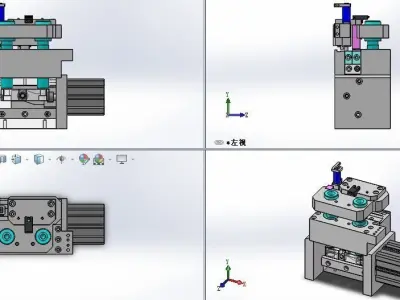

Clever z axis transverse mechanism 3D model

$18

License: Royalty Free License

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

Description

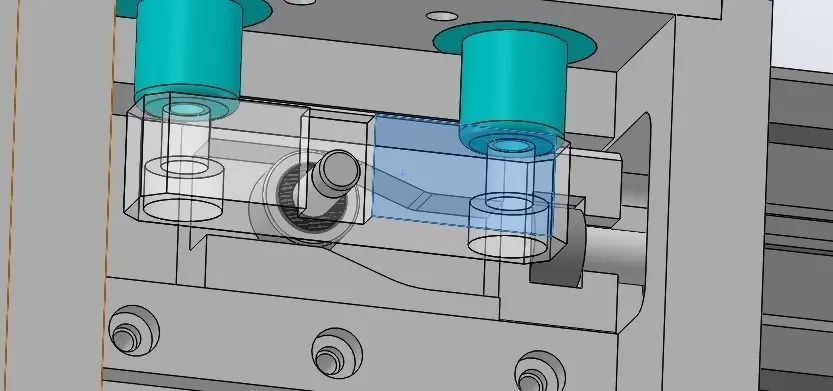

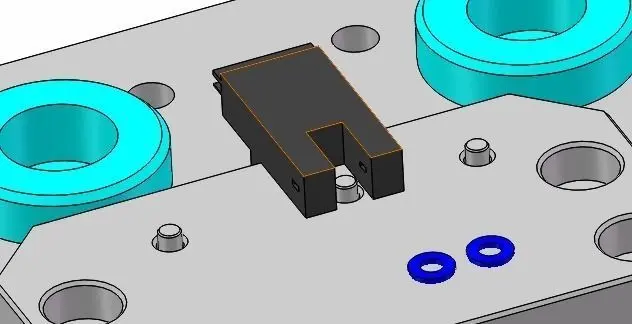

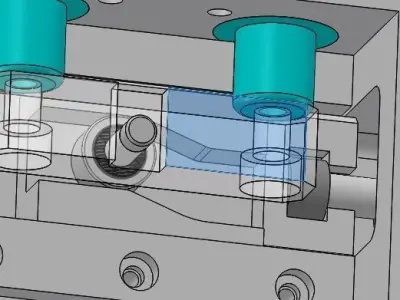

Clever z axis transverse mechanism, the mechanism of the mechanism is to transfer the cylinder to the upper and lower, through a non-standard card slot to realize the mechanism function.Very clever, pay attention to in the design of the card slot, should pay attention to the design of radian, otherwise very easy card dies, the journey holds dead.This model is transformed into step and iges general model download, please refer to! Also includes 3d original files, welcome to download!if you like,you can paypal for you to get this models or if you have any questions also you can email to me.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: -
Polygons: Unknown
Vertices: 0

Tags

Shift Cylinder Transverse Bear Device Laminate Position Industrial Machine Industry Equipment Manufacture Production Assembly Factory Part Industrial machine Industrial part Industrial factory
