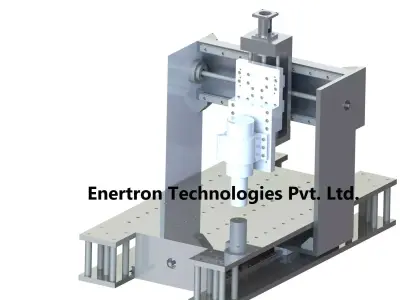

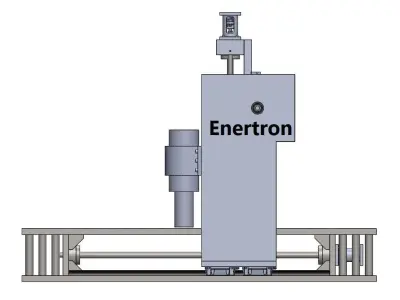

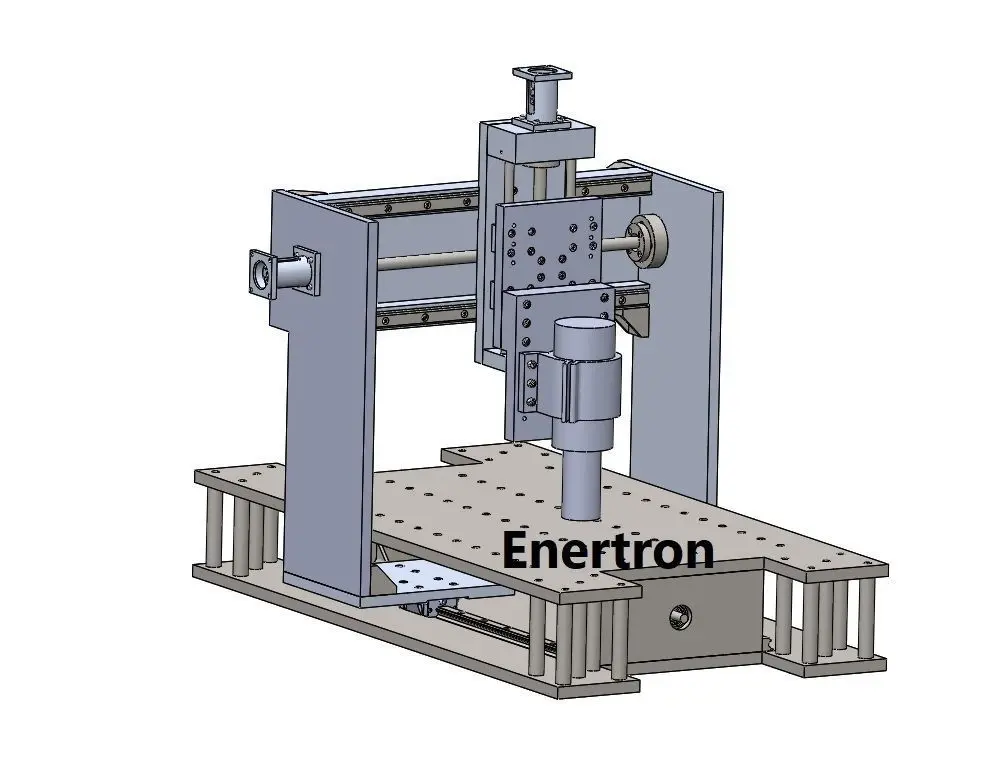

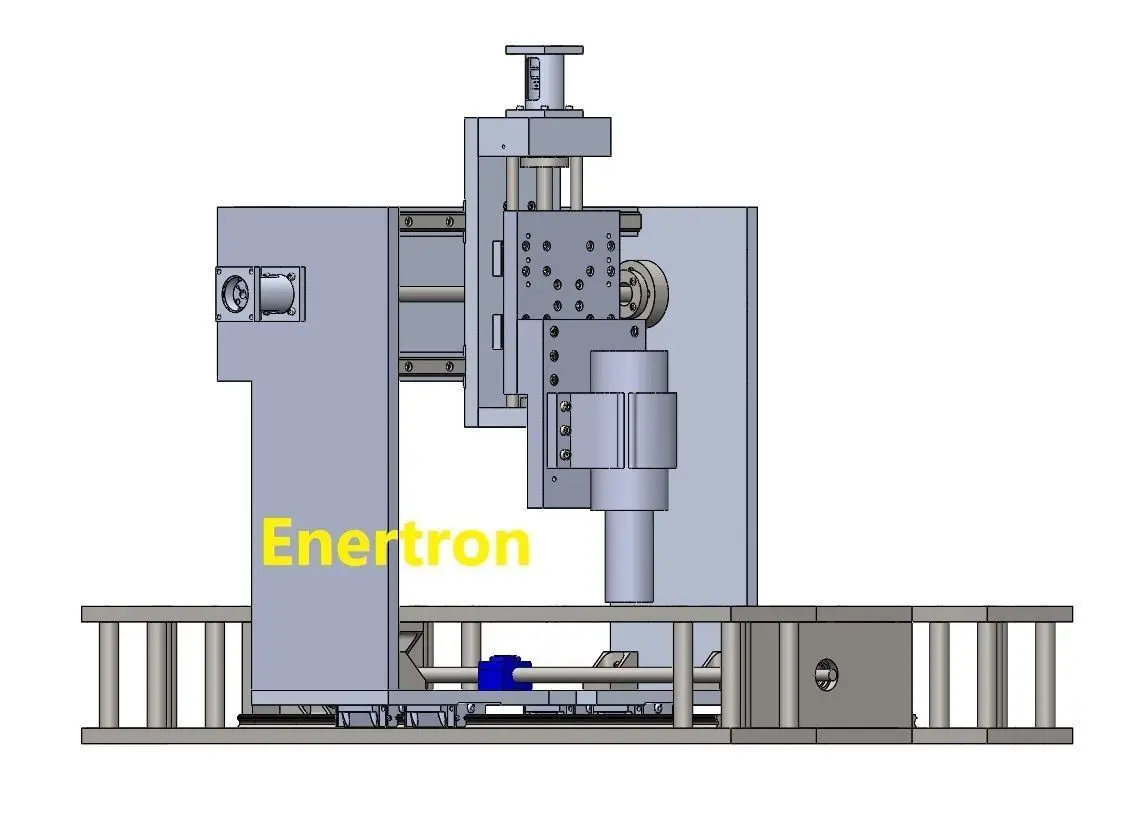

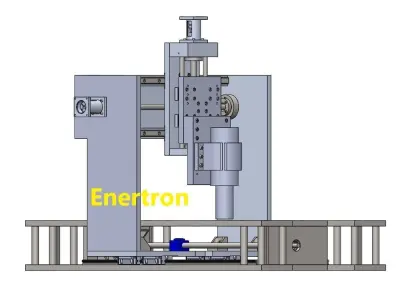

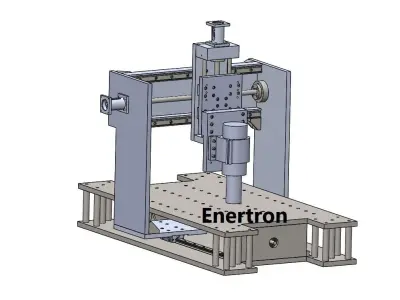

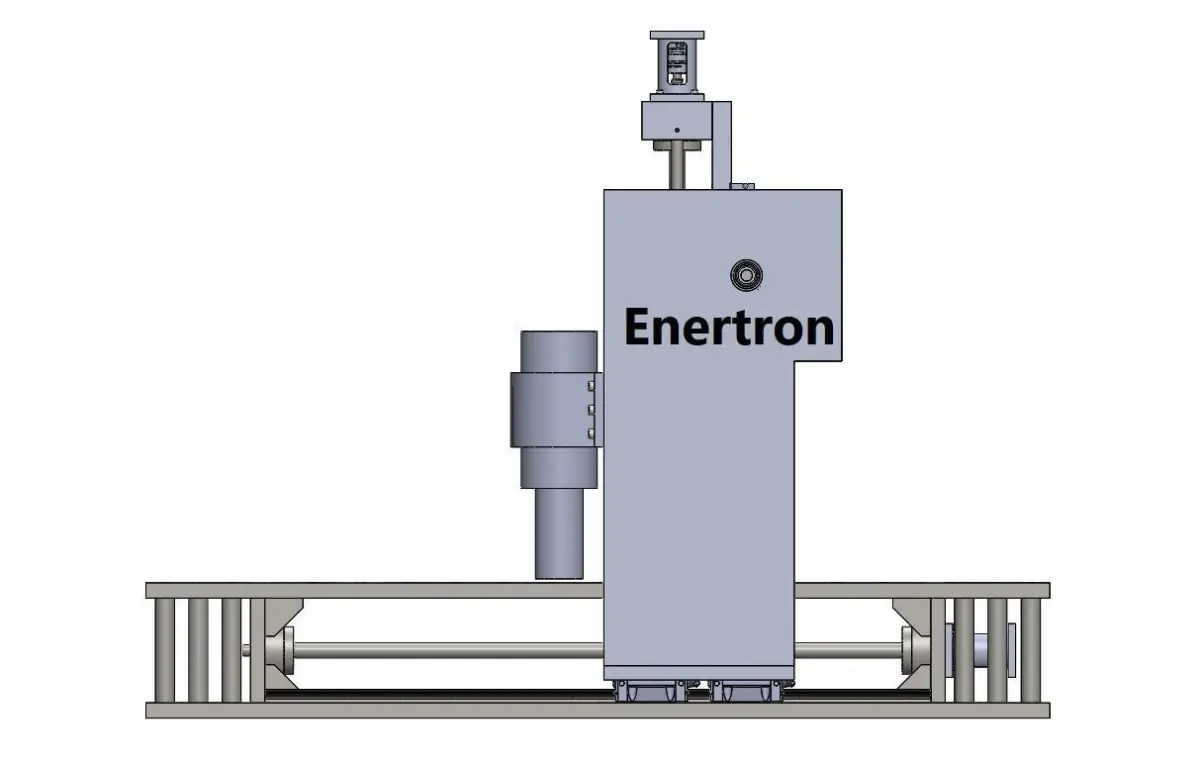

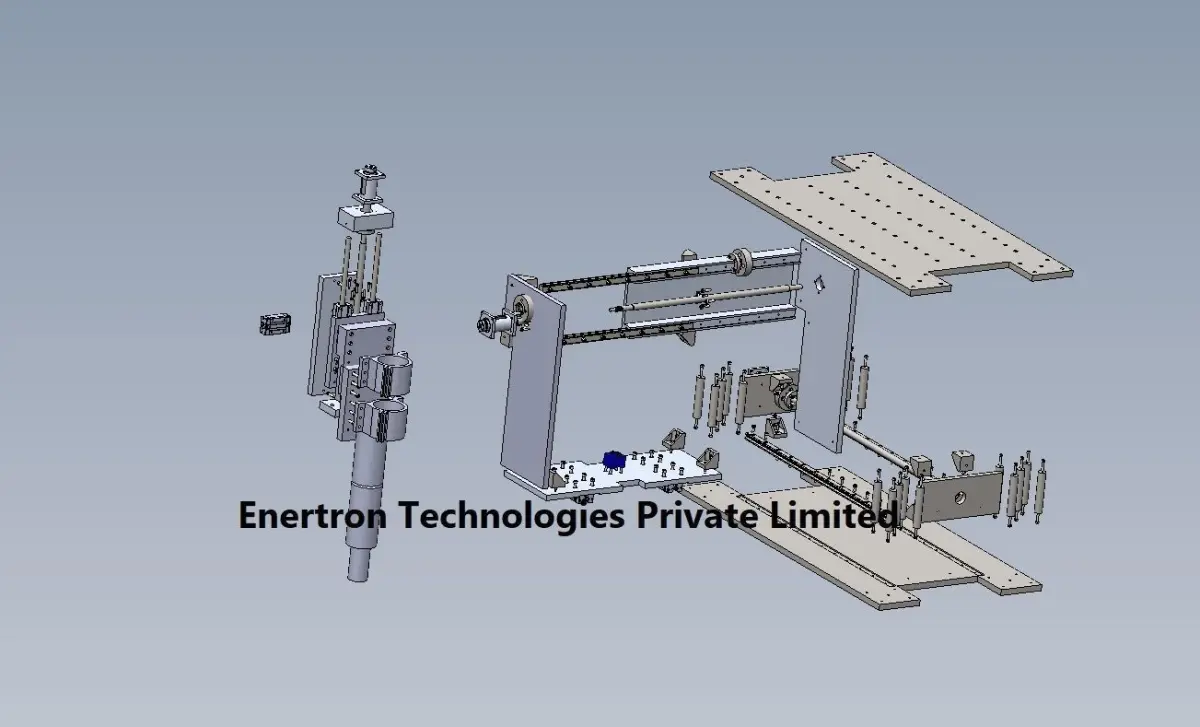

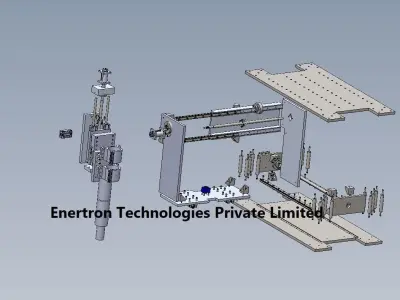

CNC Mini Router 3D model

$80

License: Royalty Free

author:

enertron

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «enertron». CGhub does not claim copyright ownership over the content used.

This machine is used to engrave on Wood, Aluminum, Acrylic and other light metals. The working demo is shown in video attached.

Bed Type M12 types hole with rigid MS baseMachine Type Vertical Machining CentersDimensions 1050mm × 750mm × 700mmMaximum working area 350mm × 320mmX-axis travel 320mmY-axis travel 350mmZ-axis travel 45mmCutting Spindle 1.5KW Air – Cooled SpindleER11 ColletTool Diameter: 3 to 7 mmVariable Speed 6000 to 24000 rpmXY-Travel speed 5500 mm/min (Variable)Ports USB 2.0Control language Standard G-Code, M-Code ProgrammingLanguageElectrical Drive Hybrid Servo motor 2- PHASE 22KG-CM 1000LINE ENCODERMechanical Drive Hiwin ball screw with linear- guidewaysInterpolation Linear and circularCommand Type Absolute and IncrementalProgramming G, M, X, Y and Z CodeInput System Metric/InchControl Axis Simultaneous axisType Of Control System PC/Laptop based systemAddressable Resolution 0.025 mmPower supply Input Voltage: 230V-240V ACInput Current: 2.5 A – 3AFrequency: 50HZ , 1 PhaseWeight 200 Kilograms
