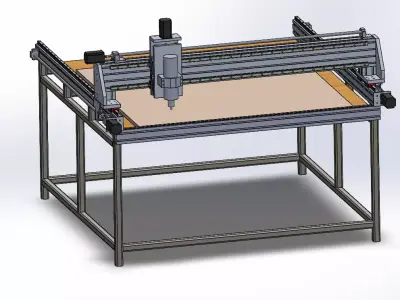

CNC Router - 1500x1500mm 3D model
CNC Router - 1500x1500mm 3D model
CNC Router - 1500x1500mm 3D model
CNC Router - 1500x1500mm 3D model
CNC Router - 1500x1500mm 3D model

Publication date: 2021-01-19

Buy CNC Router - 1500x1500mm 3D model

$10

License: Royalty Free

author:

georgeion88

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «georgeion88». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $10 Add to Wishlist
  • Description
  • Formats

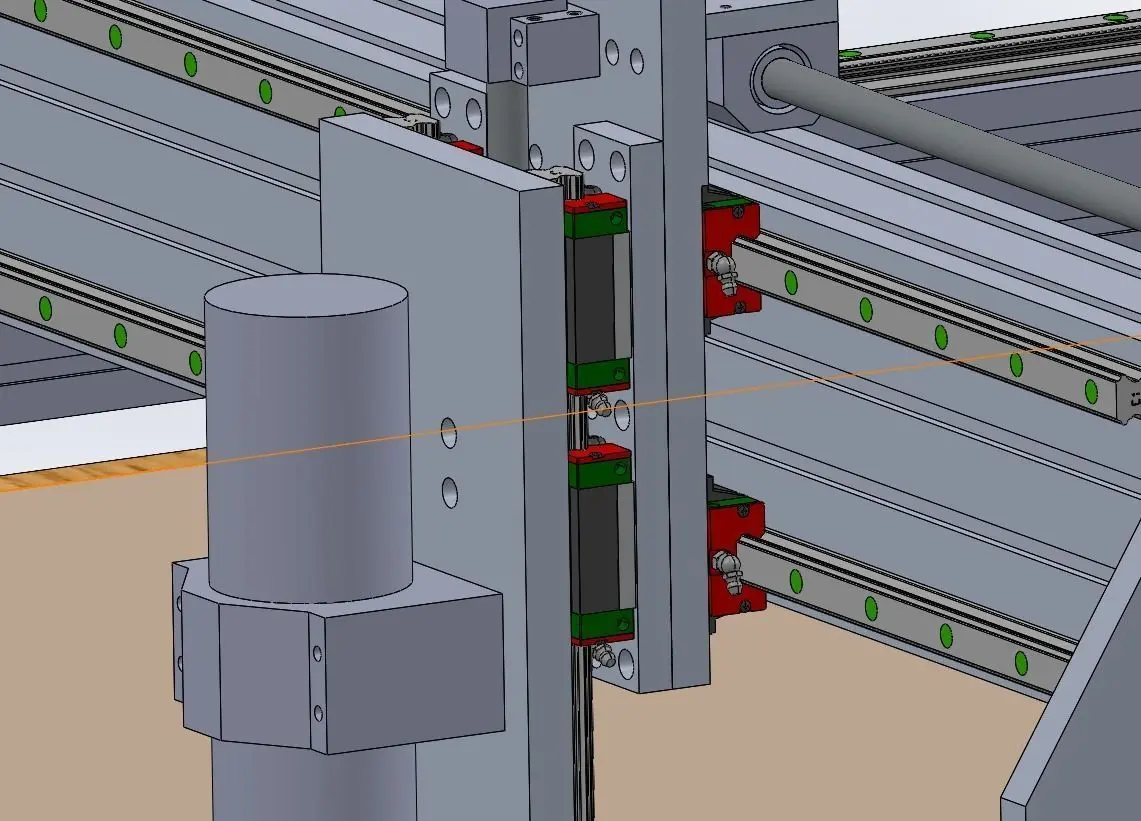

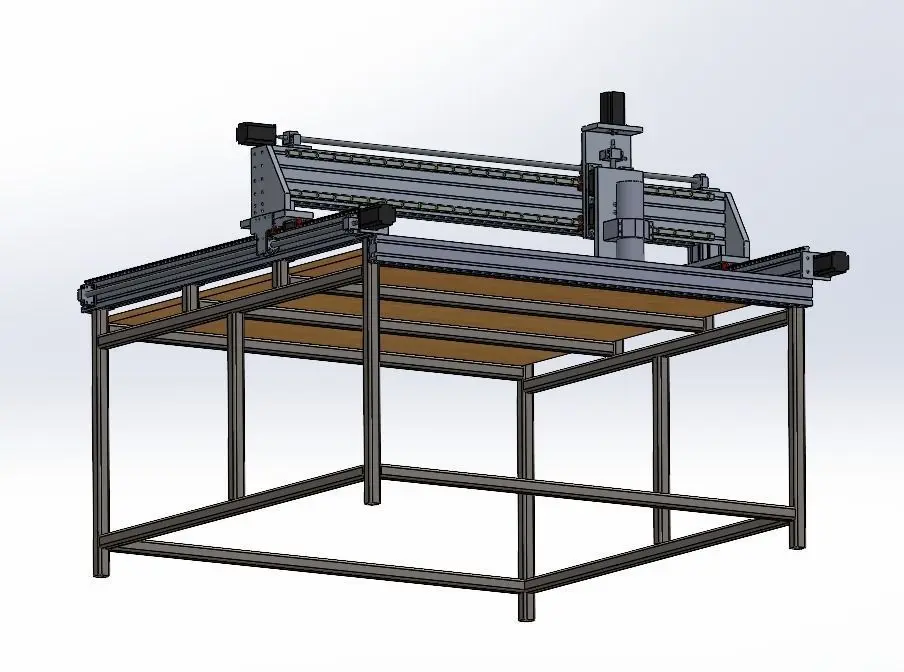

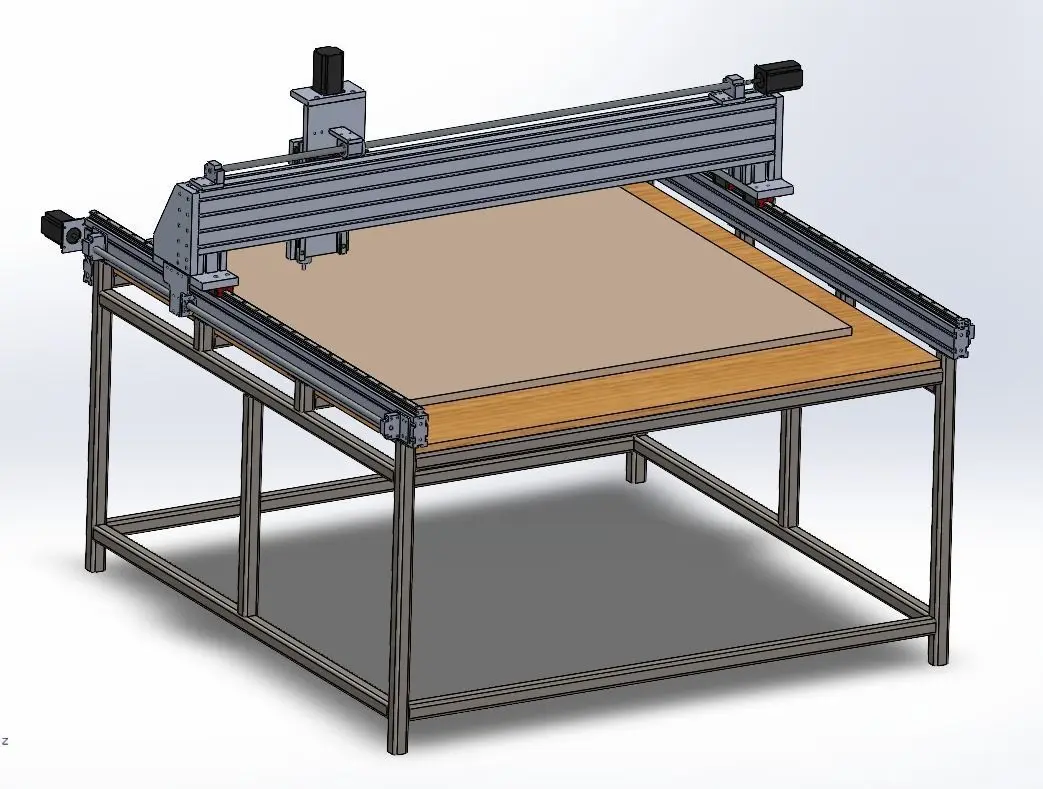

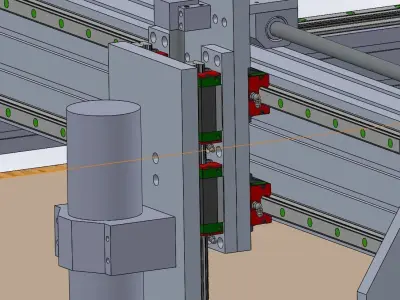

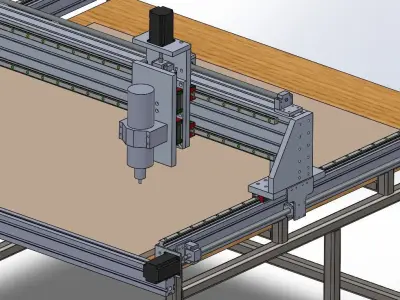

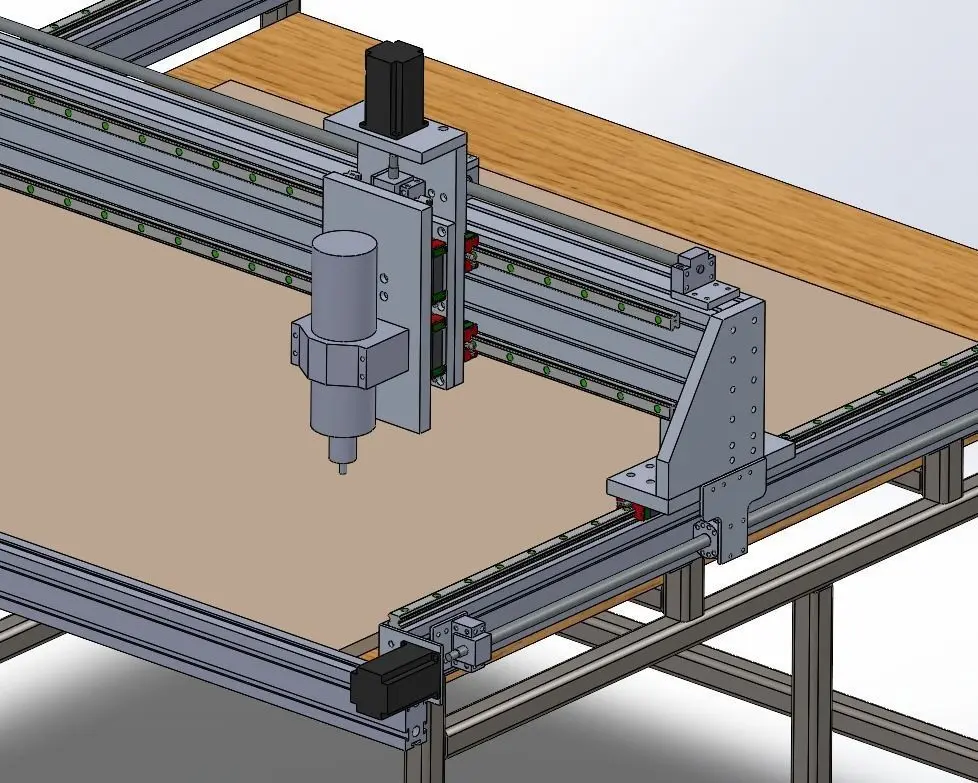

Compleat 3D Design of CNC Router with size 1500x1500mm.Working area:1350x1350x120mm.Design made only with standard components.Motors: Nema 24Linear Carriage Slides: Hiwin HGH20CA and HGW20CC( it may be used also the chinese version )Linear Rail : Hiwin HGR20R 2x1600mm, 2x1500mm and 300mmBall screw: SFU1605 3x1500mm 1x300mmExtrude Aluminium profile used : 80x160mm, 40x80mmAluminium plate thickness: 5mm, 10mm and 20mm.

SLDPRT (SolidWorks, filesize: 5.83 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Plugins used
  • Geometry: Other

Tags

Cnc Router Machine Wood Aluminium Profile Ball Screw Equipment Technology Industrial Industrial machine Cnc router Cnc machine Wood screw
